Cabin Temperature Sensor / Switch: Service and Repair

Inside Air Temperature Sensor Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the instrument panel under cover.

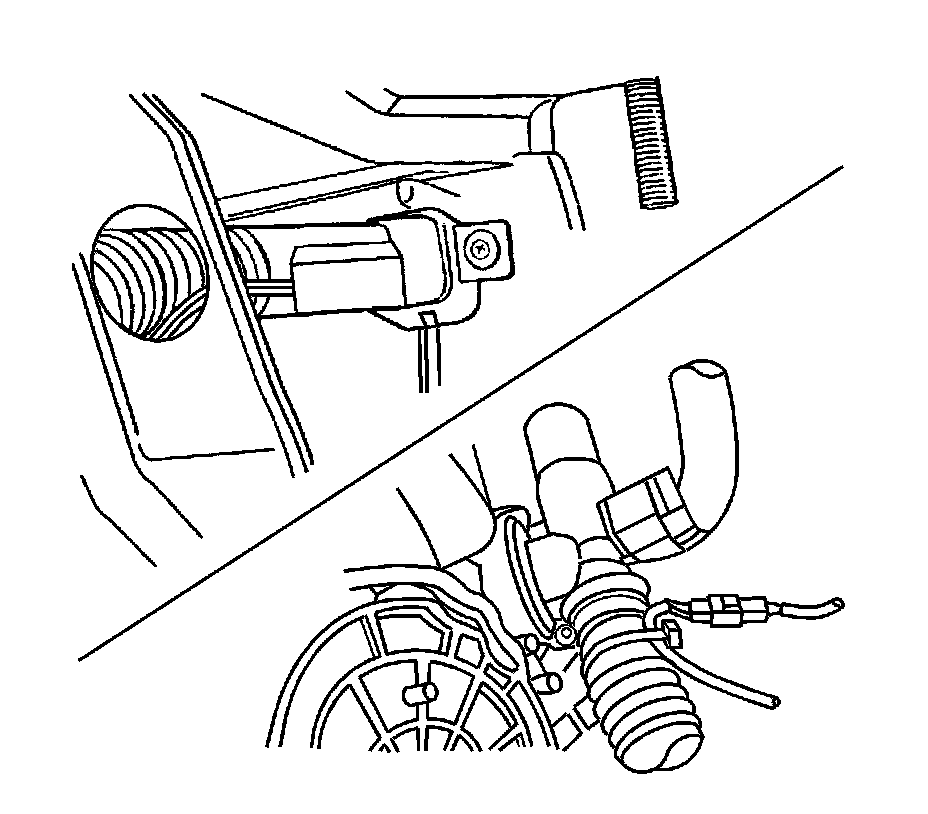

3. Disconnect the electrical connector.

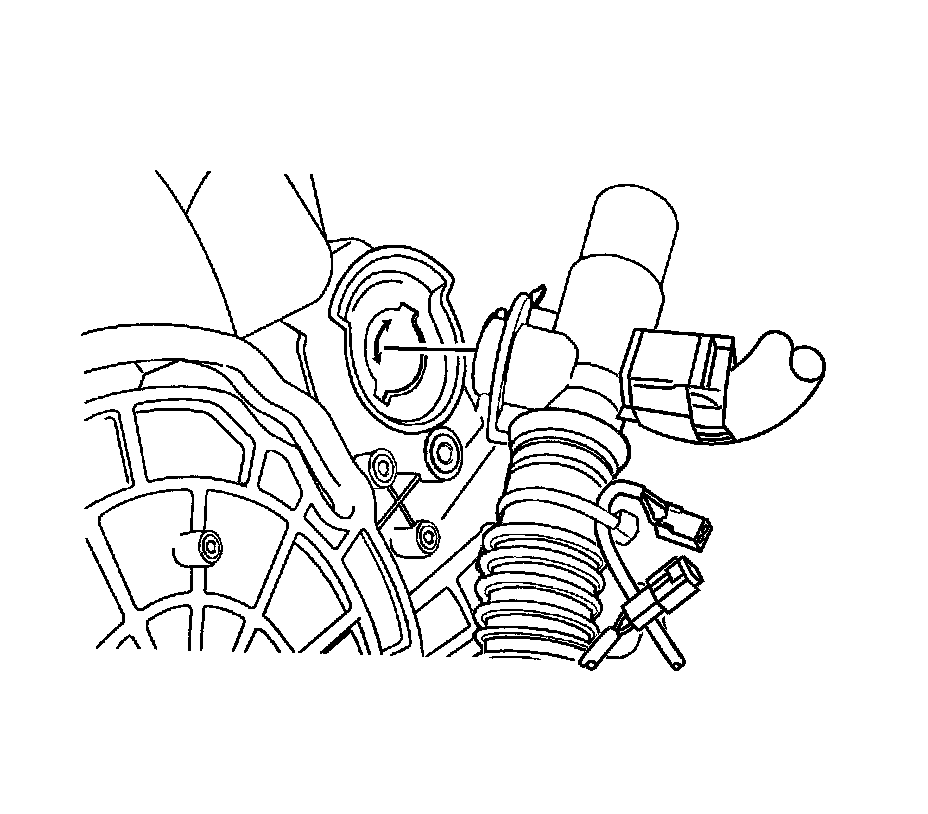

4. Remove the tube by turning it clockwise.




5. Remove the screws.
6. Remove the in-car sensor with the tube.

Installation Procedure




1. Install the in-car sensor.
2. Install the in-car sensor retaining screws and tighten.
3. Install the air inlet tube and connect the electrical connector.
4. Install the instrument panel under cover.
5. Connect the battery negative cable.
