Lighting and Horns: Service and Repair

Parking and Turn Signal Lamp Bulb Replacement

Removal Procedure





Notice: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the headlamp. Refer to Headlamp Replacement Service and Repair.

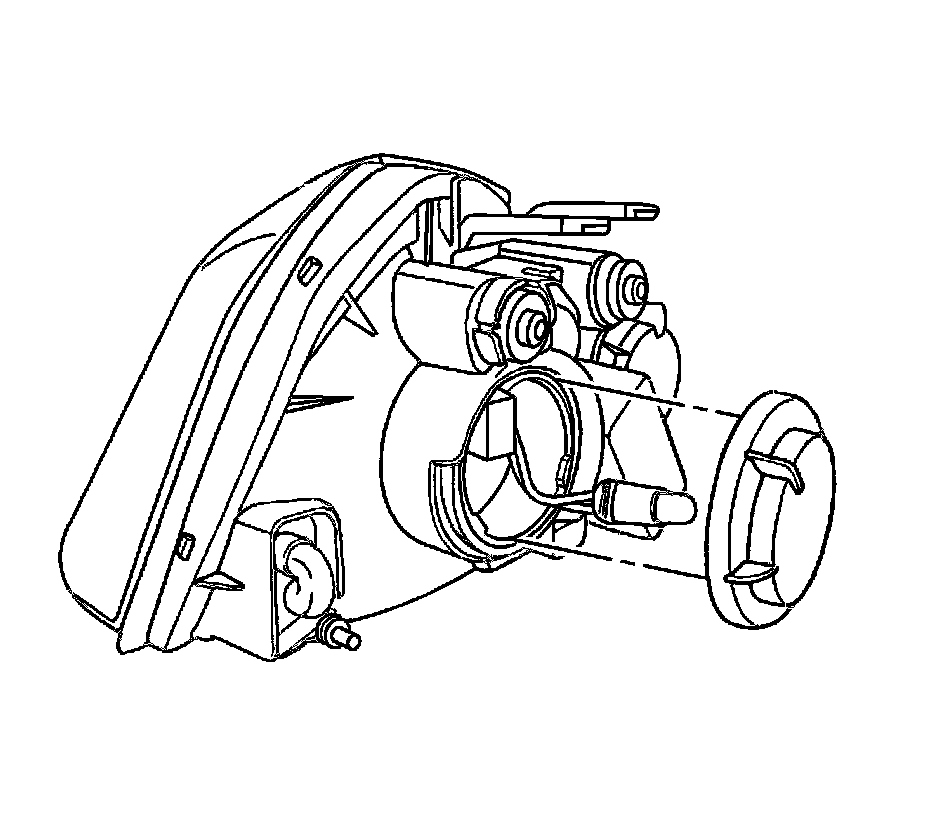

3. Remove the parking lamp bulb.

Installation Procedure




1. Install the parking lamp bulb.
2. Install the headlamp. Refer to Headlamp Replacement Service and Repair.
3. Connect the negative battery cable.
