Audible Warning Device Control Module: Service and Repair

Audio Alarm Module Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

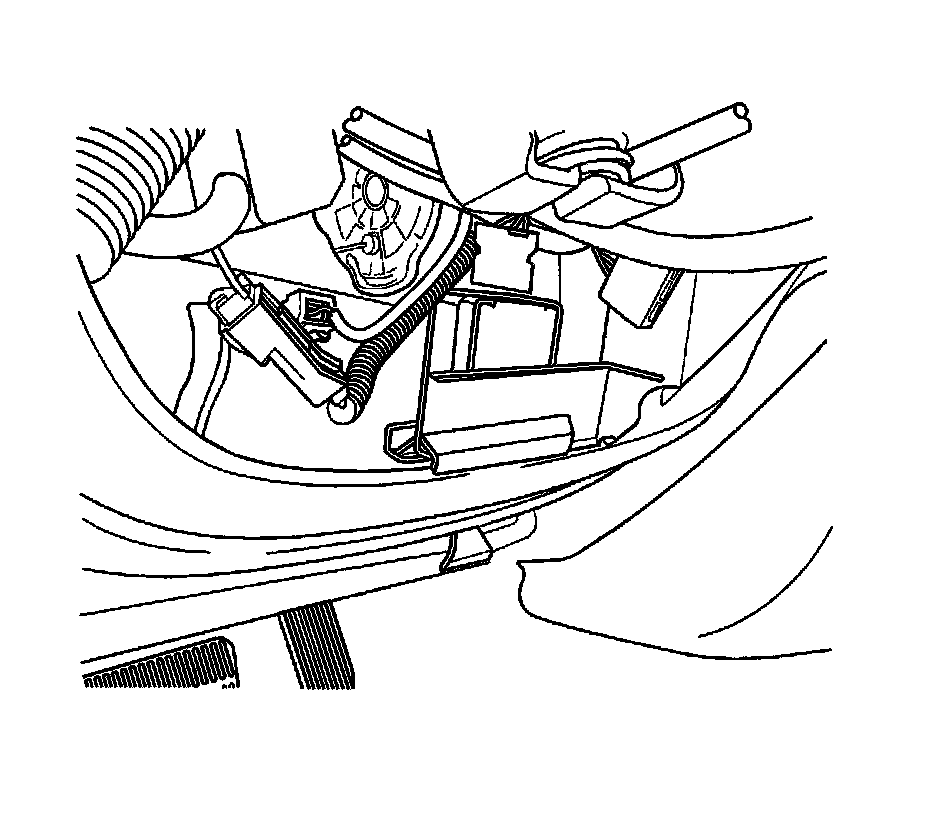

2. Remove the knee bolster trim panel beneath the steering column.
3. Disconnect the electrical connector.
4. Remove the screws and the chime module.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice.

1. Install the chime module with the screws.
2. Connect the electrical connector.
3. Install the knee bolster trim panel beneath the steering column.
4. Connect the negative battery cable.
