Fastener Tightening Specifications










Tighten

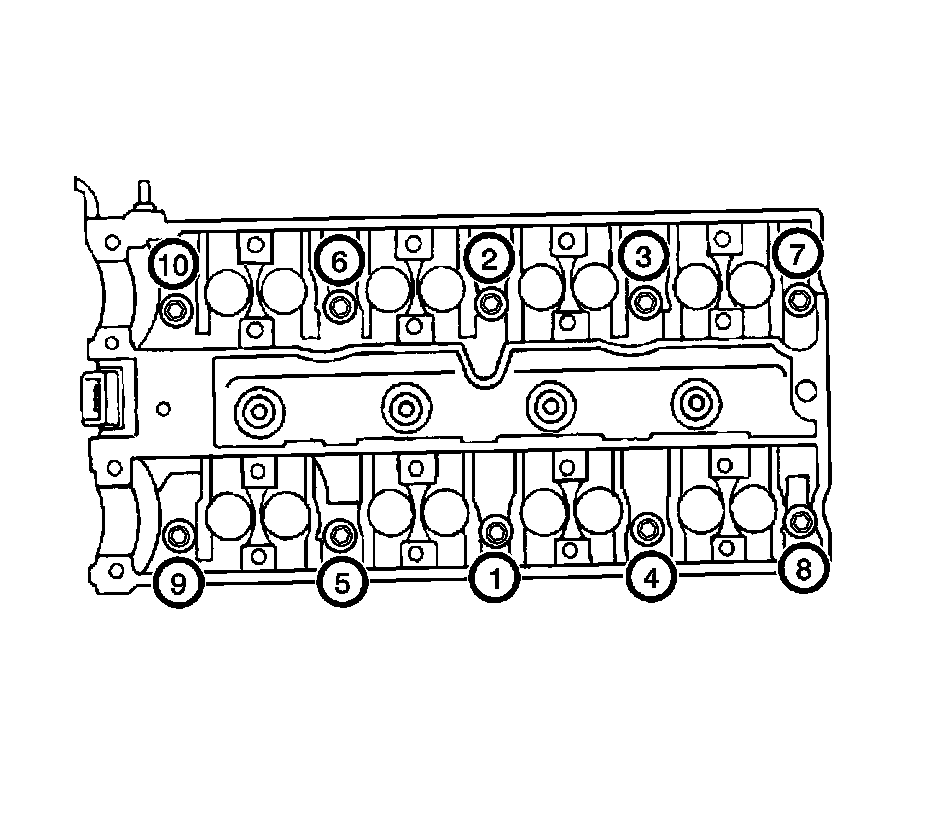

Tighten the cylinder head bolts to 25 Nm (18 lb ft) and turn the bolts another 3 turns or 90° using J 45059 or the KM-470-B.
