SIR Component Views
WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

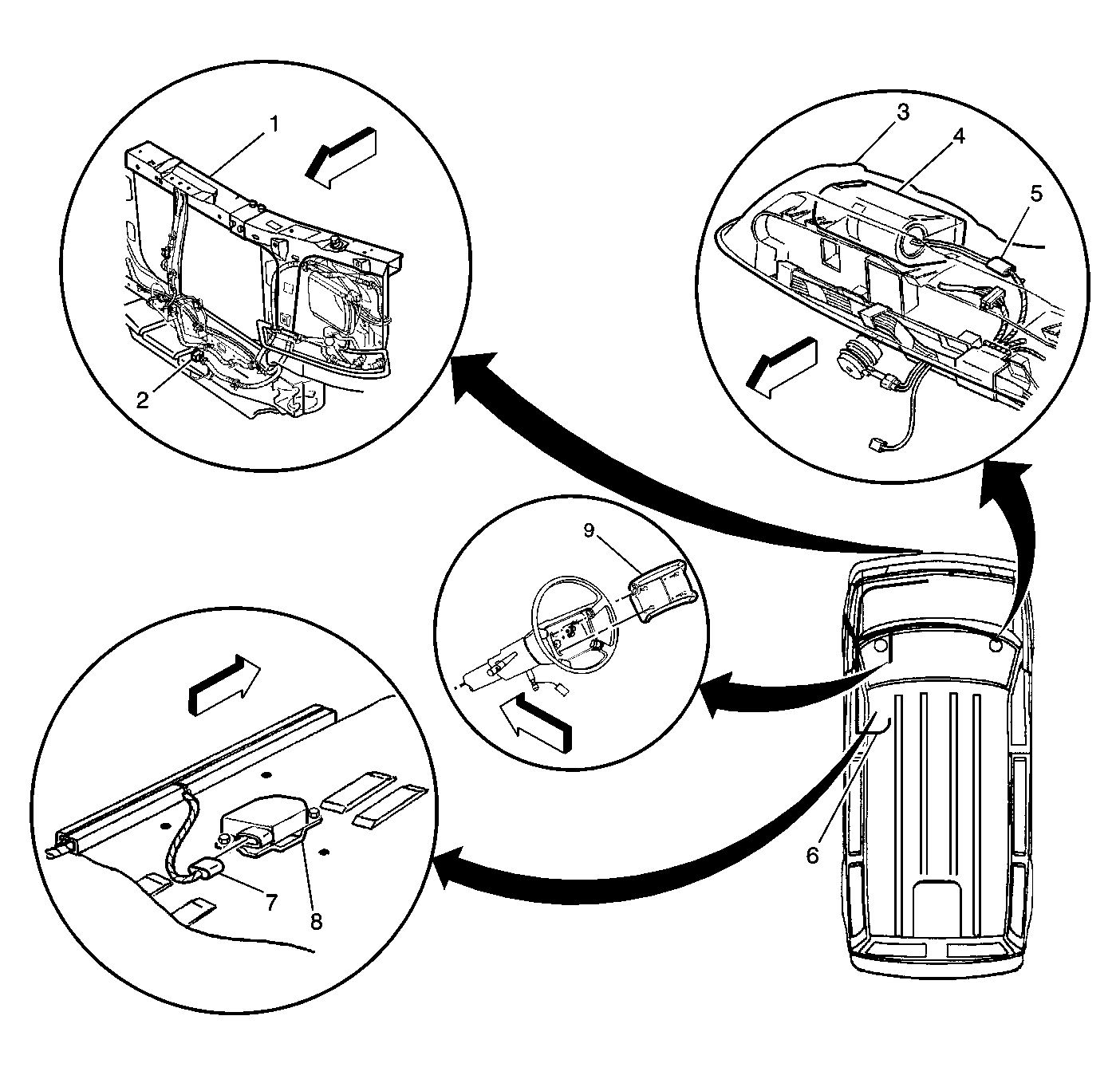

| Callout |
Component Name |
| 1 |
Radiator Core Support |
| 2 |
Inflatable Restraint Front End Discriminating Sensor |
| 3 |
Dash |
| 4 |
Inflatable Restraint I/P Module |
| 5 |
Inflatable Restraint I/P Module Connector |
| 6 |
SIR Wiring Harness |
| 7 |
Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector |
| 8 |
Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 9 |
Inflatable Restraint Steering Wheel Module |
Courtesy of GENERAL MOTORS CORP.

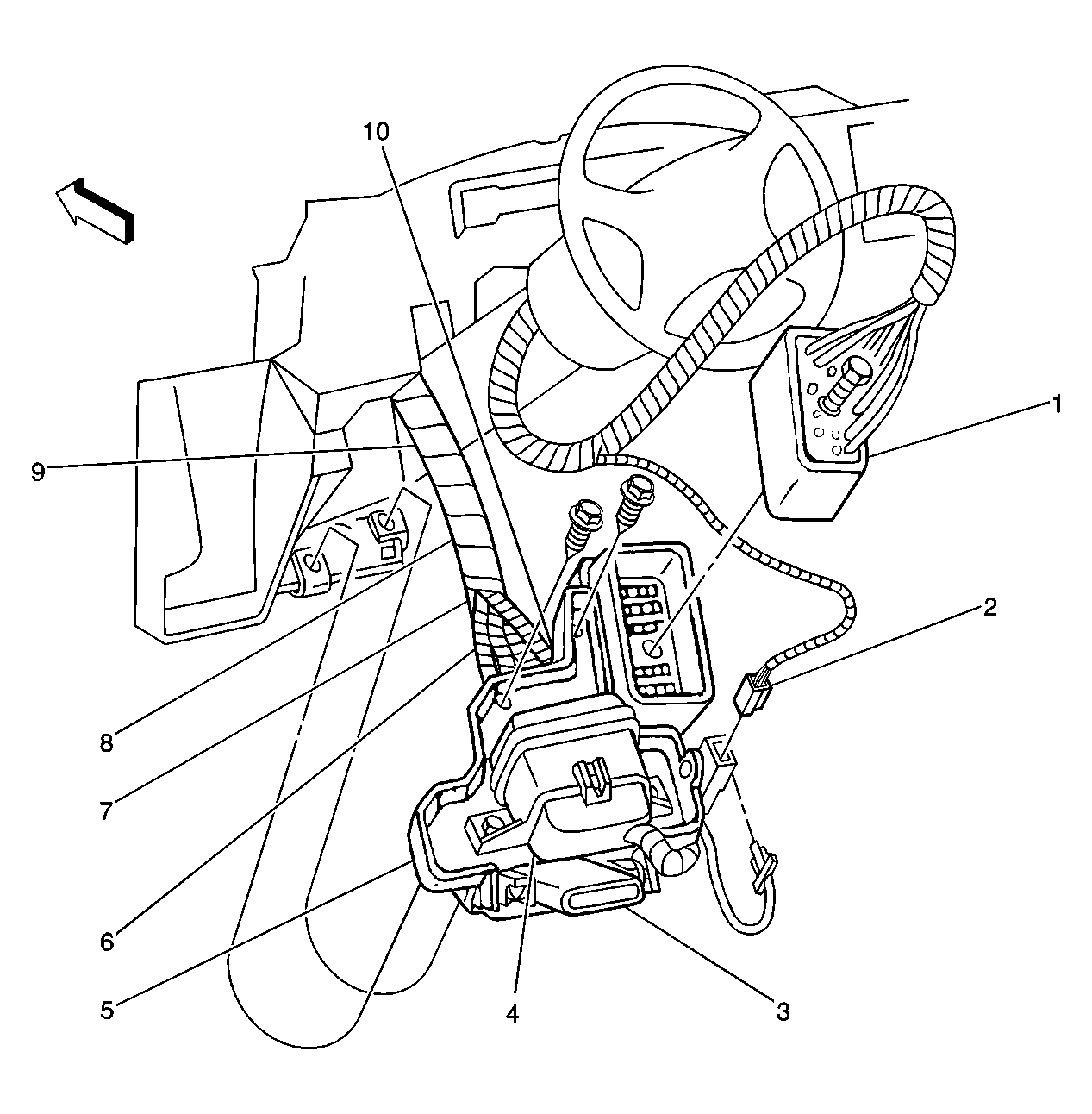

| Callout |
Component Name |
| 1 |
C201 |
| 2 |
Inflatable Restraint Steering Wheel Module Coil Connector |
| 3 |
Data Link Connector (DLC) |
| 4 |
Relay Block #1 |
| 5 |
S253 |
| 6 |
S220 |
| 7 |
S252 |
| 8 |
S251 |
| 9 |
S250 |
| 10 |
SP261 Splice Pack |
