Driver Seat Base Level Components

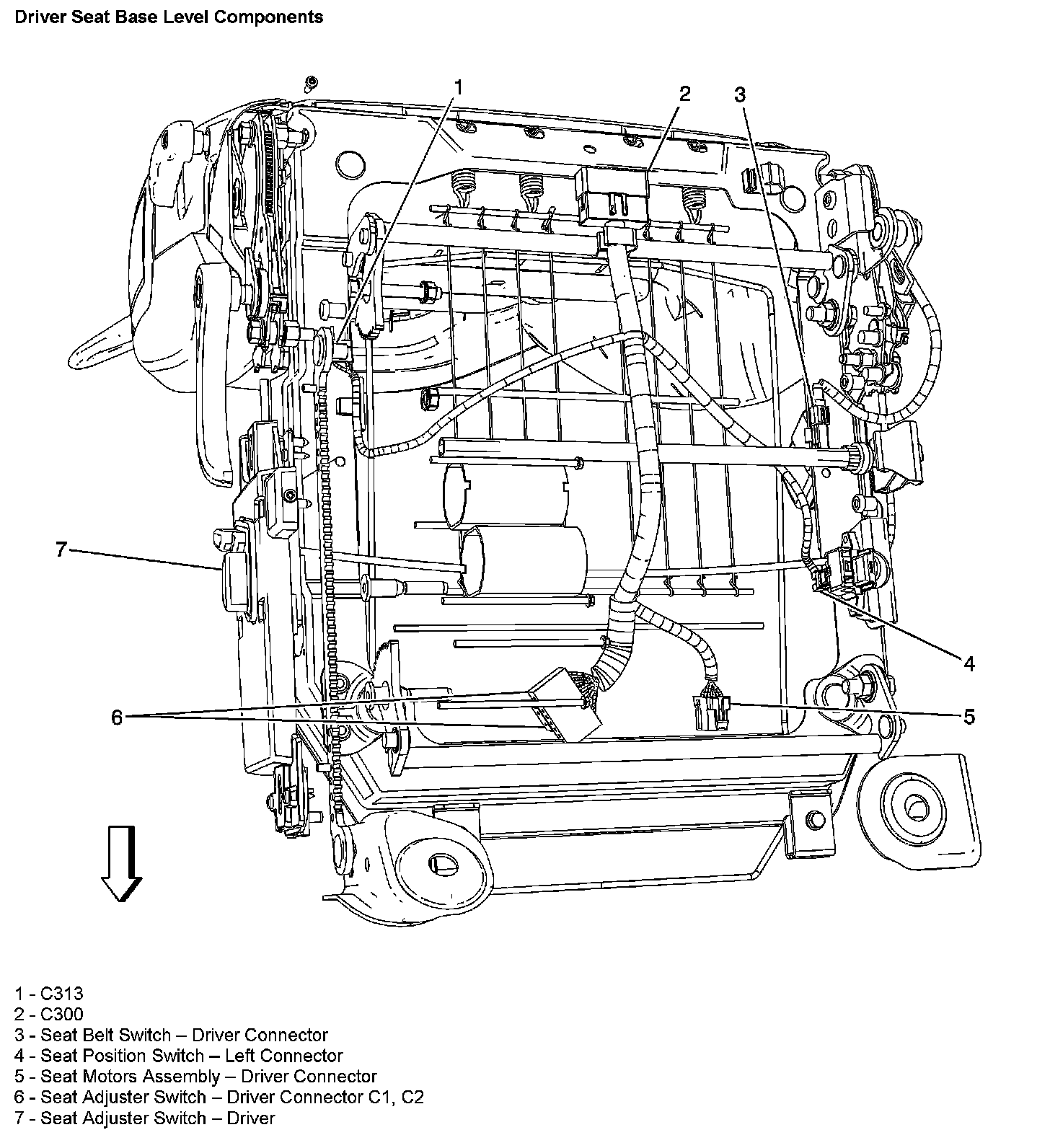

Driver Seat Base Level Components:

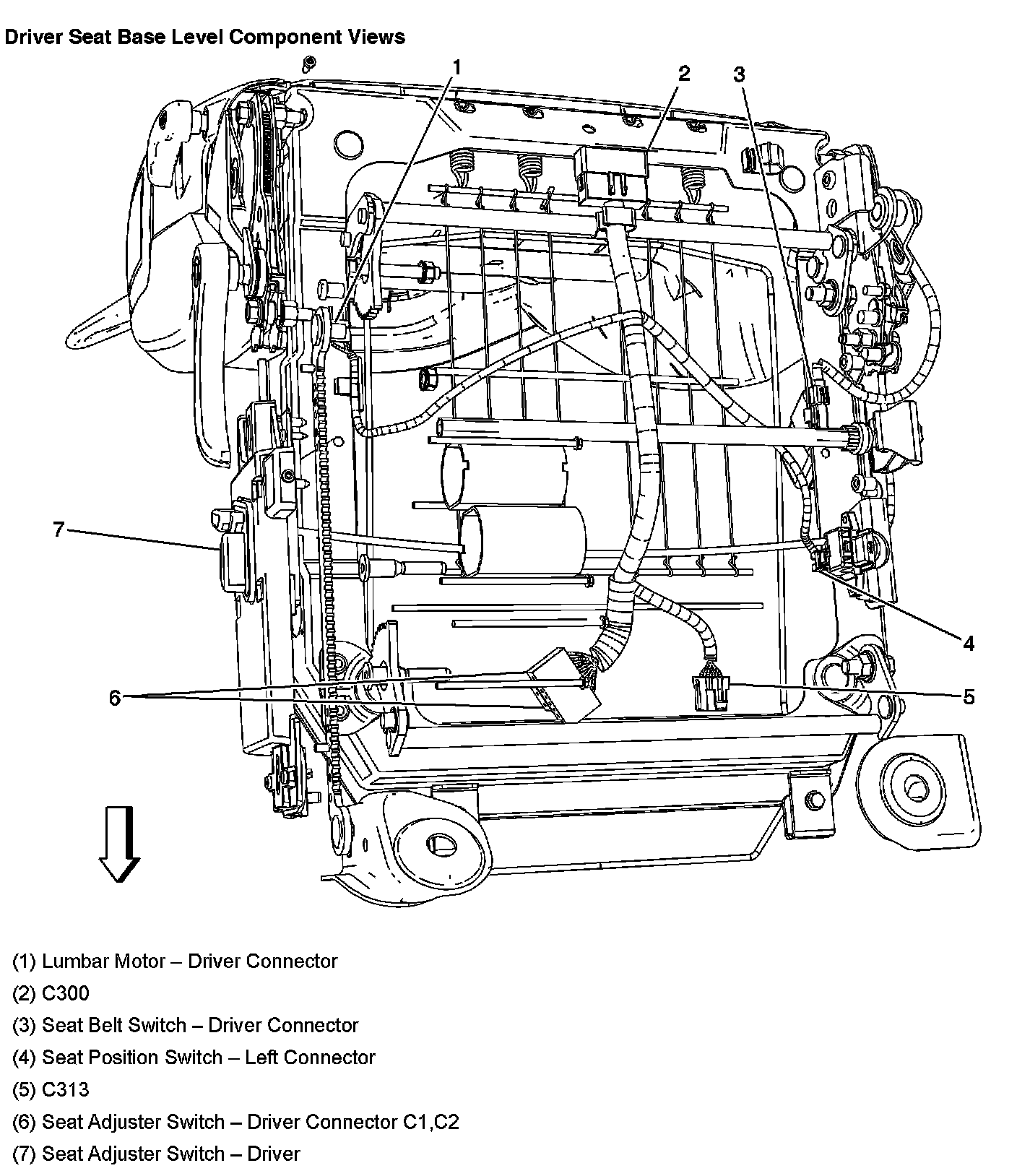

Driver Seat Base Level Component Views:

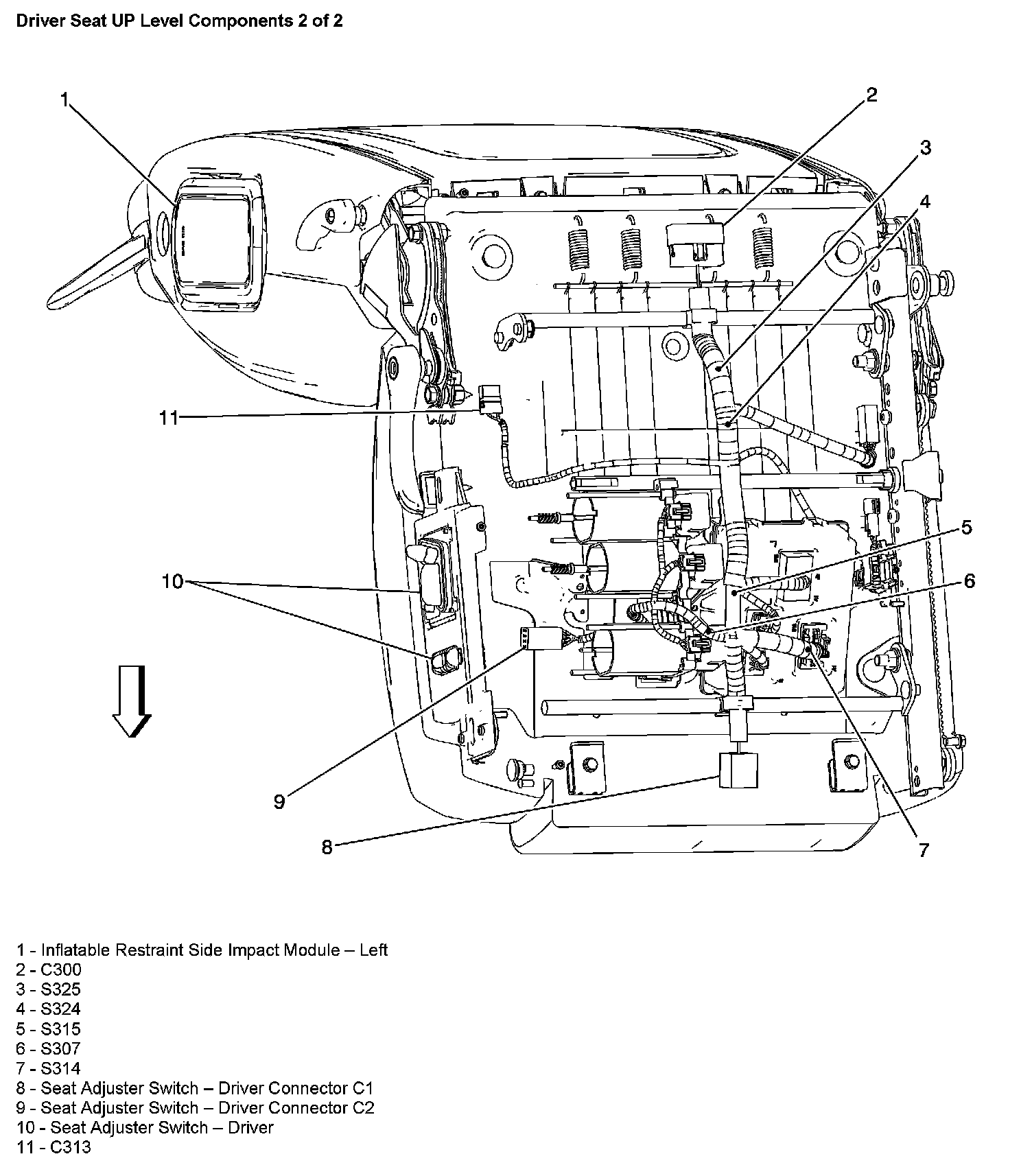

Driver Seat UP Level Components (2 of 2):

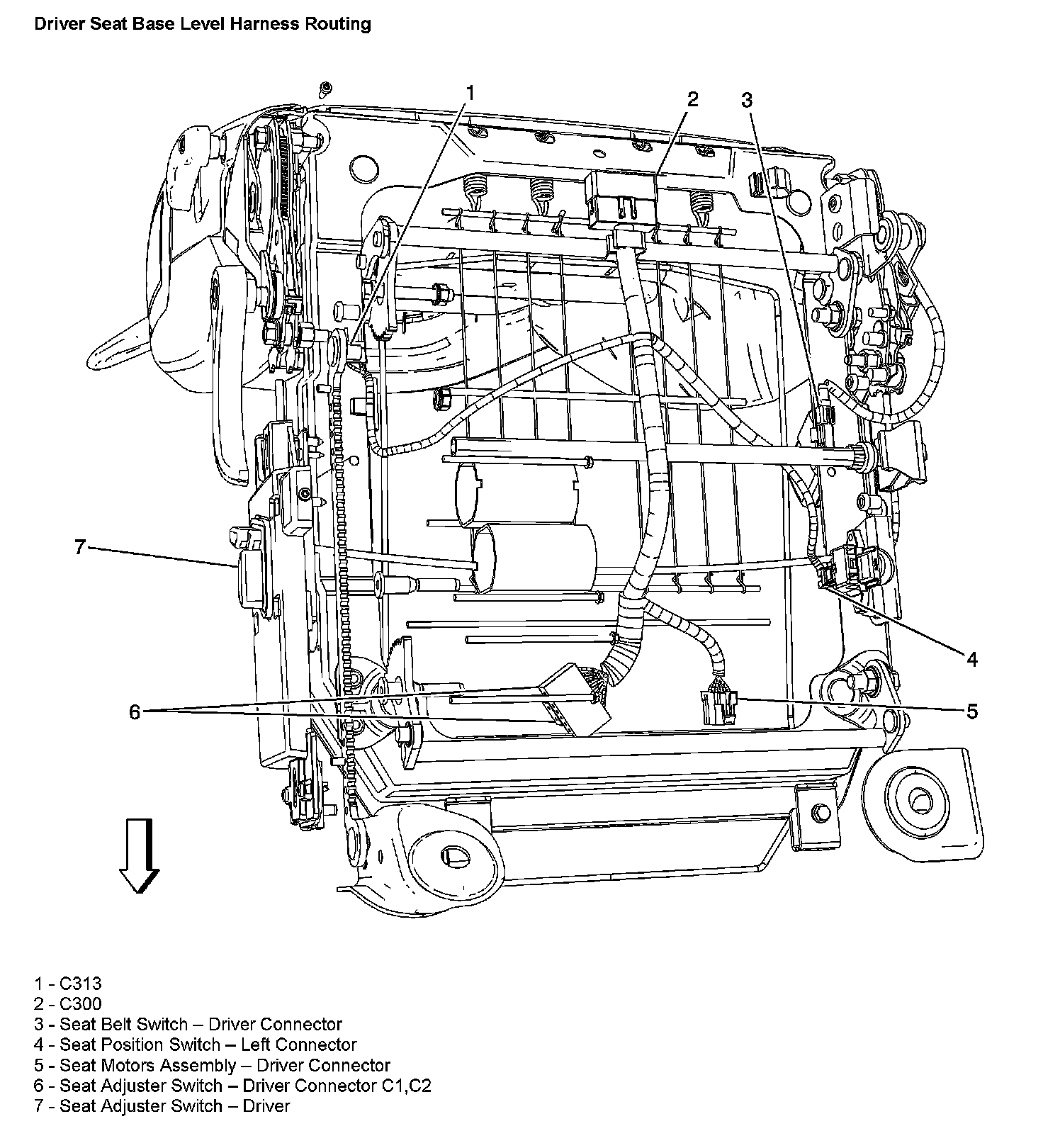

Driver Seat Base Level Harness Routing:

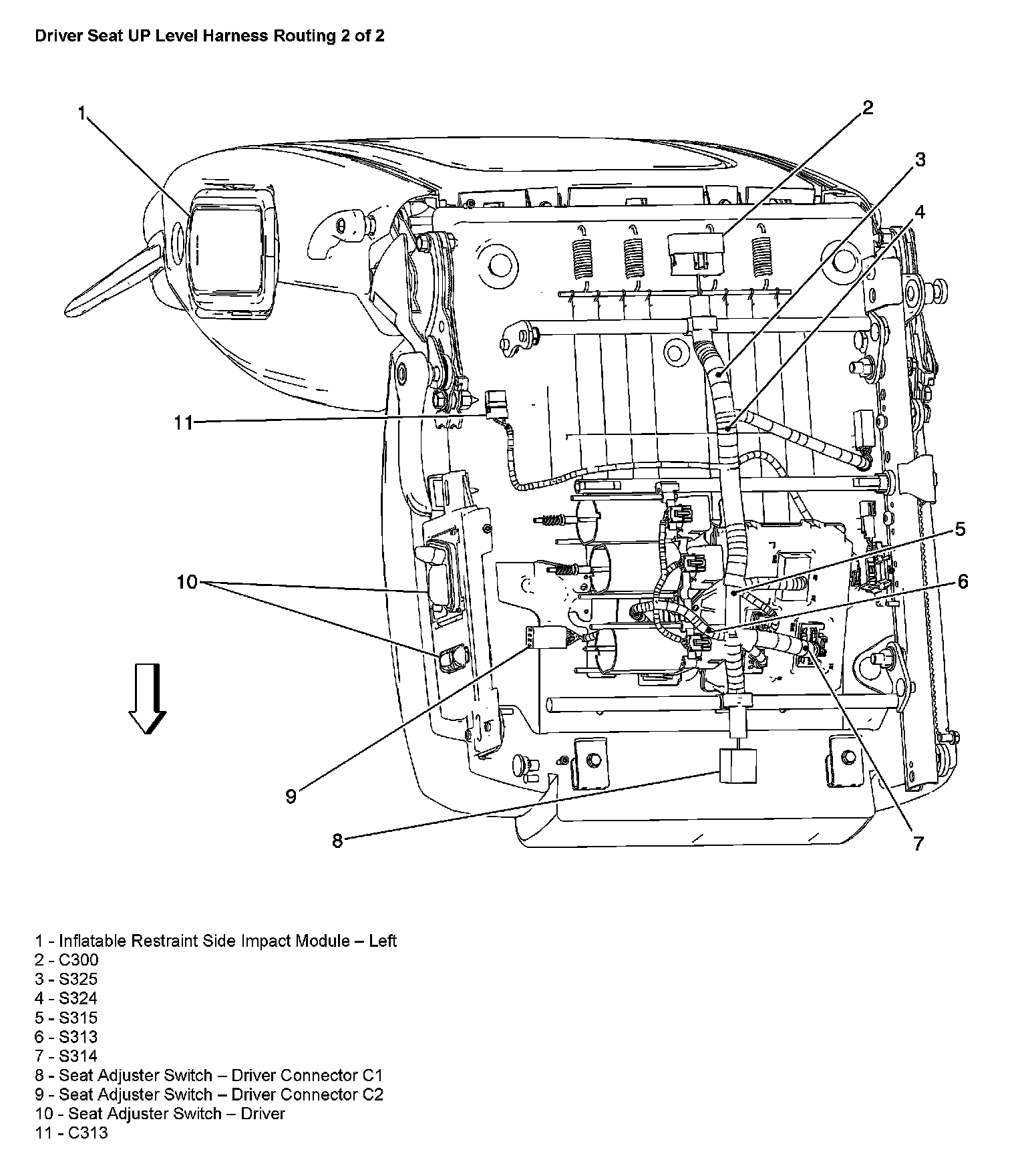

Driver Seat UP Level Harness Routing (2 of 2):
