System Diagram

Inside Rear View Mirror (ISRVM) with RPO Code DJ2:

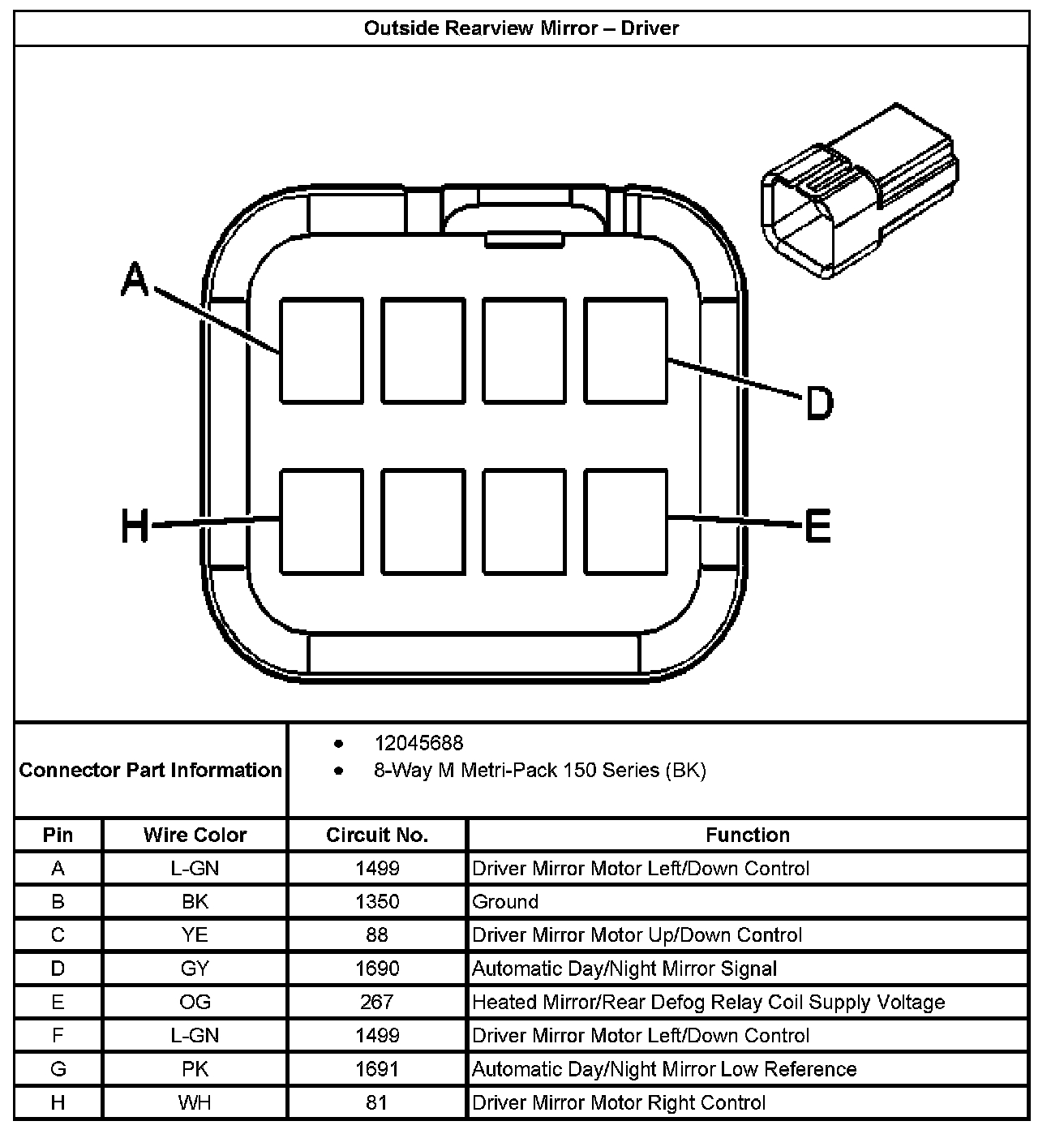

Outside Rearview Mirror - Driver:

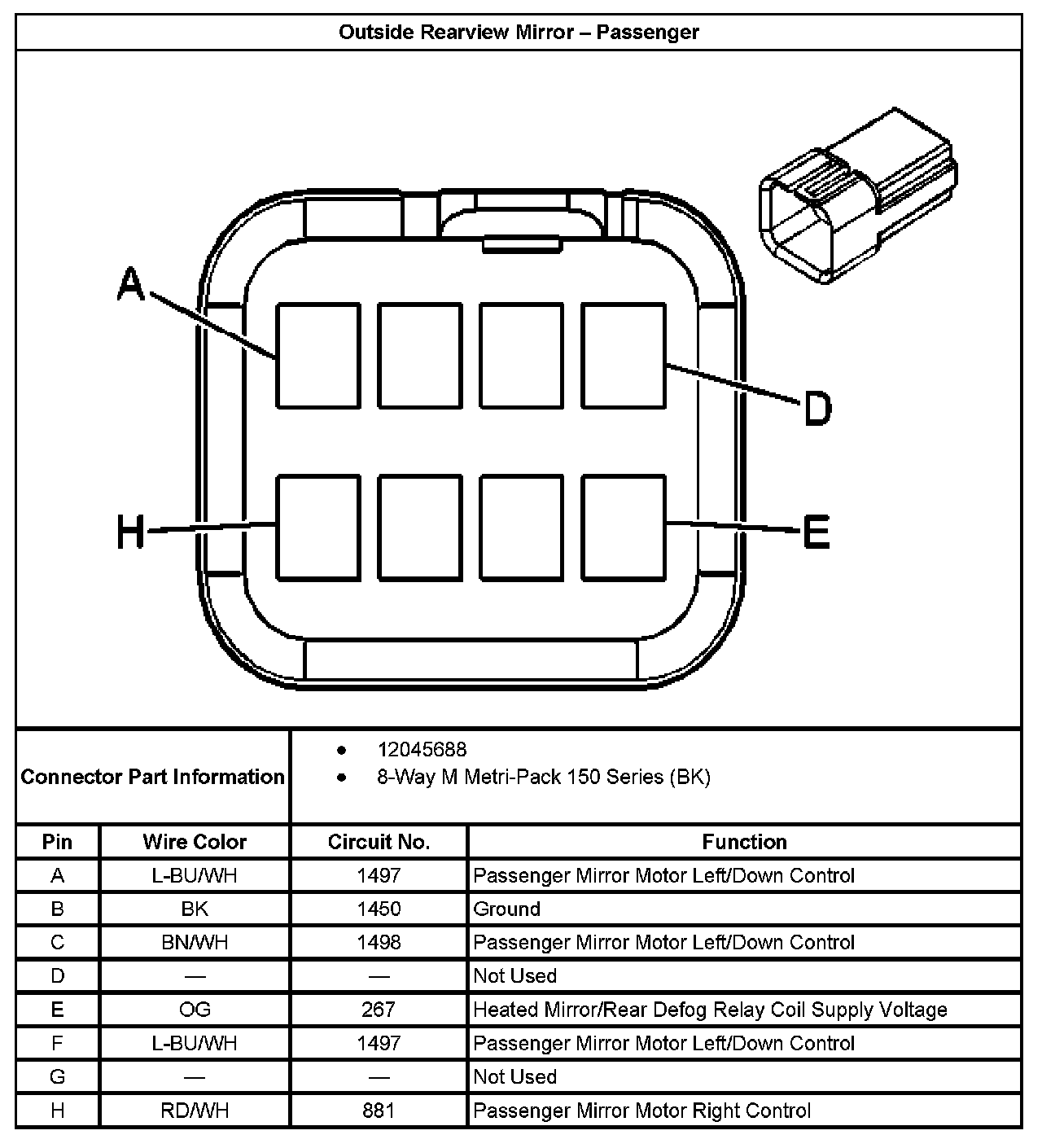

Outside Rearview Mirror - Passenger:



Inside Rear View Mirror (ISRVM) - With RPO Code DJ2:



Inside Rear View Mirror (ISRVM) - Without RPO Code DJ2:



Inside Rear View Mirror (ISRVM) - With RPO Code DJ2:
