Power Seat Switch

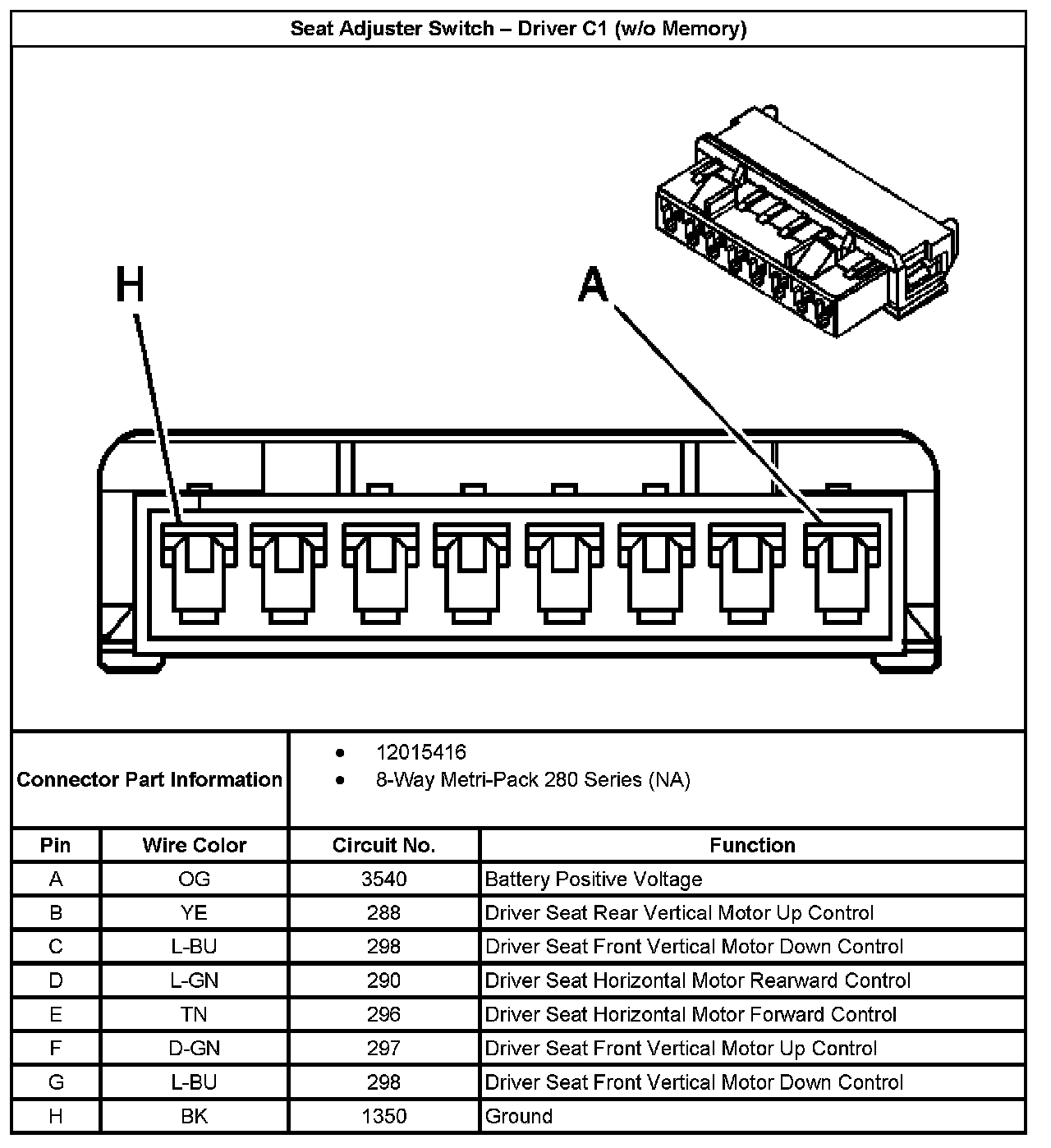

Seat Adjuster Switch - Driver C1 (w/o Memory):
Seat Adjuster Switch - Driver C2 (w/o Memory):

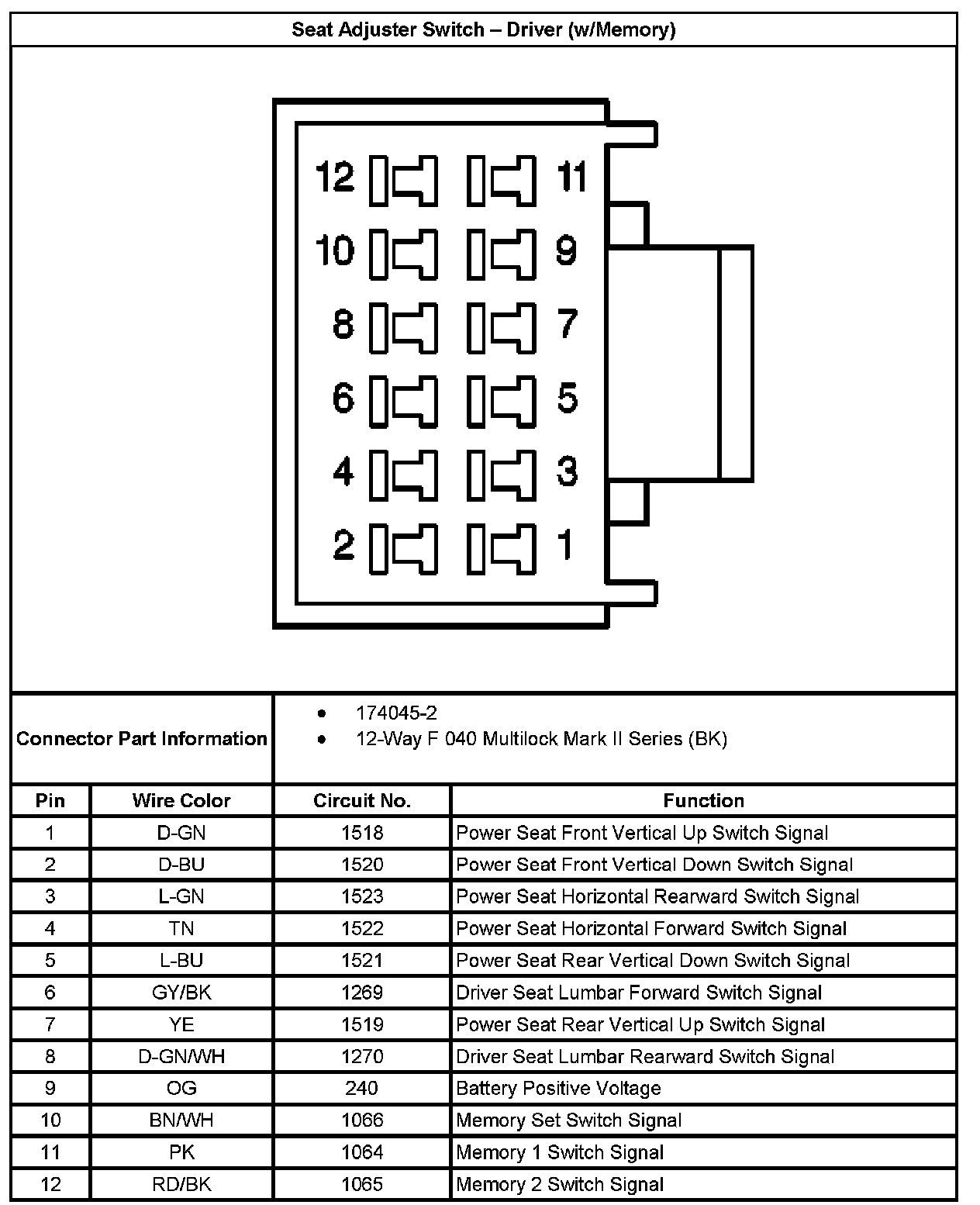

Seat Adjuster Switch - Driver (w/Memory):

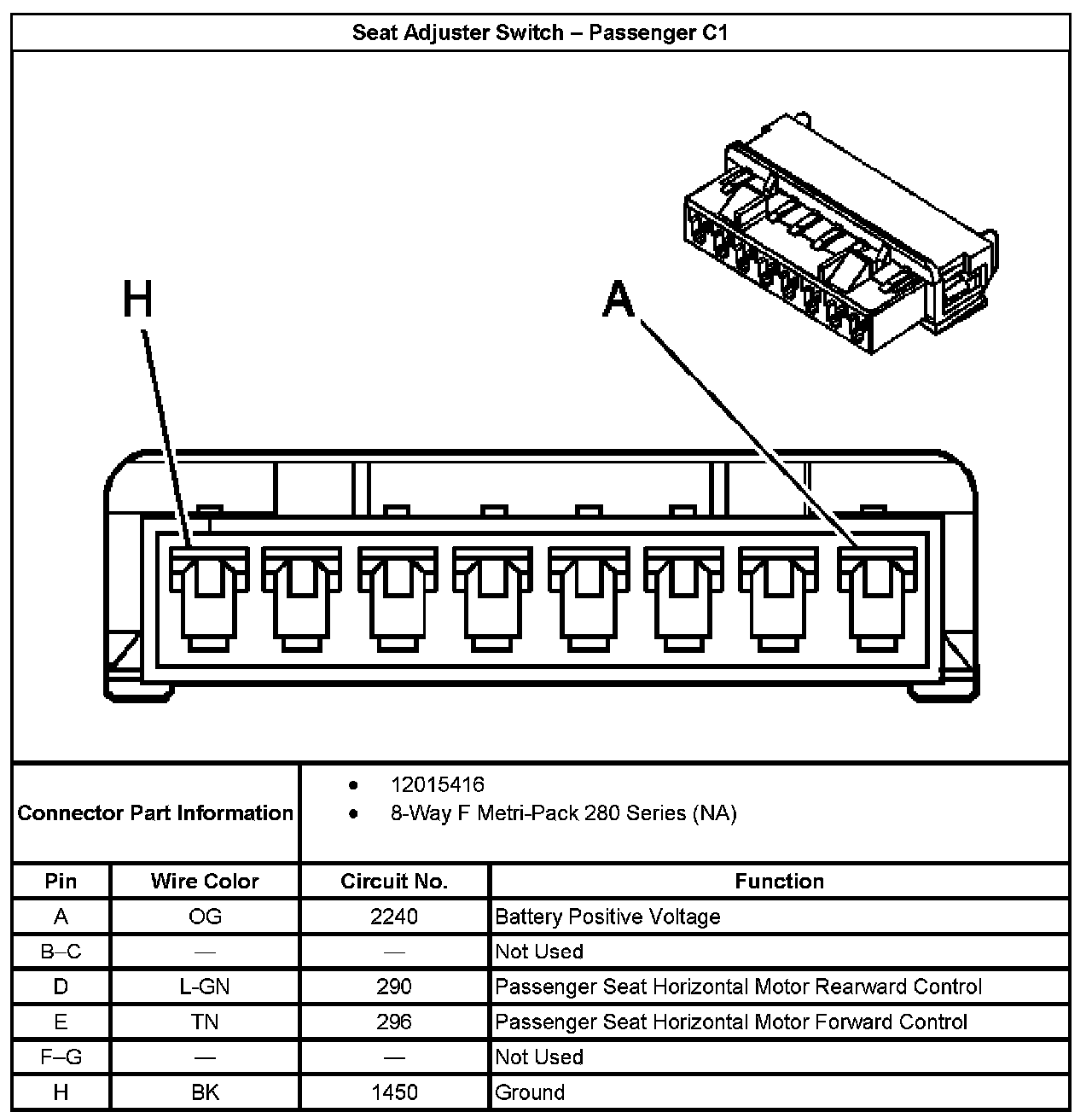

Seat Adjuster Switch - Passenger C1:
Seat Adjuster Switch - Passenger C2:
