Electrical Diagrams

Schematic and Routing Diagrams

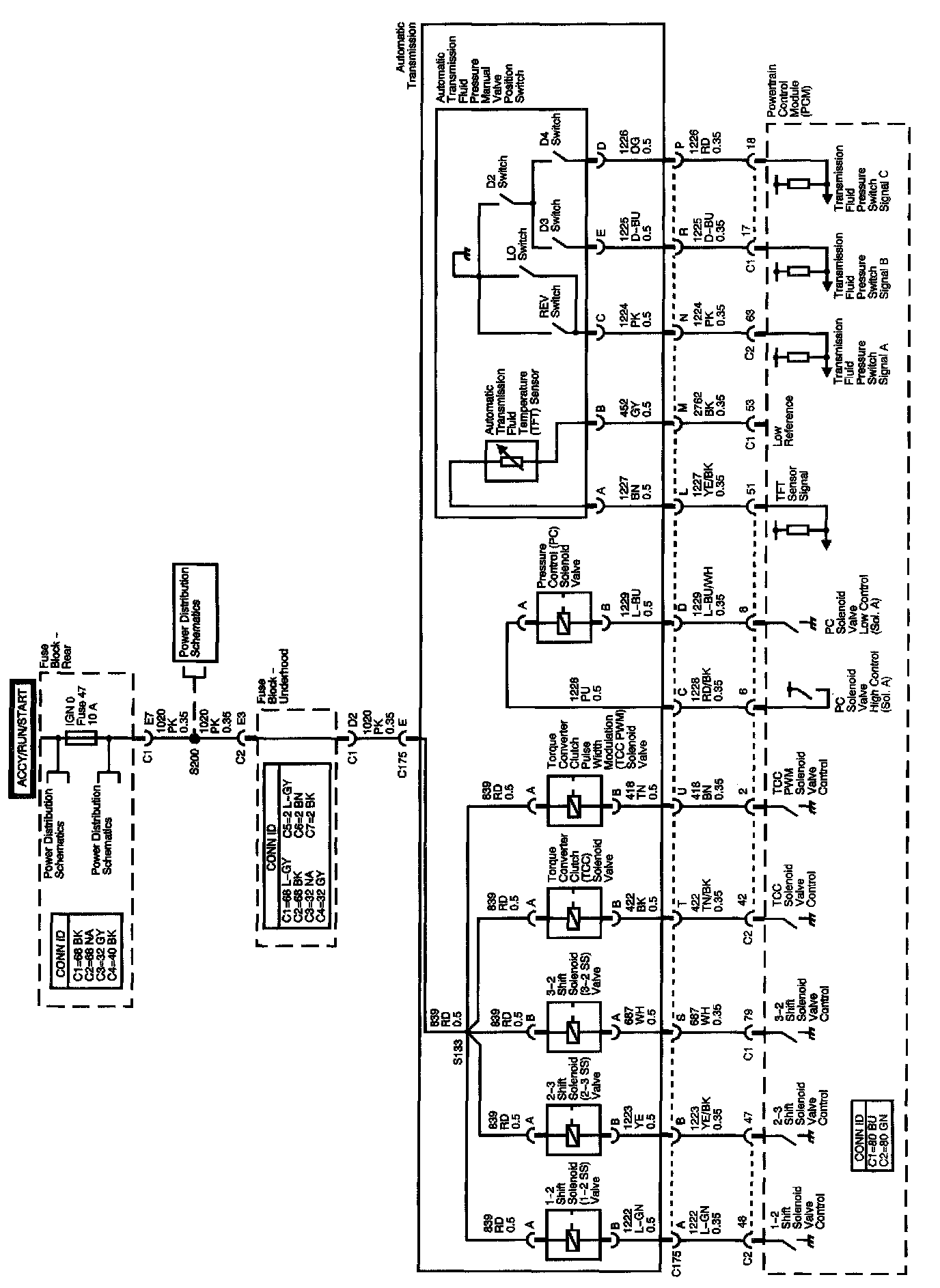

Automatic Transmission Control Schematics (Power and Internal Transmission Valve Switches

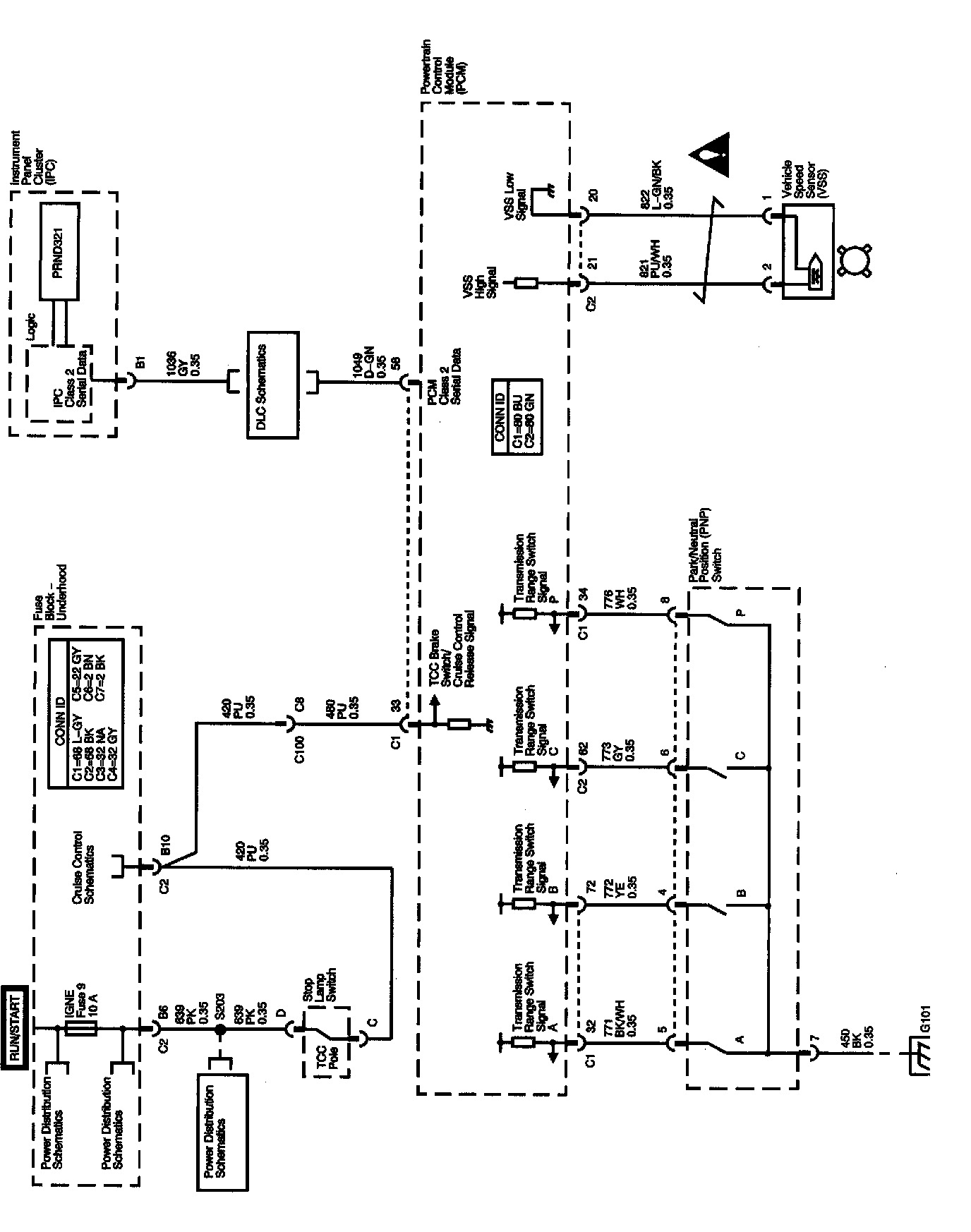

Automatic Transmission Control Schematics (Park Neutral Position (PNP) Switch and VSS
