Ground Distribution Schematics

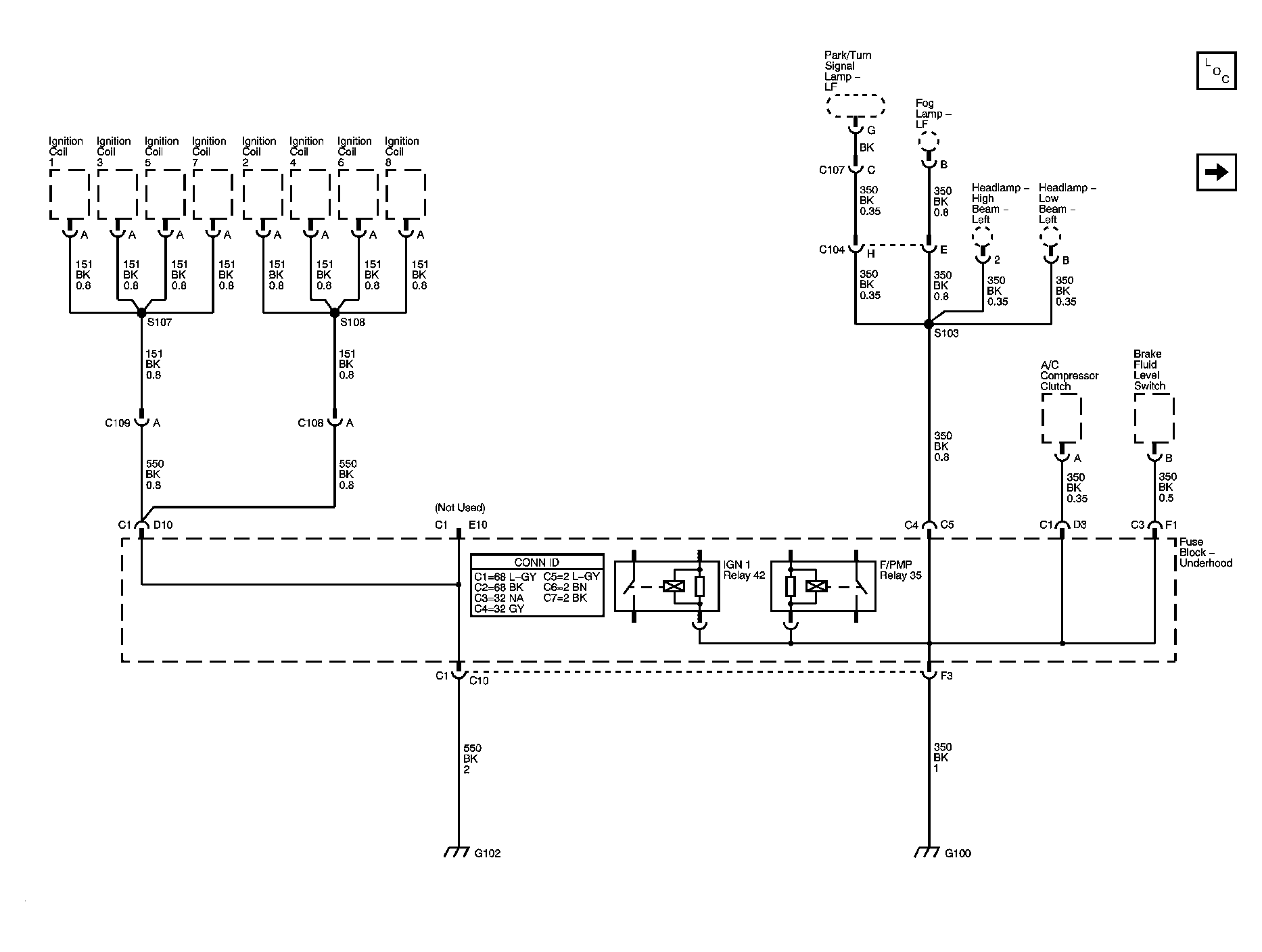

Fig 1: G100, G102 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: G101 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: G103, G104 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: G105 Schematic

Courtesy of GENERAL MOTORS CORP.

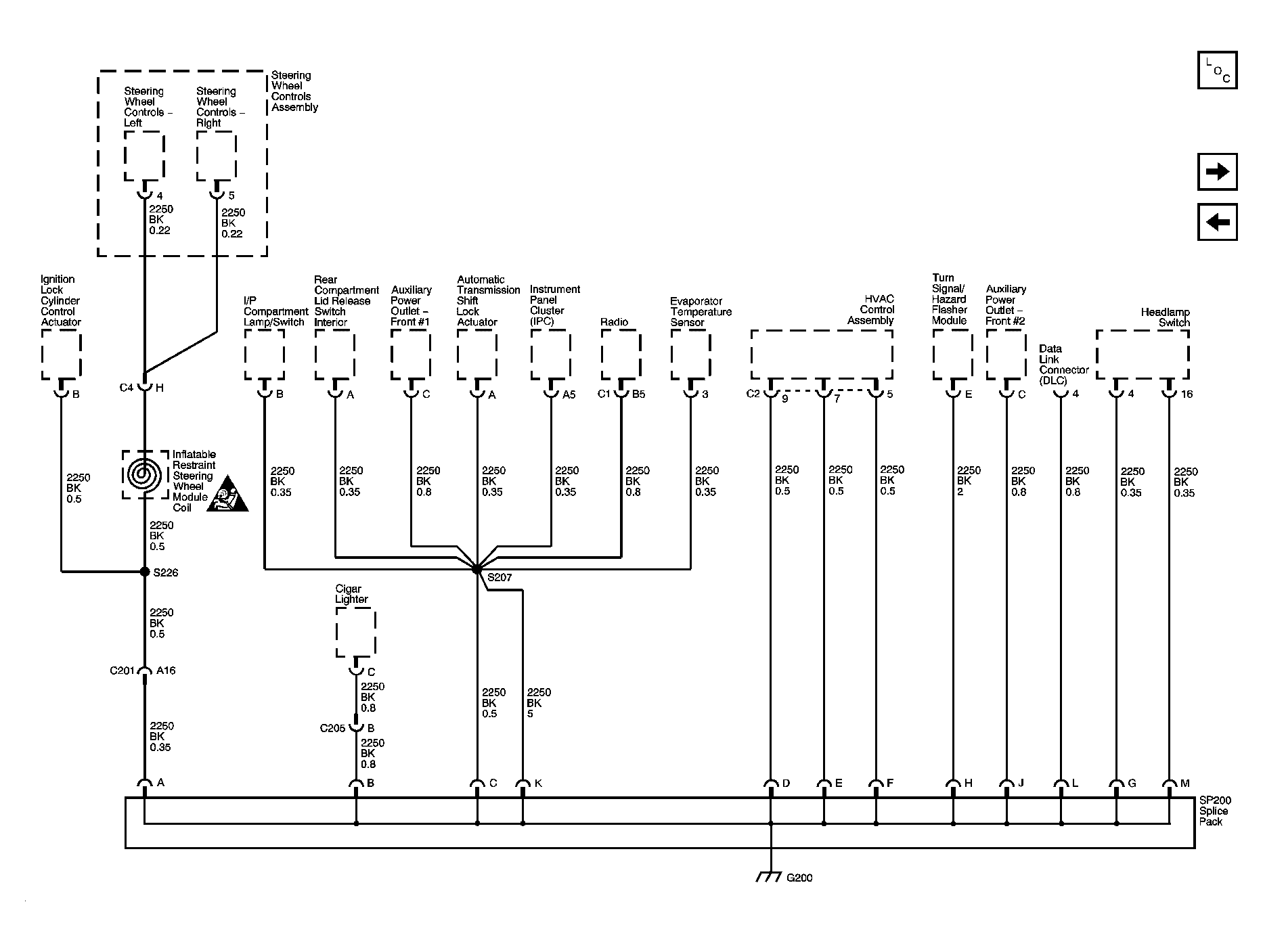

Fig 5: G200 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: G300 Schematic

Courtesy of GENERAL MOTORS CORP.

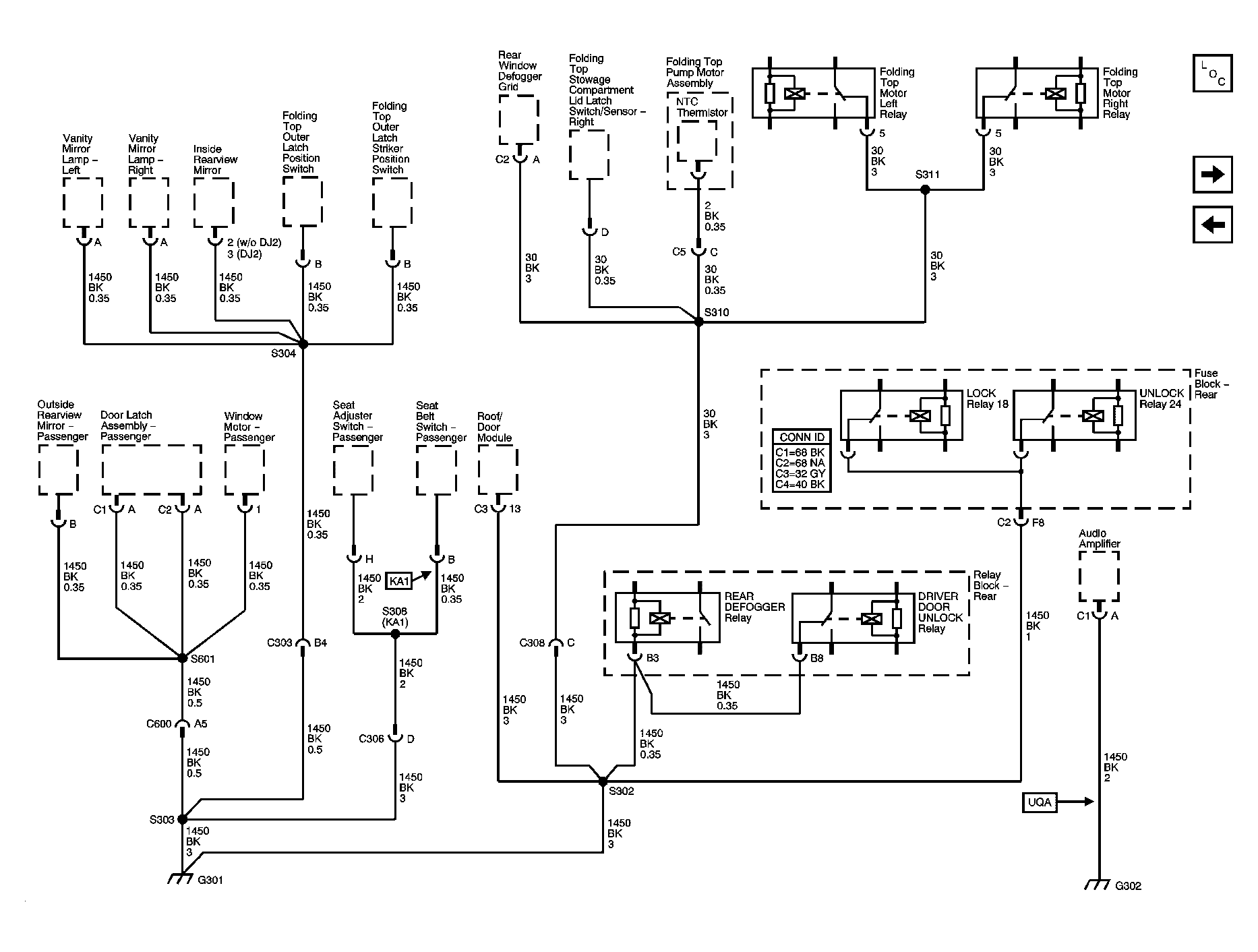

Fig 7: G301, G302 Schematic

Courtesy of GENERAL MOTORS CORP.

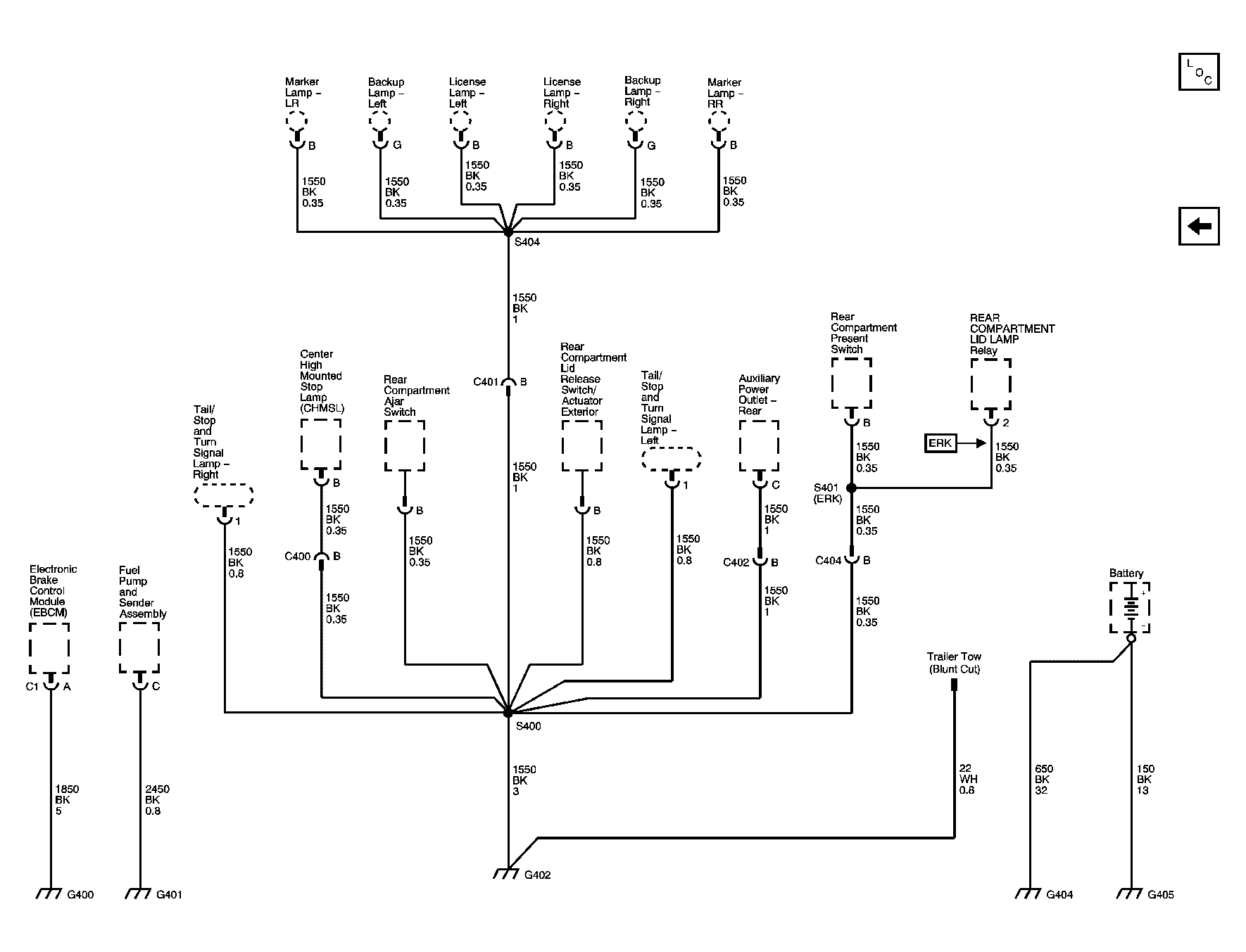

Fig 8: G400, G401, G402, G403, G404, G405 Schematic

Courtesy of GENERAL MOTORS CORP.
