Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet SSR. However, it is still accessible from the selected car via links, so may be relevant.

Position the lamp to the opening in the rear body panel.

Fig 1: View of Tail Lamp

Courtesy of GENERAL MOTORS CORP.

Insert the lamp into the opening.

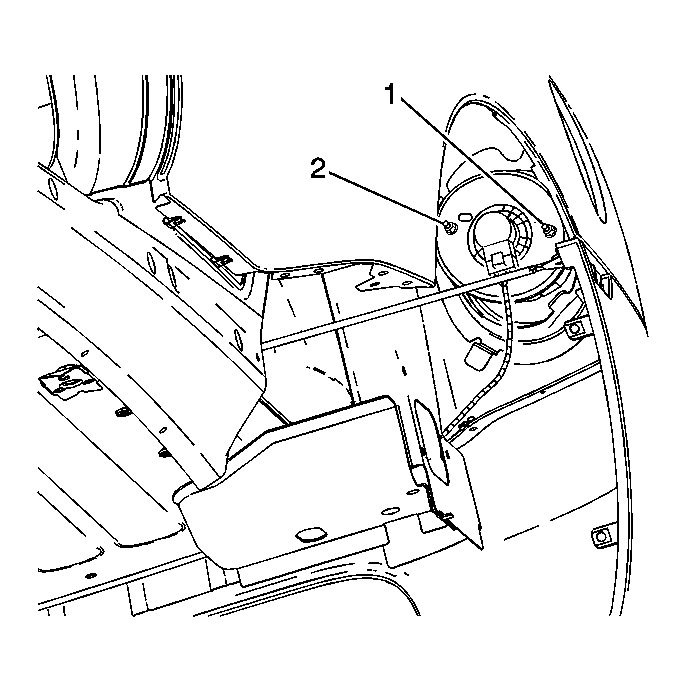

Fig 2: Identifying Tail Lamp Studs

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the tail lamp fasteners onto the tail lamp studs (1, 2) in sequence 1 and 2. Hand tighten only.
Tighten: Tighten the fasteners in sequence 1 and 2 to 6 N.m (53 lb in).
From underneath the vehicle, insert the tail lamp socket into the lamp and rotate clockwise to fully seat the socket.
