Windshield Name Decal Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
|
Preliminary Procedures
- Heat the windshield name decal using a J-25070:
gun or equivalent, 152 mm (6 in) from the glass surface.
- Apply the heat using a circular motion, for about 30 seconds.
- Remove the decal from the surface using a plastic, flat-bladed tool.
- Remove all adhesive from the surface using a 3M™ Scotch Brite molding adhesive remover disk, 3M™ P/N 07501, or equivalent.
- Clean the surface using 3M™ General Purpose Adhesive Cleaner, P/N 08984 or equivalent.
Special Tools: J-25070:
Heat Gun 500-750°F |

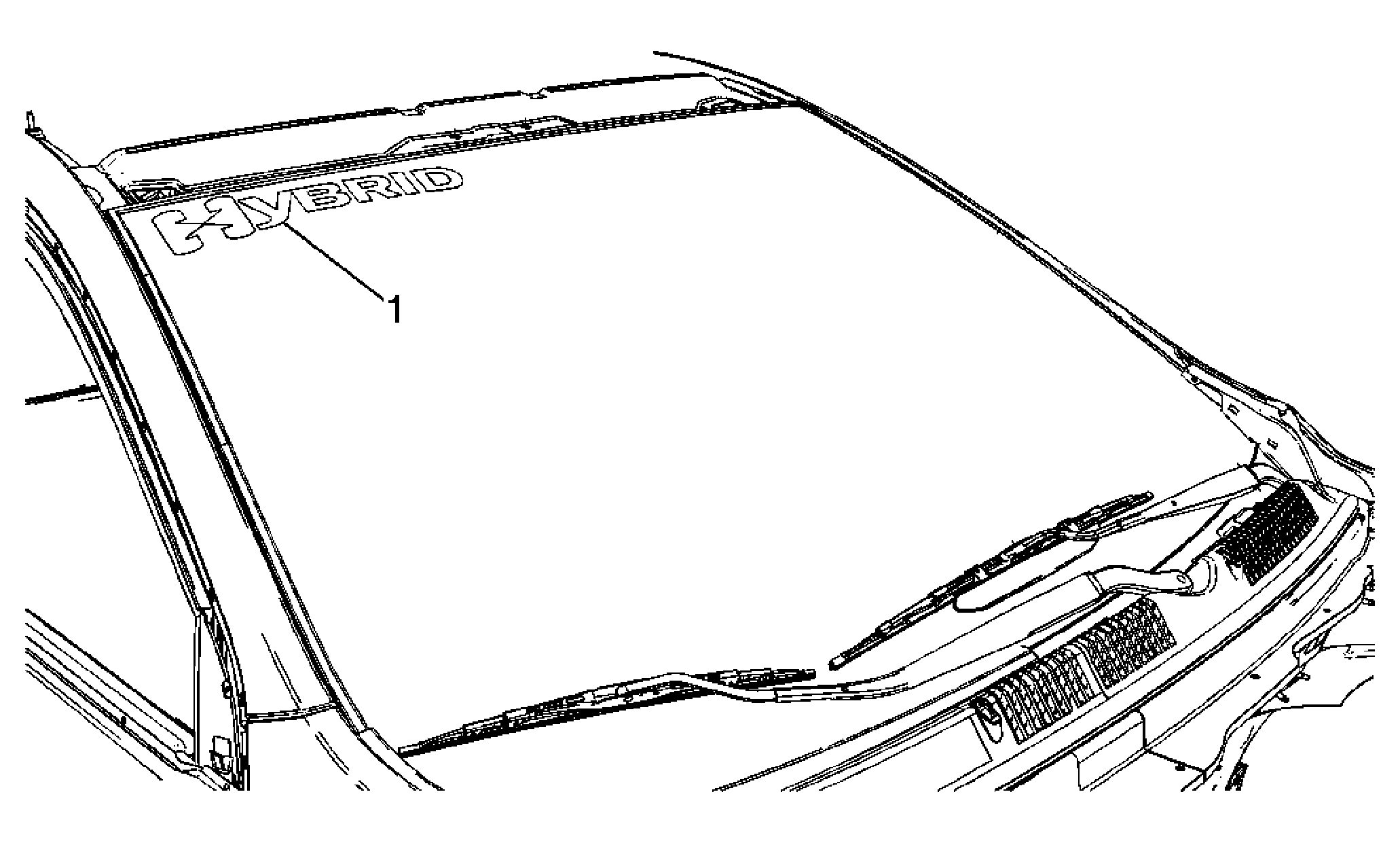

| 1 |
Windshield Name Decal
Tip:
The windshield name decal is serviced as one part. |
