Air Flow Meter/Sensor: Locations

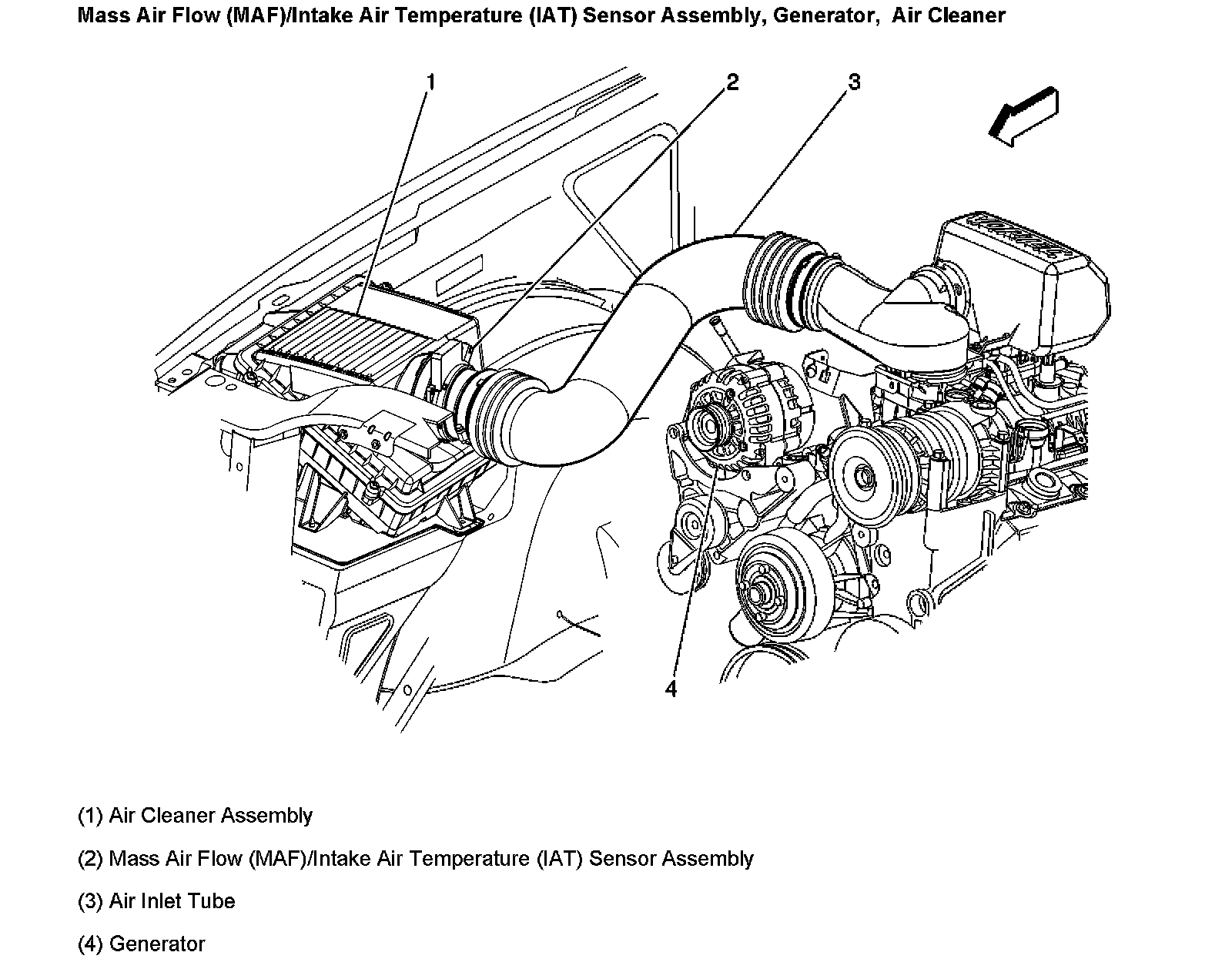

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Assembly, Generator, Air Cleaner:

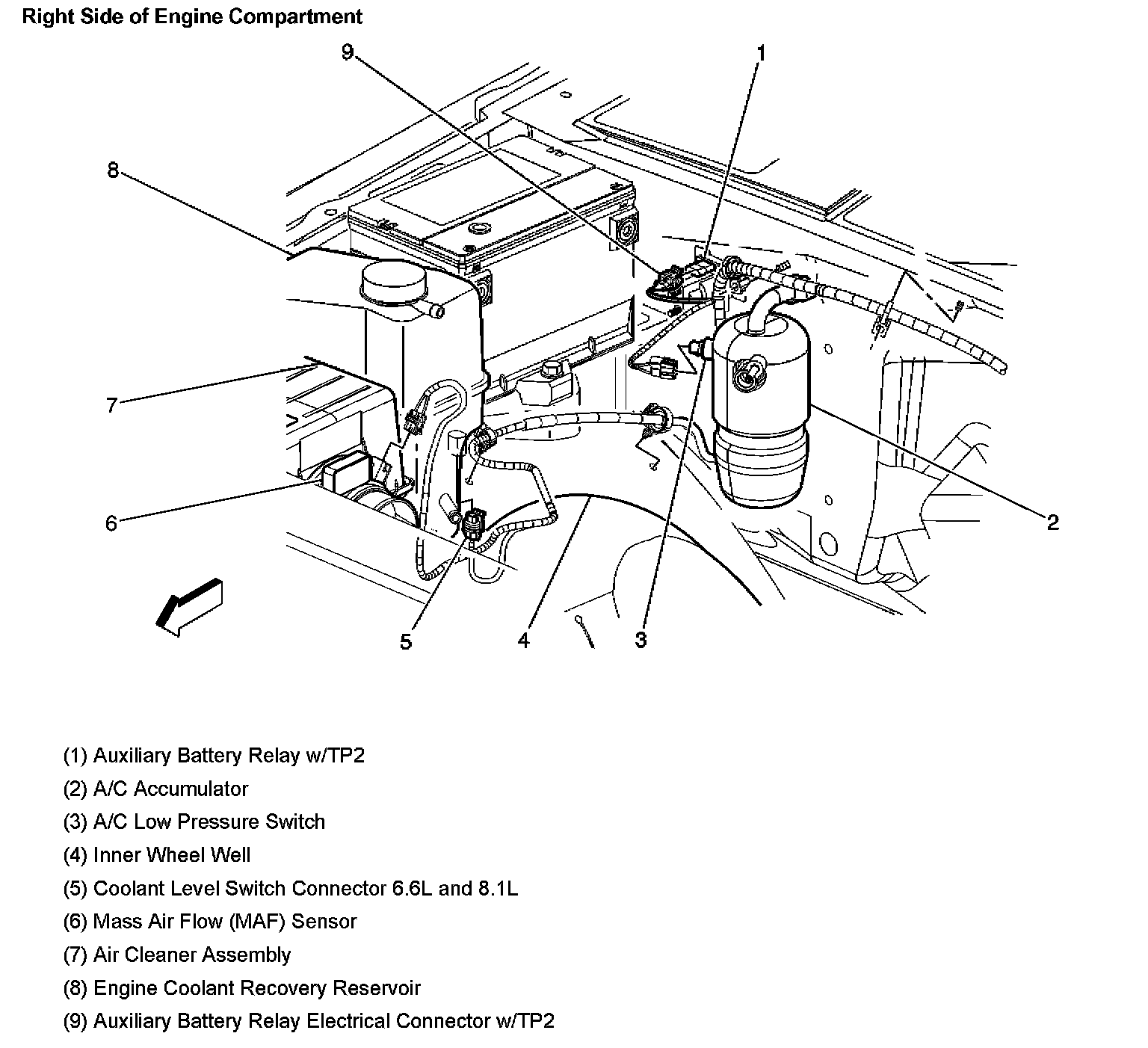

Right Side Of The Engine Compartment:
