Electrical Diagrams

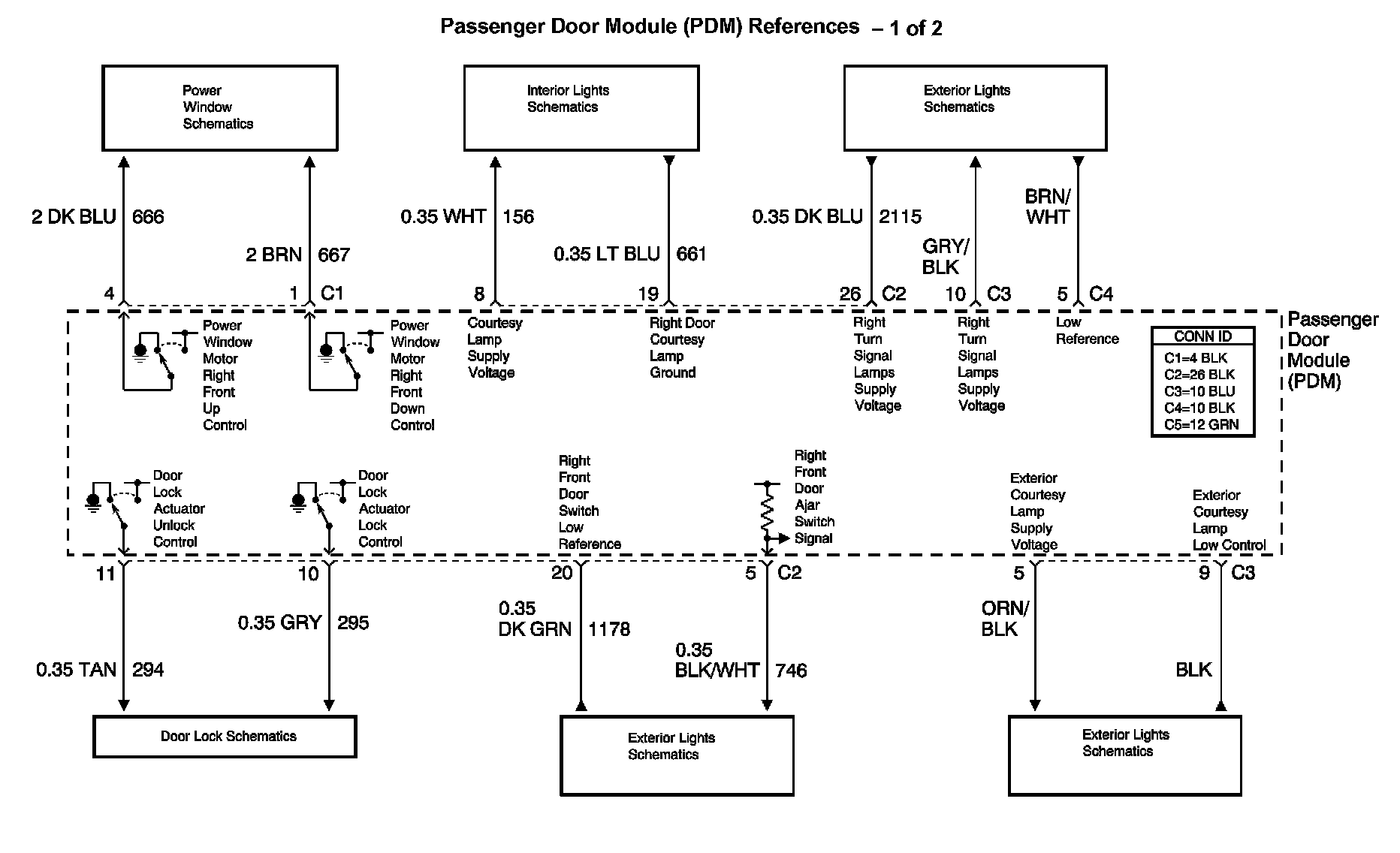

Door Control Module Diagram 1:

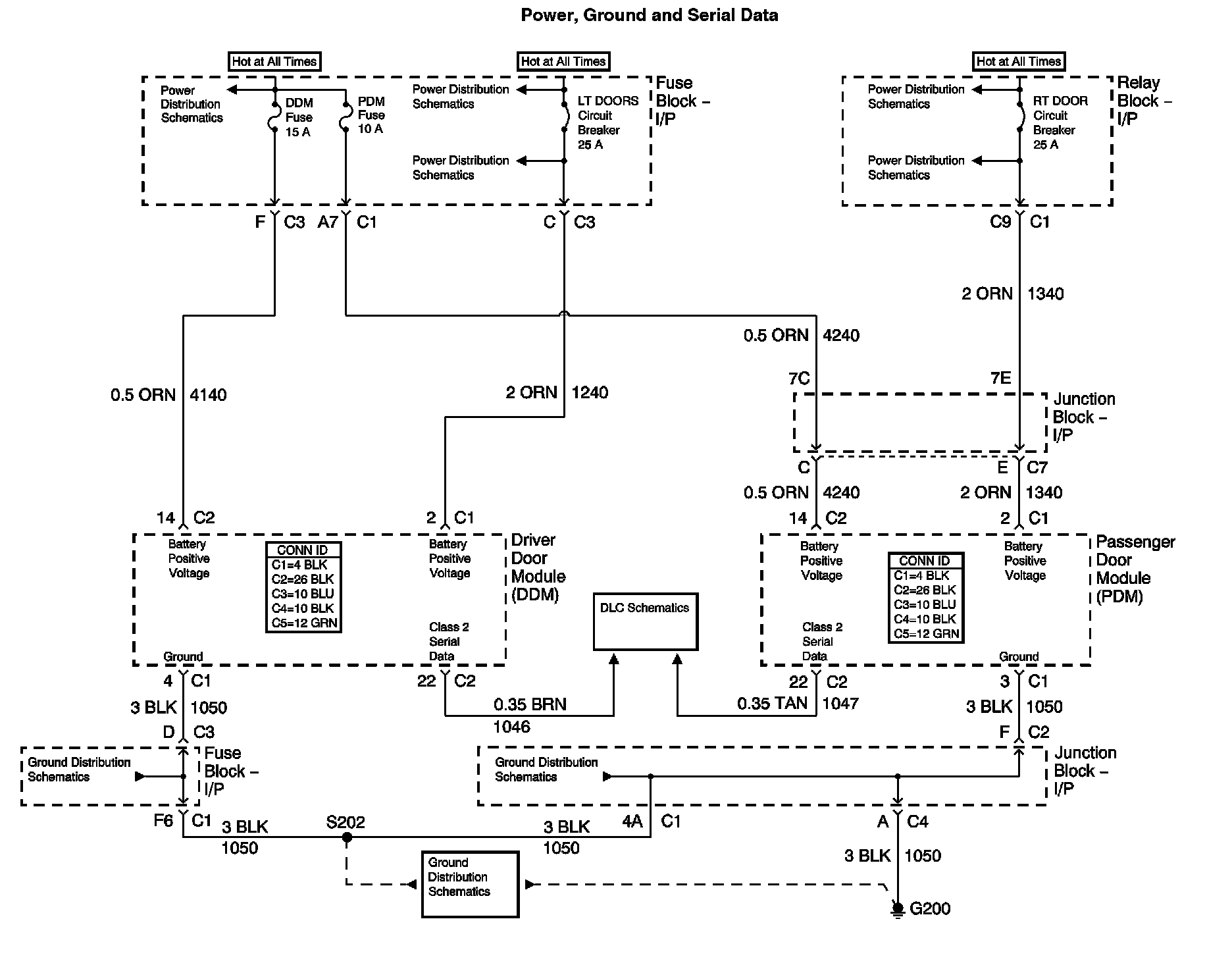

Door Control Module Diagram 2 Part 1:

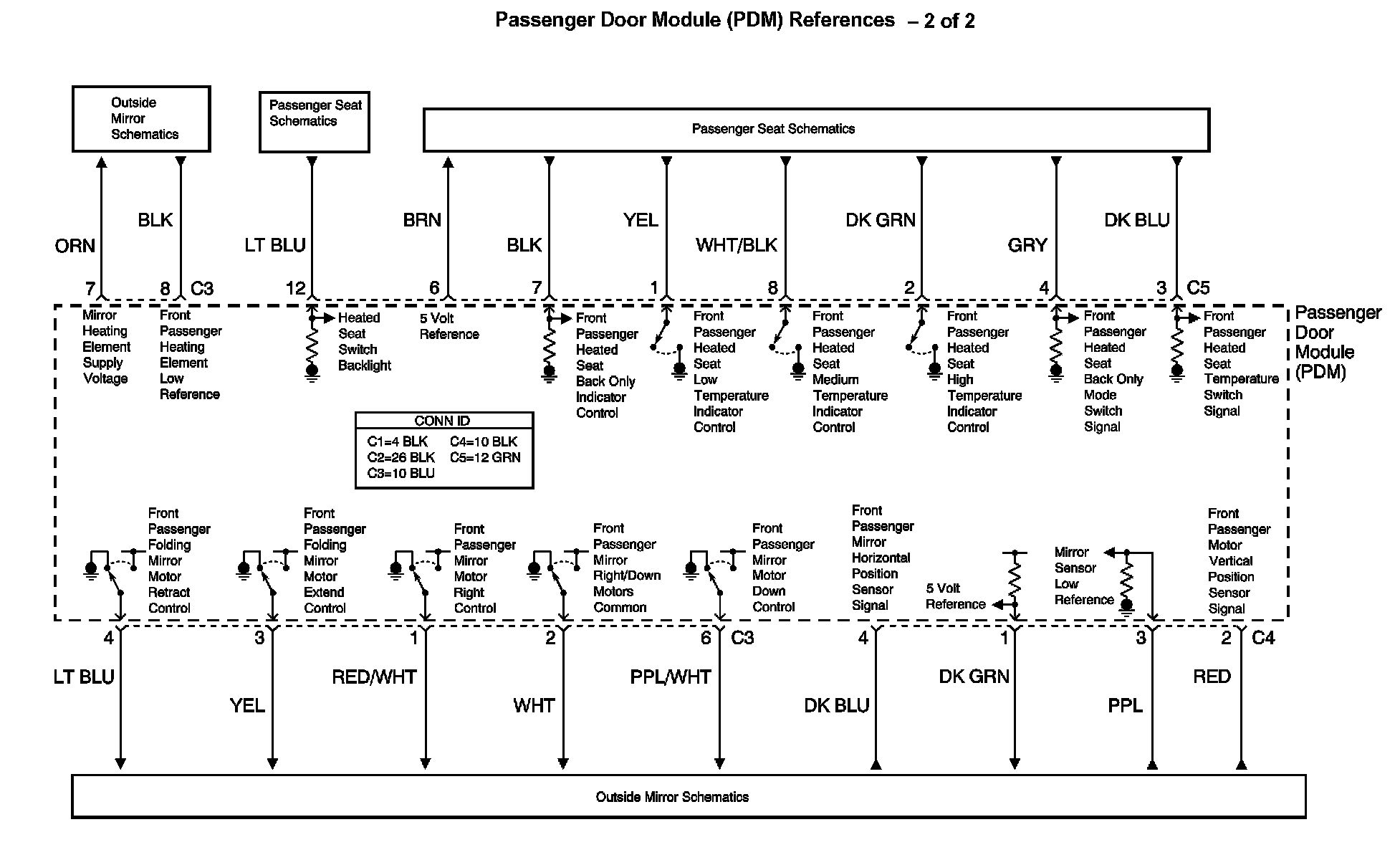

Door Control Module Diagram 2 Part 2:

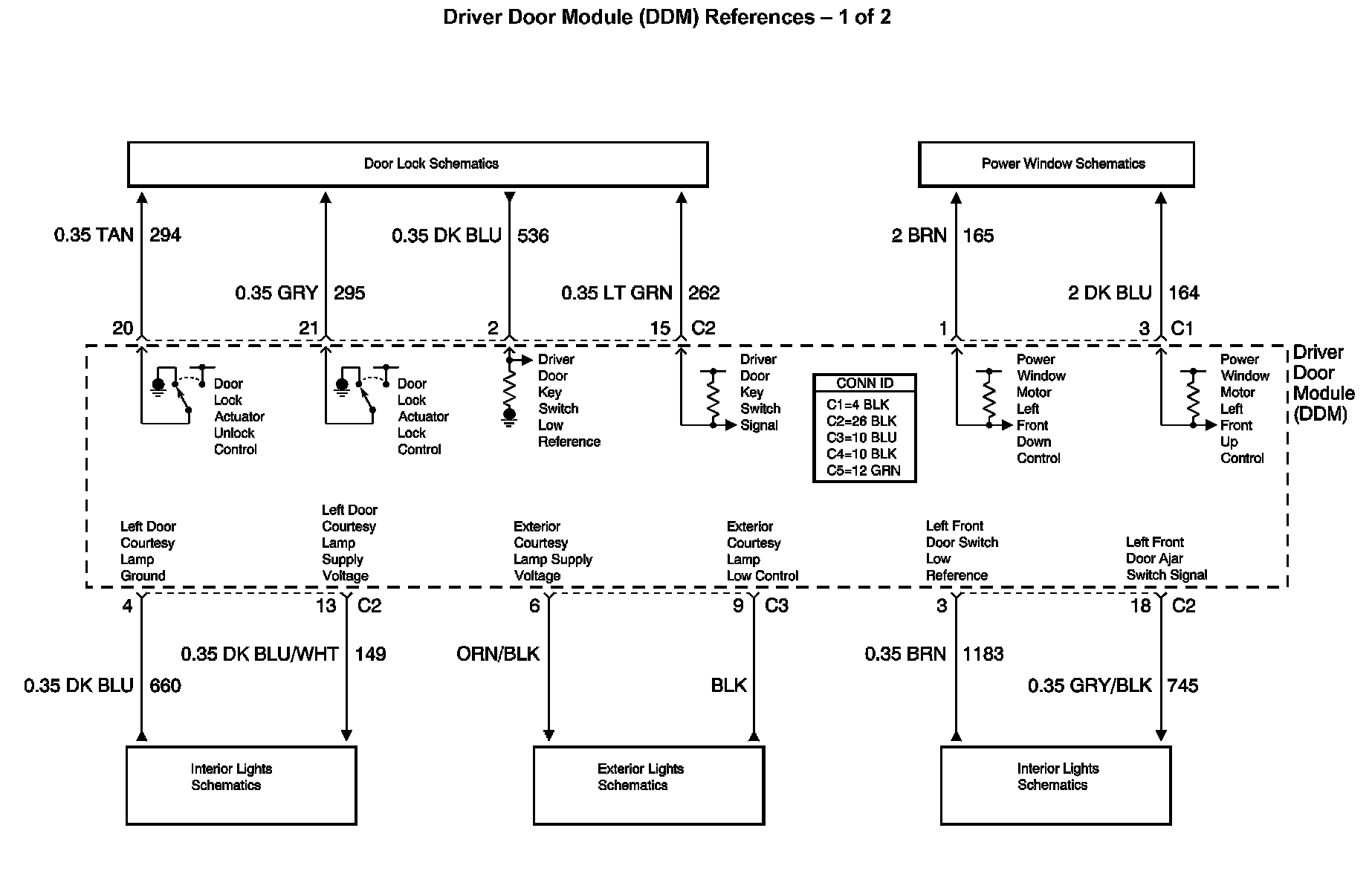

Door Control Module Diagram 3 Part 1:

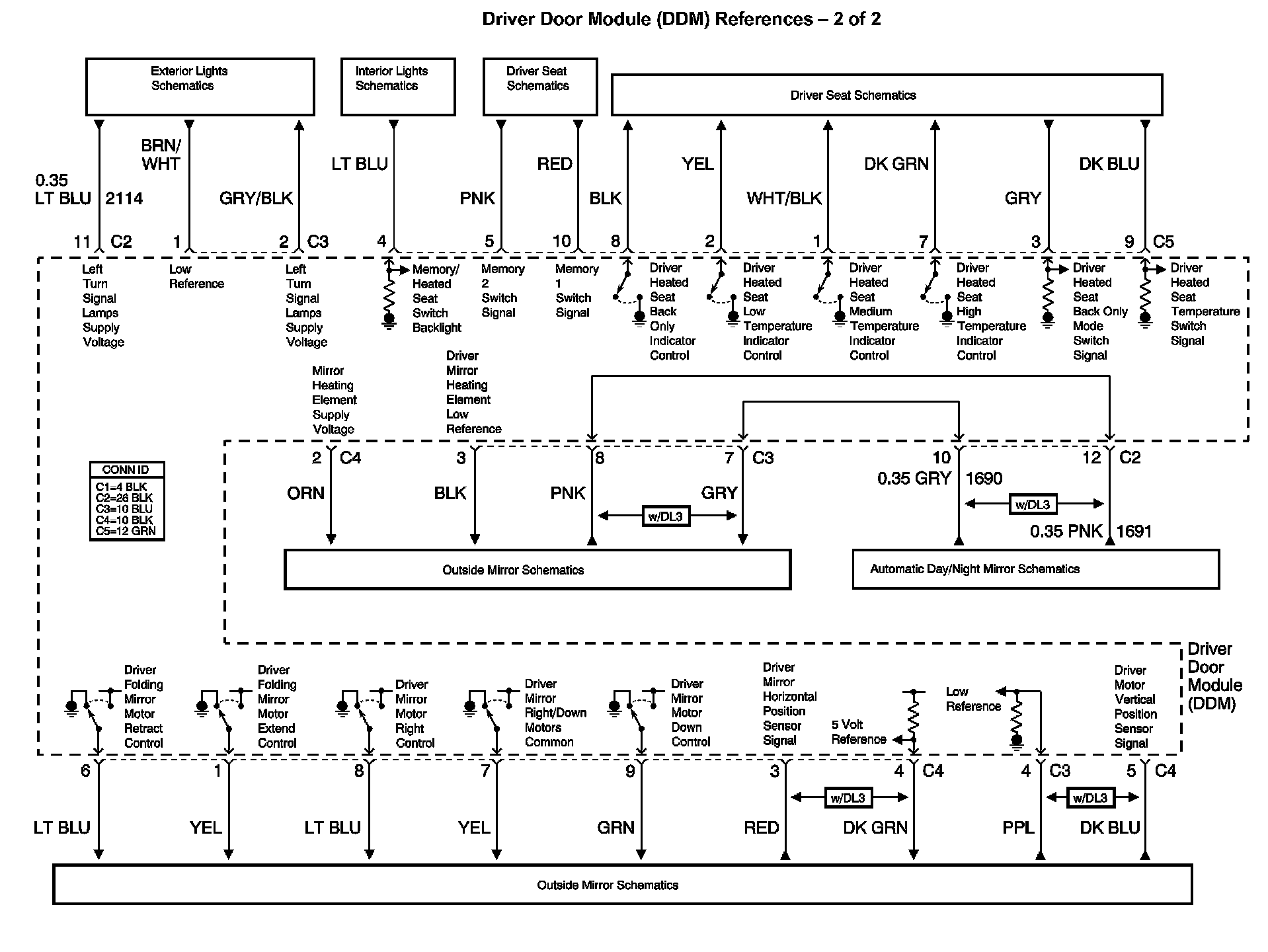

Door Control Module Diagram 3 Part 2:
