Normal Scan Tool Data Values - Energy Storage Control Module (ESCM)

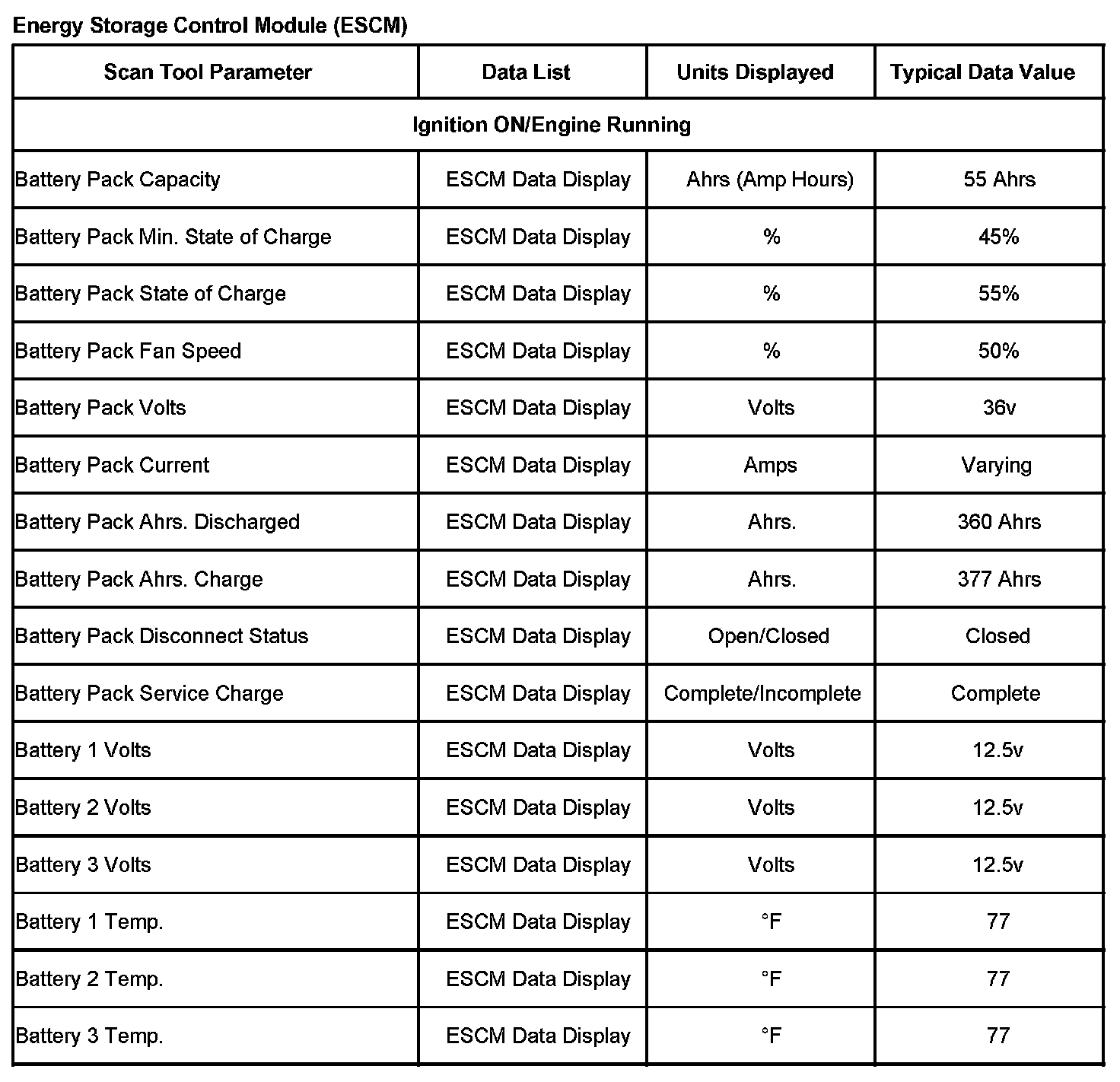

Energy Storage Control Module (ESCM):
