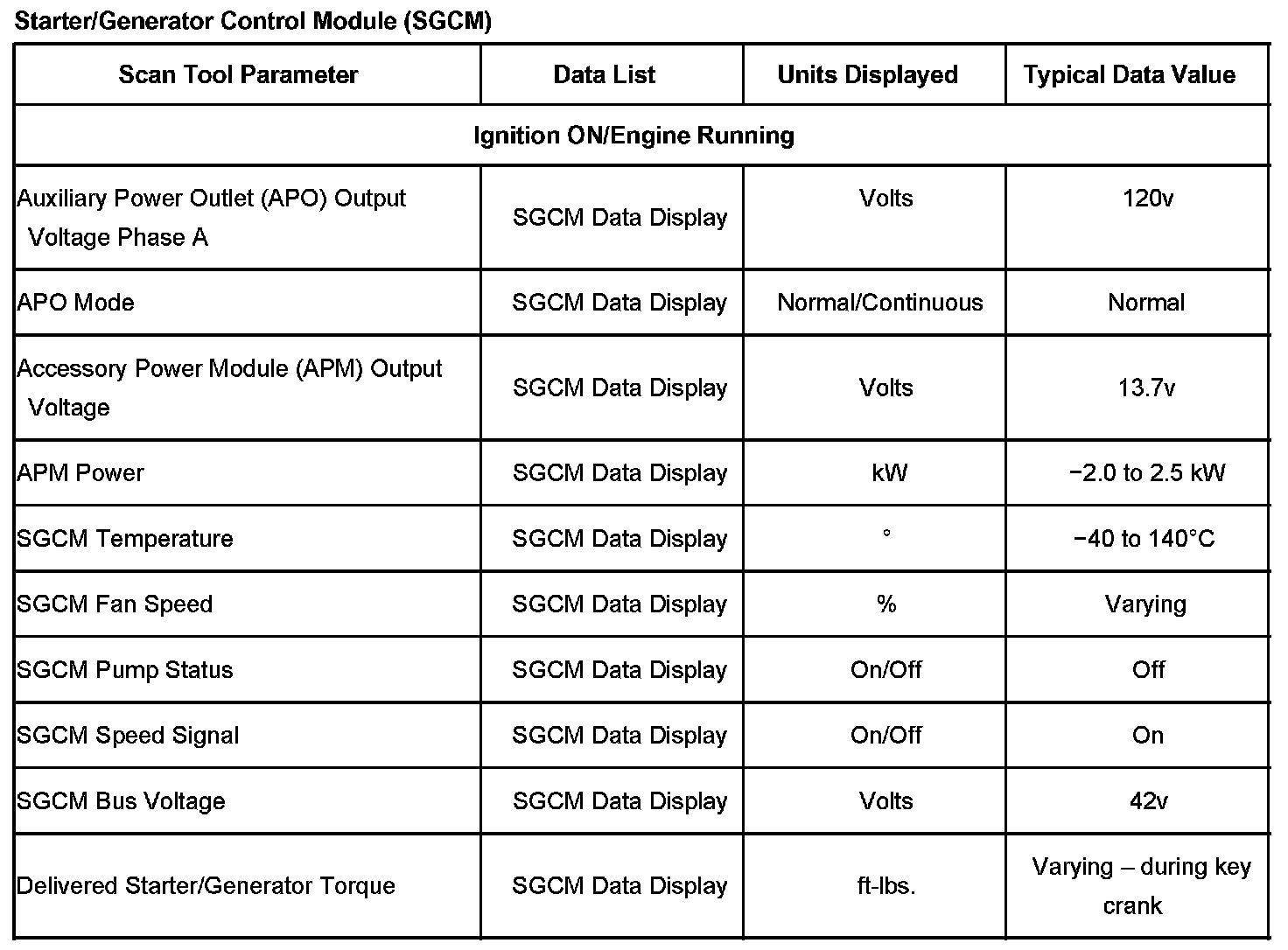

Normal Scan Tool Data Values - Starter/Generator Control Module (SGCM)
Starter/Generator Control Module (SGCM):
