Electronic Brake Control Module

ABS Connector End Views





Electronic Brake Control Module (ECBCM) - C1

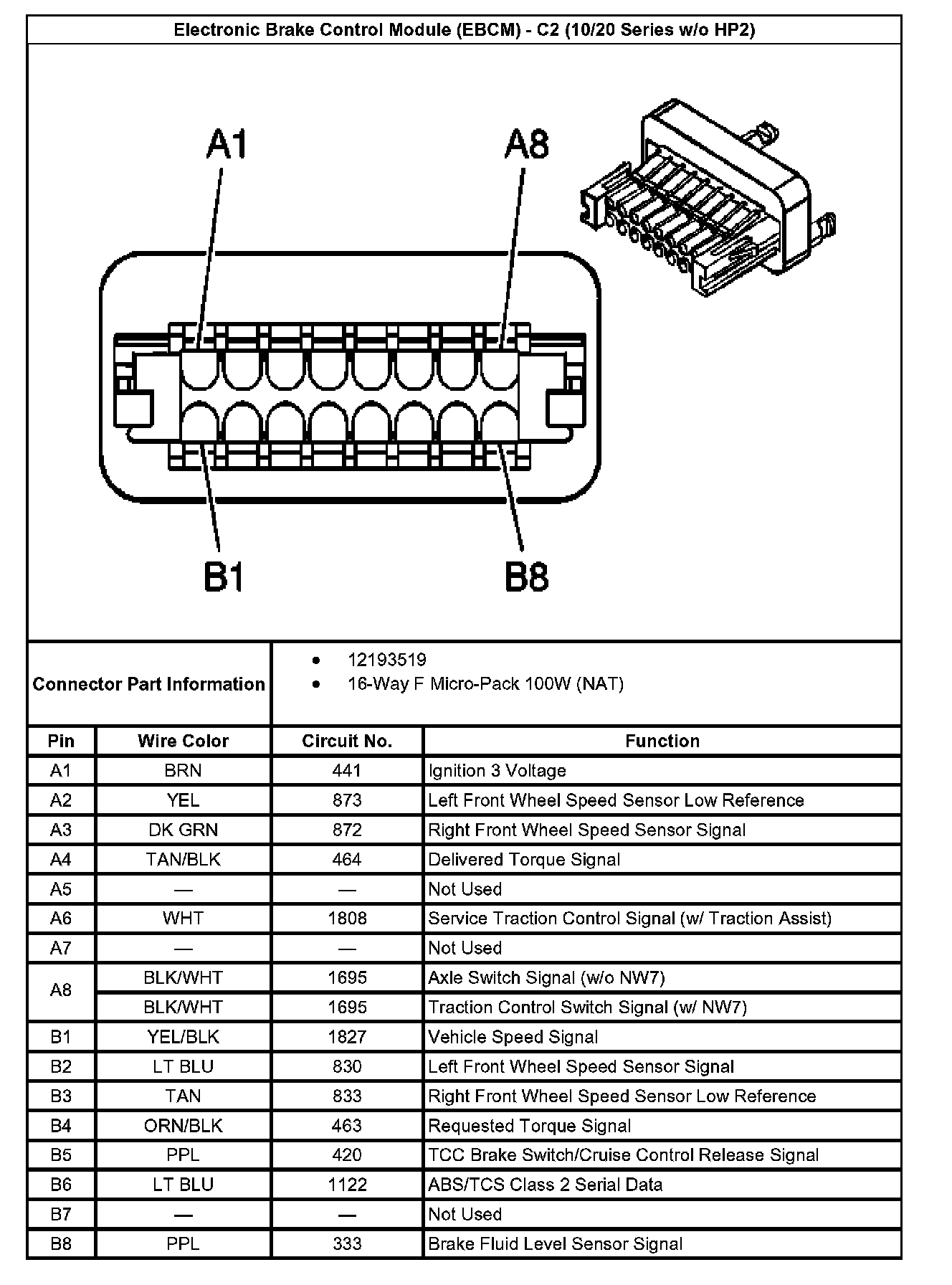

Electronic Brake Control Module (ECBCM) - C2 (10/20 Series w/o HP2

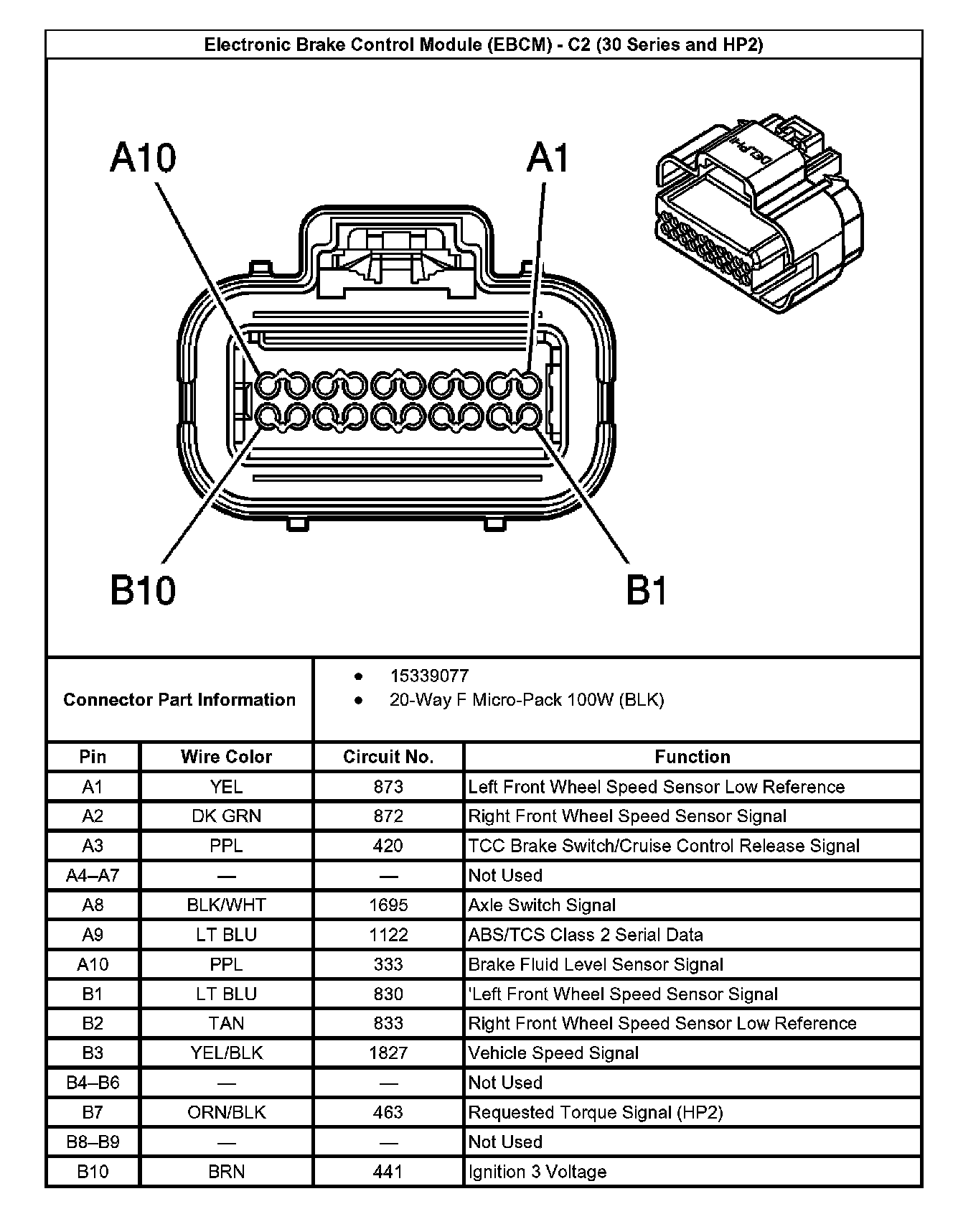

Electronic Brake Control Module (ECBCM) - C2 (30 Series and HP2
