HVAC System - Manual

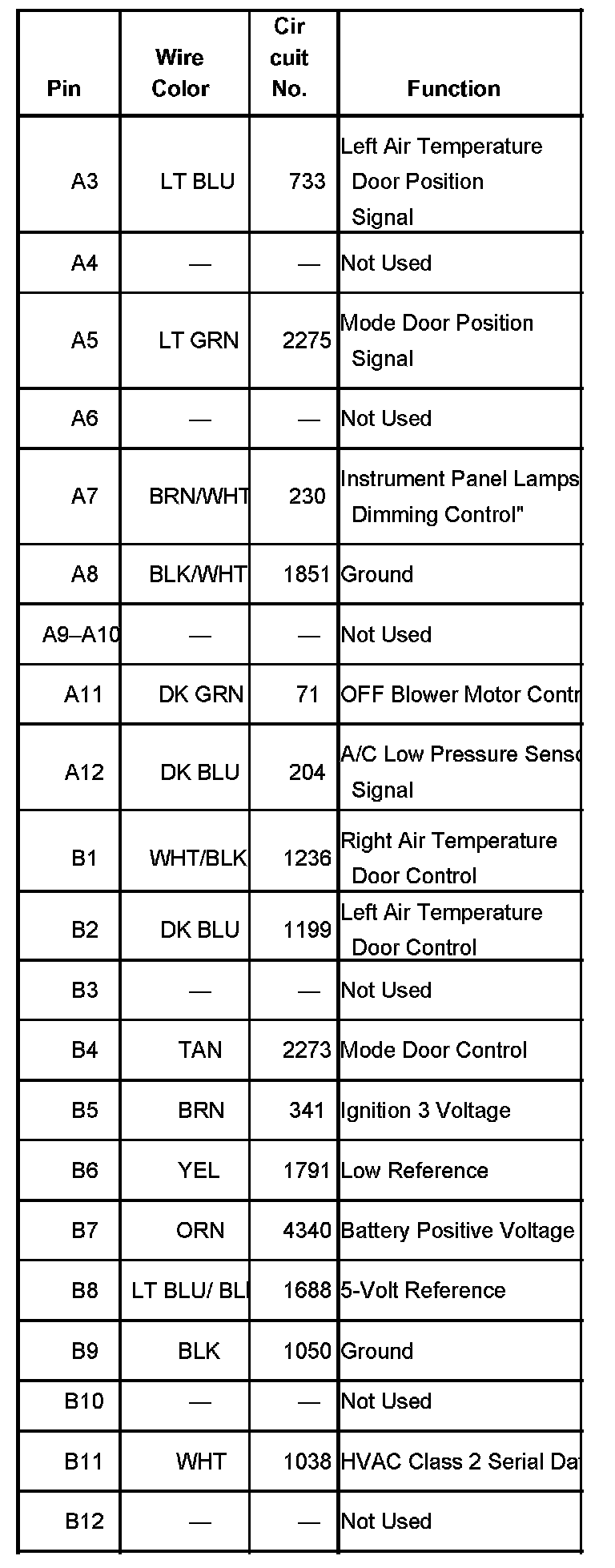

HVAC Control Module - C1 Part 1:



HVAC Control Module - C1 Part 2:



HVAC Control Module - C2 Part 1:



HVAC Control Module - C2 Part 2:
