Scan Tool Output Controls

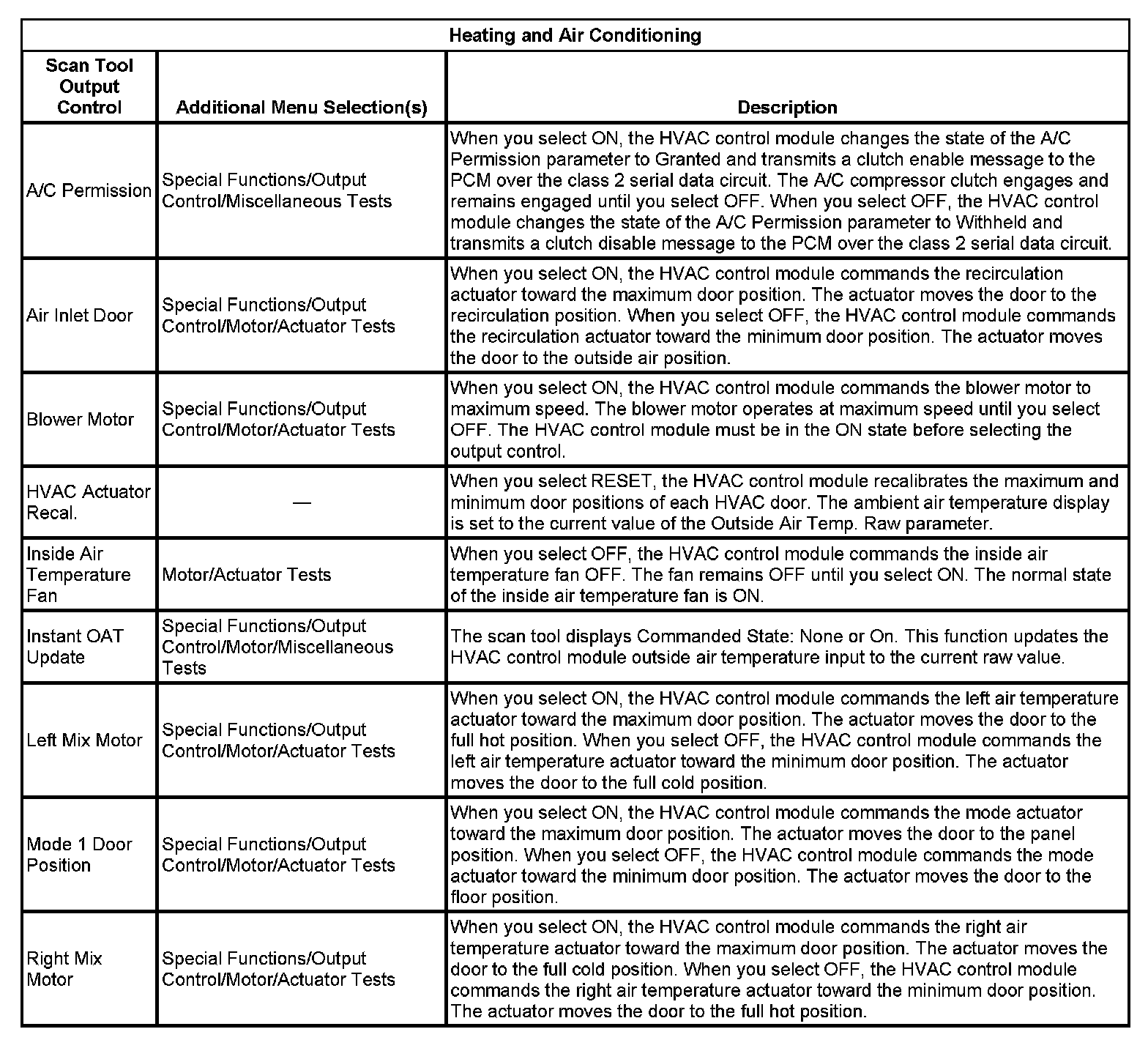

Heating And Air Conditioning:

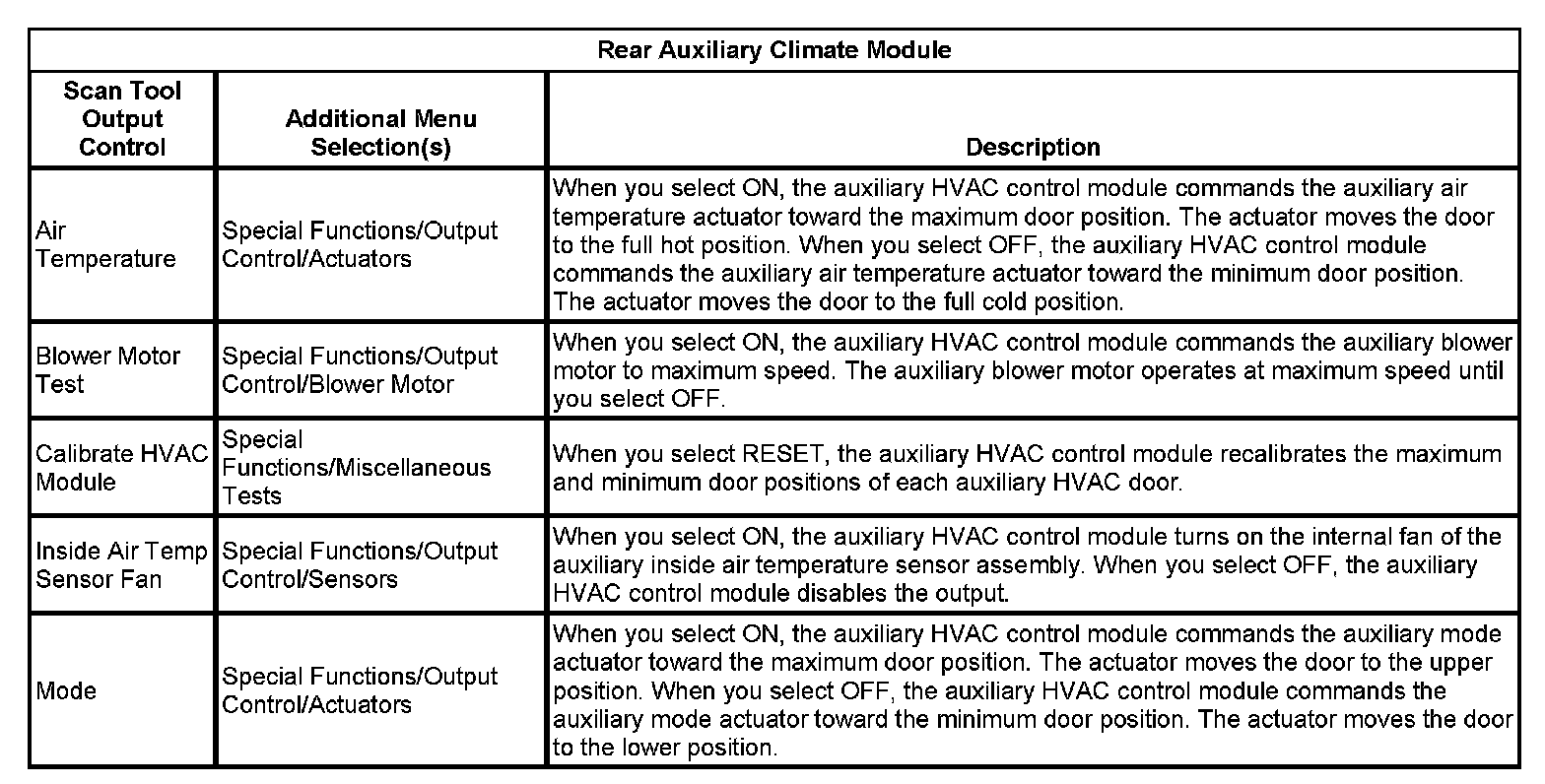

Rear Auxiliary Climate Module:



Powertrain Control Module:
