Back View of the PCM Connector C3

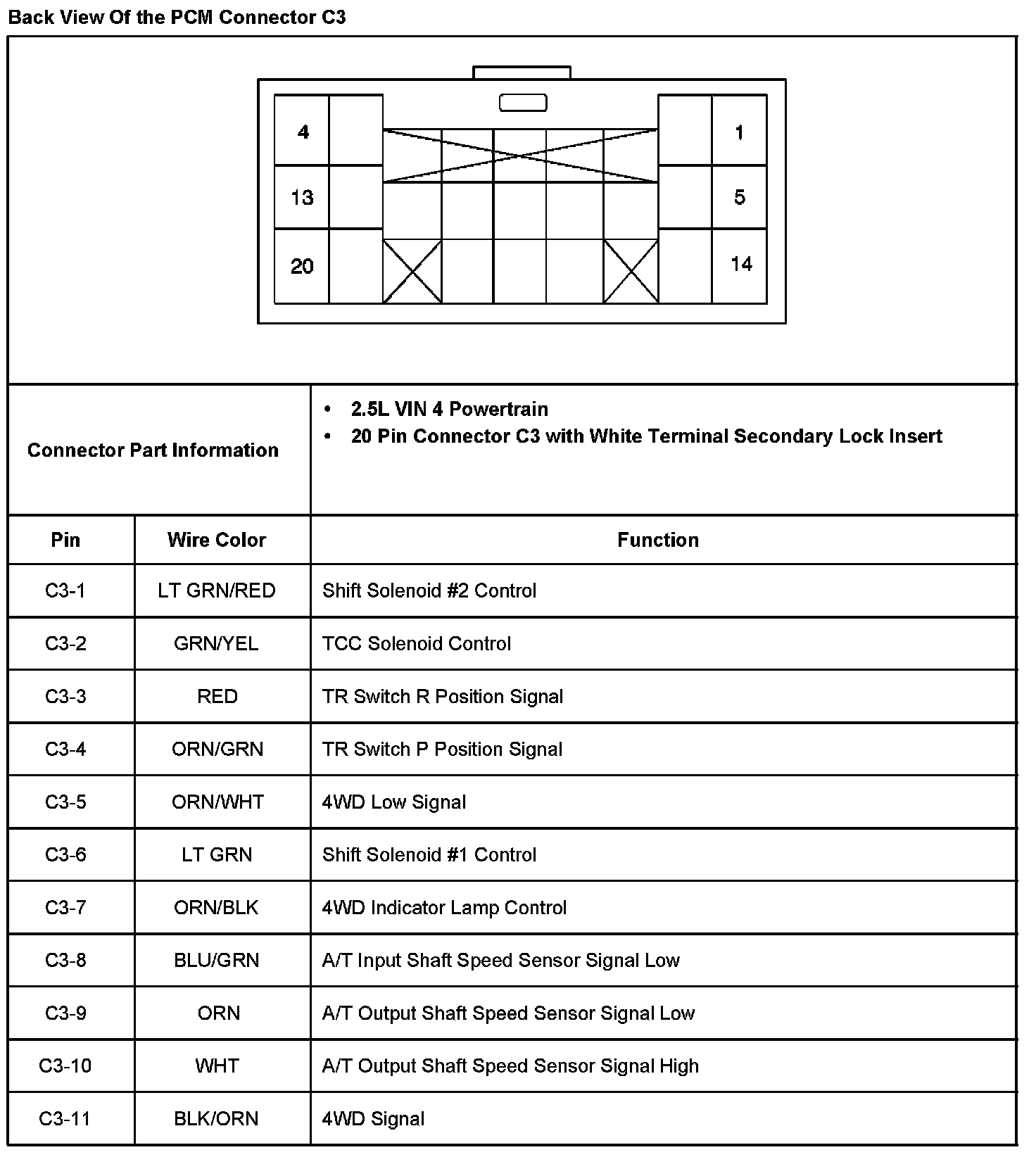

Back View Of The PCM Connector C3 Part 1:



Back View Of The PCM Connector C3 Part 2:
