Engine Controls Diagram 17

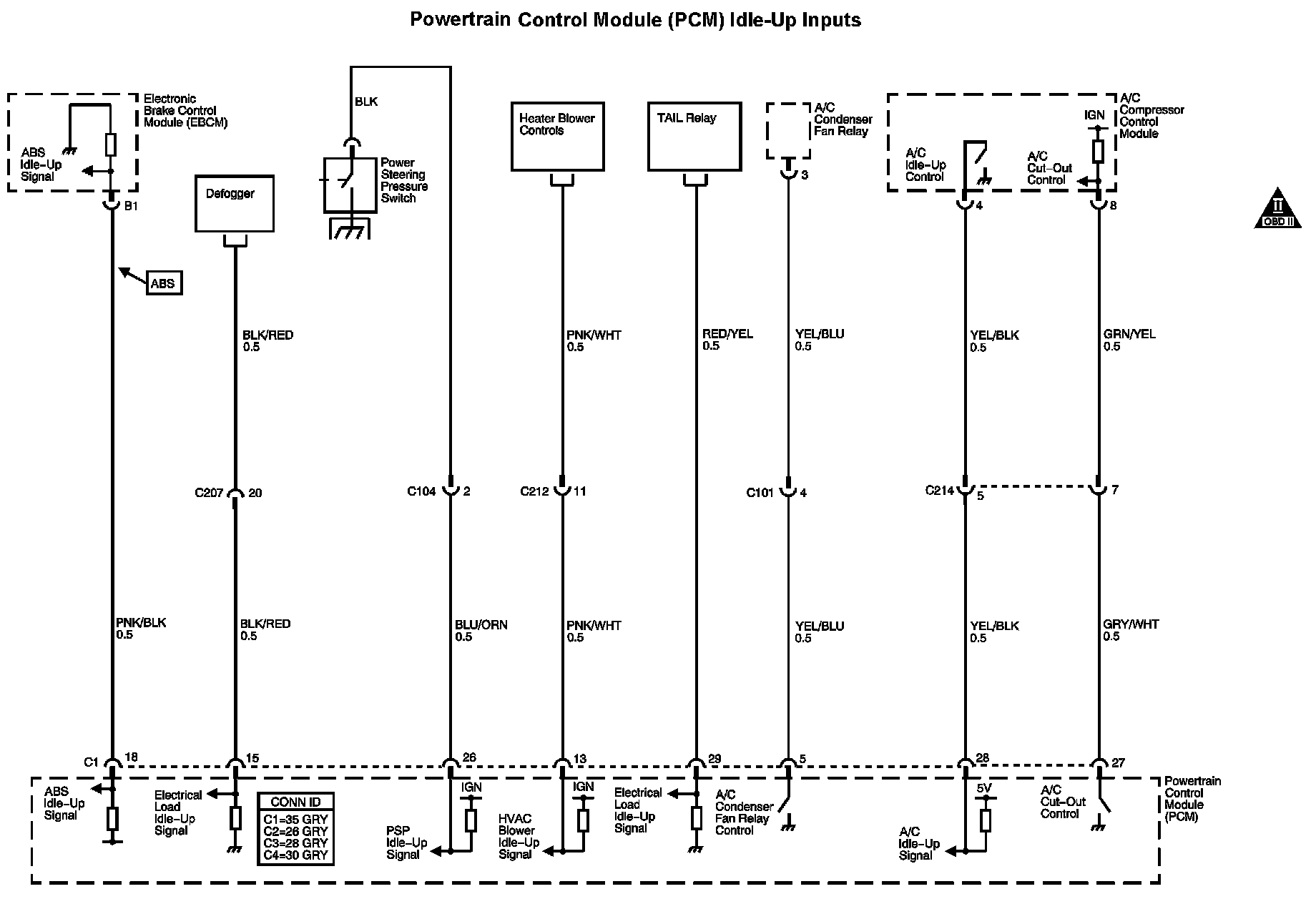

Engine Controls Diagram 17:






Previous Diagram Engine Controls Diagram 16
