Engine Controls Diagram 4
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

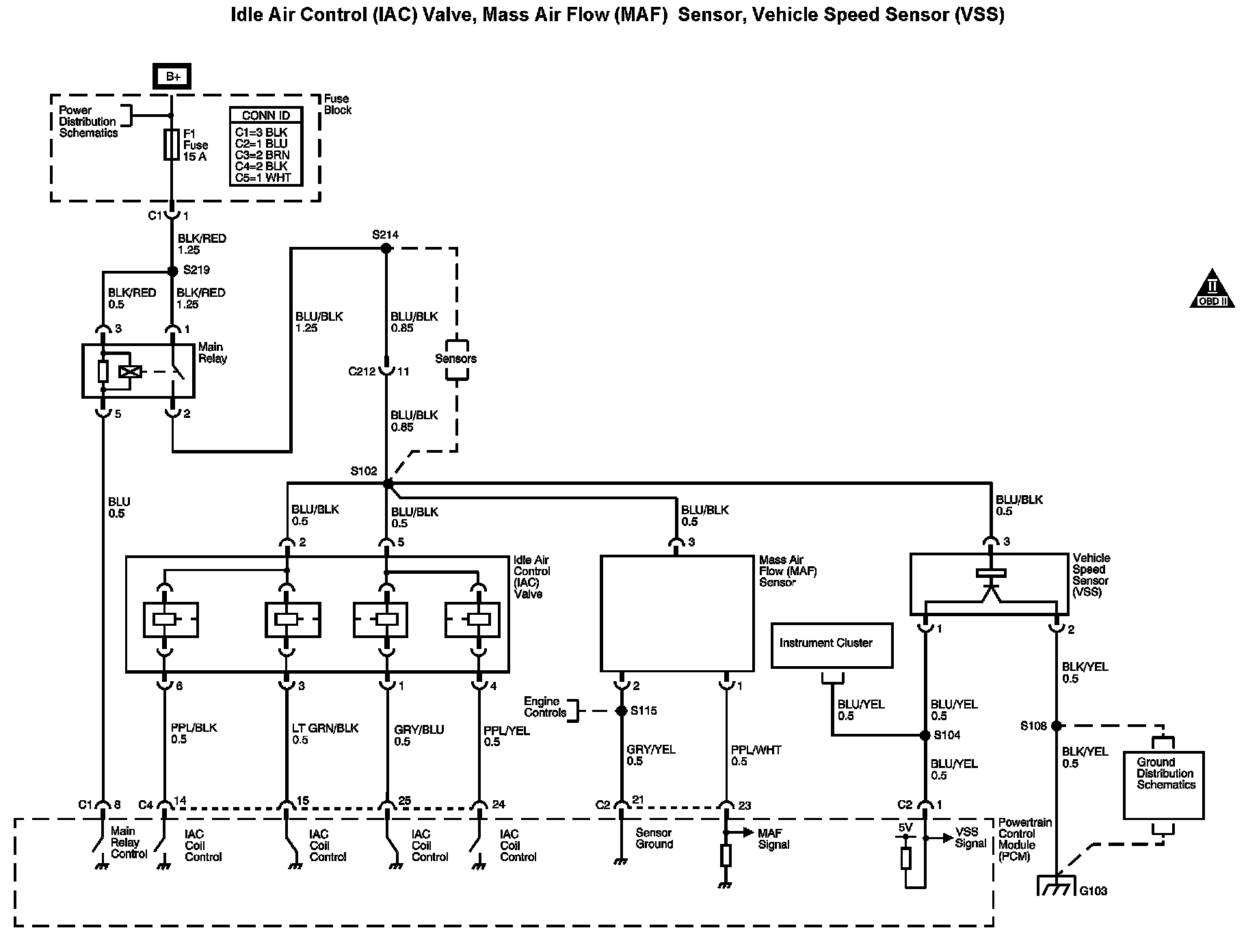

Engine Controls Diagram 4
Engine Controls Diagram 4:
