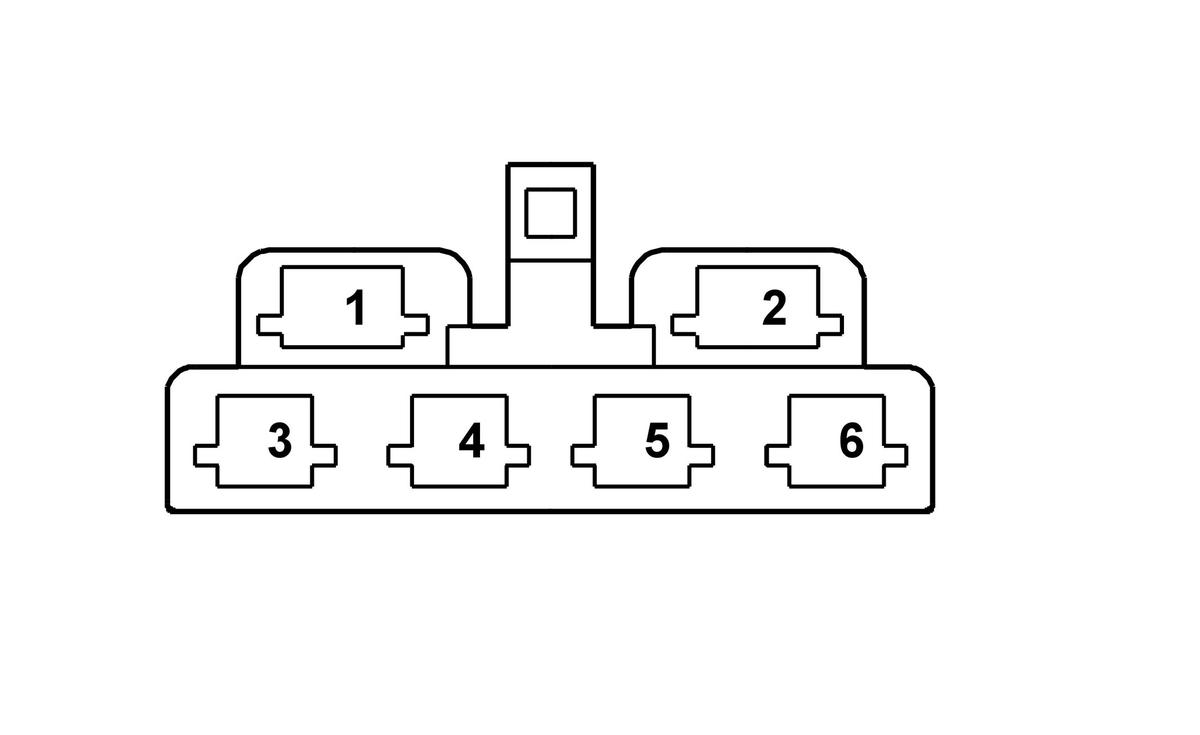

Blower Motor Switch Connector End View
Blower Motor Switch Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Function |
| 1 |
BLK |
Ground G201 |
| 2 |
PNK |
Blower Motor High |
| 3 |
PNK/BLK |
Blower Motor Low |
| 4 |
PNK/BLU |
Blower Motor M1 |
| 5 |
PNK/GRN |
Blower Motor M2 |
| 6 |
PNK/WHT |
Blower On Signal |
