Map Lamps Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

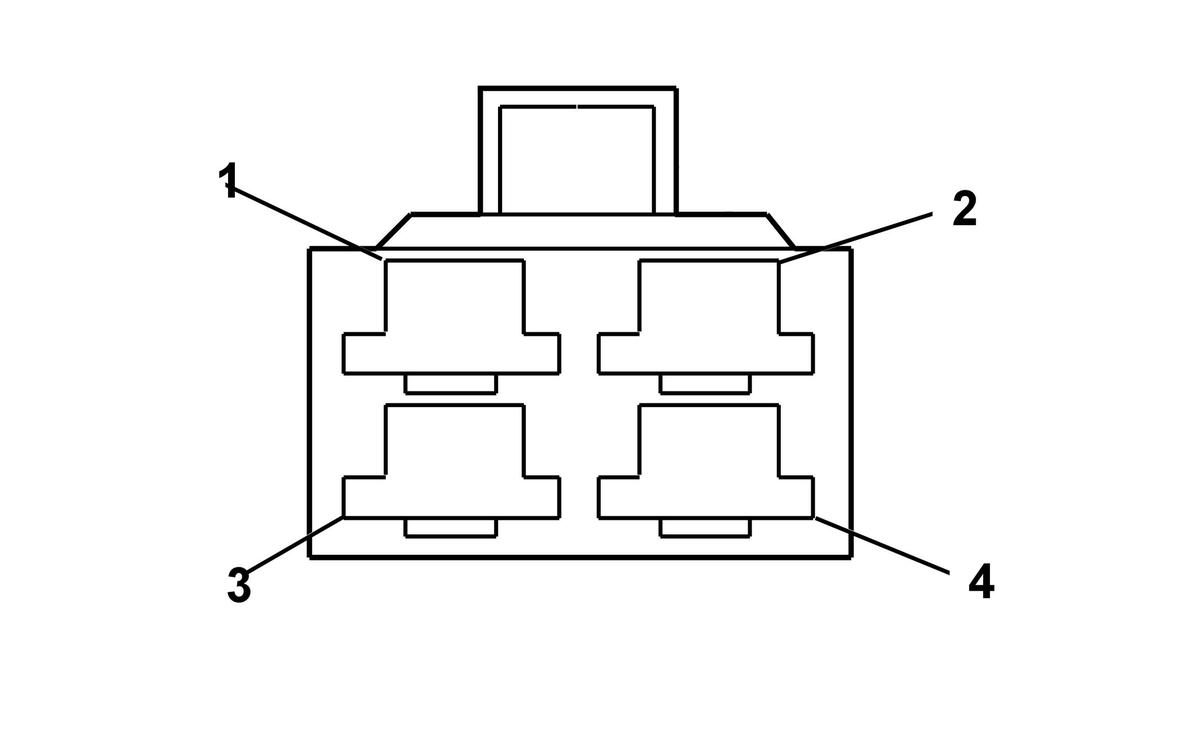

Map Lamps Connector End View
Map Lamps Connector End View
Courtesy of GENERAL MOTORS CORP.
Connector Part Information
09705045A010
BLK
Pin
Wire Color
Function
1
WHT
Battery Positive Voltage
2
BLK
Ground G200
3-4
-
Not Used
Courtesy of GENERAL MOTORS CORP.
