Tracker 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Shift Interlock System
>>
Schematic and Routing Diagrams
>>
Automatic Transmission Shift Lock Control Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Automatic Transmission Shift Lock Control Schematics

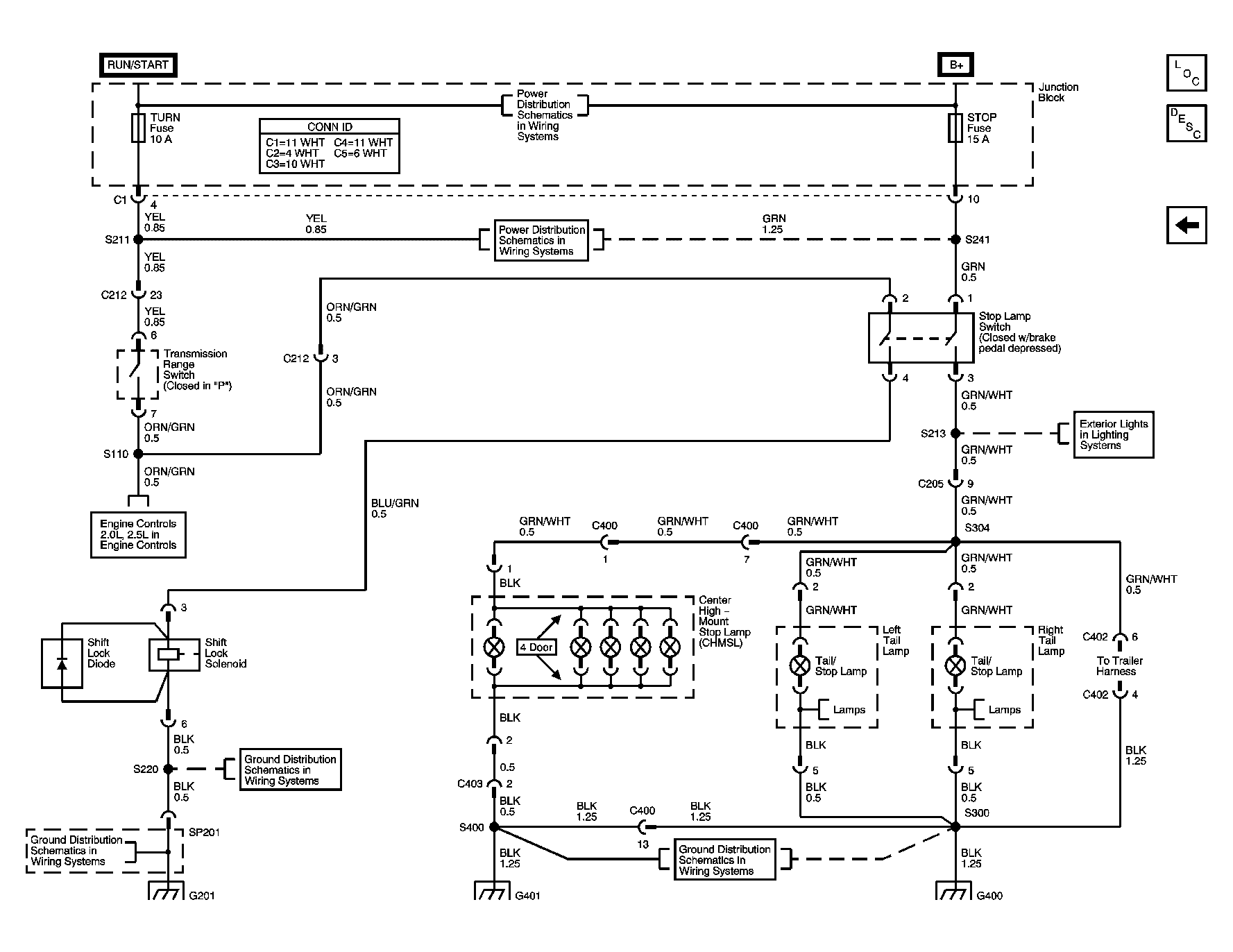

Fig 1: Shiftlock Control with Cruise Control Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 2: Shiftlock Control without Cruise Control Schematic
Courtesy of GENERAL MOTORS CORP.
