Transfer Case Control Schematics

WARNING: This page is about a different variant/trim than selected.

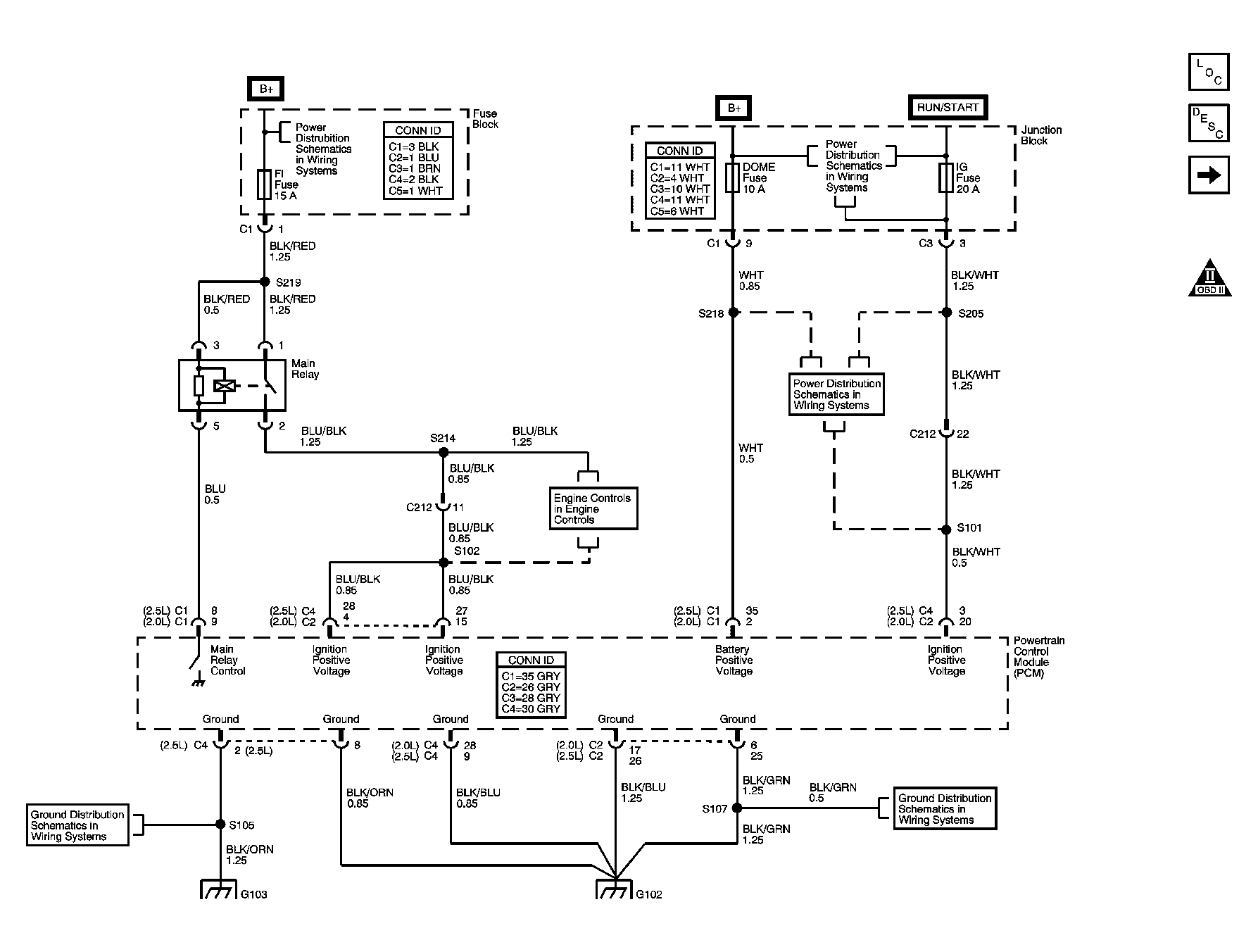

Fig 1: Main Relay, Powertrain Control Module (PCM) Power and Ground
GM883502Courtesy of GENERAL MOTORS CORP.

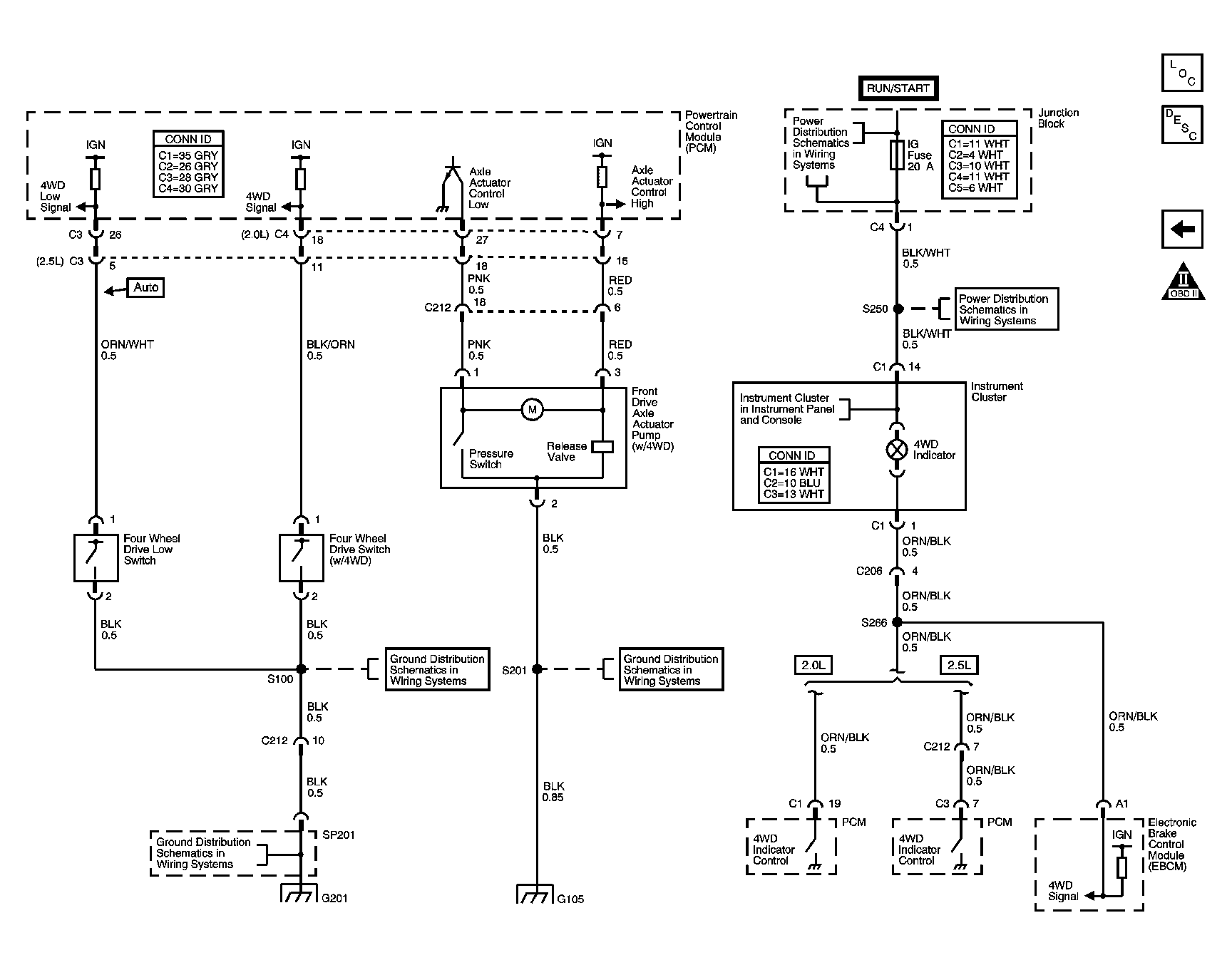

Fig 2: Four Wheel Drive Switches, Front Drive Axle Actuator
GM883503Courtesy of GENERAL MOTORS CORP.
