Power Distribution Schematics

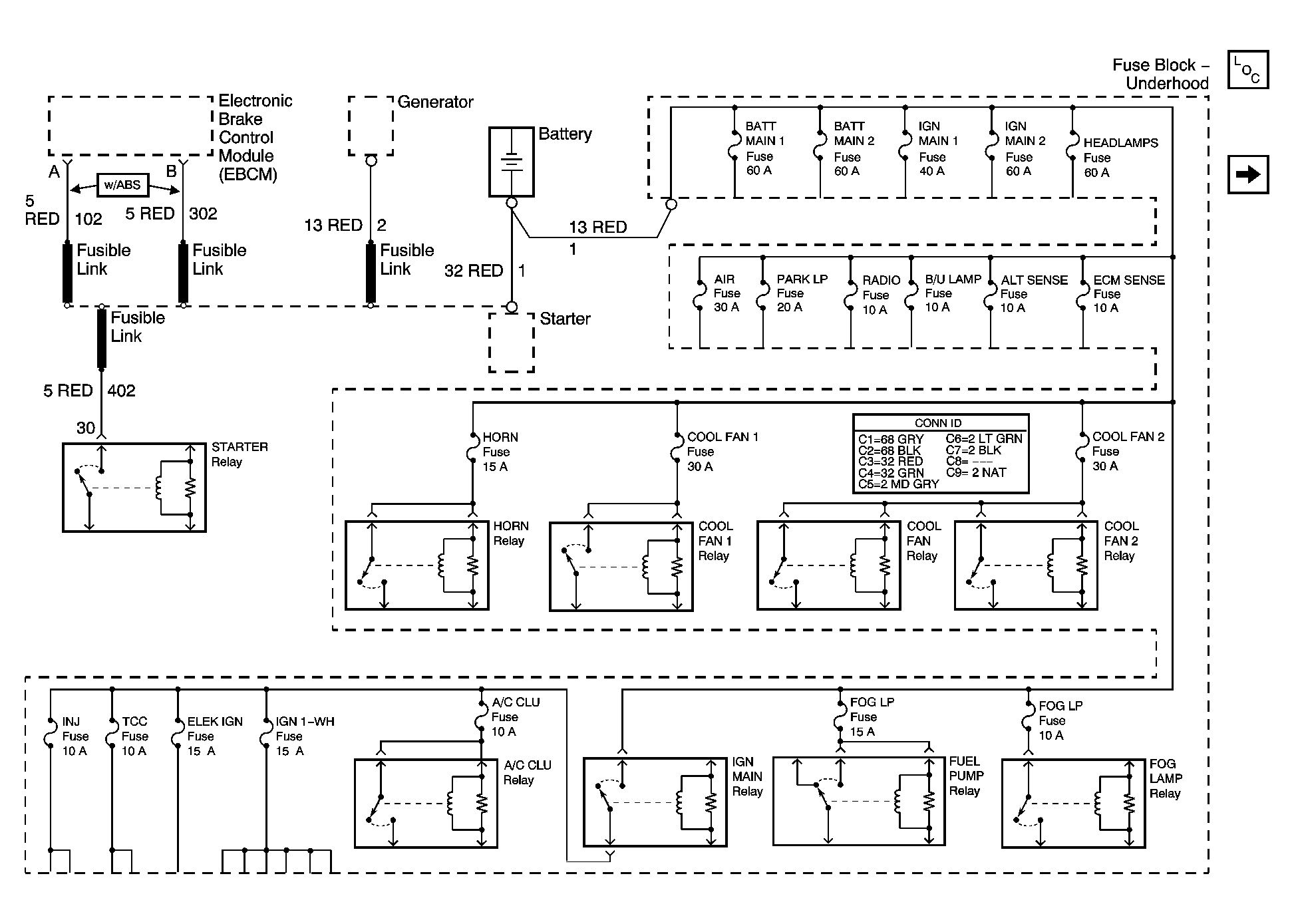

Fig 1: Fuse Block - Underhood and Fusable Links Schematic

Courtesy of GENERAL MOTORS CORP.

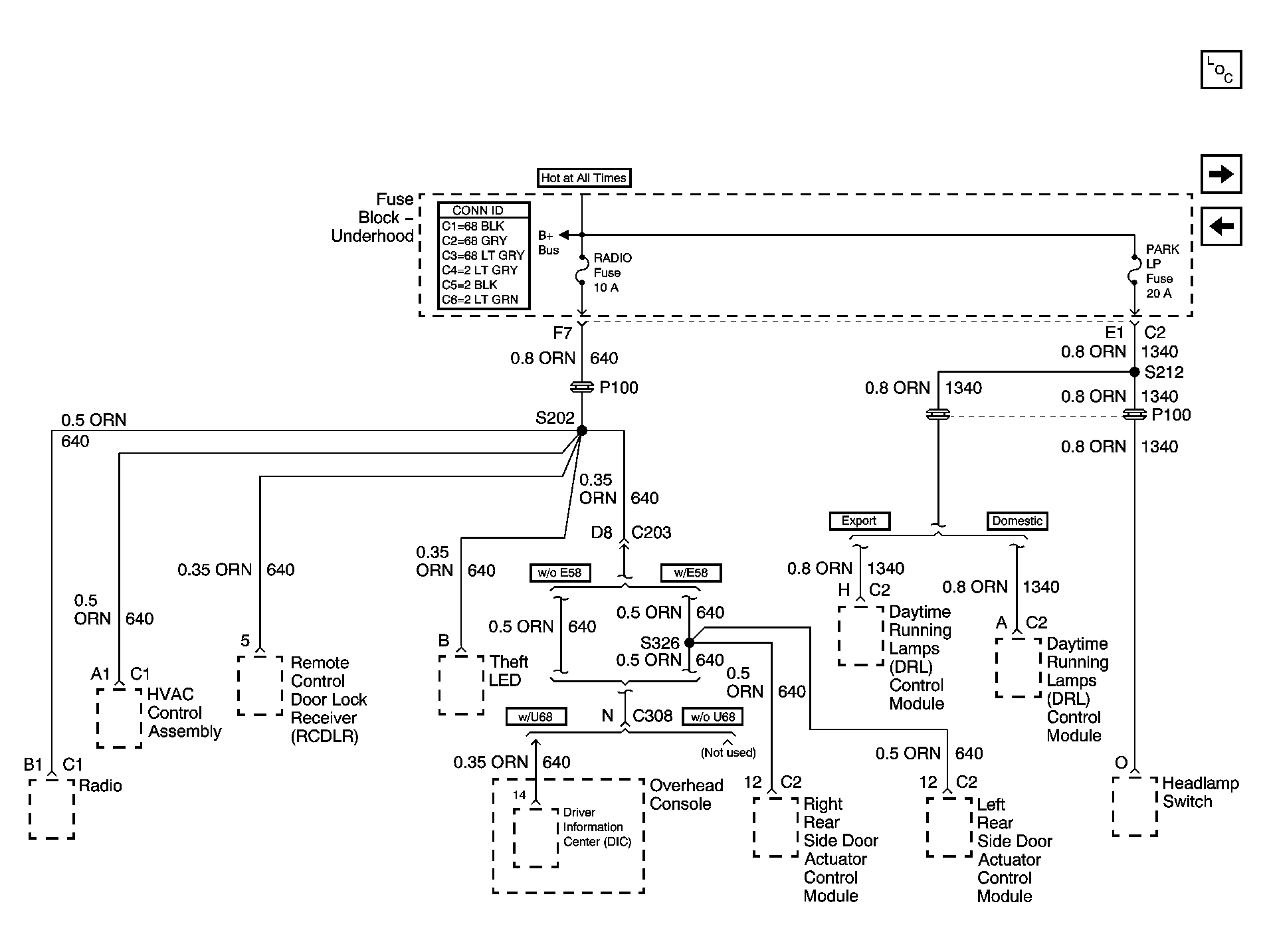

Fig 2: EBCM, BATT Main 1, RADIO and PARK LP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

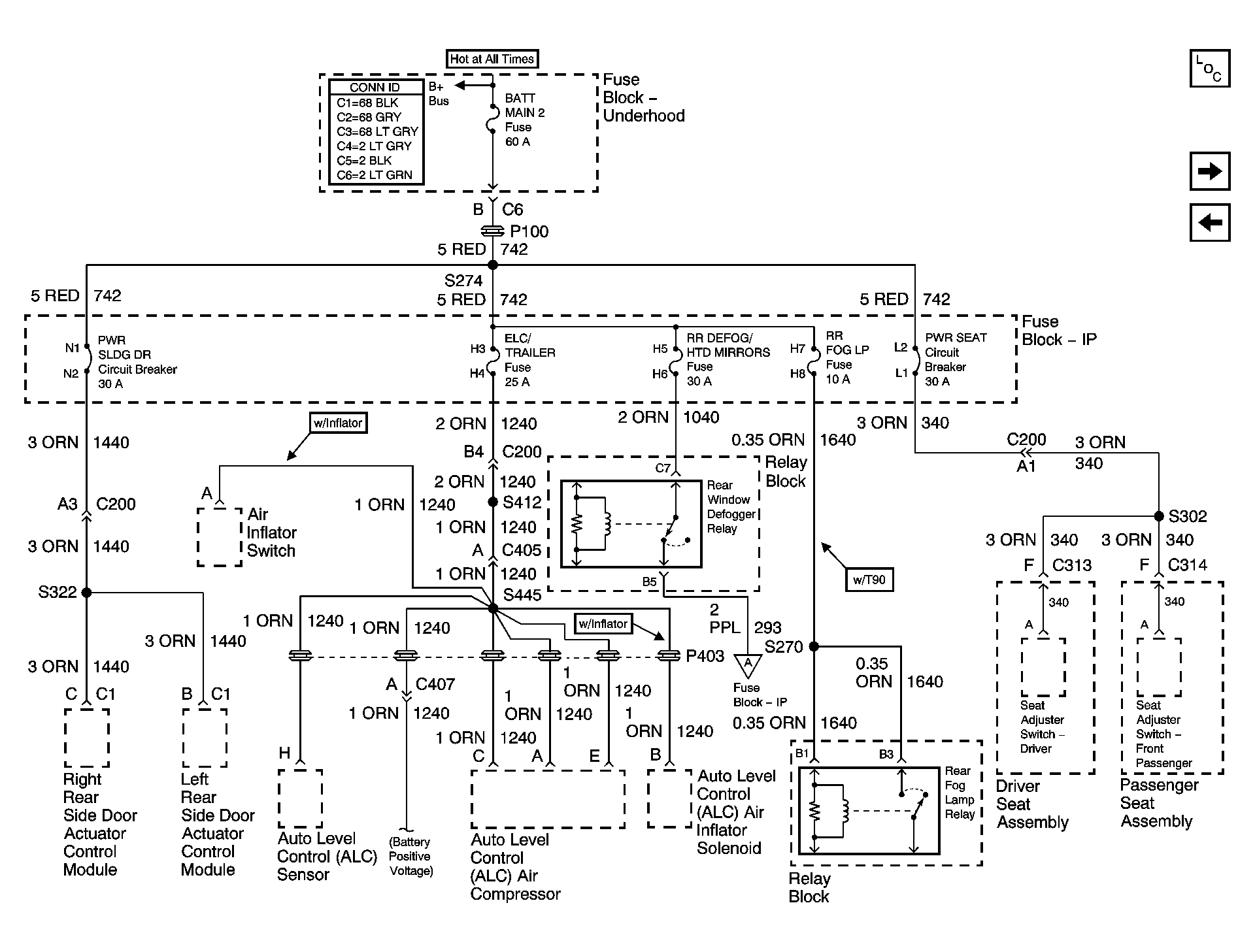

Fig 3: BATT Main 2, ELC/TRAILER, RR FOG LP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

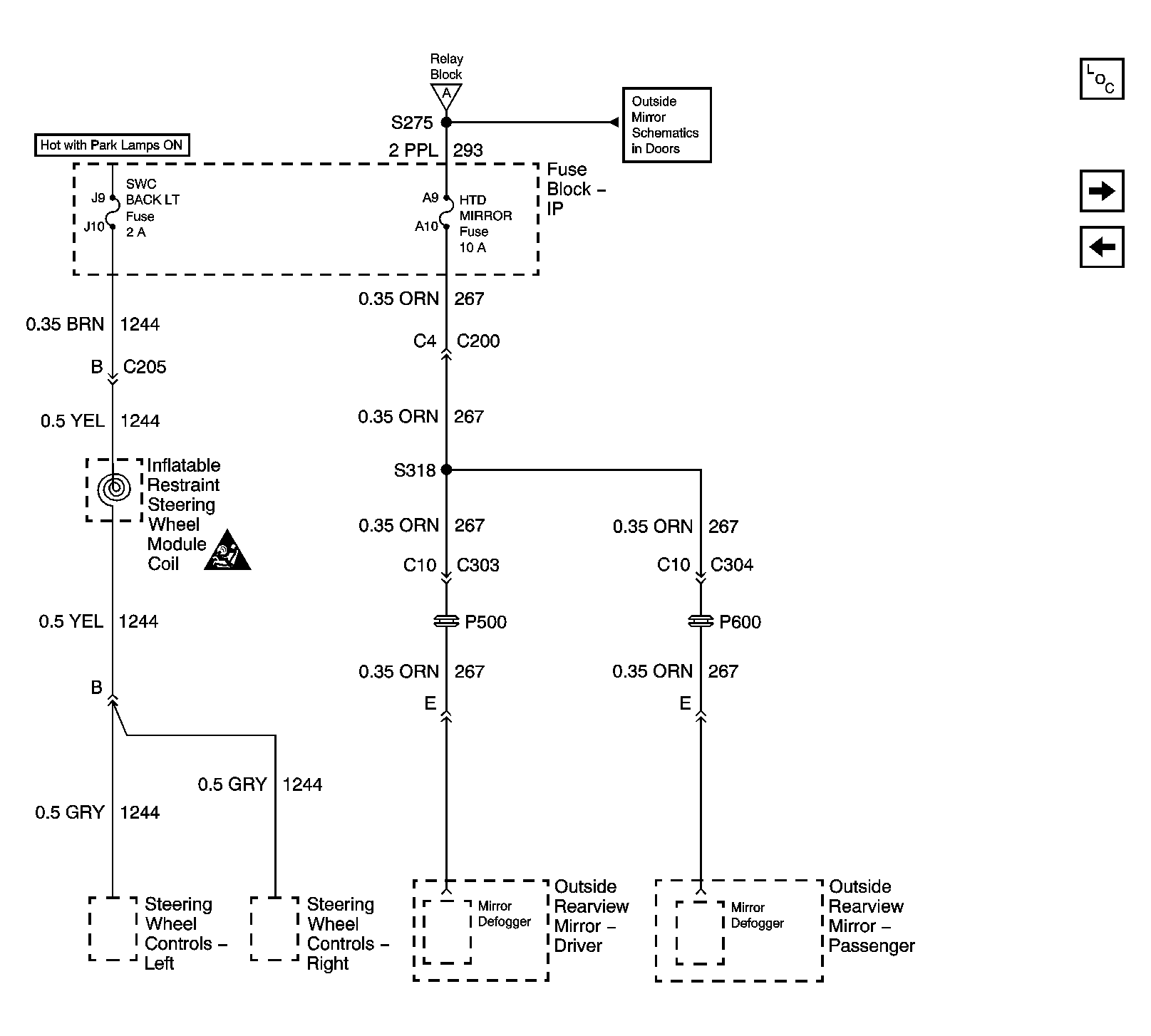

Fig 4: SWC BACKLIGHT and HTD MIRROR Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

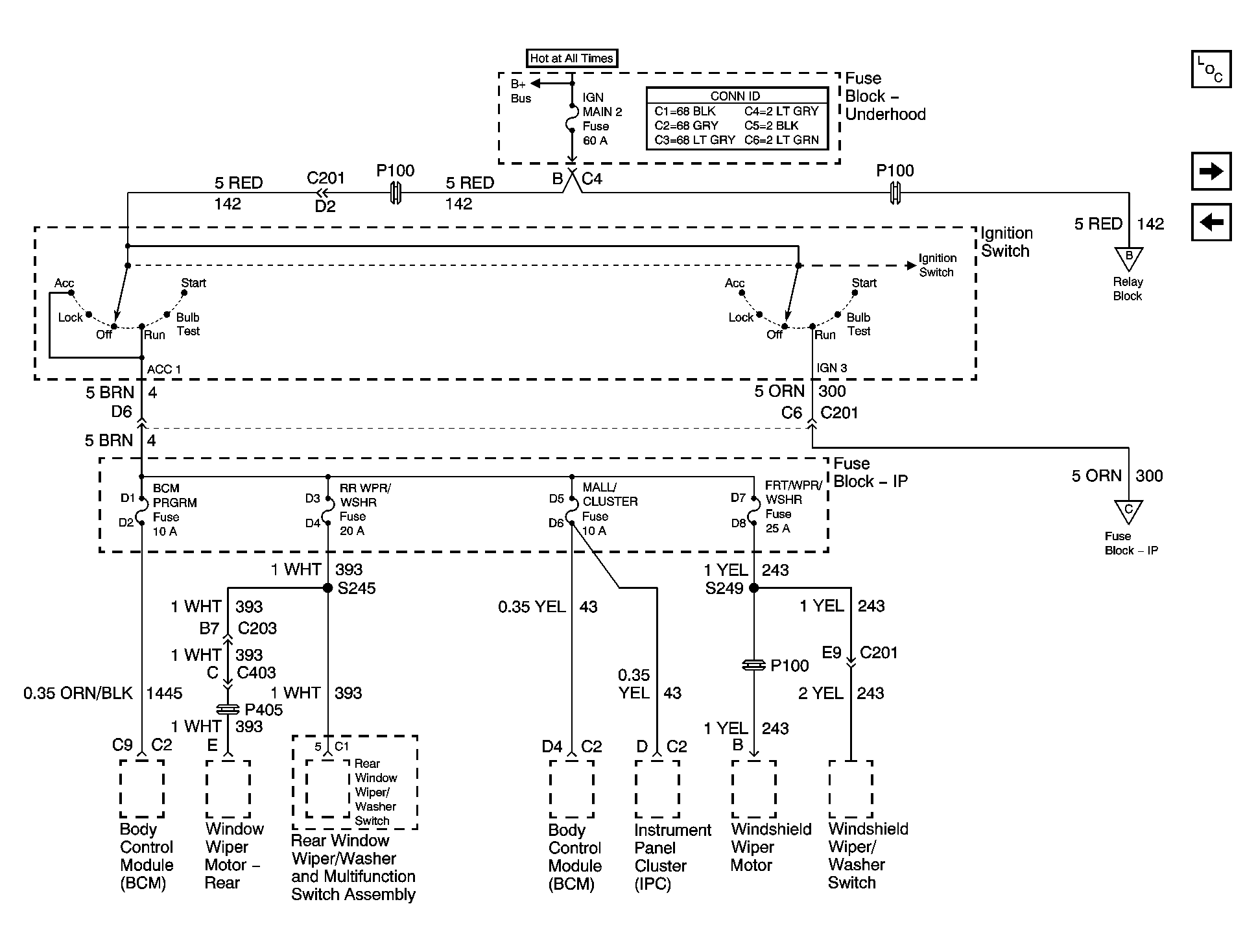

Fig 5: IGN Main 2, BCM PRGRM, RR WPR/WSHR, MALL/CLUSTER and FRT/WPR/WSHR Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

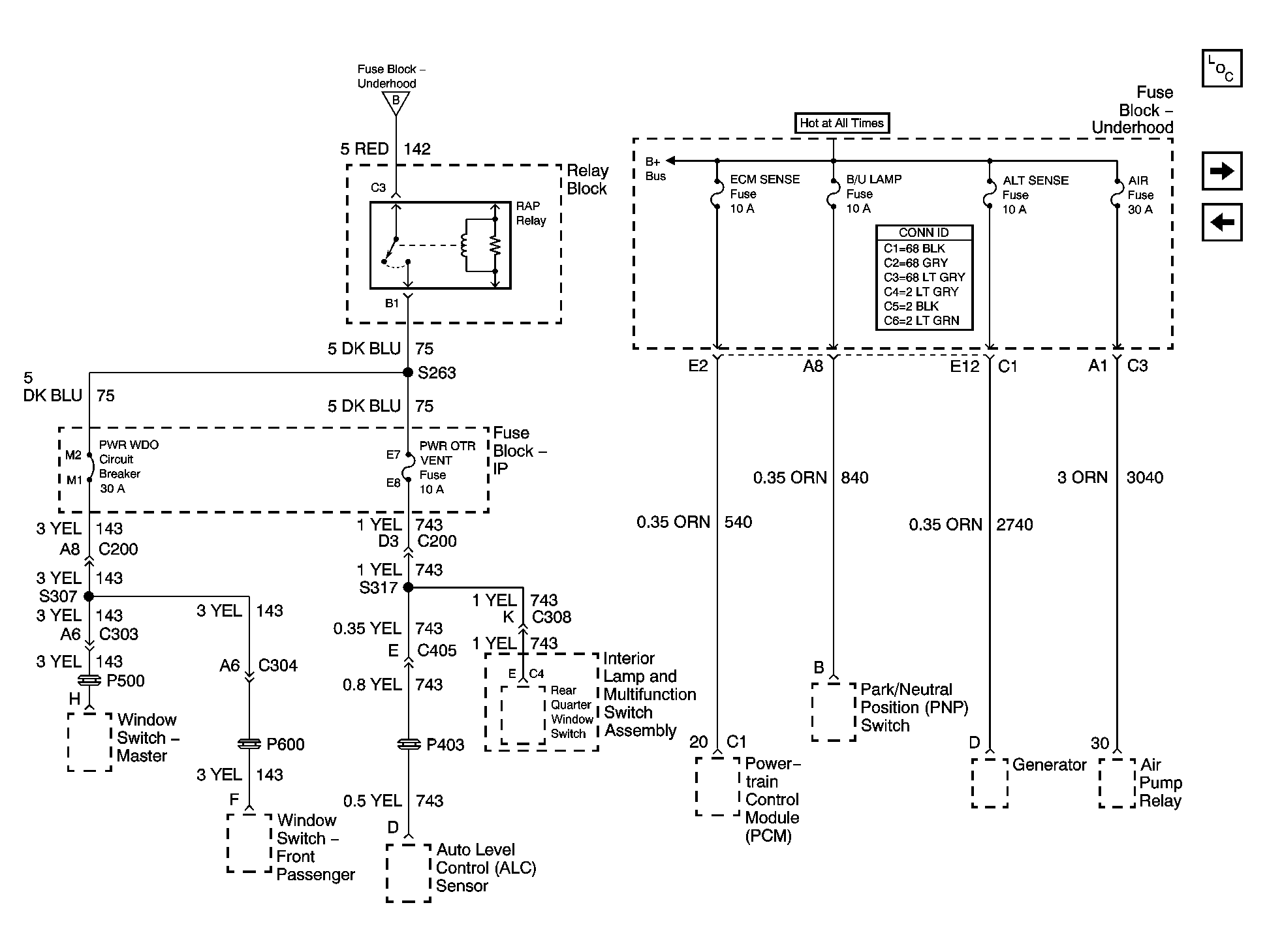

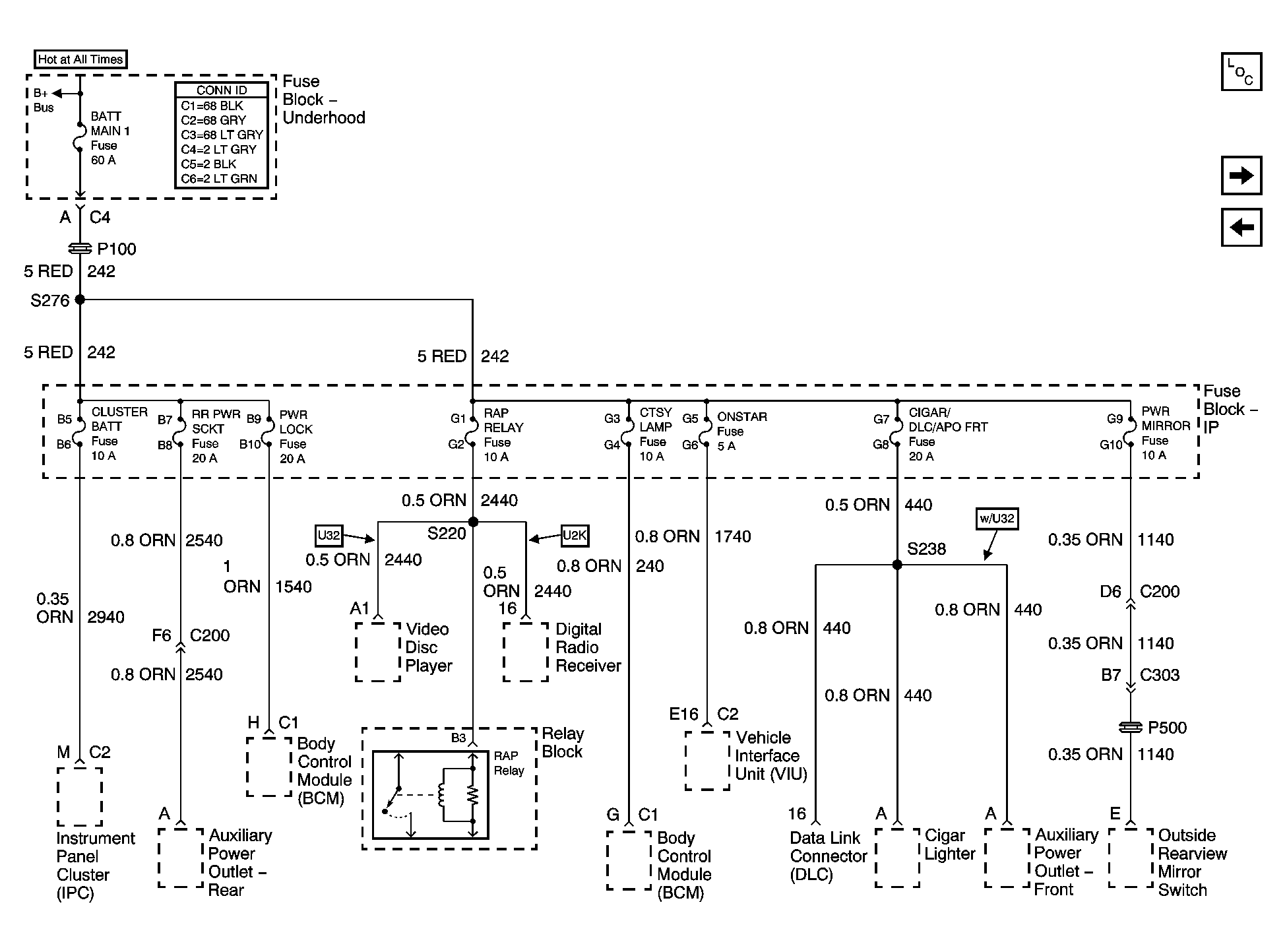

Fig 6: RAP RELAY, Fuse Block - Underhood, and Fuse Block - IP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

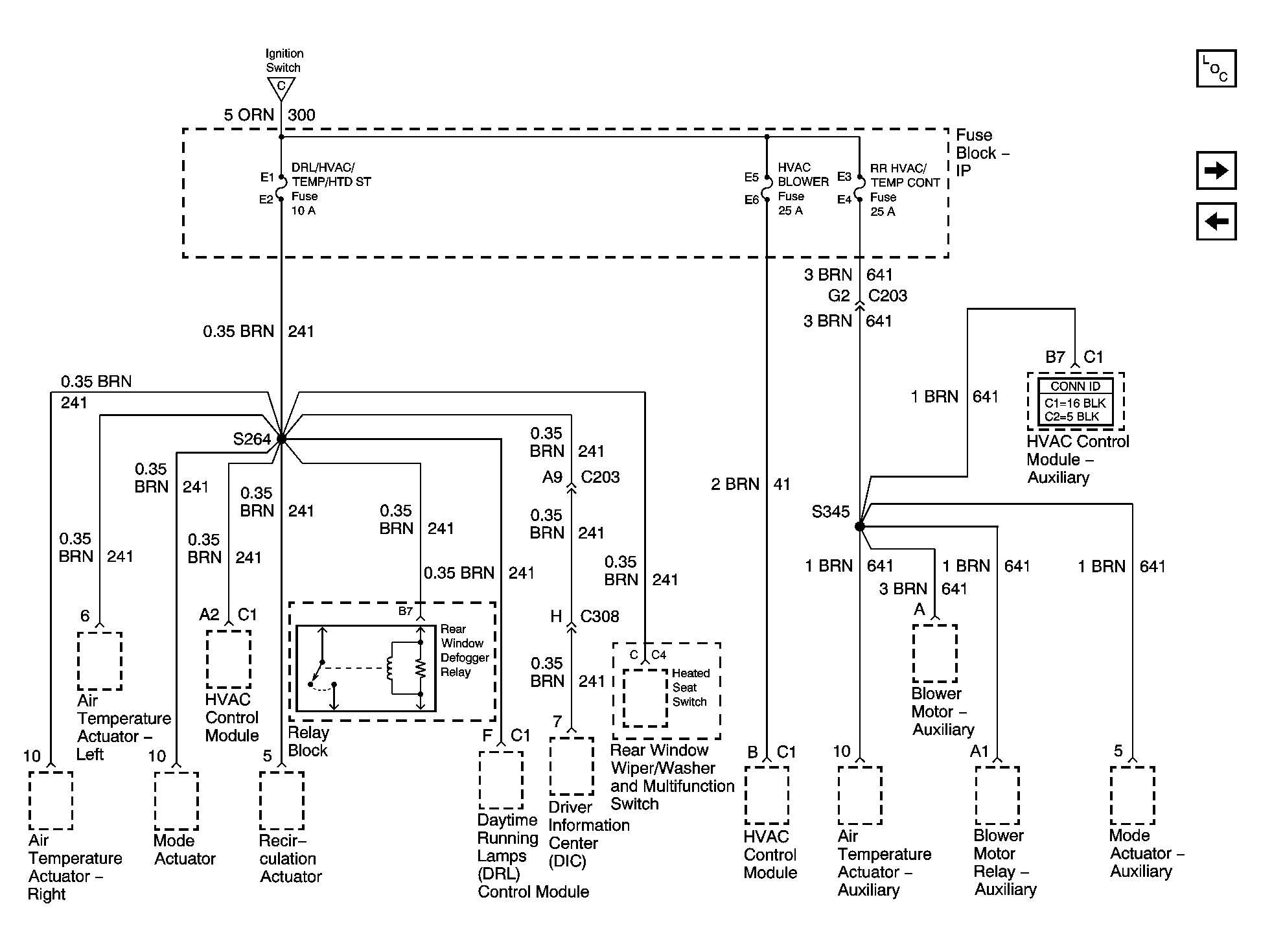

Fig 7: DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

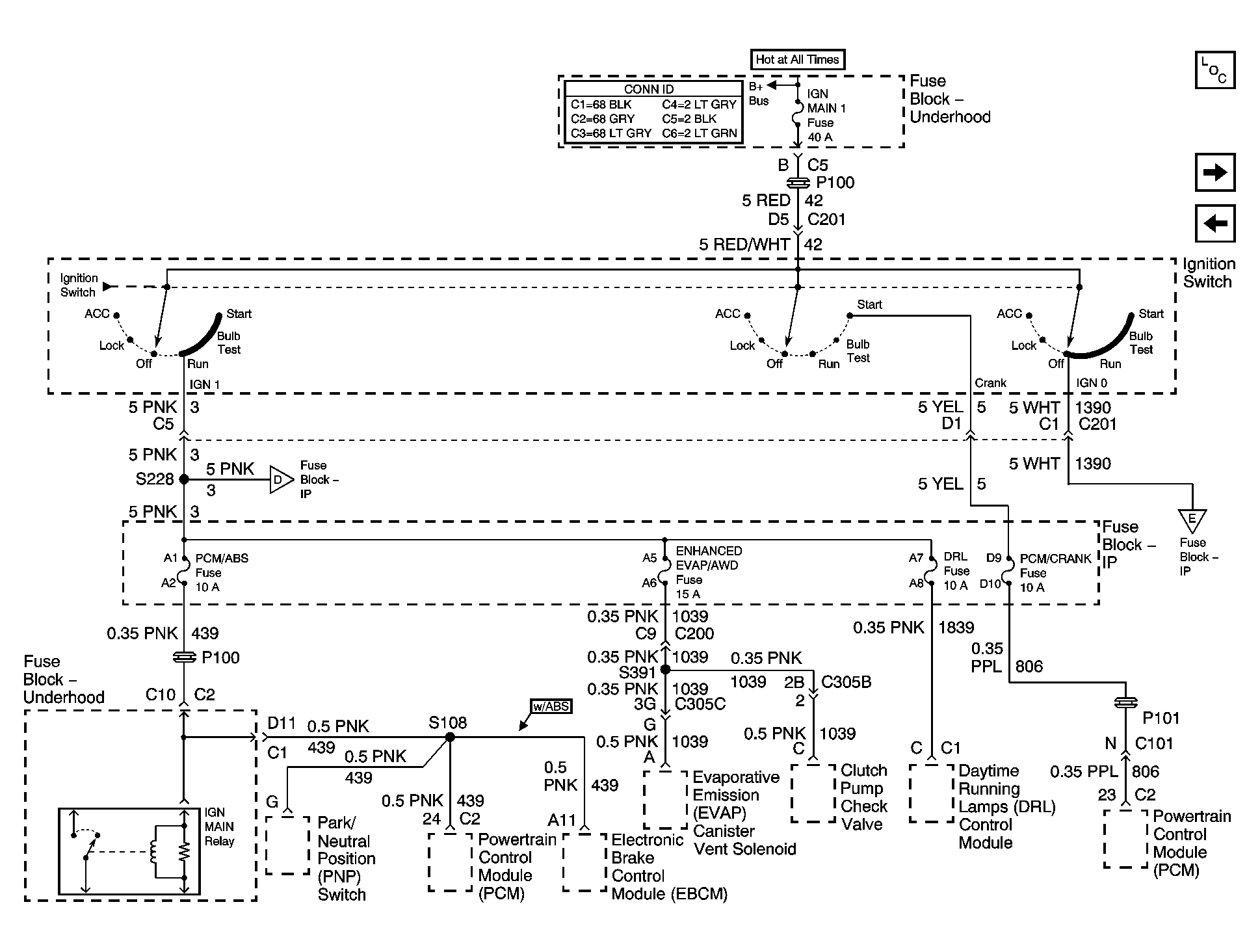

Fig 8: IGN Main 1, PCM/ABS, CAN VENT SOL, DRL and PCM/CRANK Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

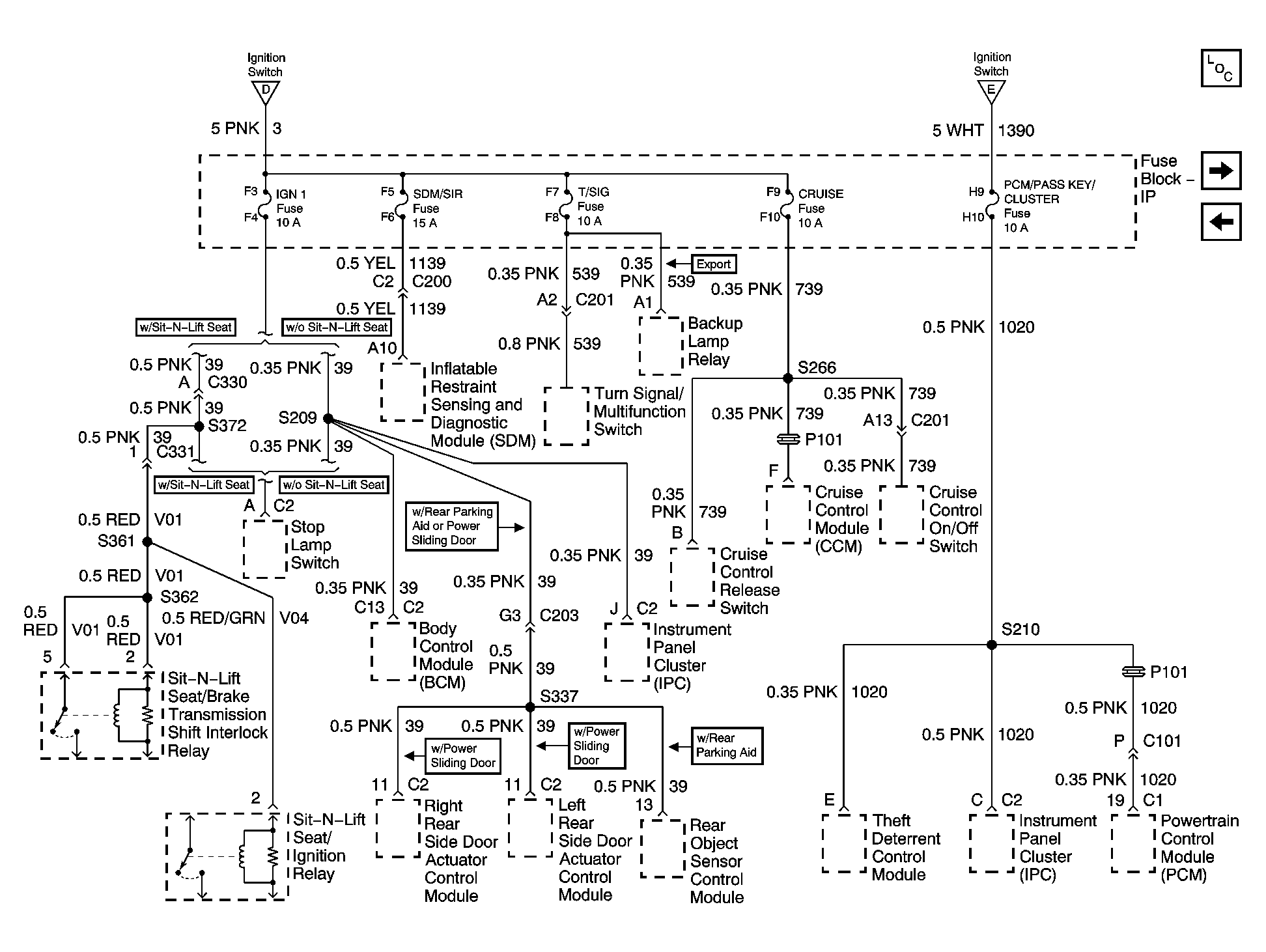

Fig 9: IGN Main 1, SDM, T/SIG, CRUISE and PCM PASS KEY/CLUSTER Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: BATT Main 1 and Fuse Block - I/P Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

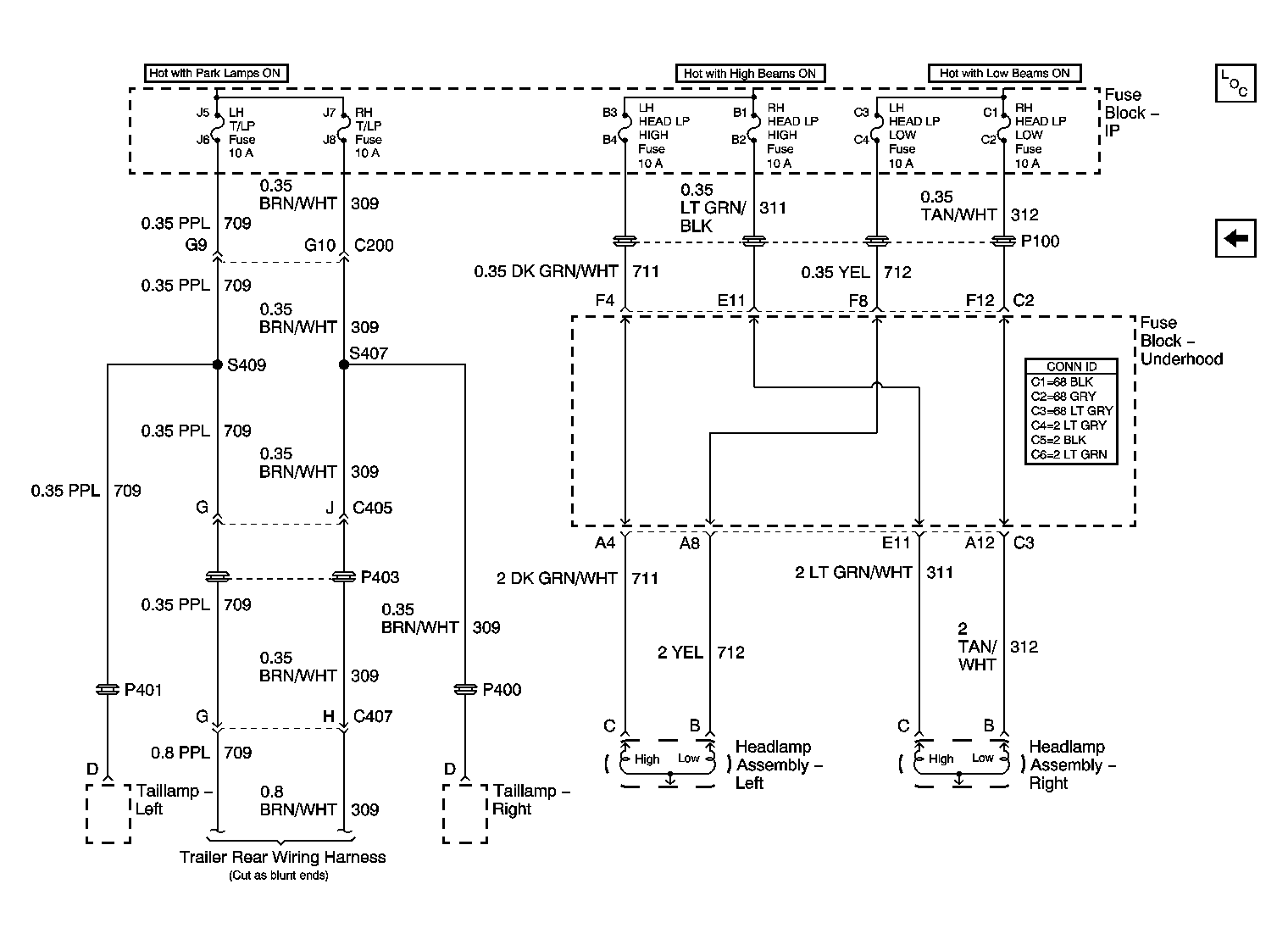

Fig 11: Headlamps and Fuse Block - I/P Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

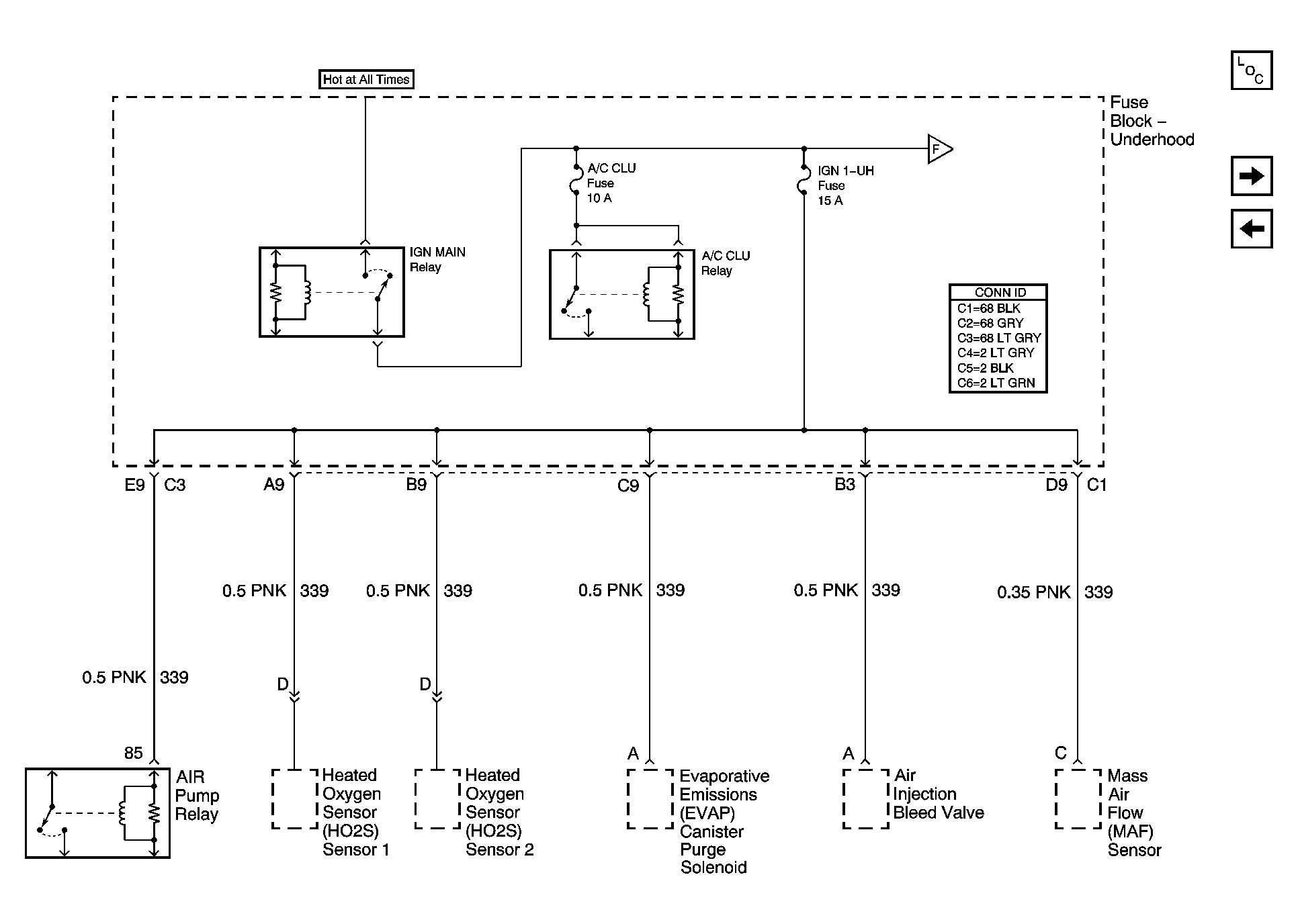

Fig 12: Fuse Block - Underhood IGN 1-U/H Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 13: Fuse Block - Underhood, TCC and ELEK IGN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 14: Fuse Block - Underhood INJ Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 15: Fuse Block - I/P and Fuse Block - Underhood Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
