Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

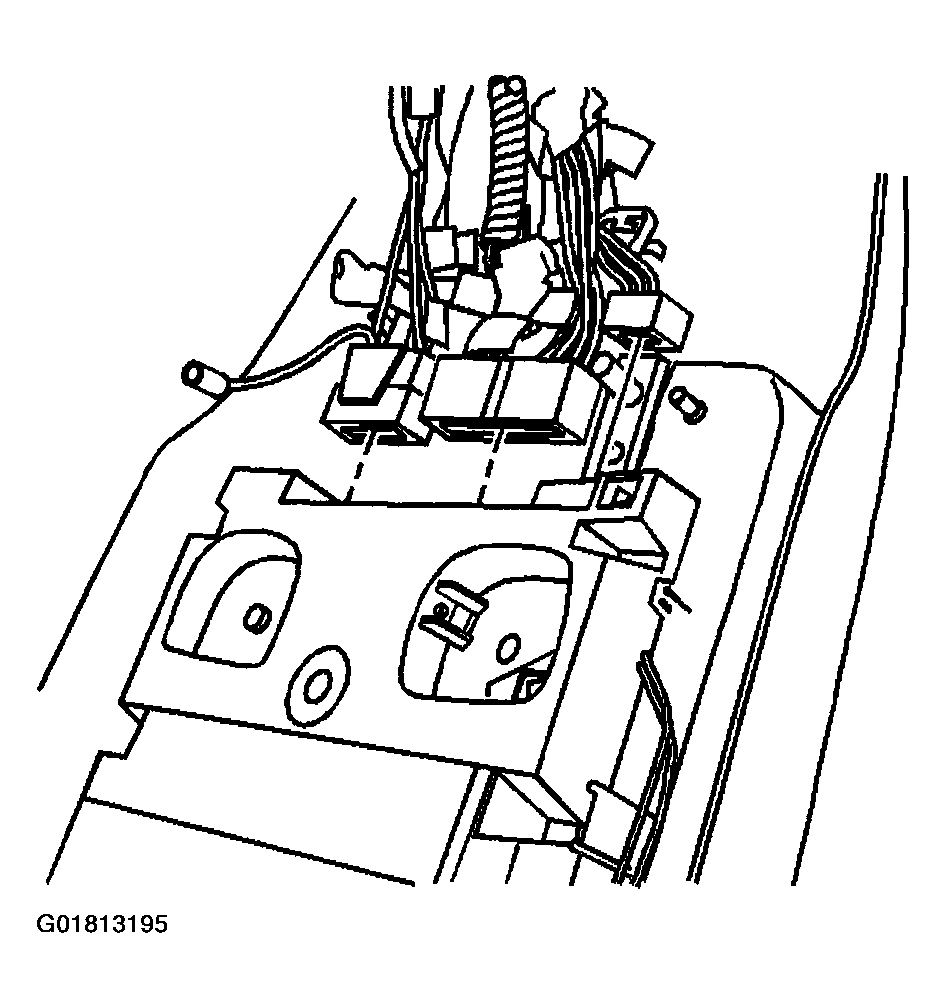

Connect the electrical connectors to the console.
NOTE: Refer to FASTENER NOTICE .

Fig 1: Connecting Electrical Connectors To Console
Courtesy of GENERAL MOTORS CORP.

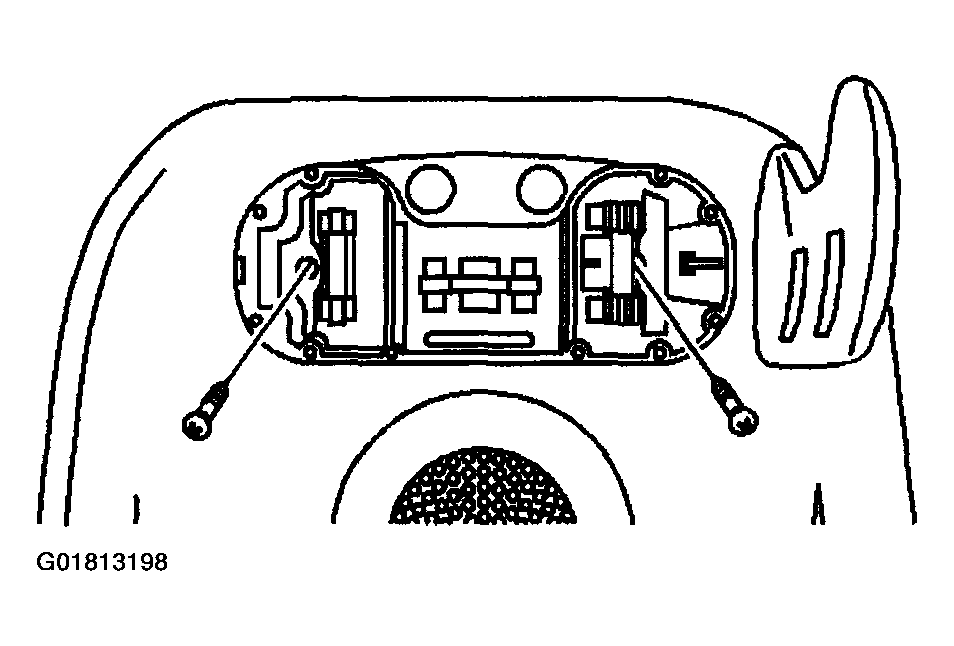

Install the screws to the dome light.
Tighten

Tighten the screws to 2 N.m (18 lb in).

Fig 2: Installing Screws To Dome Light
Courtesy of GENERAL MOTORS CORP.

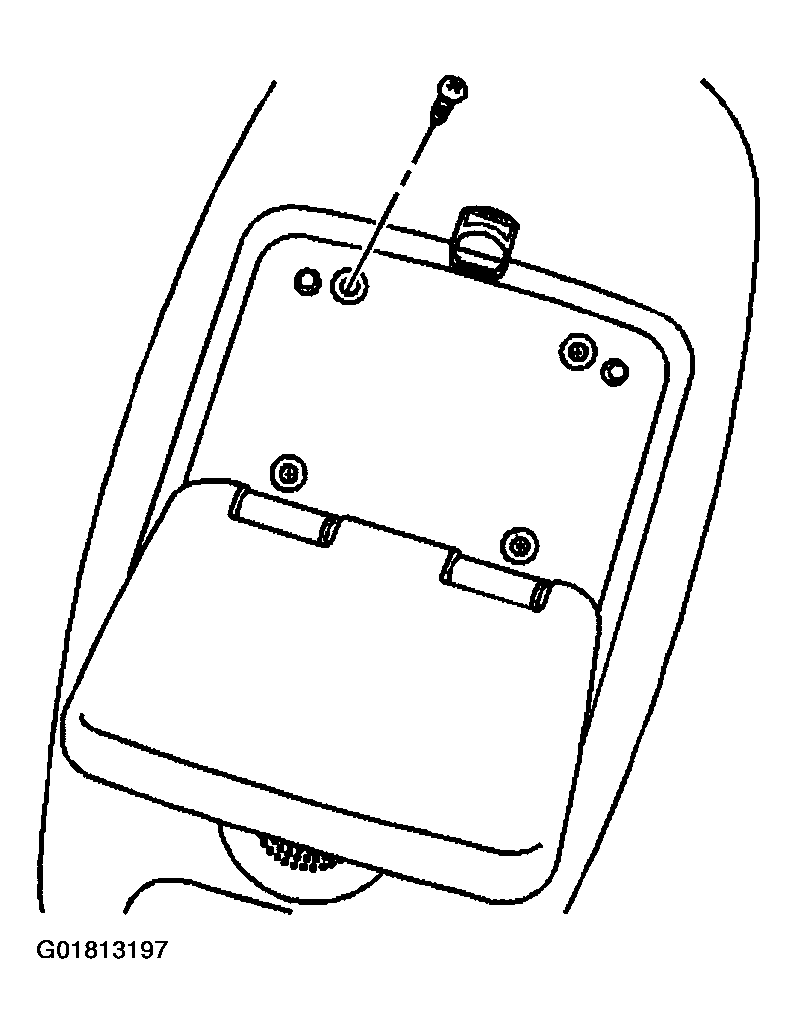

Install the screws to the rear of the DVD screen.
Tighten

Tighten the screws to 2 N.m (18 lb in).

Fig 3: Installing Screws To Rear Of Screen
Courtesy of GENERAL MOTORS CORP.
Install the bulbs in the dome light.

Fig 4: Installing Bulbs From Dome Light
Courtesy of GENERAL MOTORS CORP.
Install the dome light lens cover.

Fig 5: Installing Dome Light Lens Cover
Courtesy of GENERAL MOTORS CORP.
Raise the screen and lock the screen into place.

Fig 6: Installing Screen & Console

Courtesy of GENERAL MOTORS CORP.
