Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical/audio and antenna cable connectors to the radio.
  2. Install the radio into the I/P center support bracket.

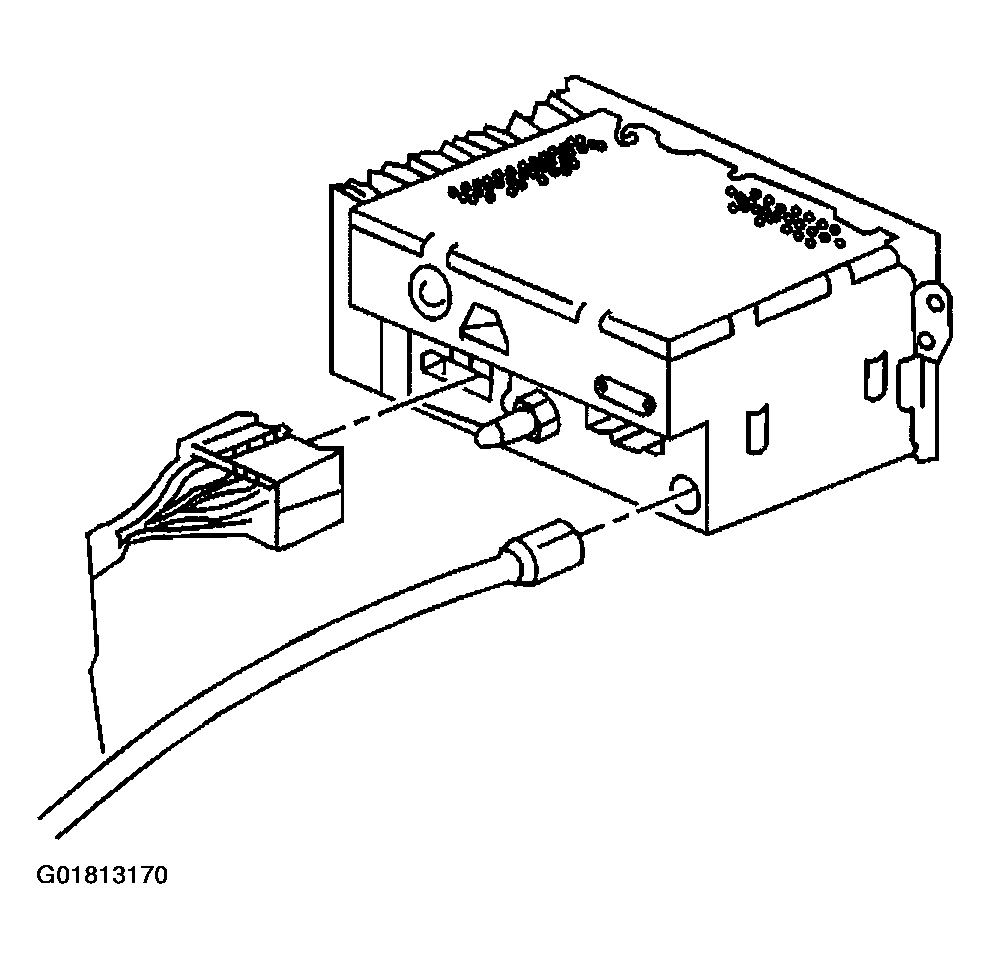

    Fig 1: Connecting Electrical/Audio & Antenna Cable Connectors
    G01813170Courtesy of GENERAL MOTORS CORP.

    Align the radio locator tab into the I/P center support bracket locator hole.

    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts/screws to the radio.

    Tighten

    Tighten the bolts/screws to 2.5 N.m (22 lb in).

  4. Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .
  5. Perform the radio set up procedure. Refer to Radio Setup

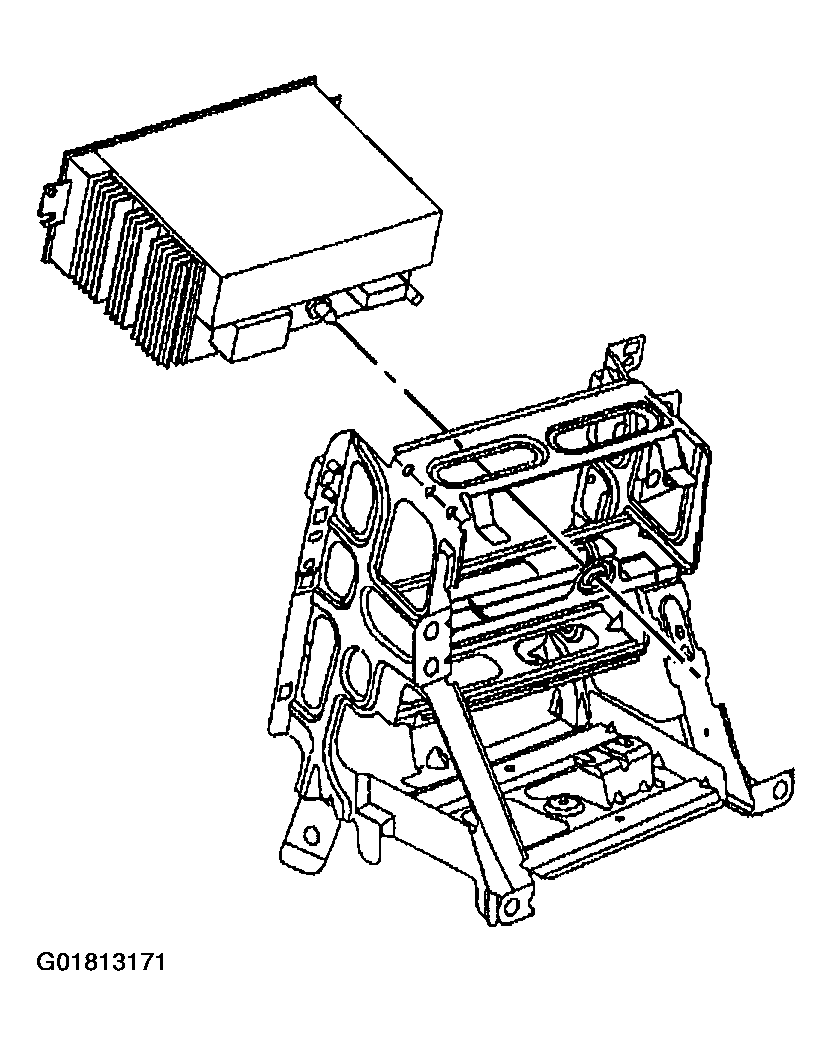

    Fig 2: Installing Bolts/Screws To Radio
    G01813171Courtesy of GENERAL MOTORS CORP.
