Wiper Control Module: Locations

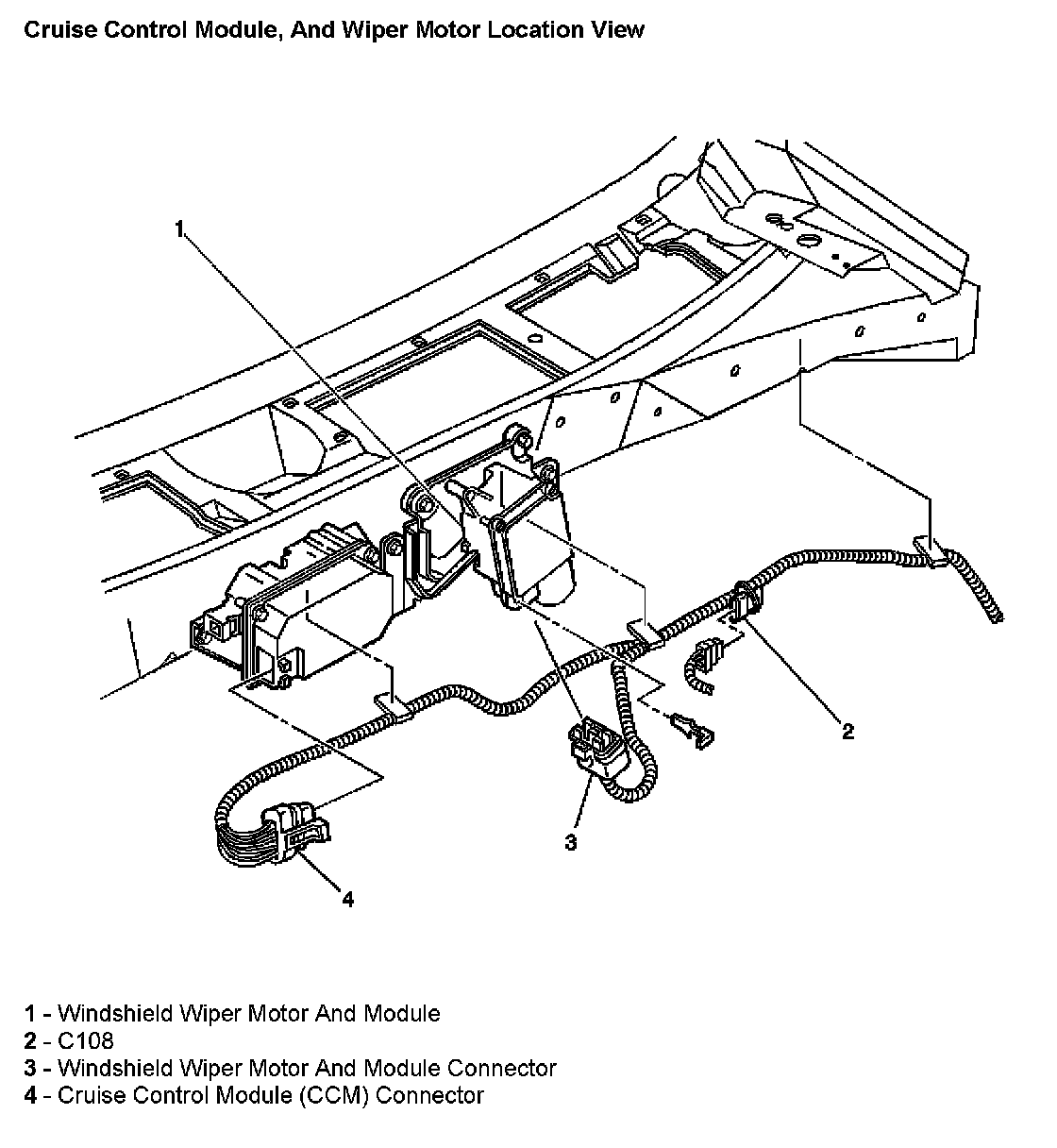

Cruise Control Module, And Wiper Motor Location View:

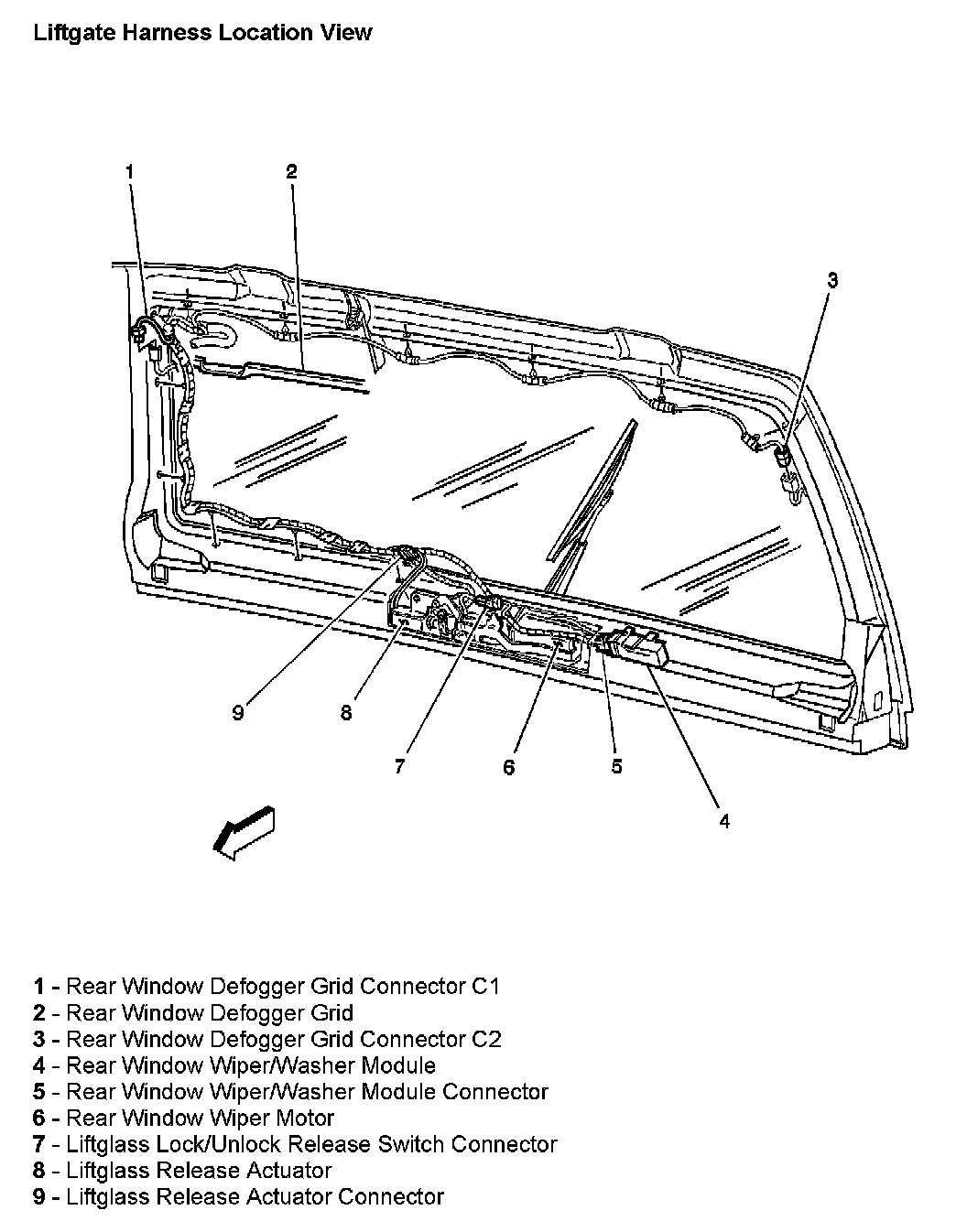

Liftgate Harness Location View:
