Amplifier, Sound System

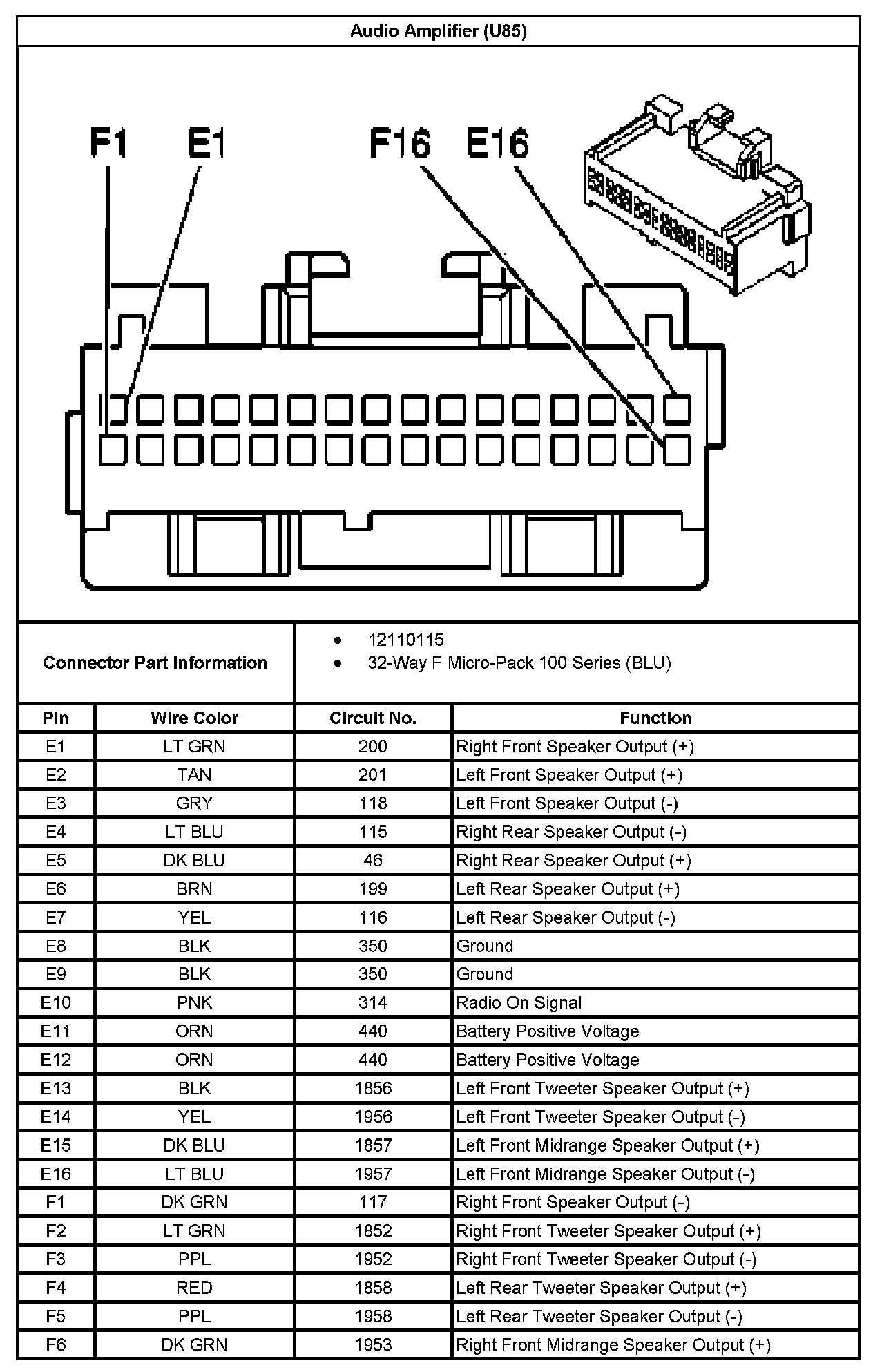

Audio Amplifier (With RPO Code U85) Part 1:

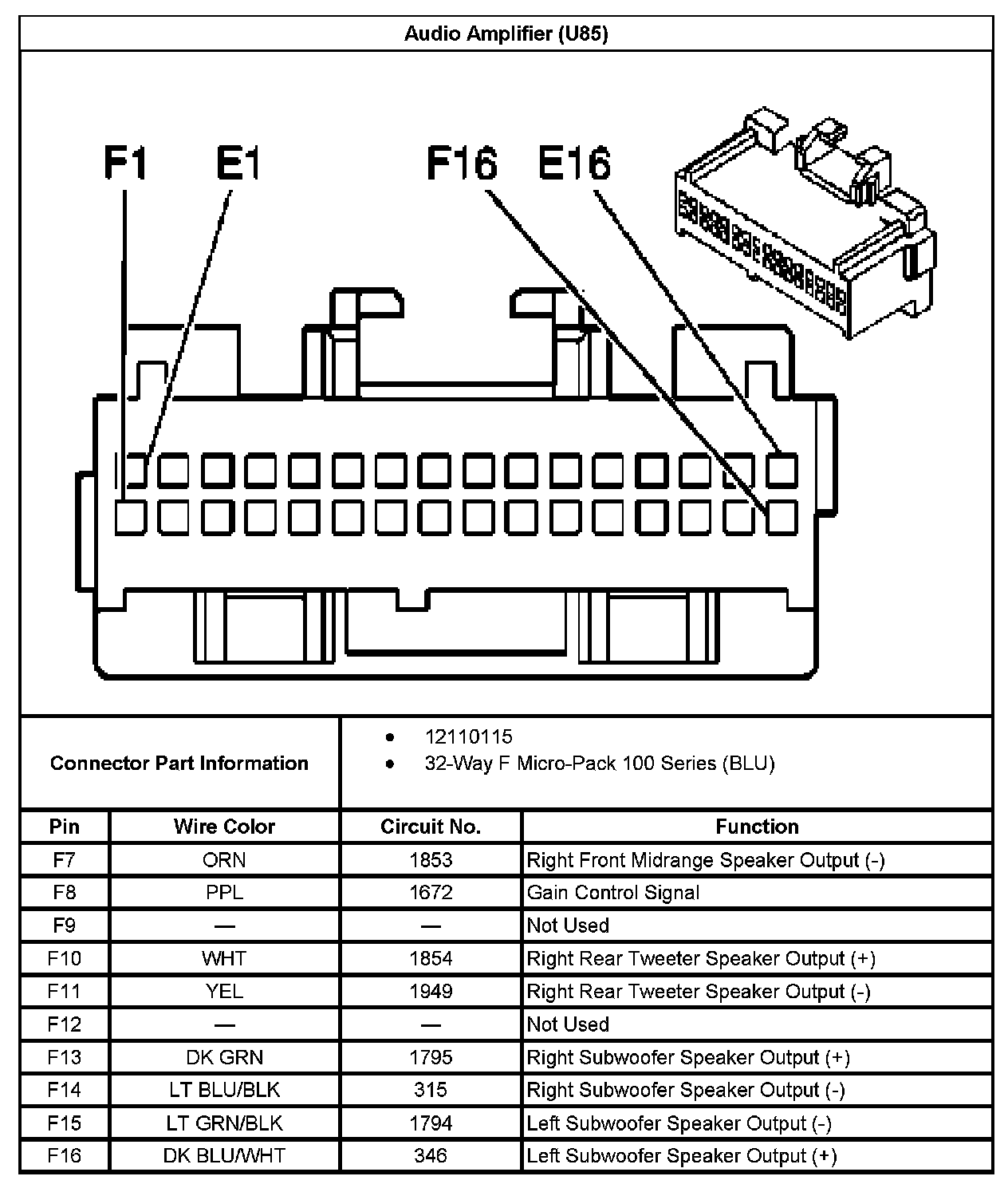

Audio Amplifier (With RPO Code U85) Part 2:

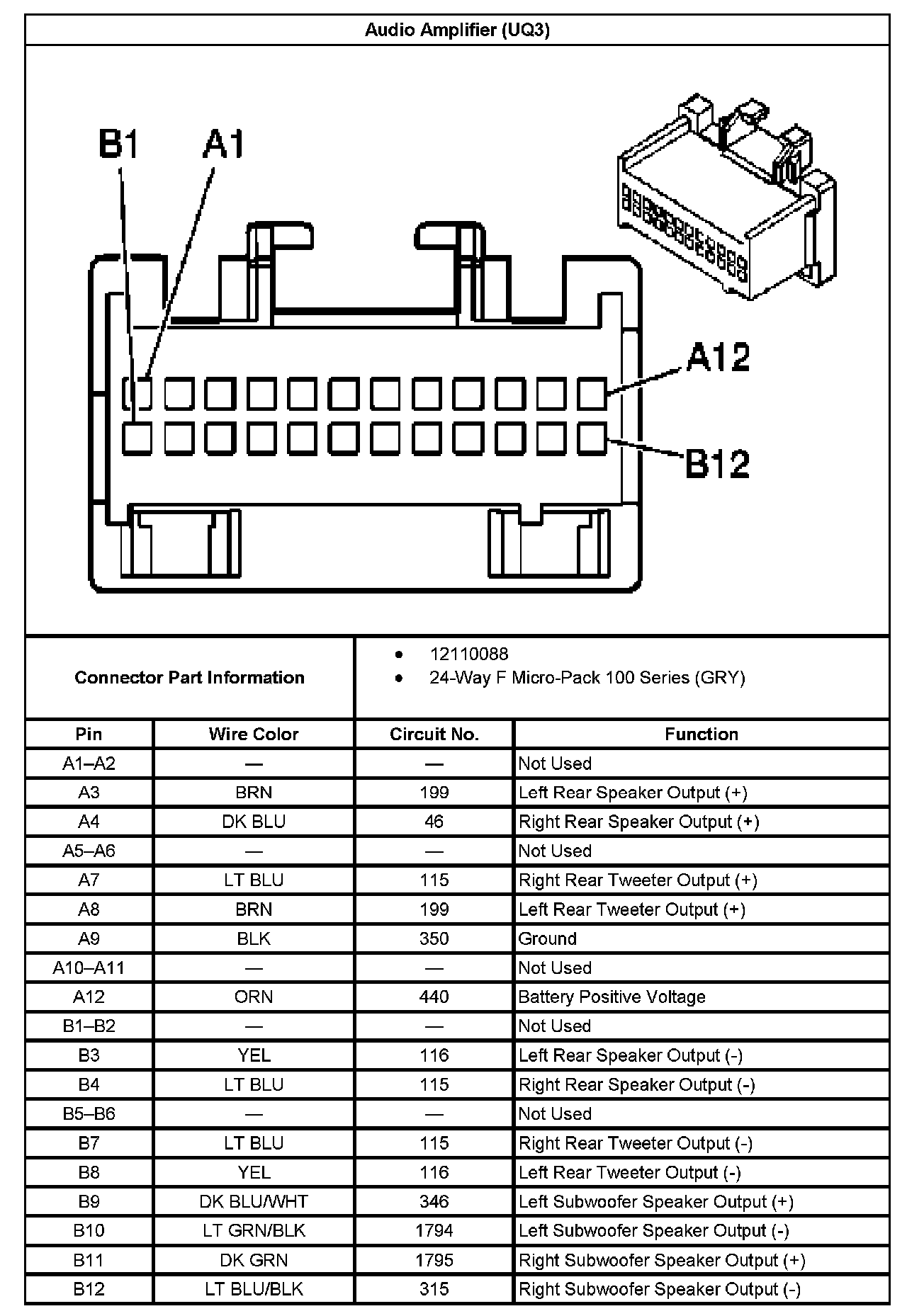

Audio Amplifier (With RPO Code UQ3):
