Master Window Switch

Master Window Switch C1:

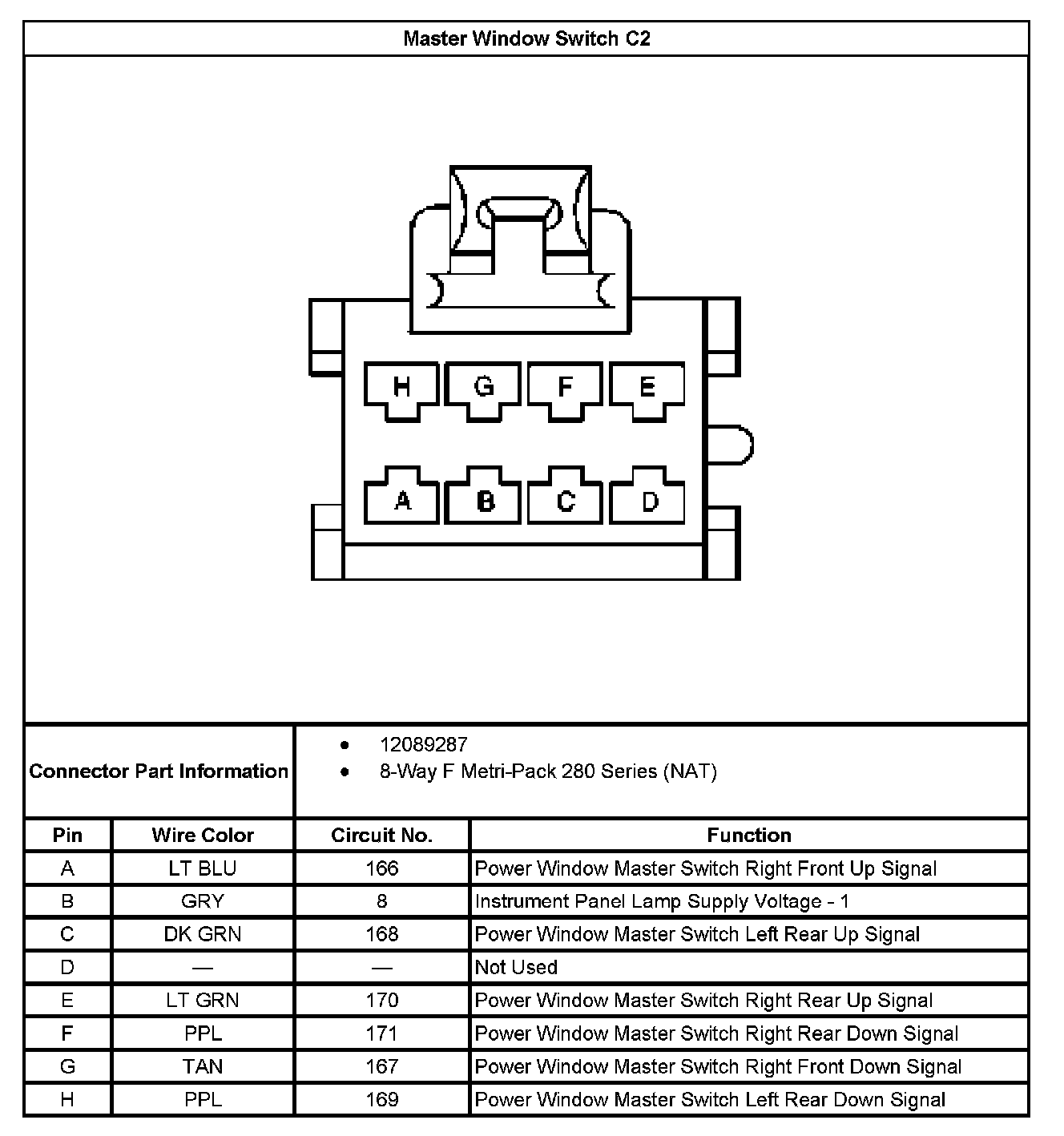

Master Window Switch C2:



Master Window Switch - (Coupe):
