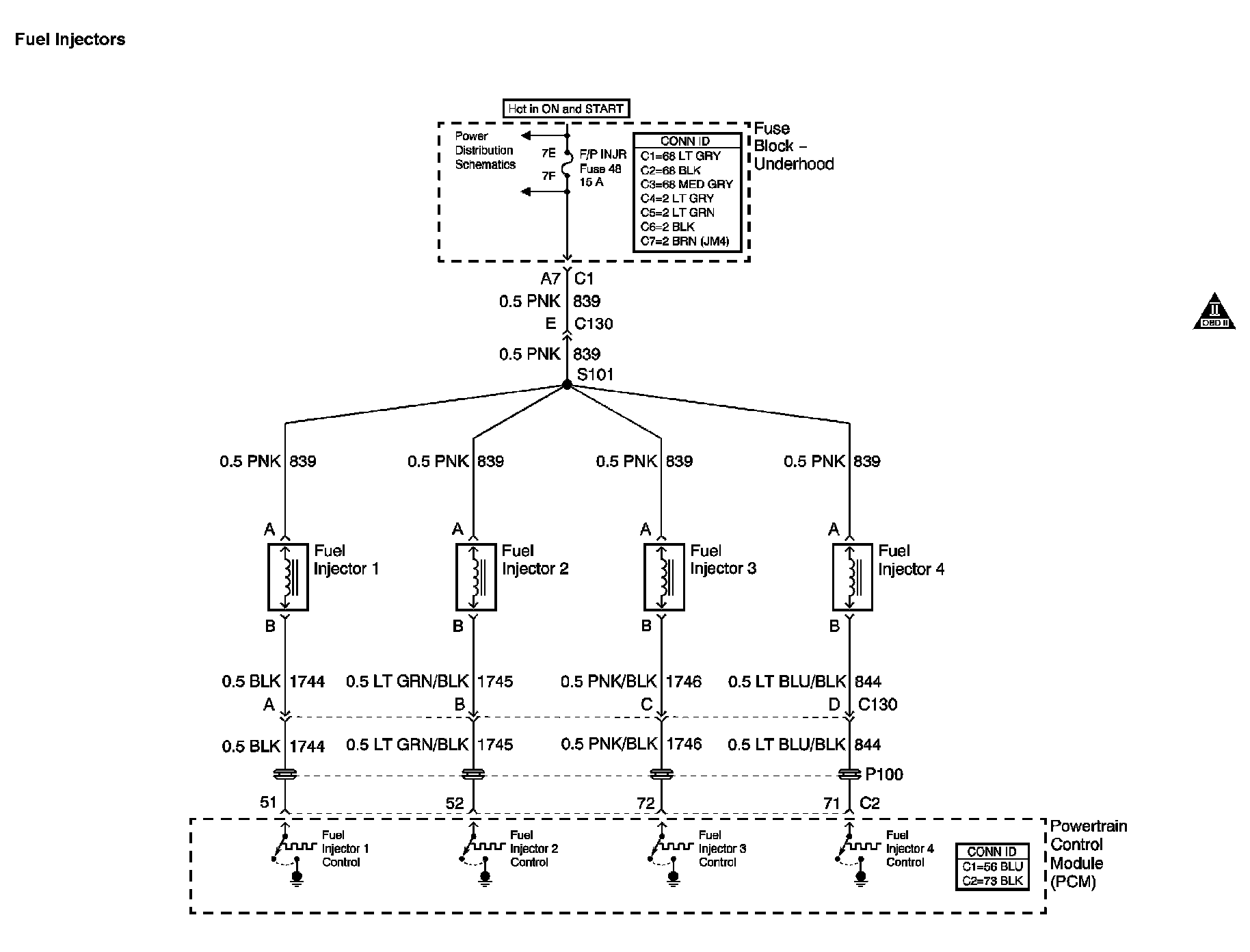

Engine Controls Diagram 7



Engine Controls Diagram 7:






Next Diagram Engine Controls Diagram 8

Previous Diagram Engine Controls Diagram 6

Locations : The locations for the Connectors, Grounds, Splices, and Grommets shown within the diagrams can be found via the numbers at Vehicle Locations. Locations
