Engine Compartment Views

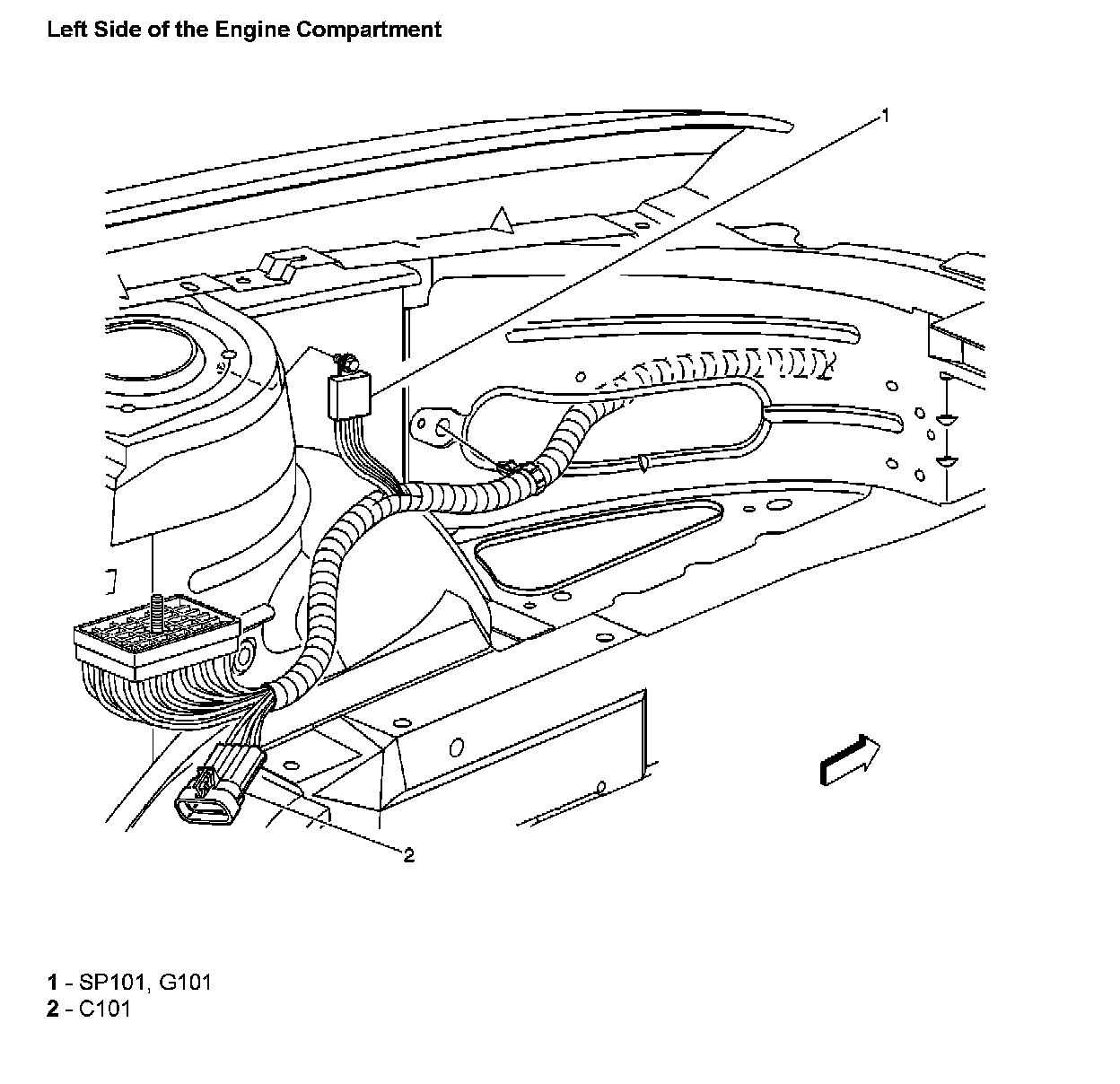

Left Side Of The Engine Compartment Part 1:

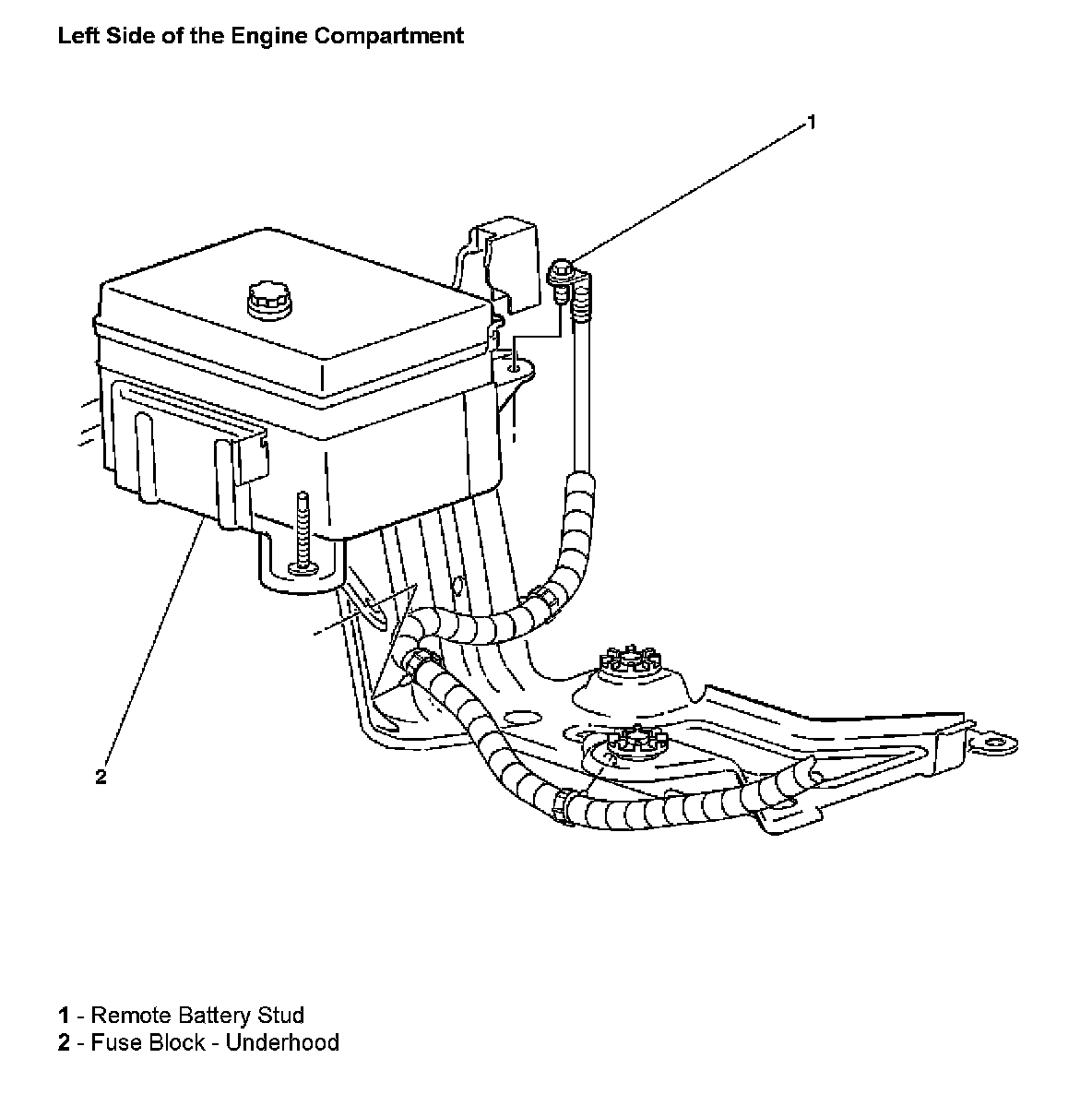

Left Side Of The Engine Compartment Part 2:

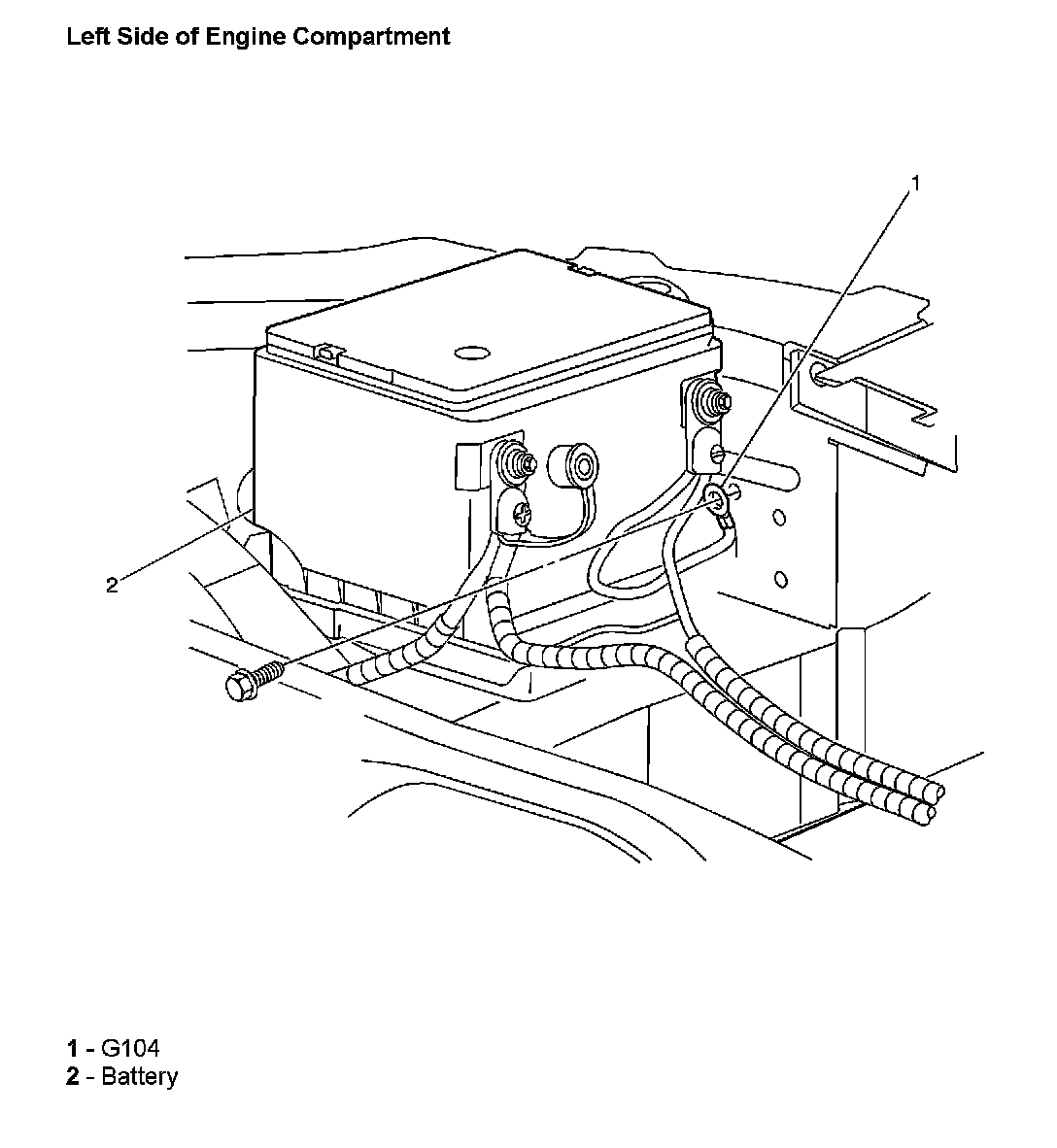

Left Side Of The Engine Compartment Part 3:
