Power and Grounding Component Views

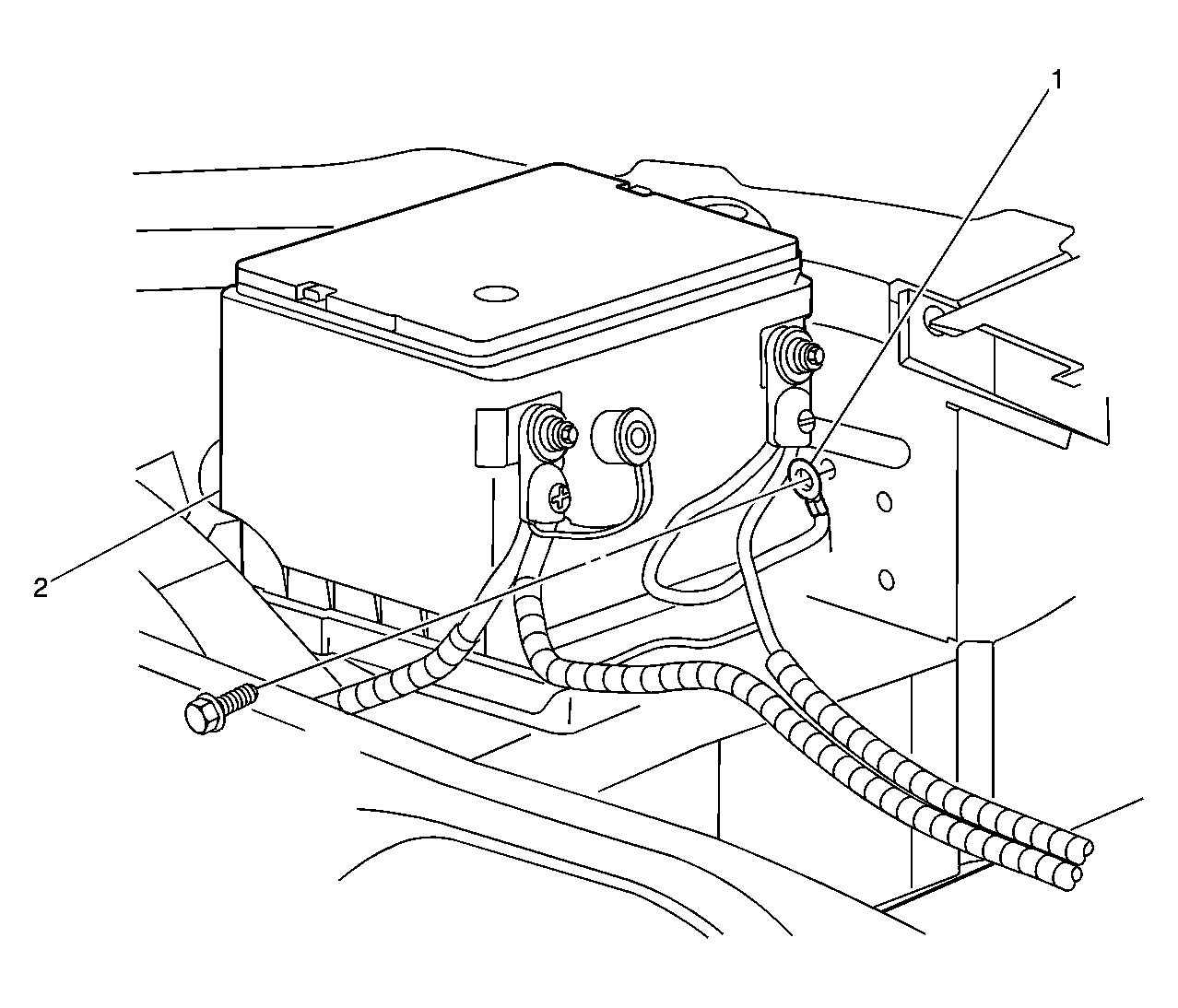

Fig 1: Left Side of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	Battery

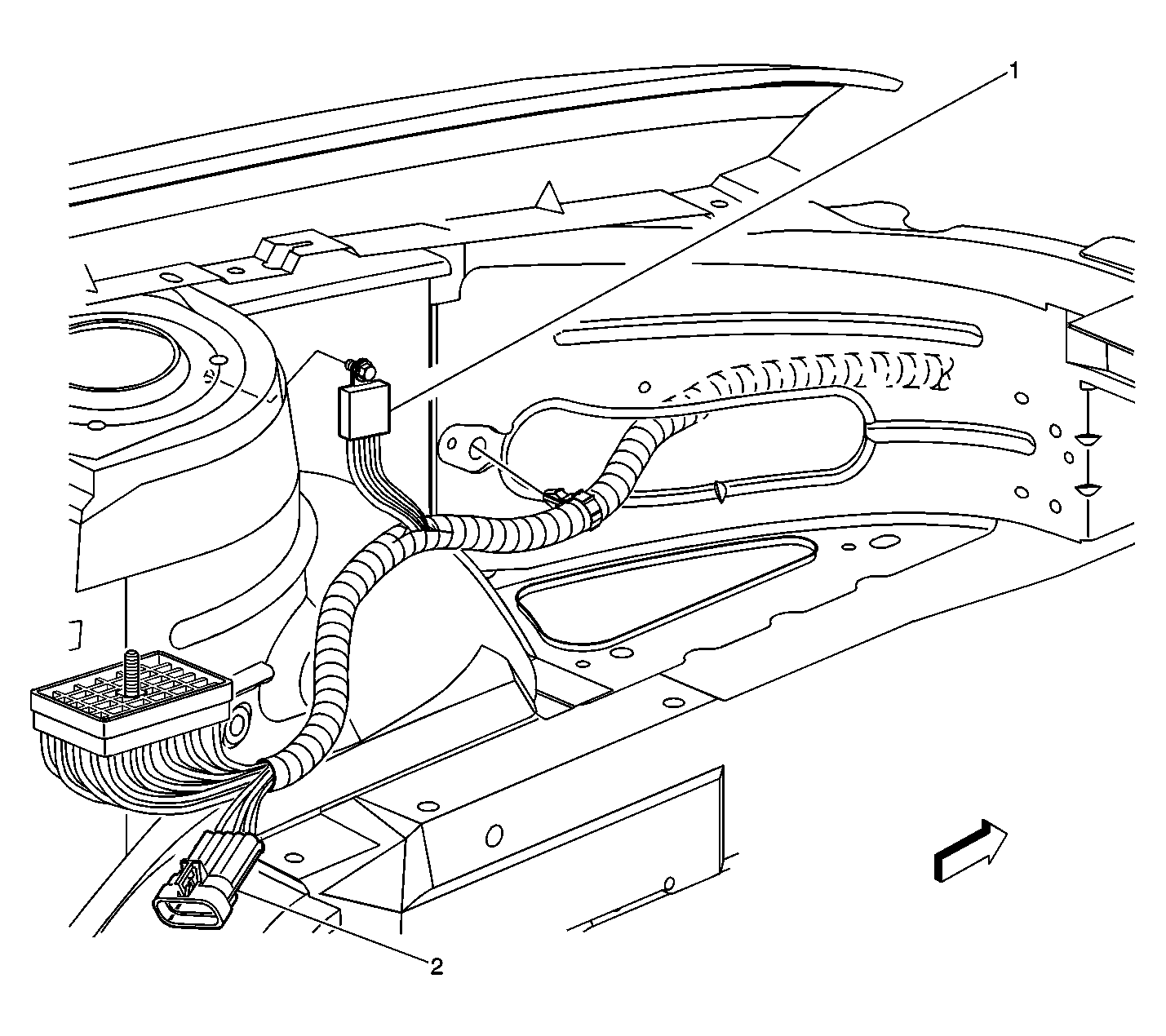

Fig 2: Left Rear Side Of The Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Battery Stud
2	Fuse Block - Underhood

Fig 3: Left Side of the Engine Compartment Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP101, G101
2	C101

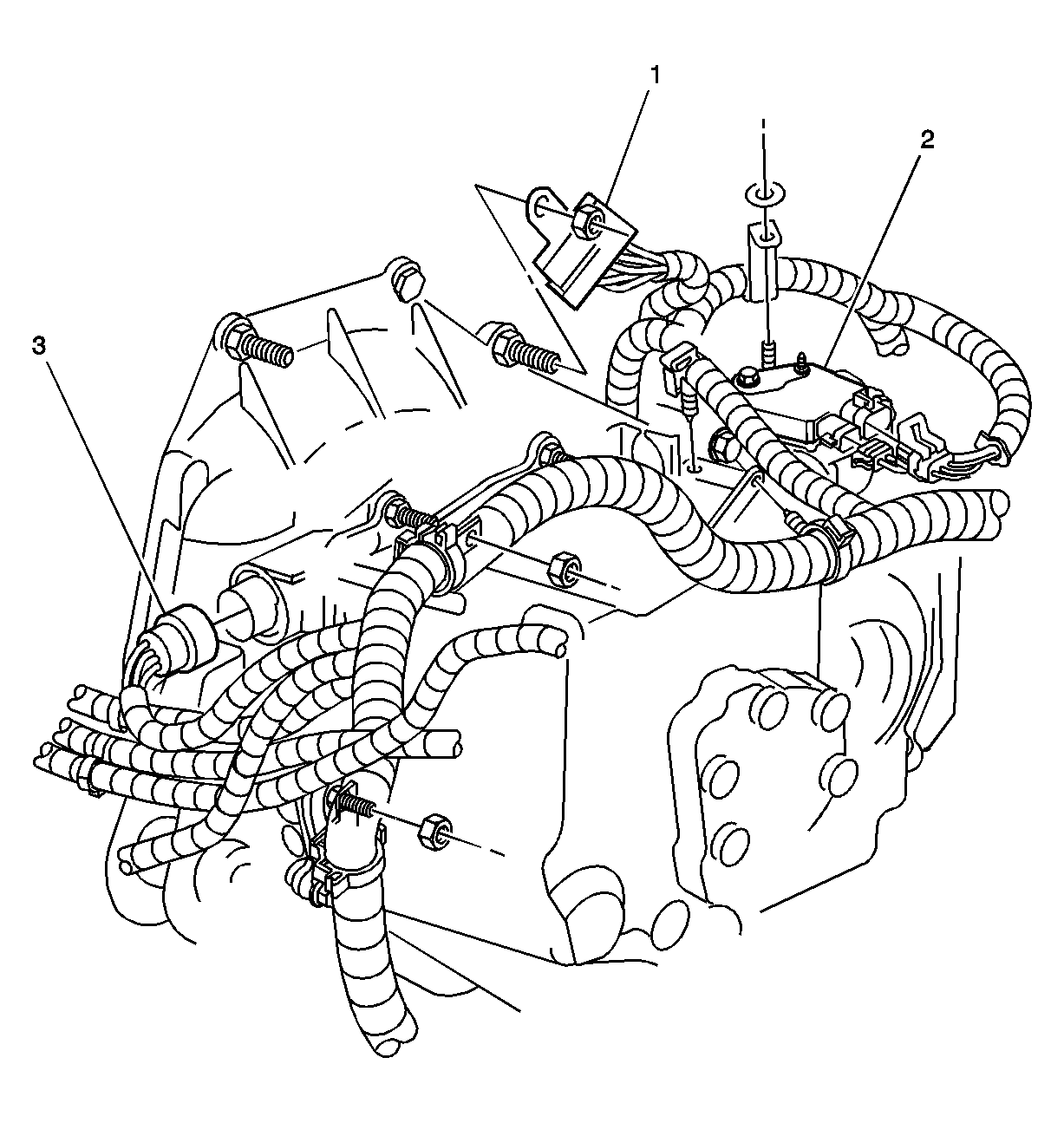

Fig 4: Left Side of Engine Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP103, G103
2	Park/Neutral Position (PNP) Switch
3	C102

Fig 5: Front of Engine Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP102, G102

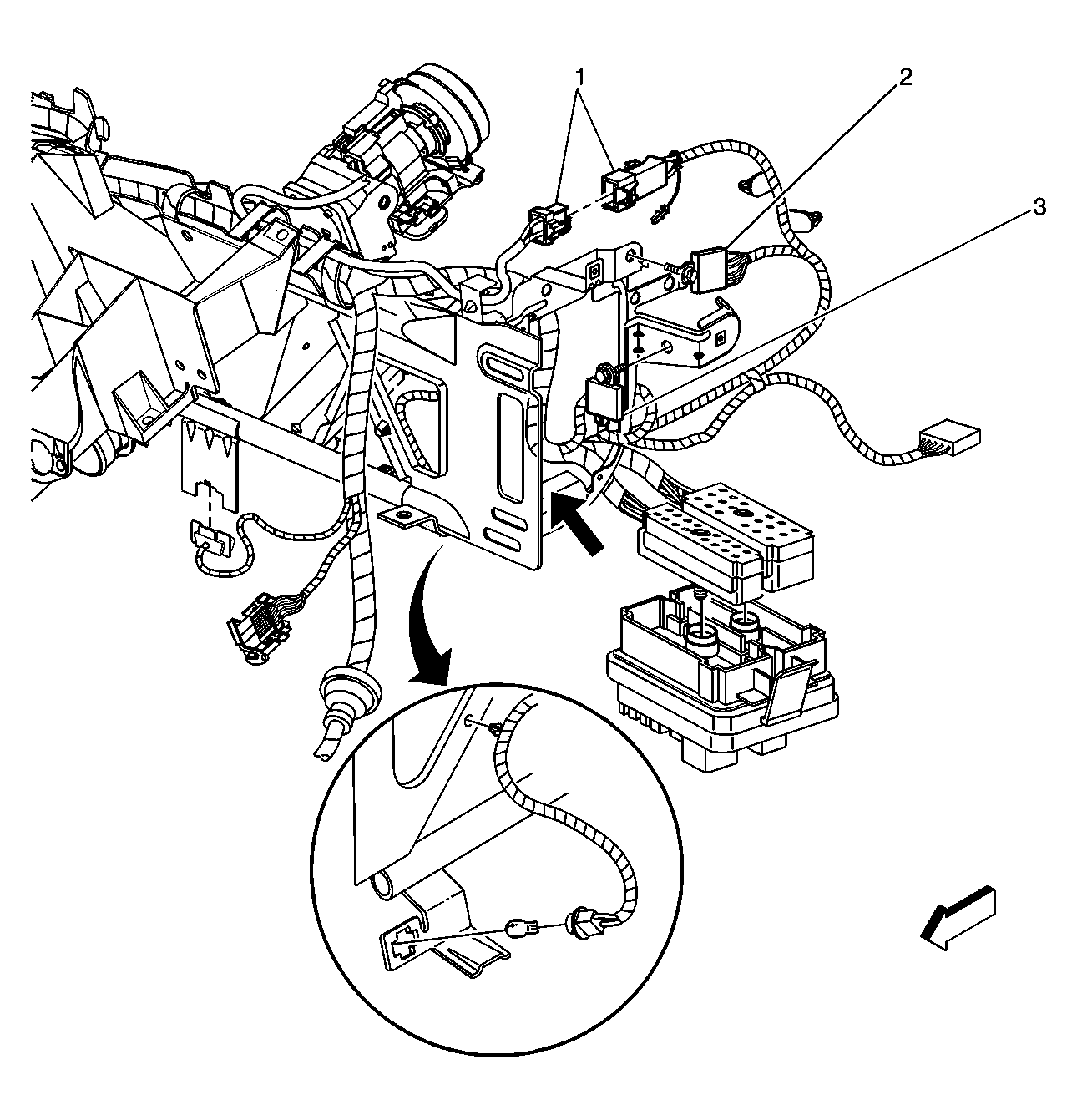

Fig 6: Left Side of the IP Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C274, Inflatable Restraint Steering Wheel Module Connector
2	SP201, G201
3	SP202, G202

Fig 7: Top Right Side of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	IP Harness
2	Glove Box Lamp/Switch
3	Air Temperature Actuator Connector
4	Cigar Lighter Connector
5	Accessory Power Outlet Connector
6	HVAC Control Assembly Connectors
7	Radio Connector

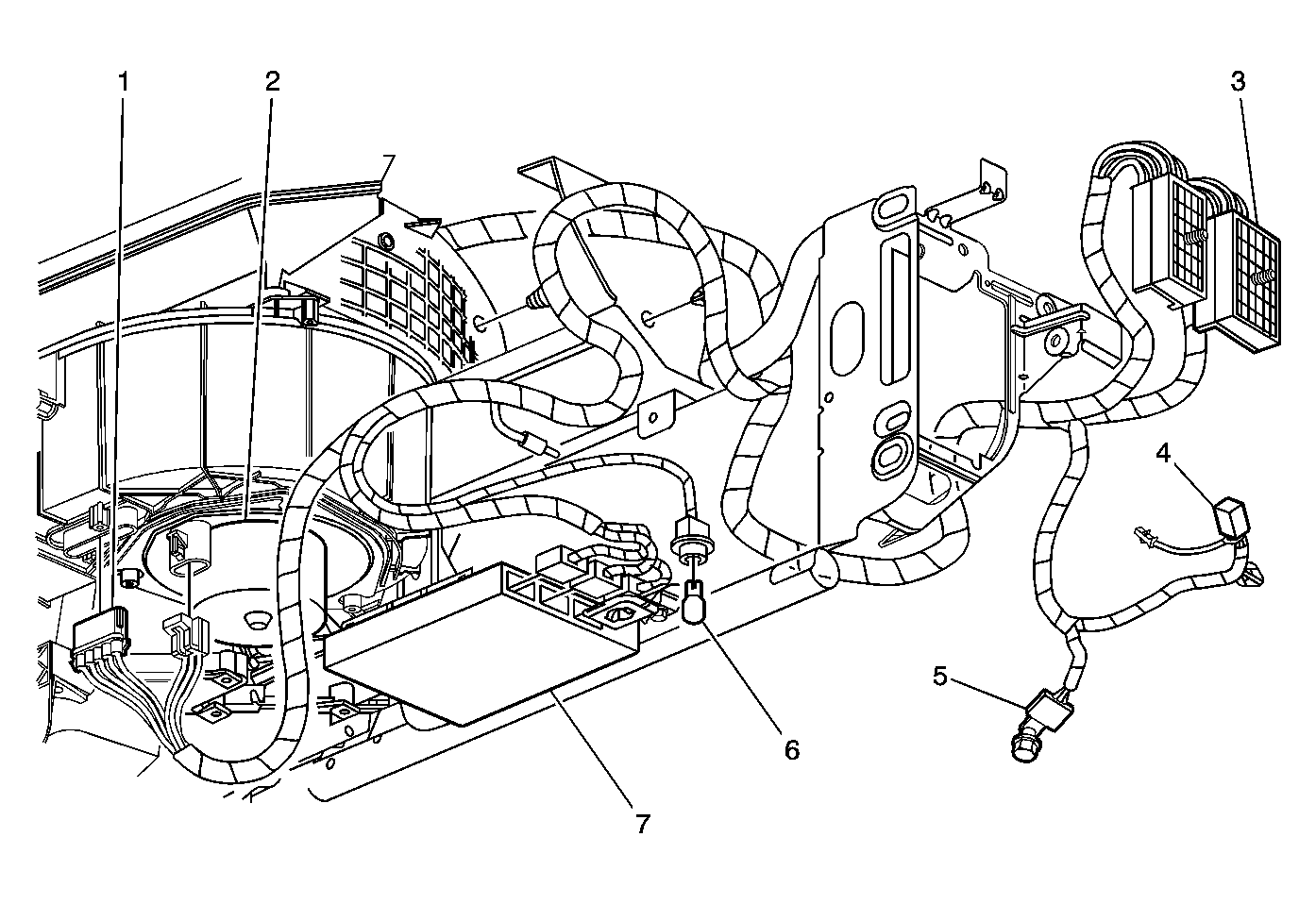

Fig 8: Under the Right Side of the Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Resistor Connector
2	Blower Motor
3	Fuse Block - Right I/P
4	Inflatable Restraint I/P Module Connector
5	SP203, G203
6	Right Courtesy Lamp
7	Body Control Module (BCM)

Fig 9: IP Wiring Harness Junction Block, Right Side Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Fig 10: RH IP Fuse Block Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	IP Fuse Block Connector, Right Side

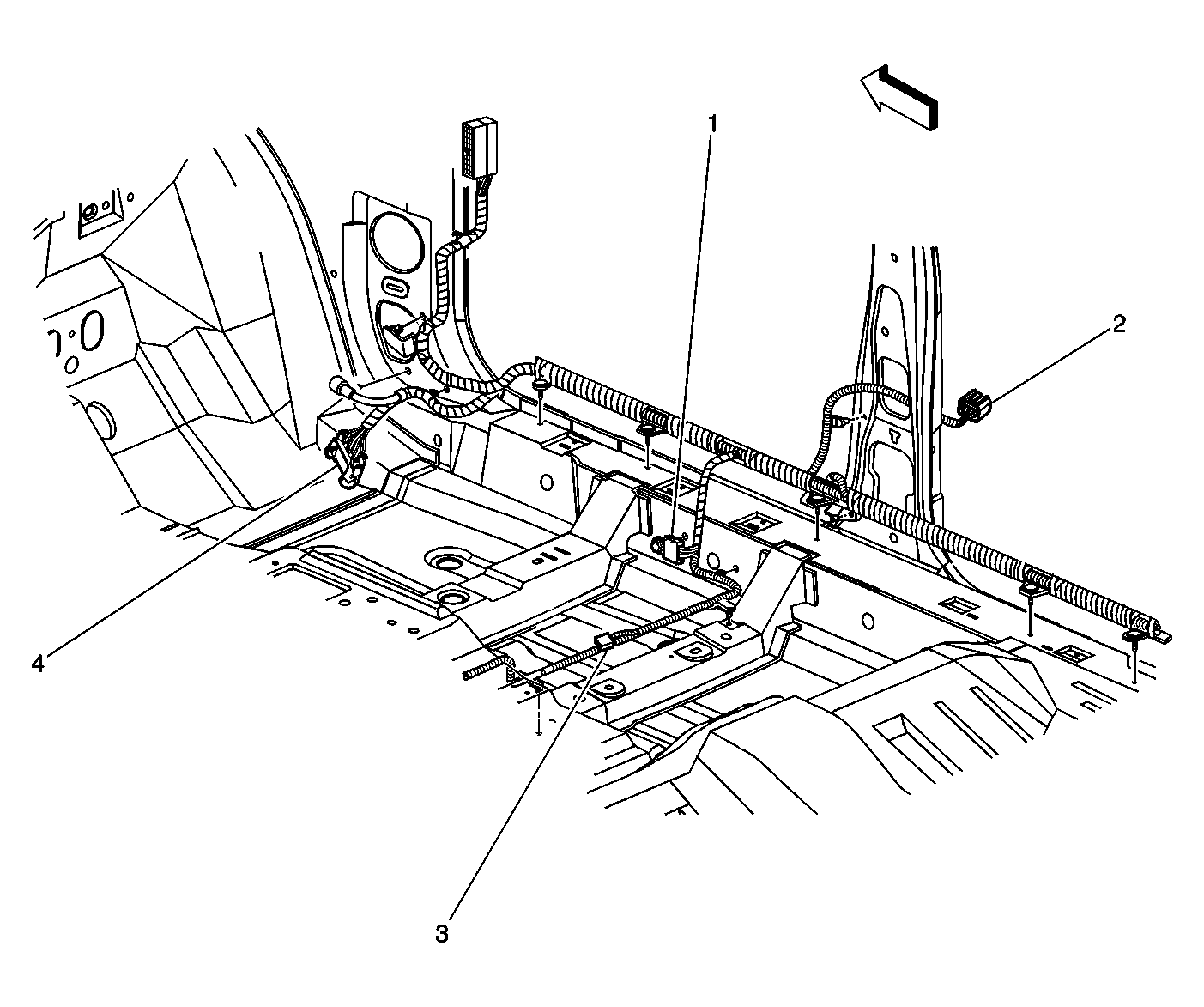

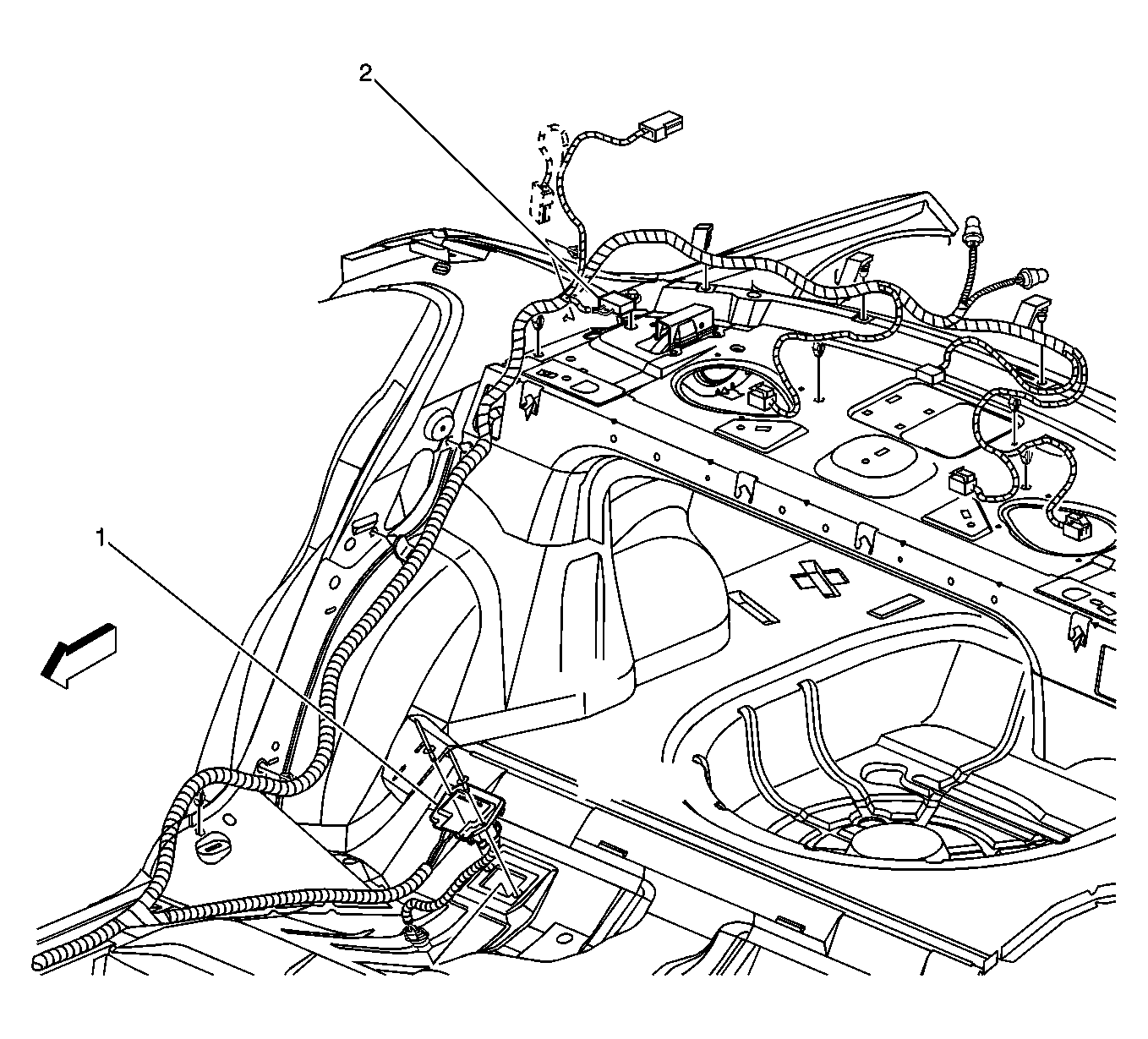

Fig 11: Right Side of the Passenger Compartment, Rear Package Shelf Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C413
2	SP402, G402
