Power Window Switch Replacement - Left Front

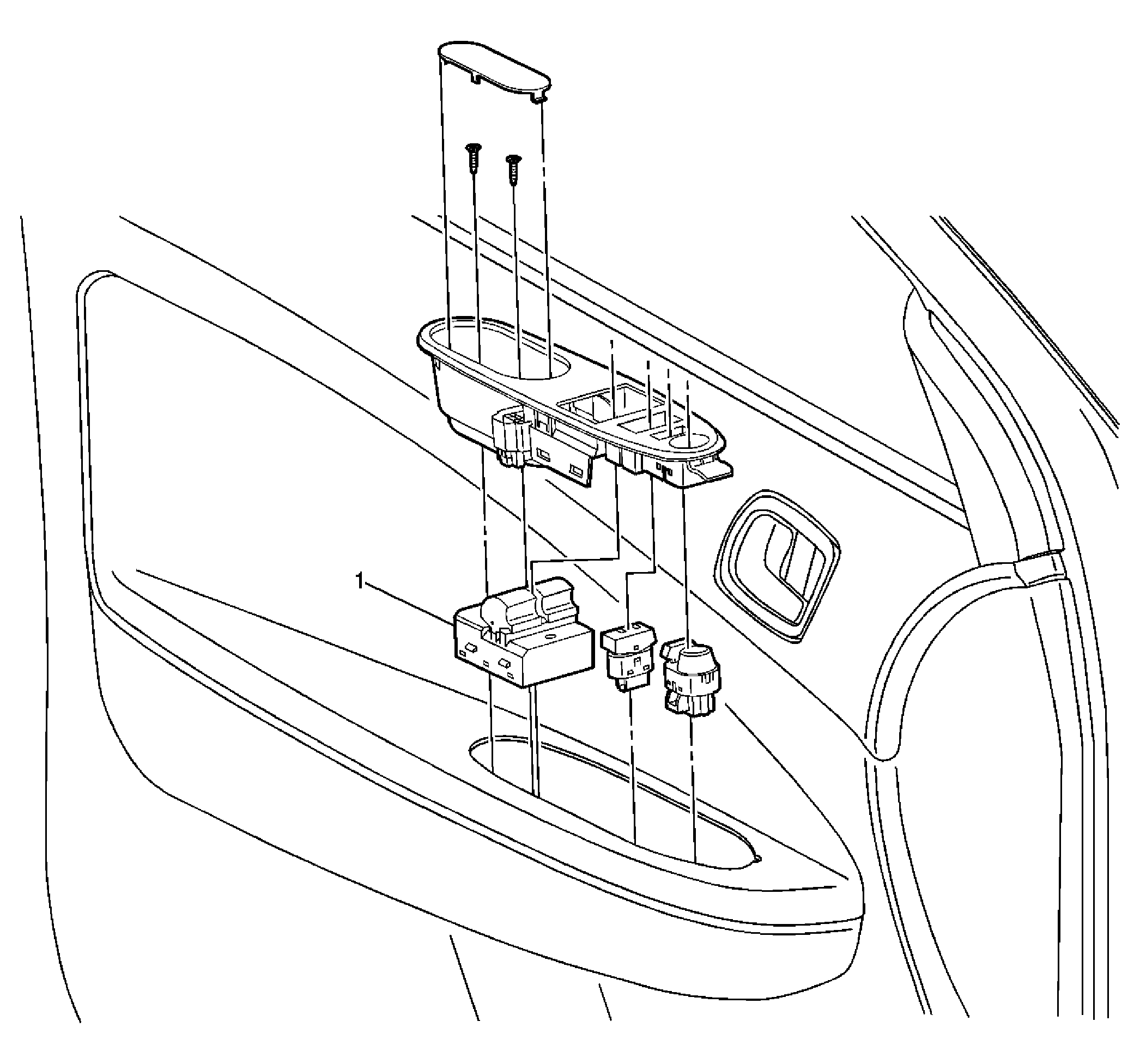

Fig 1: Power Window Switch Replacement - Left Front
GM1550816Courtesy of GENERAL MOTORS CORP.
Power Window Switch Replacement - Left Front

Callout Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices.
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedures: Remove the armrest pull cup. Refer to Armrest Pull Cup Replacement .
1 Switch, Power Window
Tip:  Disconnect the electrical connector.
