Chevrolet
>>
2005
>>
Cobalt SS
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Schematic and Routing Diagrams
>>
Power Steering System Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Steering System Schematics

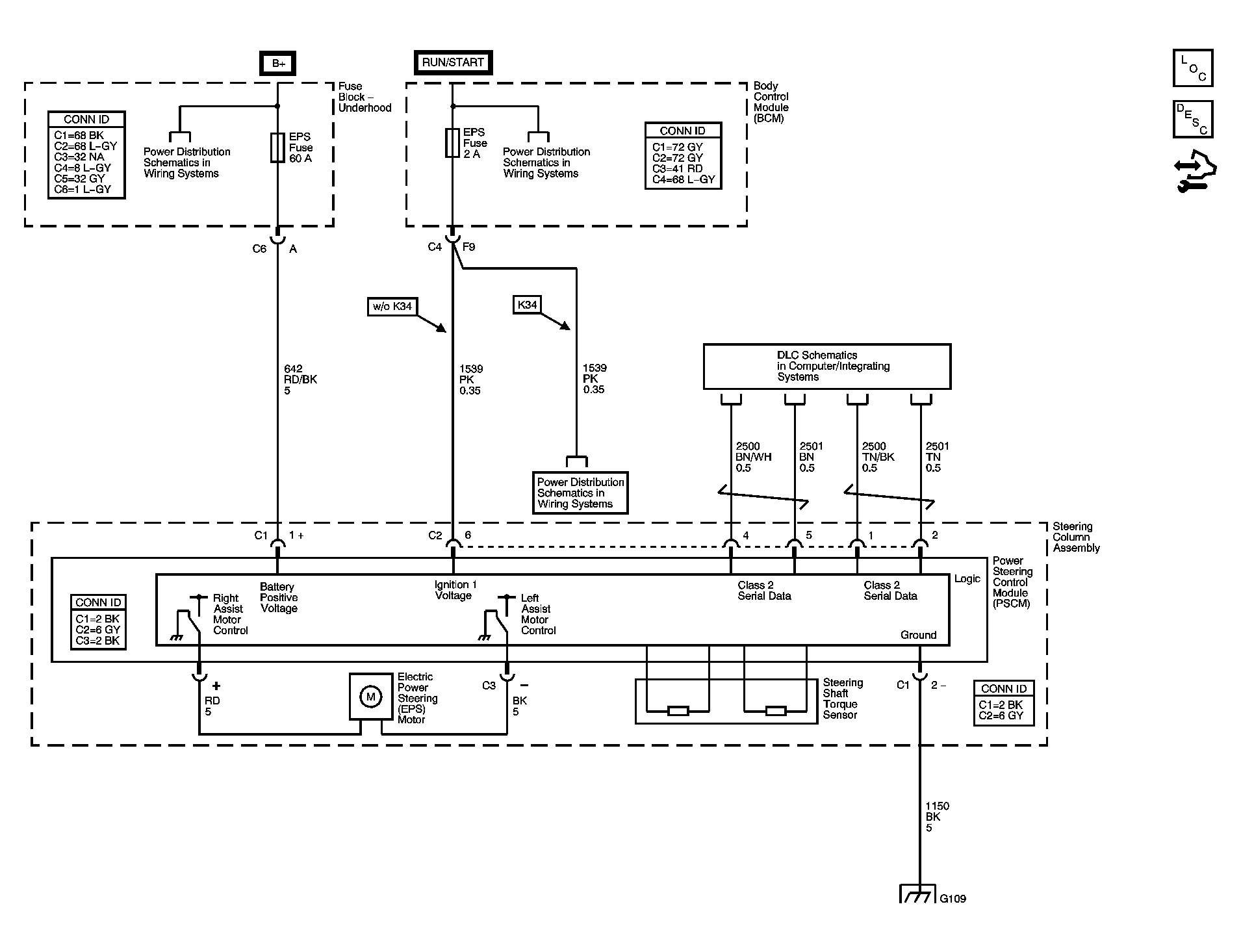

Fig 1: Power Steering System Schematic
Courtesy of GENERAL MOTORS CORP.
