Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

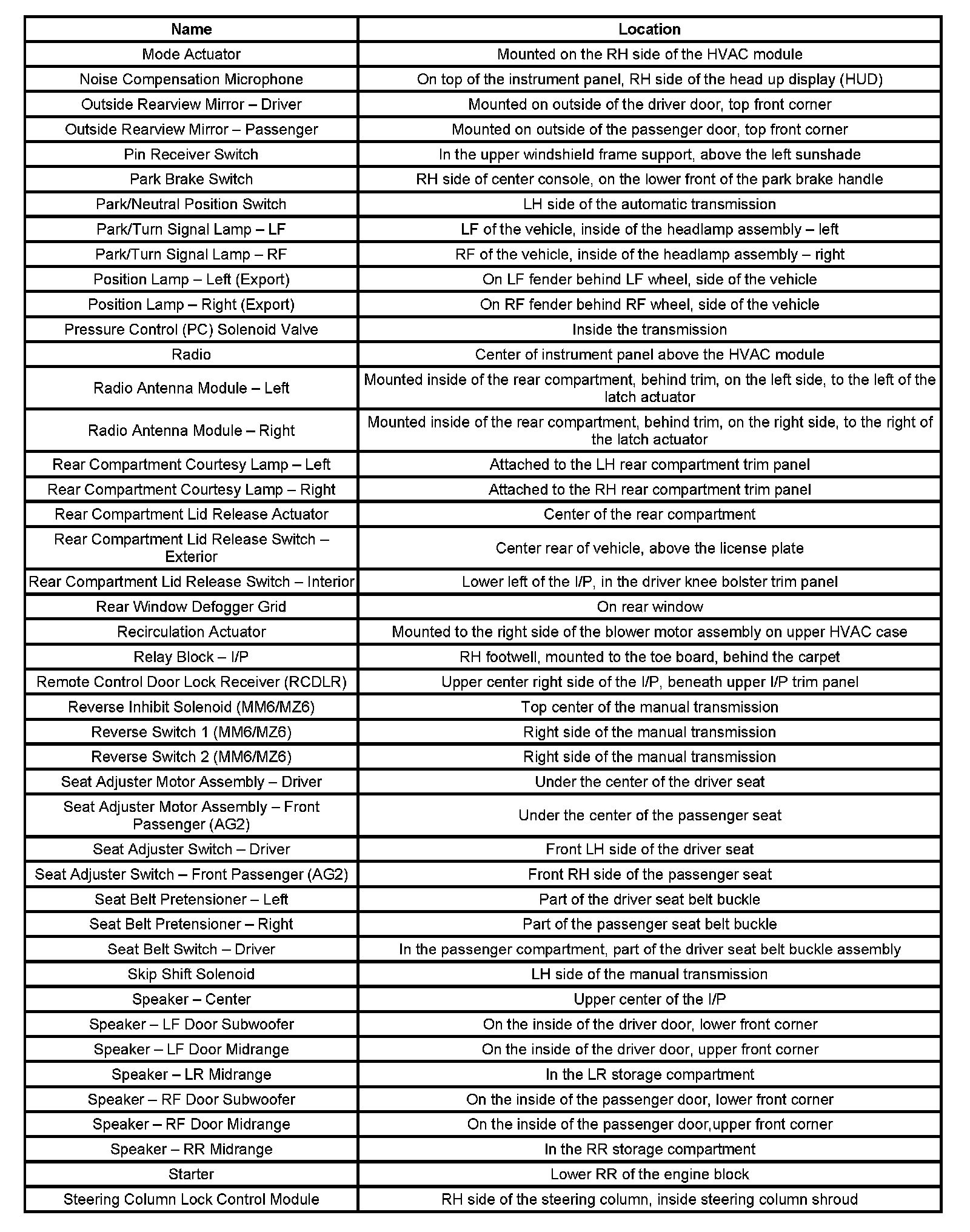

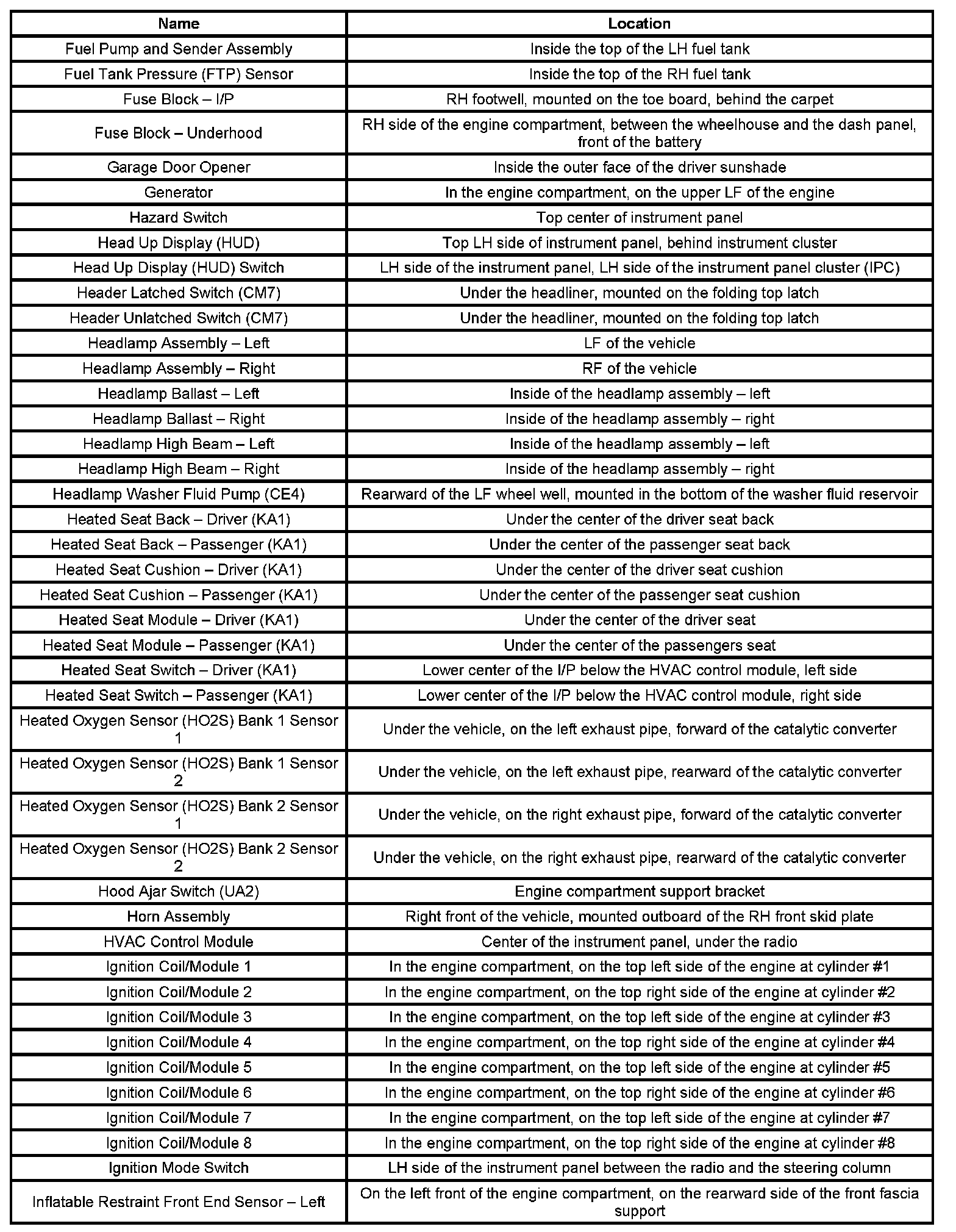

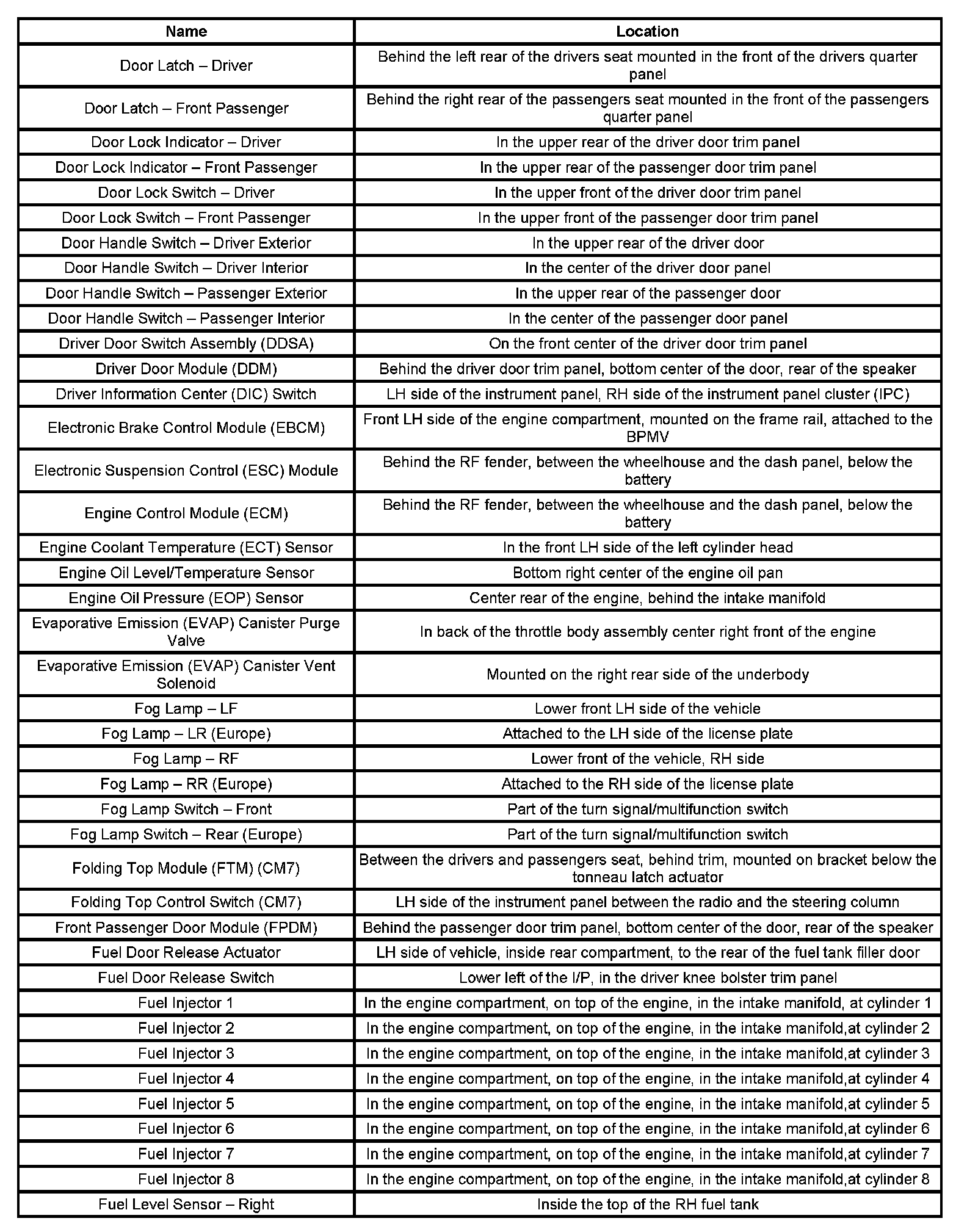

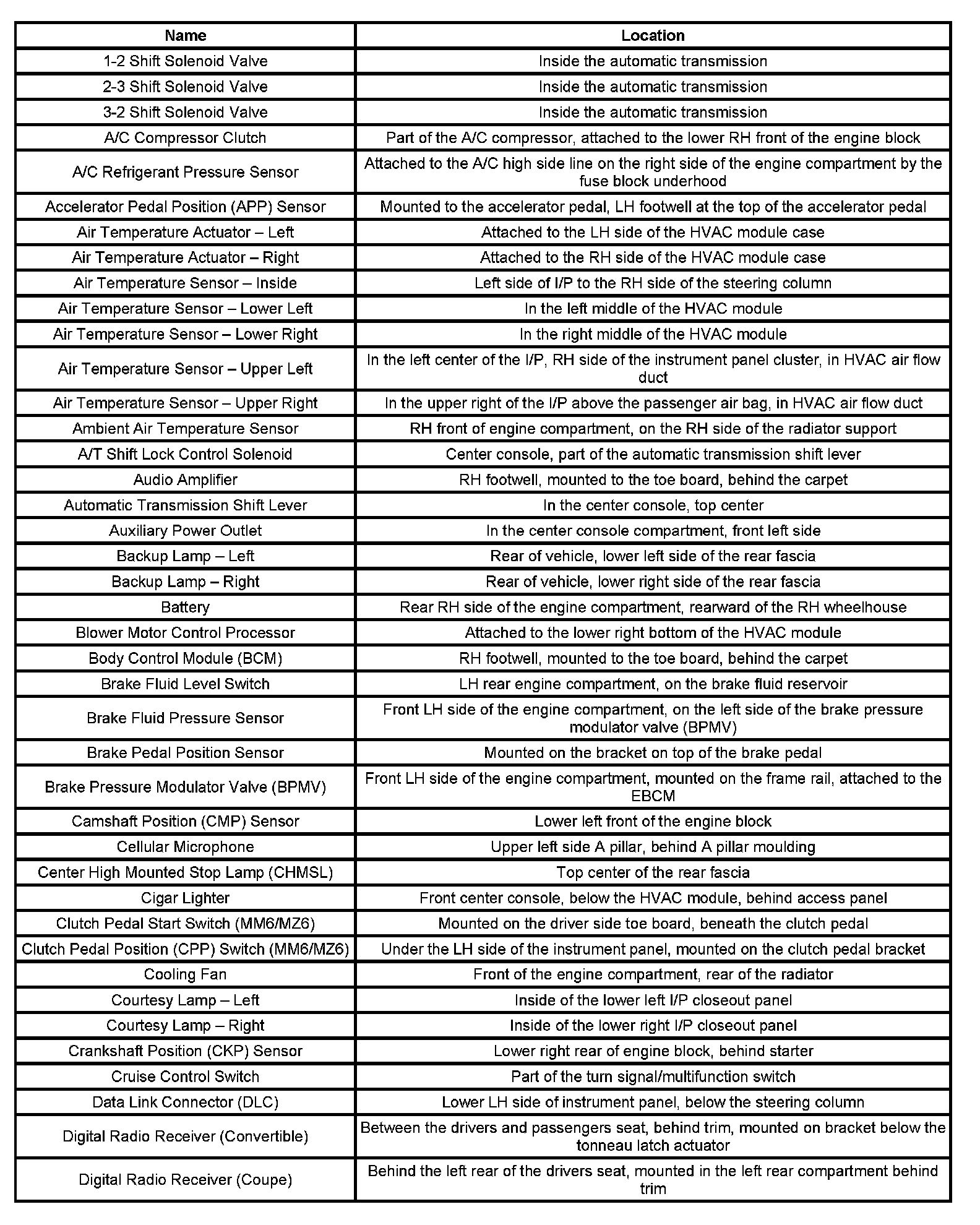

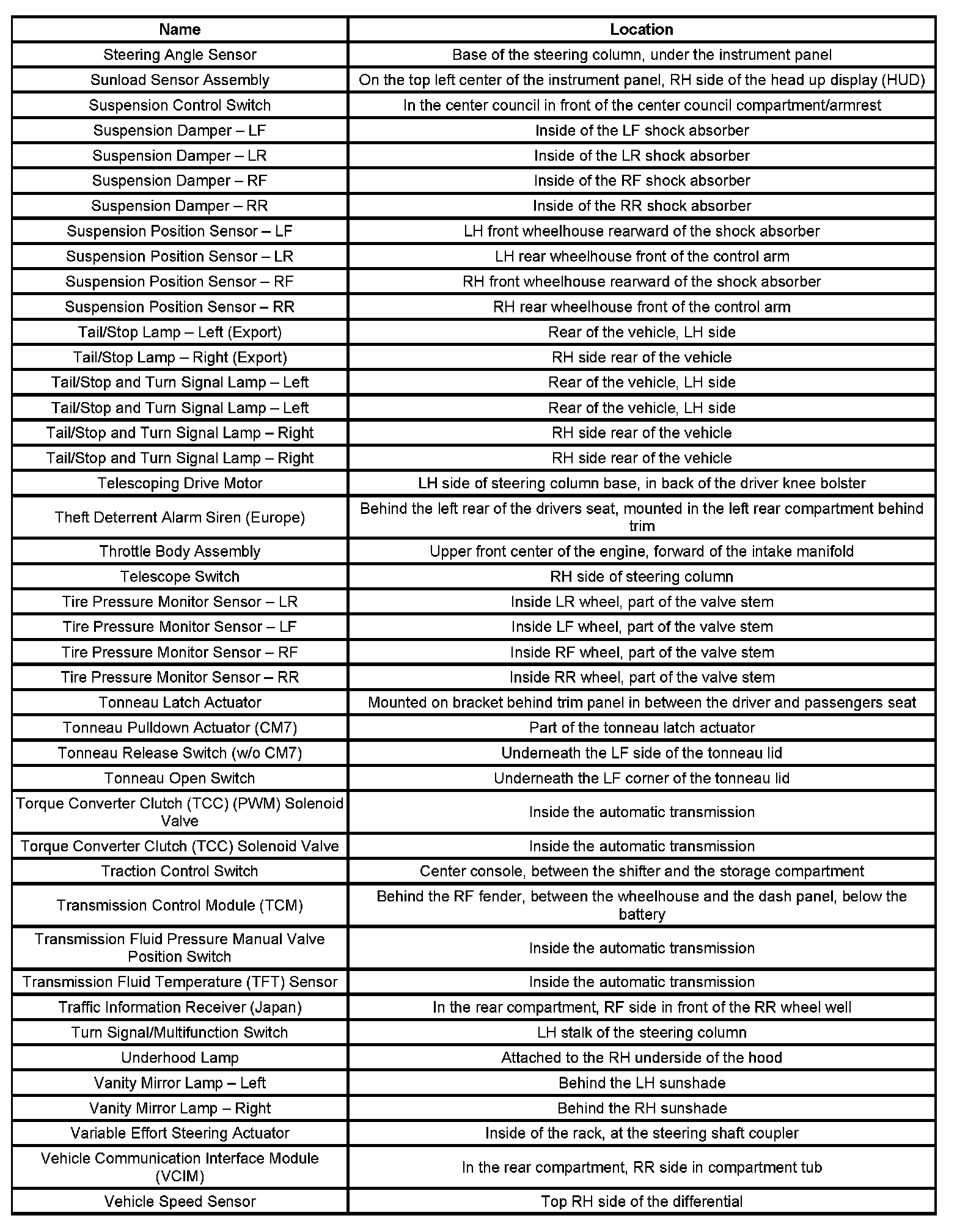

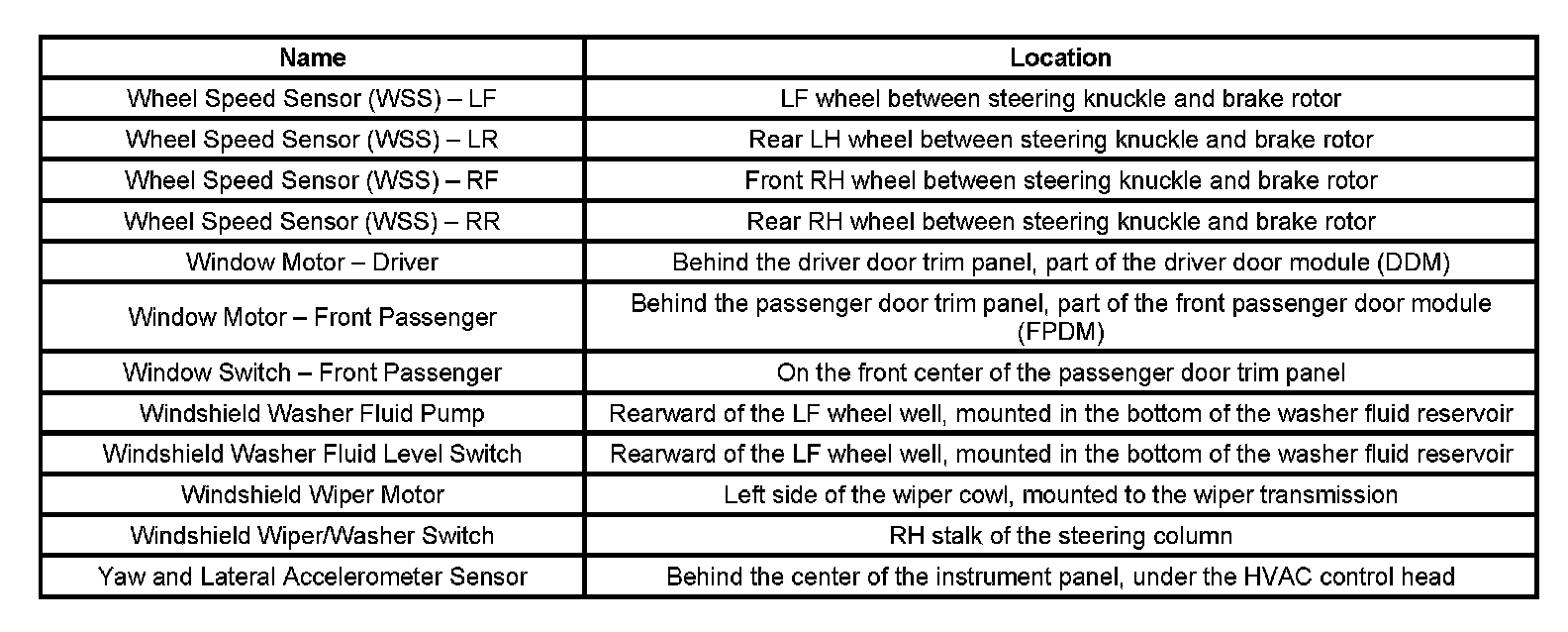

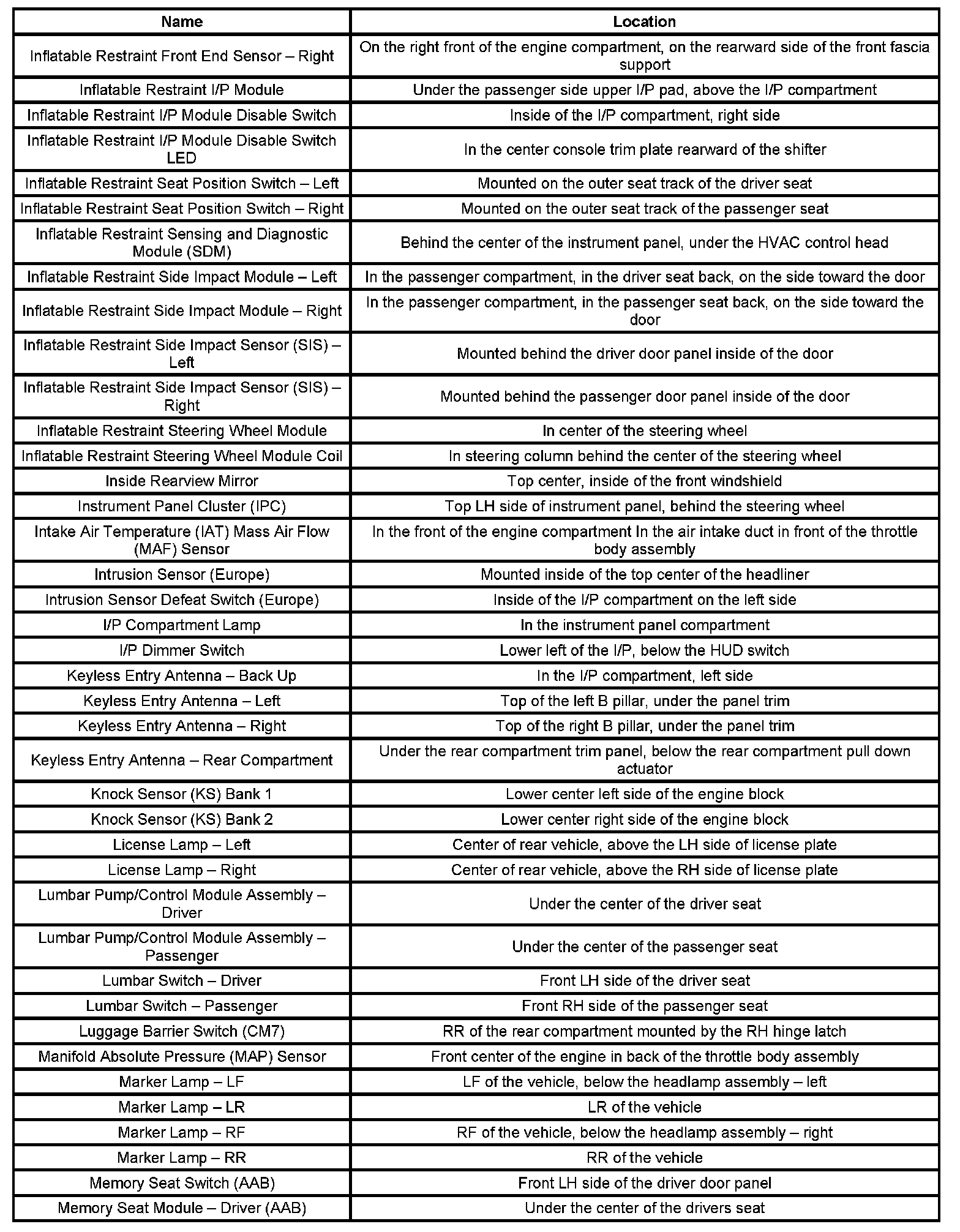

Components
1-2 Sh - Di:
Do - Fu:
Fu - In:
In - Me:
Mo - St:
St - Ve:
Wh - Ya:
