Body Control System Schematics

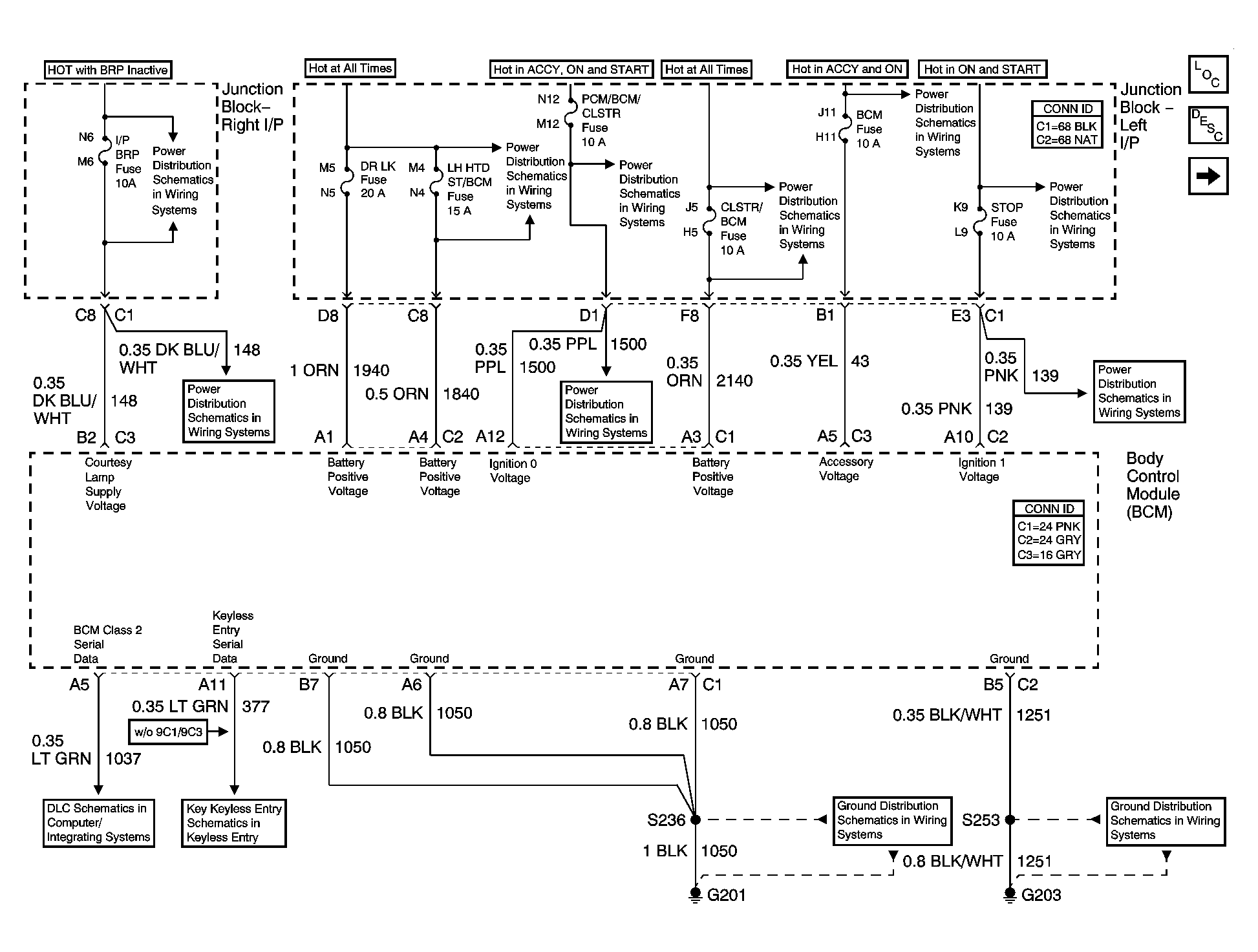

Fig 1: Grounds, Power And References To DLC And Keyless Entry

Courtesy of GENERAL MOTORS CORP.

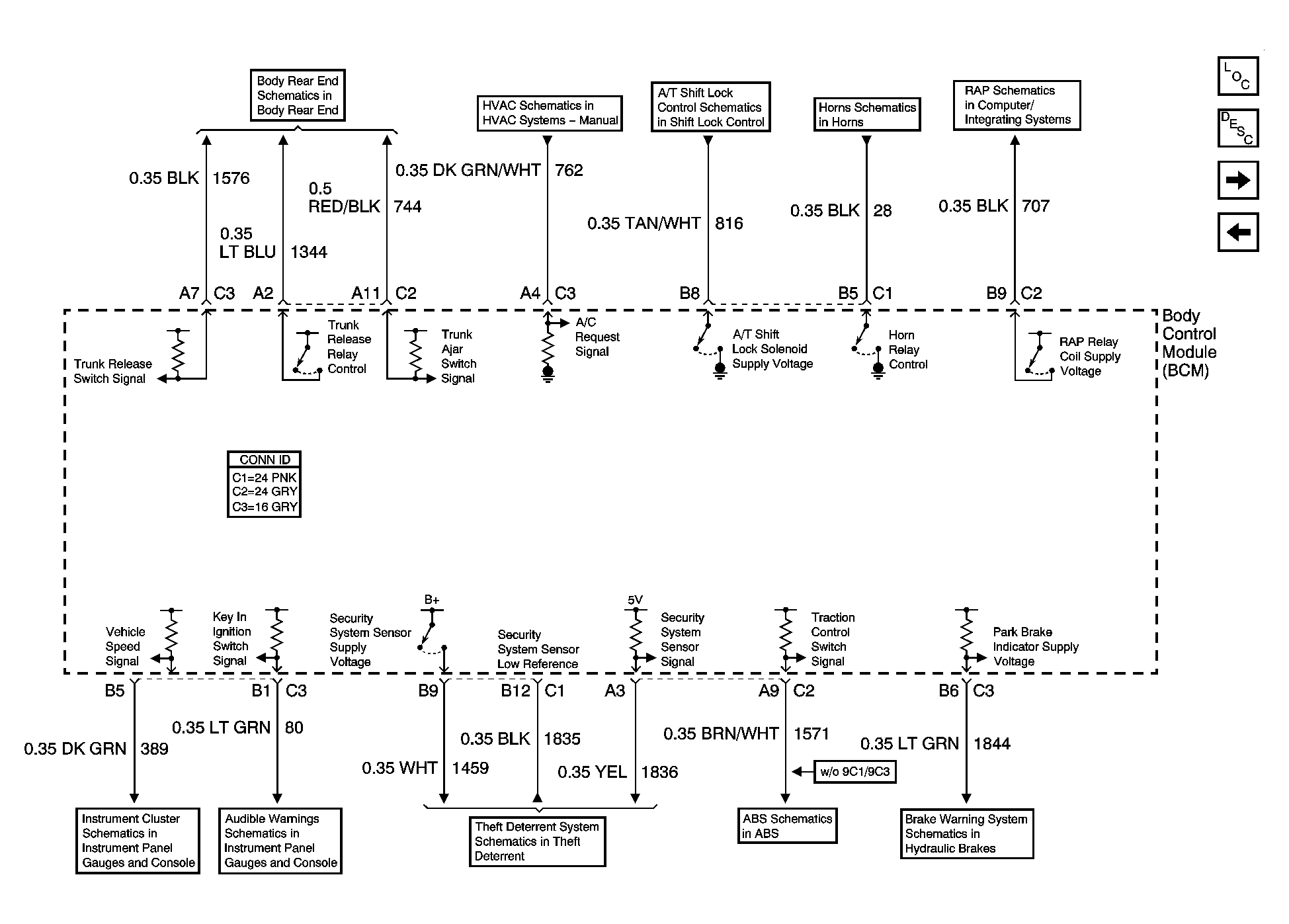

Fig 2: References to ABS, Alt Shift Lock, Audible Warnings, Body Rear End, Horns, HVAC, Hydraulic Brakes, Instrument Cluster, RAP, And Theft Deterrent

Courtesy of GENERAL MOTORS CORP.

Fig 3: Body Control System - Lighting

Courtesy of GENERAL MOTORS CORP.

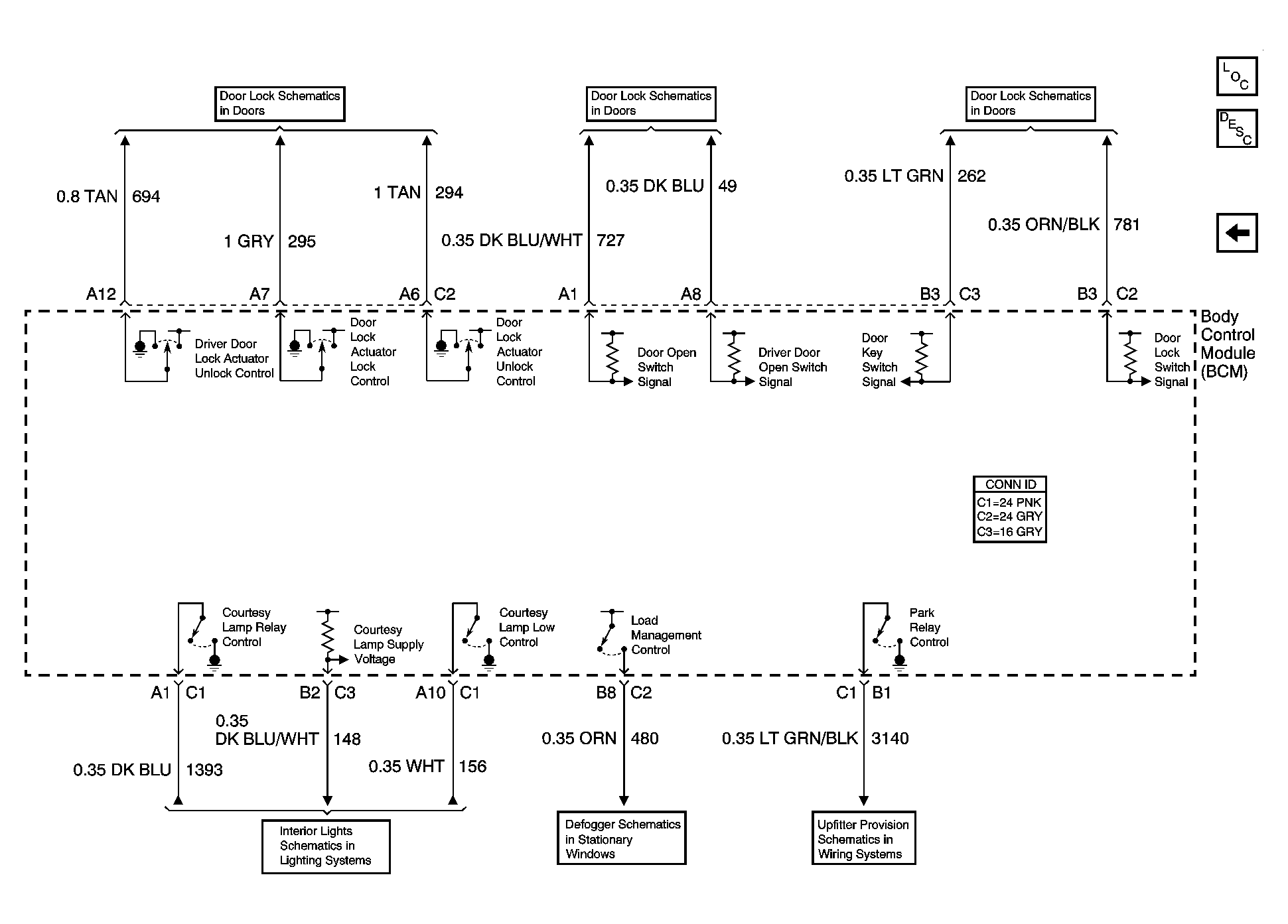

Fig 4: References To Doors, Defogger And Lighting

Courtesy of GENERAL MOTORS CORP.
