Installation Procedure

    Fig 1: Removing/Installing Transaxle Mount
    GM462438Courtesy of GENERAL MOTORS CORP.
  1. Position the transaxle mount to the frame.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the transaxle mount lower nuts to the frame.

    Tighten:  Tighten the transaxle mount lower nuts to 63 N.m (46 lb ft).

  3. Lower the transaxle so the transaxle mount studs install into the transaxle bracket.

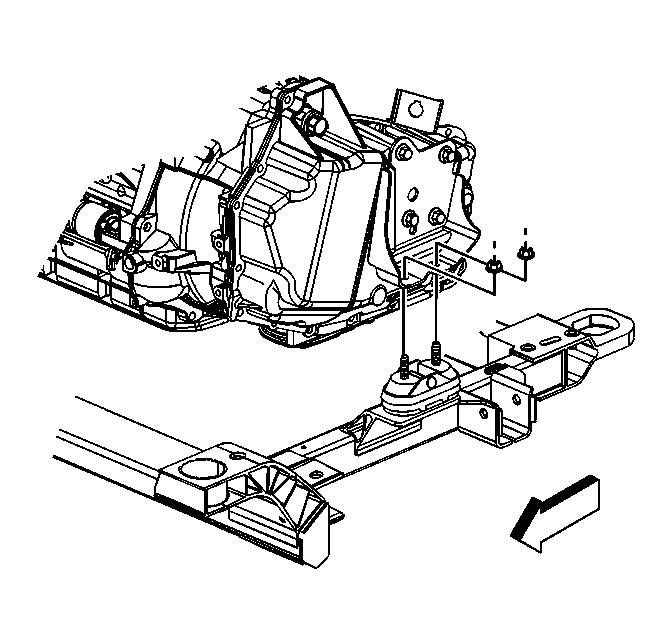

    4. Fig 2: Raising/Lowering Transaxle Assembly
    GM630964Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the transaxle mount upper nuts to the transaxle mount.

    Tighten:  Tighten the transaxle mount upper nuts to 47 N.m (35 lb ft).

  5. Remove the transmission jack from the transaxle.
  6. Install left inner splash shield.
  7. Install the left wheel and tire assembly.
  8. Lower the vehicle.
