Automatic Transmission Controls Schematics

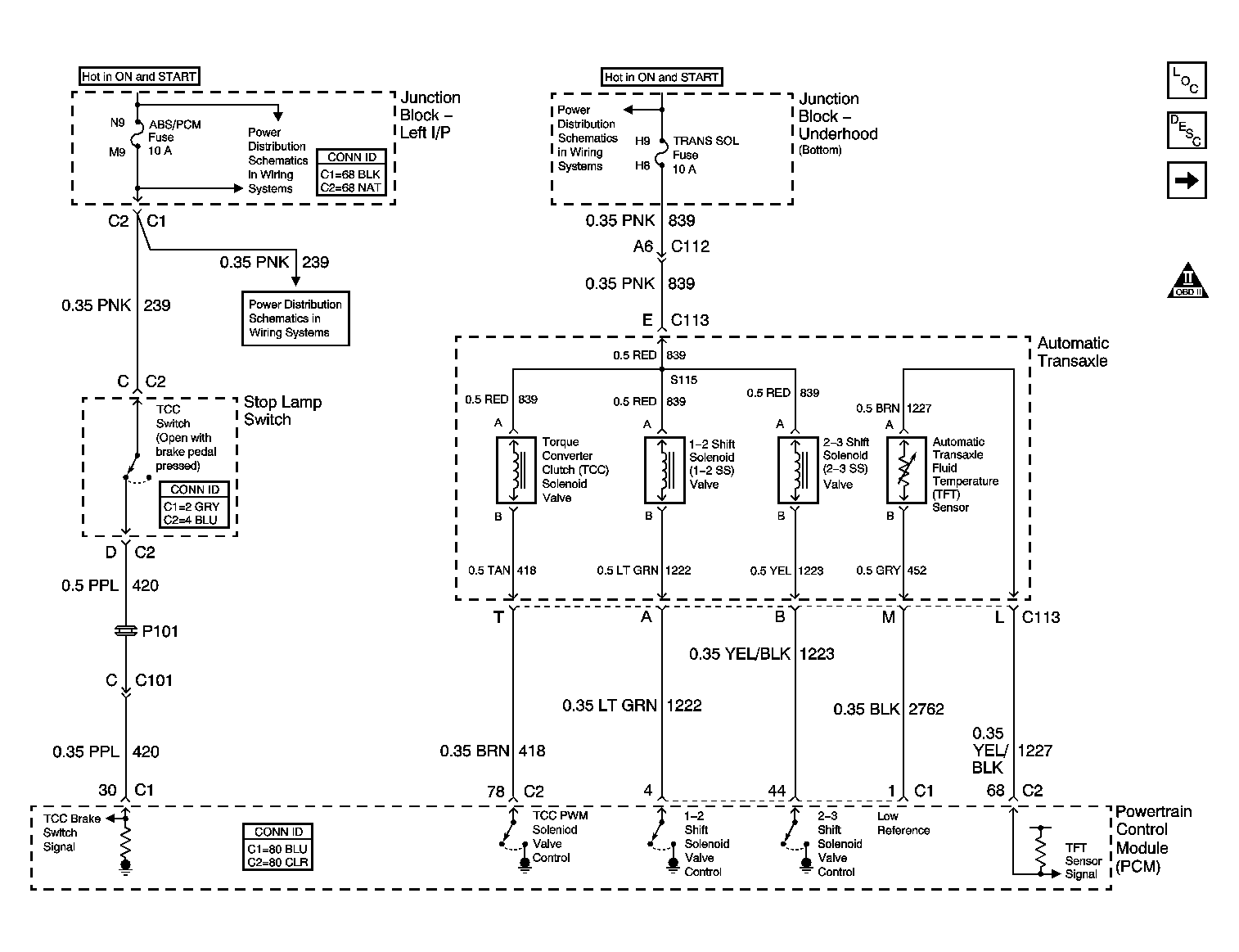

Fig 1: Solenoids, TCC & TFT Schematic
GM652714Courtesy of GENERAL MOTORS CORP.

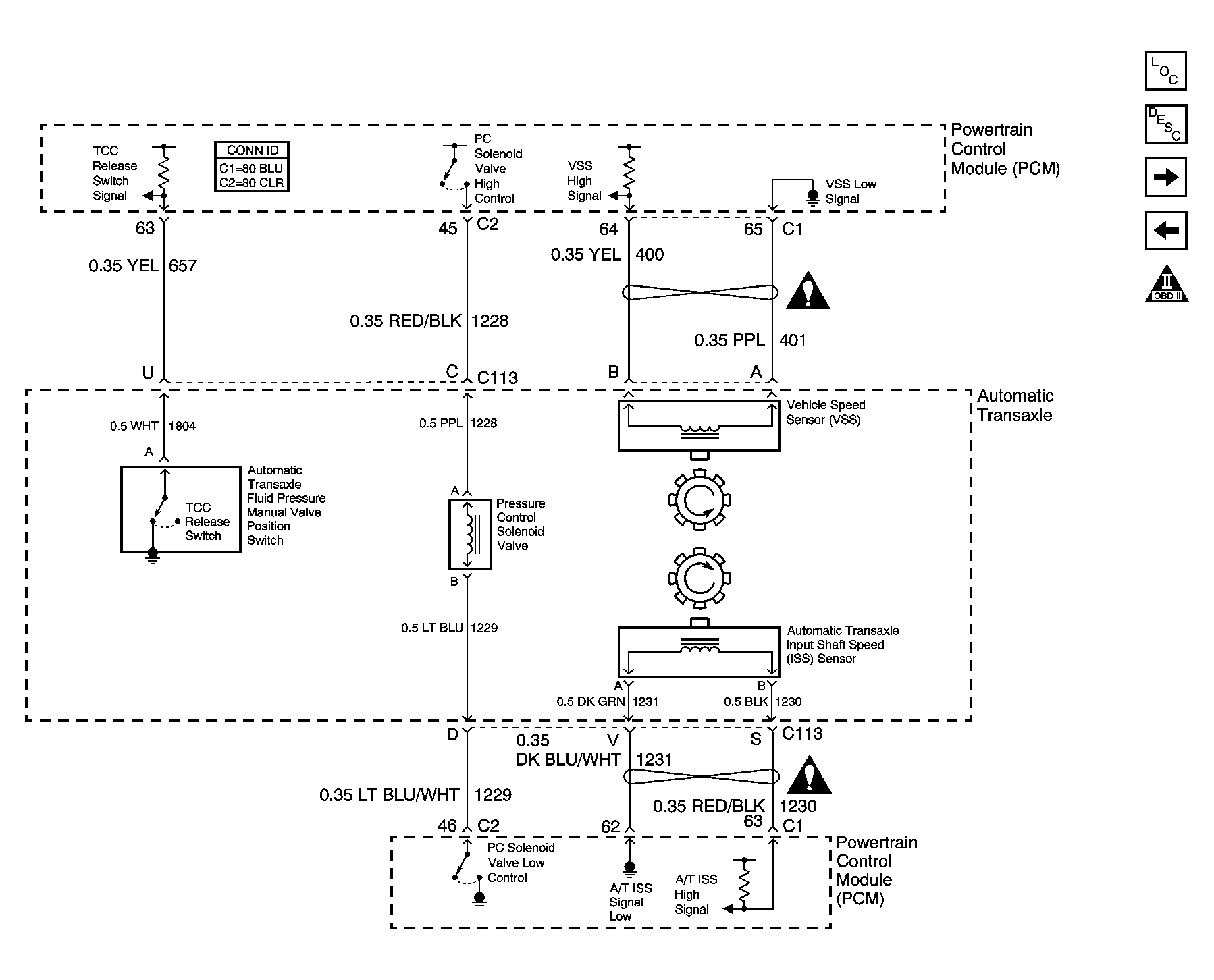

Fig 2: ISS, Pressure Control Solenoid Valve & VSS Schematic
GM878222Courtesy of GENERAL MOTORS CORP.

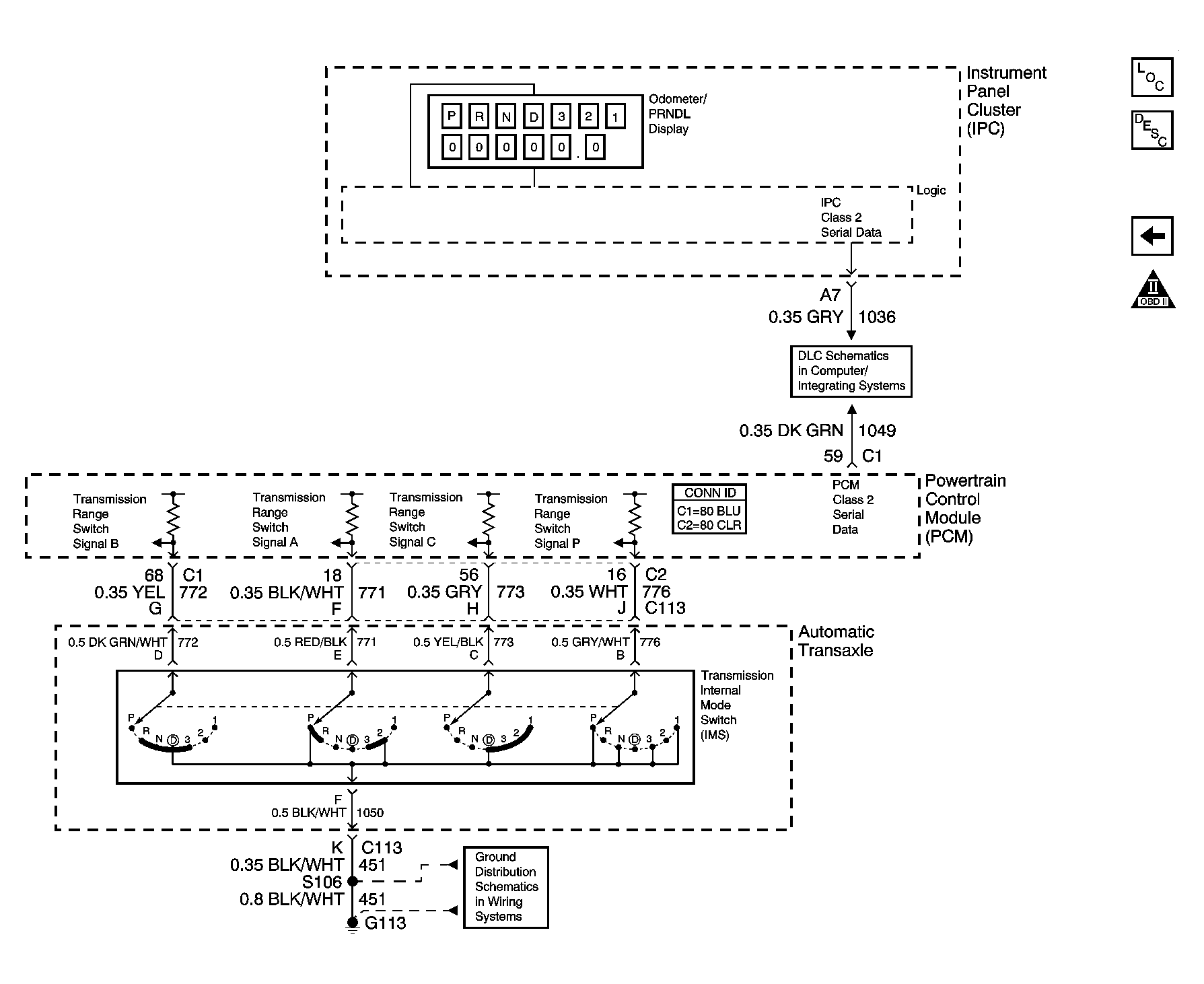

Fig 3: Internal Mode Switch (IMS) Schematic
GM1551493Courtesy of GENERAL MOTORS CORP.
