LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Chevrolet
>>
2005
>>
Malibu L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
>>
Inflatable Restraint I/P Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Inflatable Restraint I/P Module

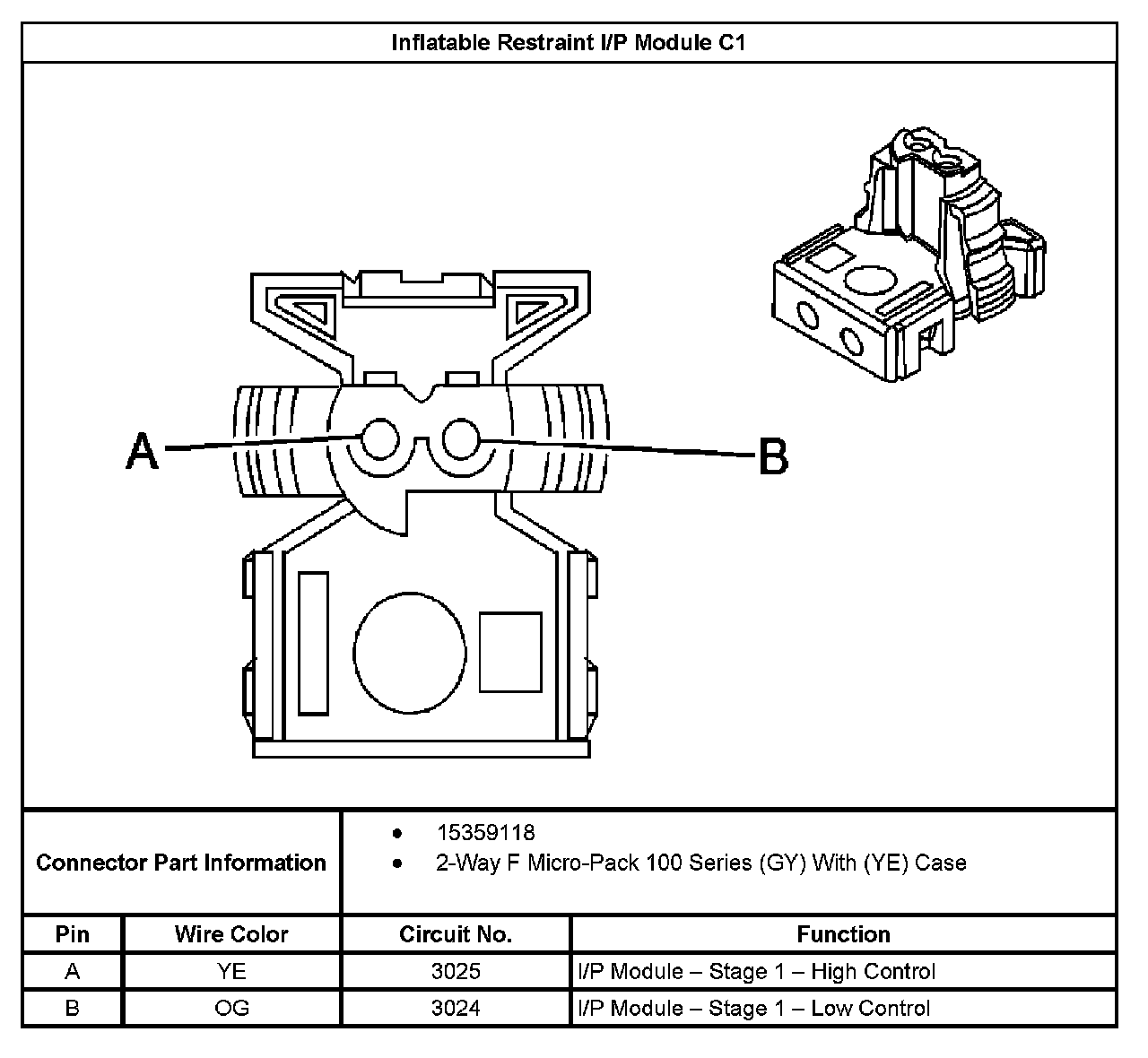

Inflatable Restraint I/P Module C1:
Inflatable Restraint I/P Module C2:
