Air Bag Systems

SIR Component Views

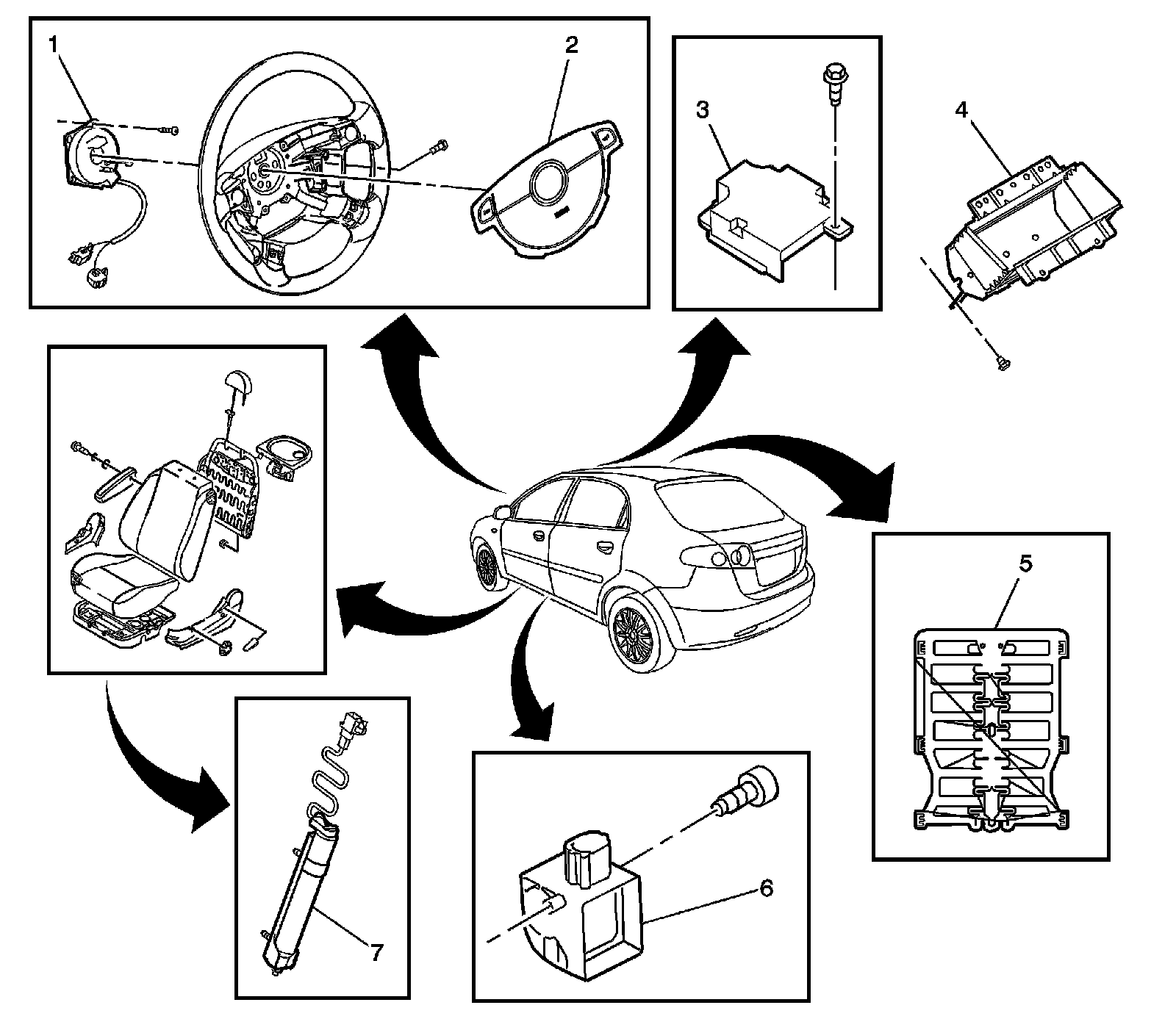

SIR (North America Vehicles)





1 - Inflatable Restraint Steering Wheel Module Coil

2 - Inflatable Restraint Steering Wheel Module

3 - Inflatable Restraint Sensing and Diagnostic Module (SDM)

4 - Passenger Airbag Module

5 - OC (Occupant Classification) Sensor

6 - Inflatable Restraint Side Impact Sensor (SIS)- Driver, Passenger or Inflatable Restraint Front End Discriminating Sensor- Right or Left

7 - Side Airbag Module

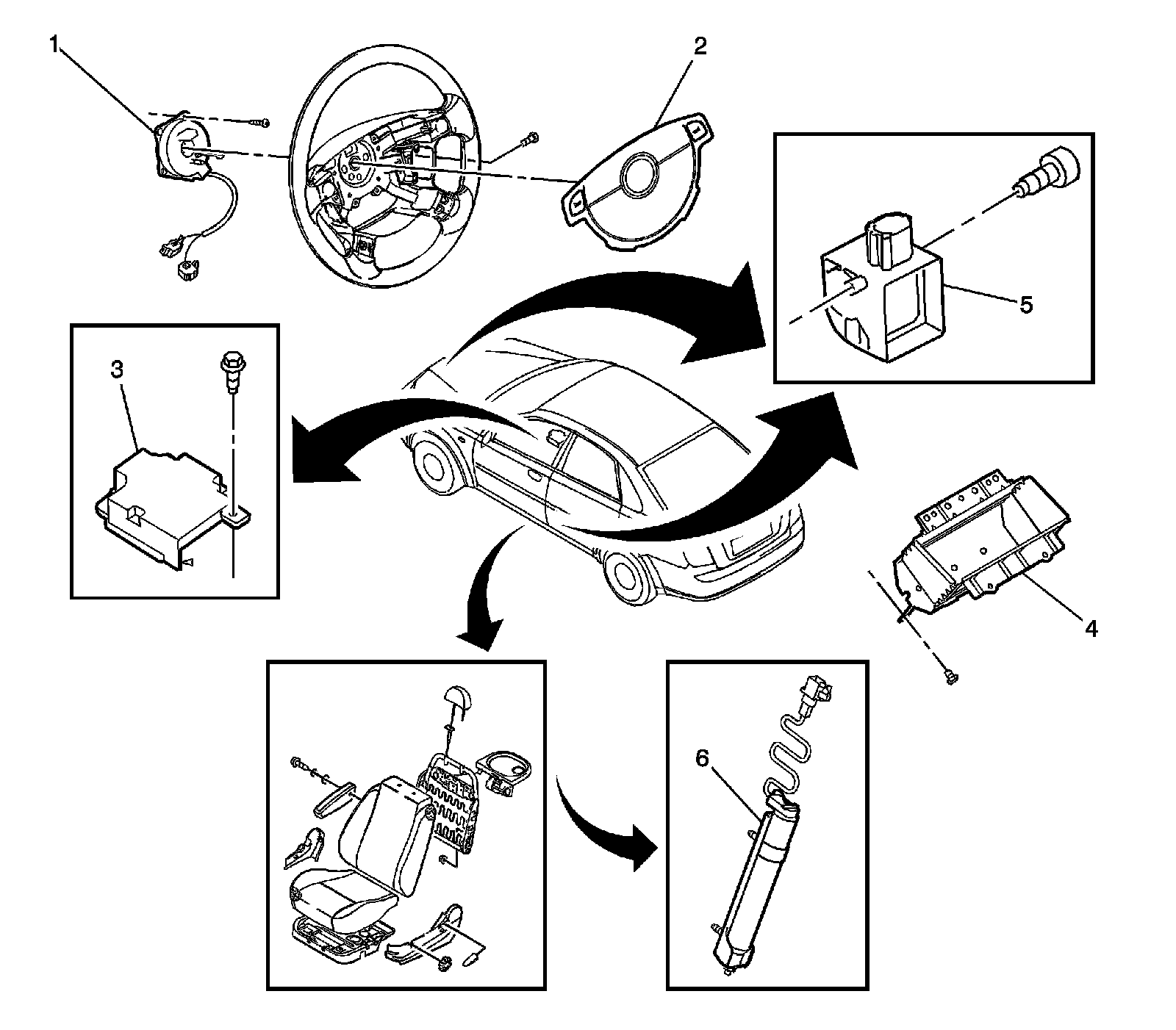

SIR (Except North America Vehicles)





1 - Inflatable Restraint Steering Wheel Module Coil

2 - Inflatable Restraint Steering Wheel Module

3 - Inflatable Restraint Sensing and Diagnostic Module (SDM)

4 - Passenger Airbag Module

5 - Inflatable Restraint Side Impact Sensor (SIS)- Driver, Passenger or Inflatable Restraint Front End Discriminating Sensor- Right or Left

6 - Side Airbag Module

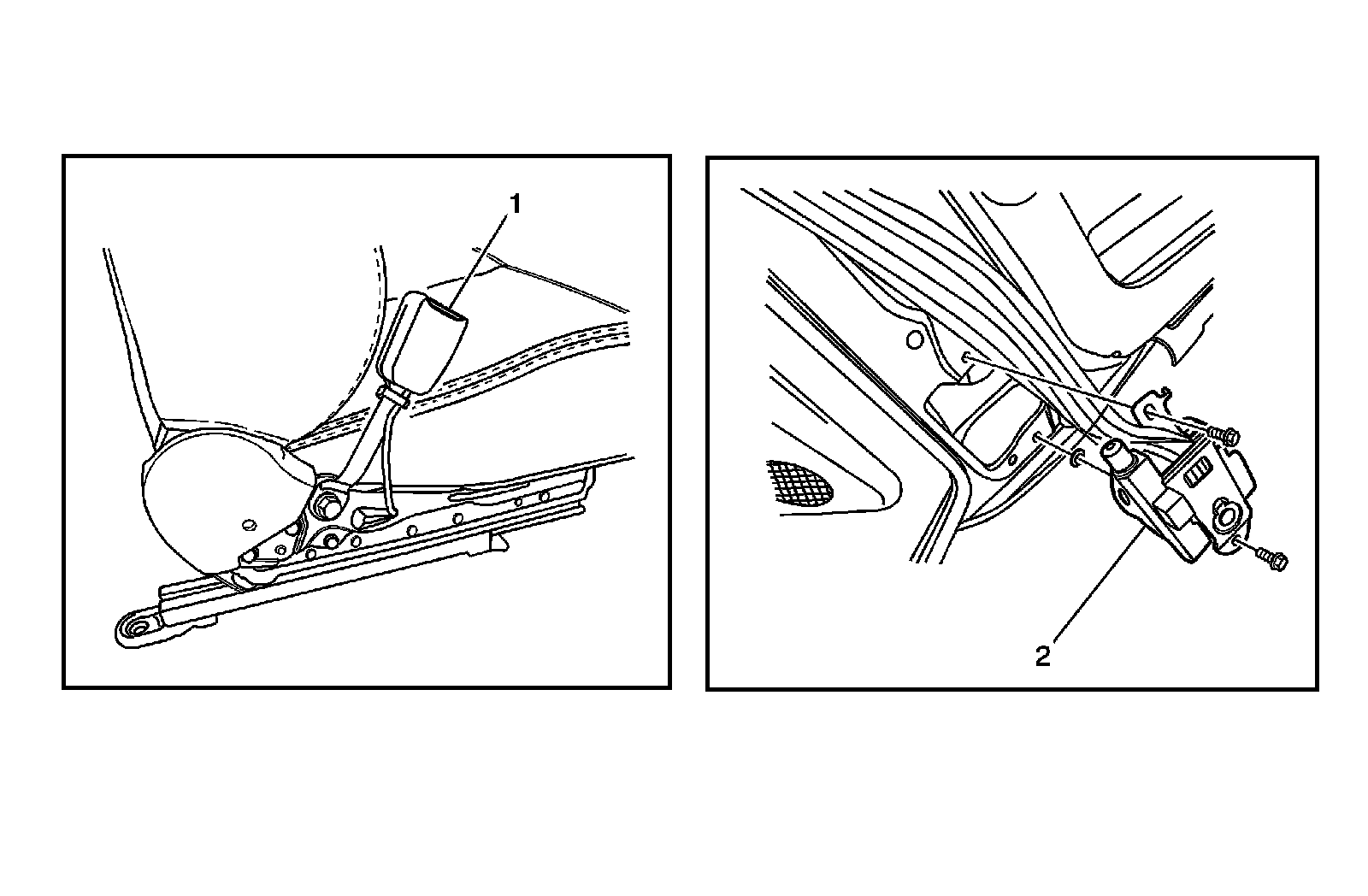

Seat Belt Switch, Seat Belt Pretensioner- Driver and Passenger





1 - Seat Belt Switch

2 - Seat Belt Pretensioner- Driver and Passenger
