Fuse Block: Locations




Electrical Center Identification Views

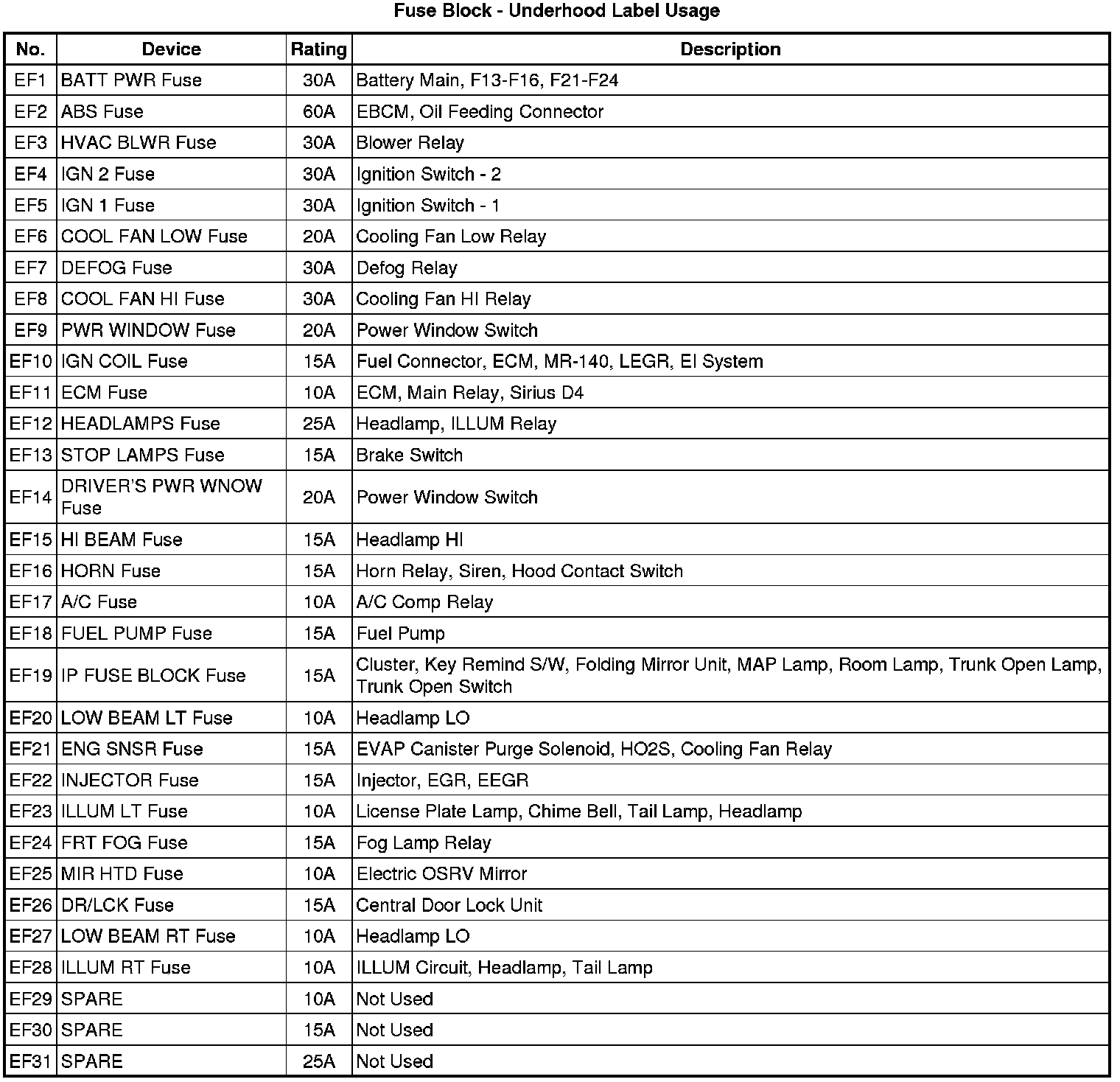

Fuse Block - Underhood Label

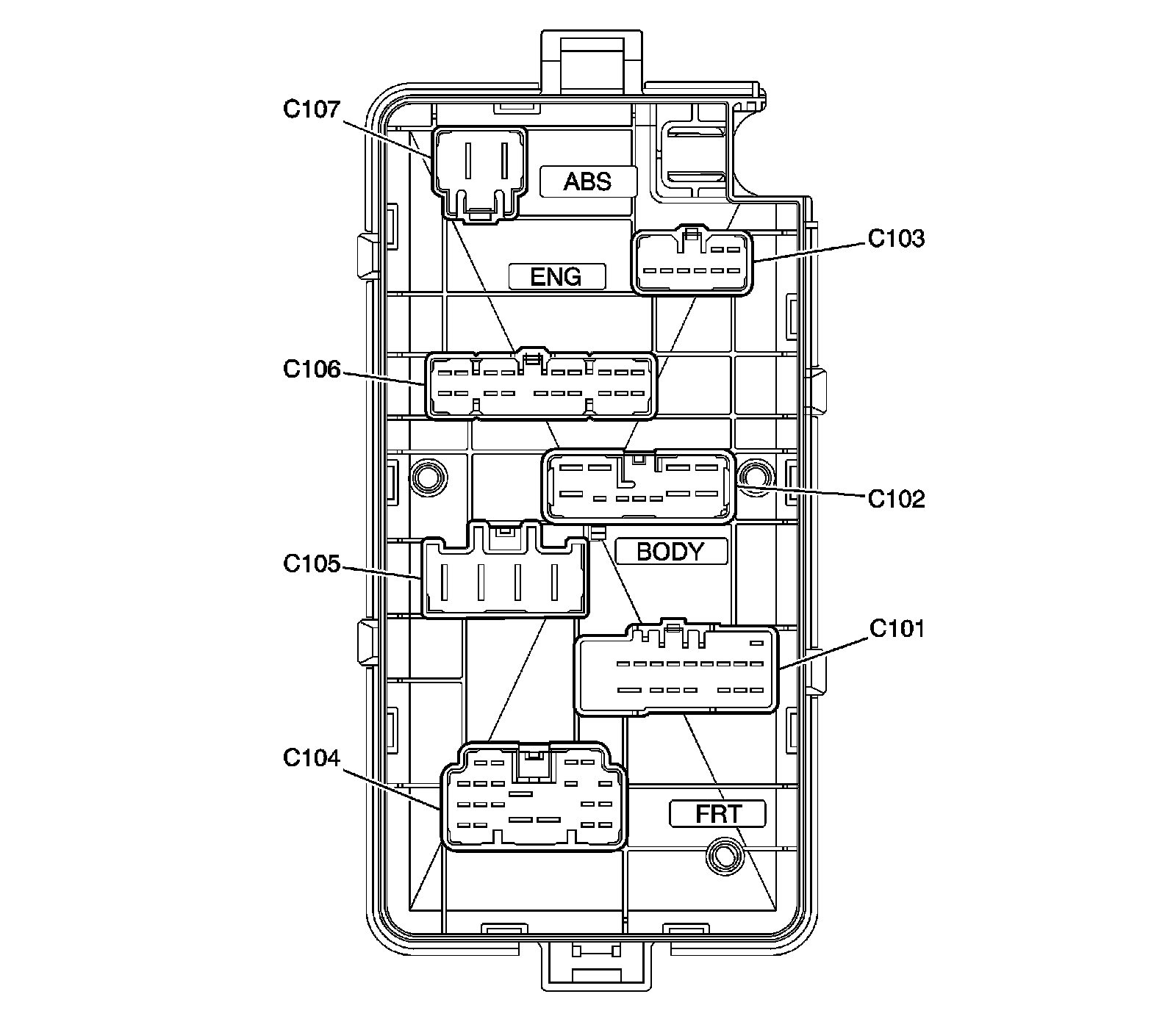

Fuse Block Underhood - Top View






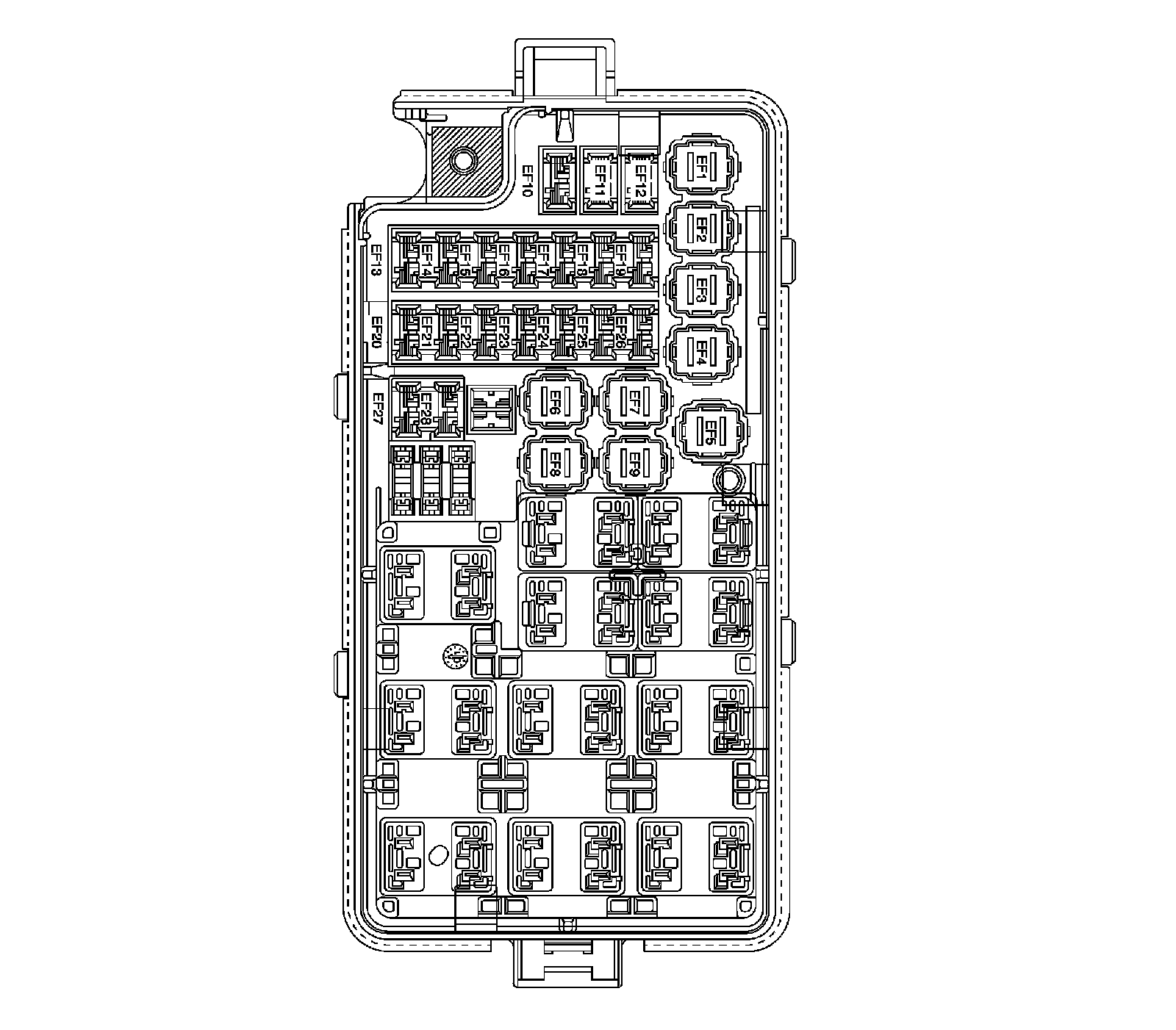

Fuse Block Underhood - Bottom View

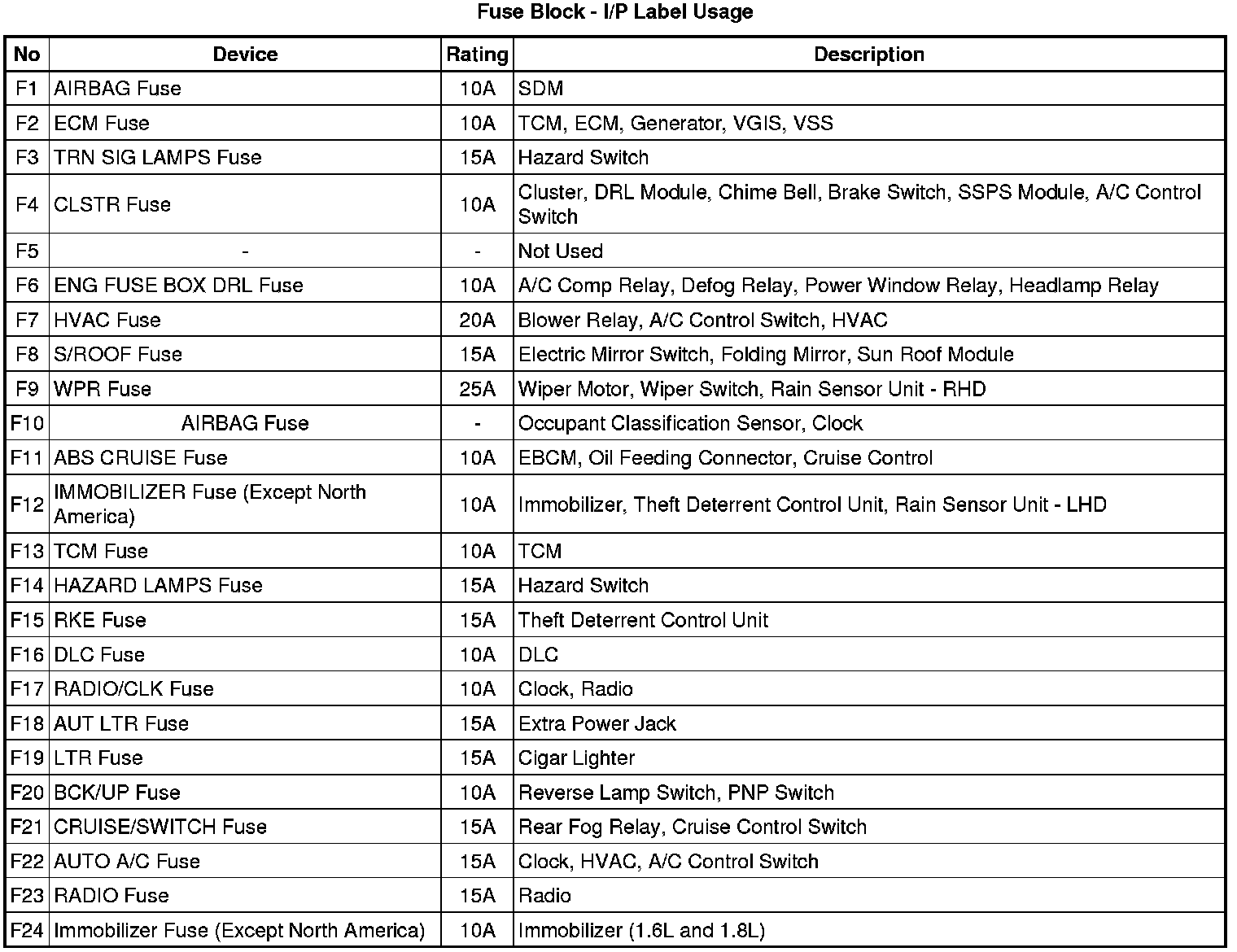

Fuse Block - I/P Label










Fuse Block I/P - Top View






Fuse Block I/P - Bottom View
