Starting and Charging: Locations

Engine Electrical Component Views

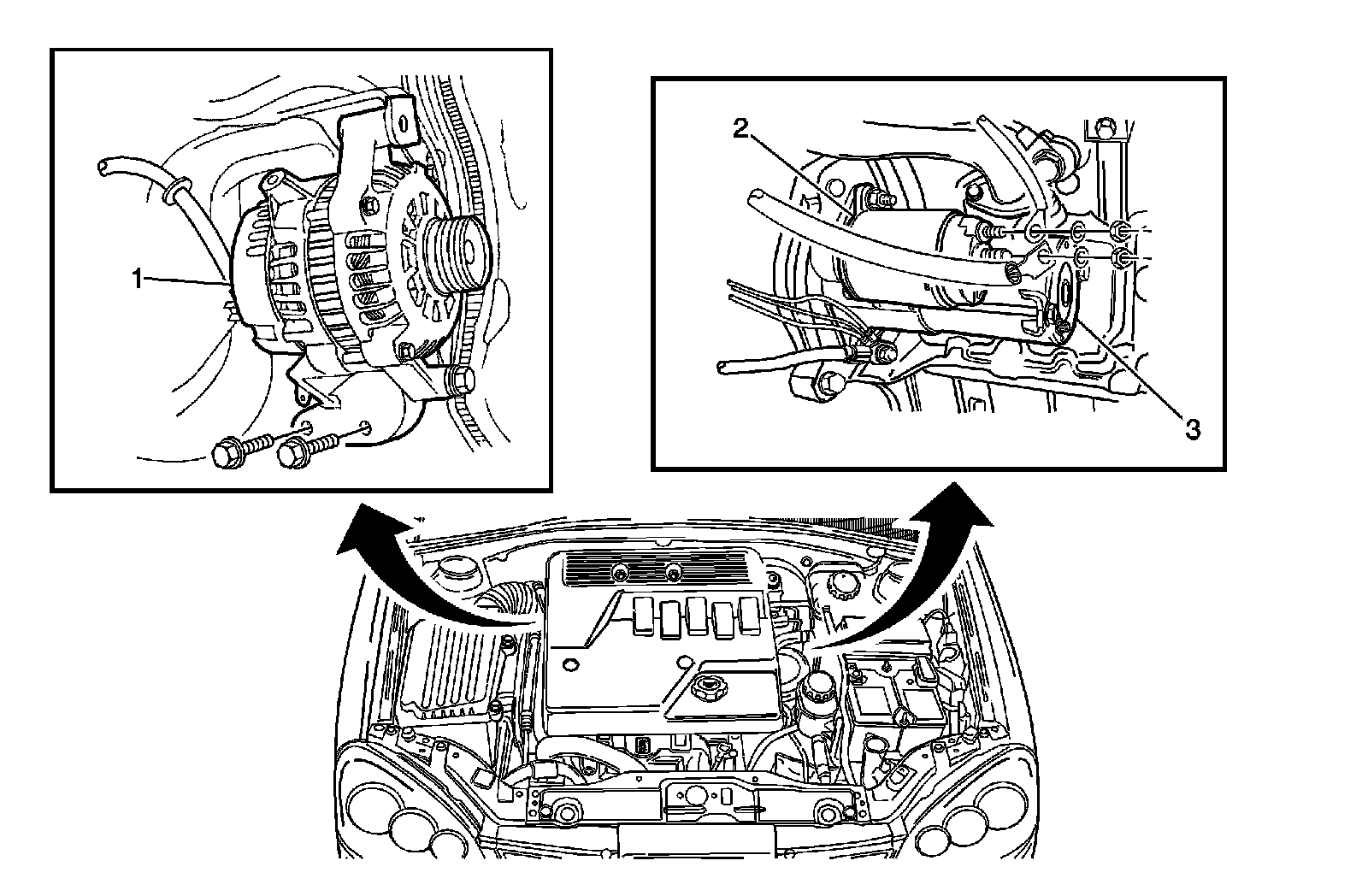

Generator and Starter (1.4L/1.6L)





1 - Generator

2 - Starter Solenoid

3 - Starter

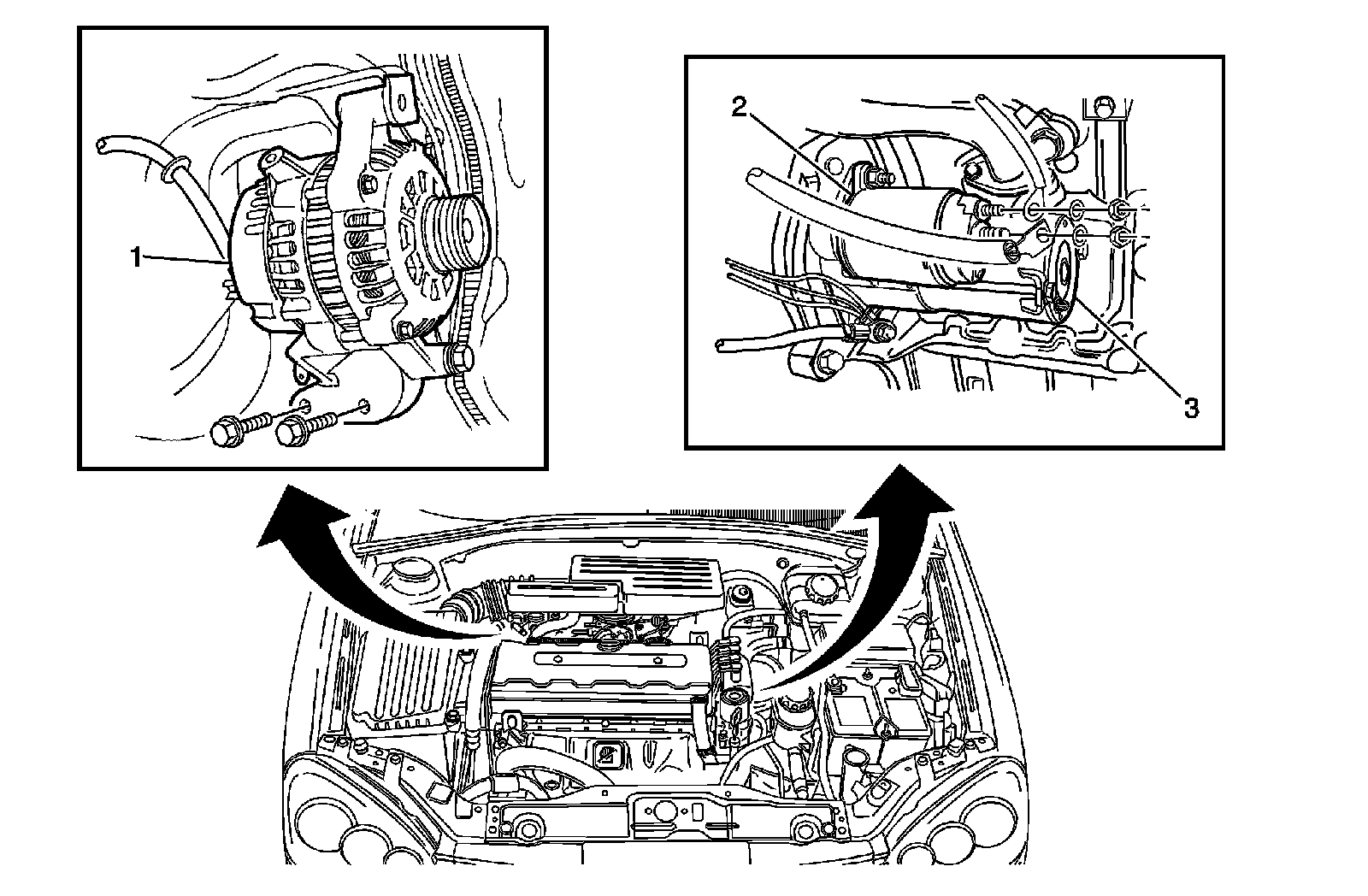

Generator and Starter (1.8L/2.0L)





1 - Generator

2 - Starter Solenoid

3 - Starter

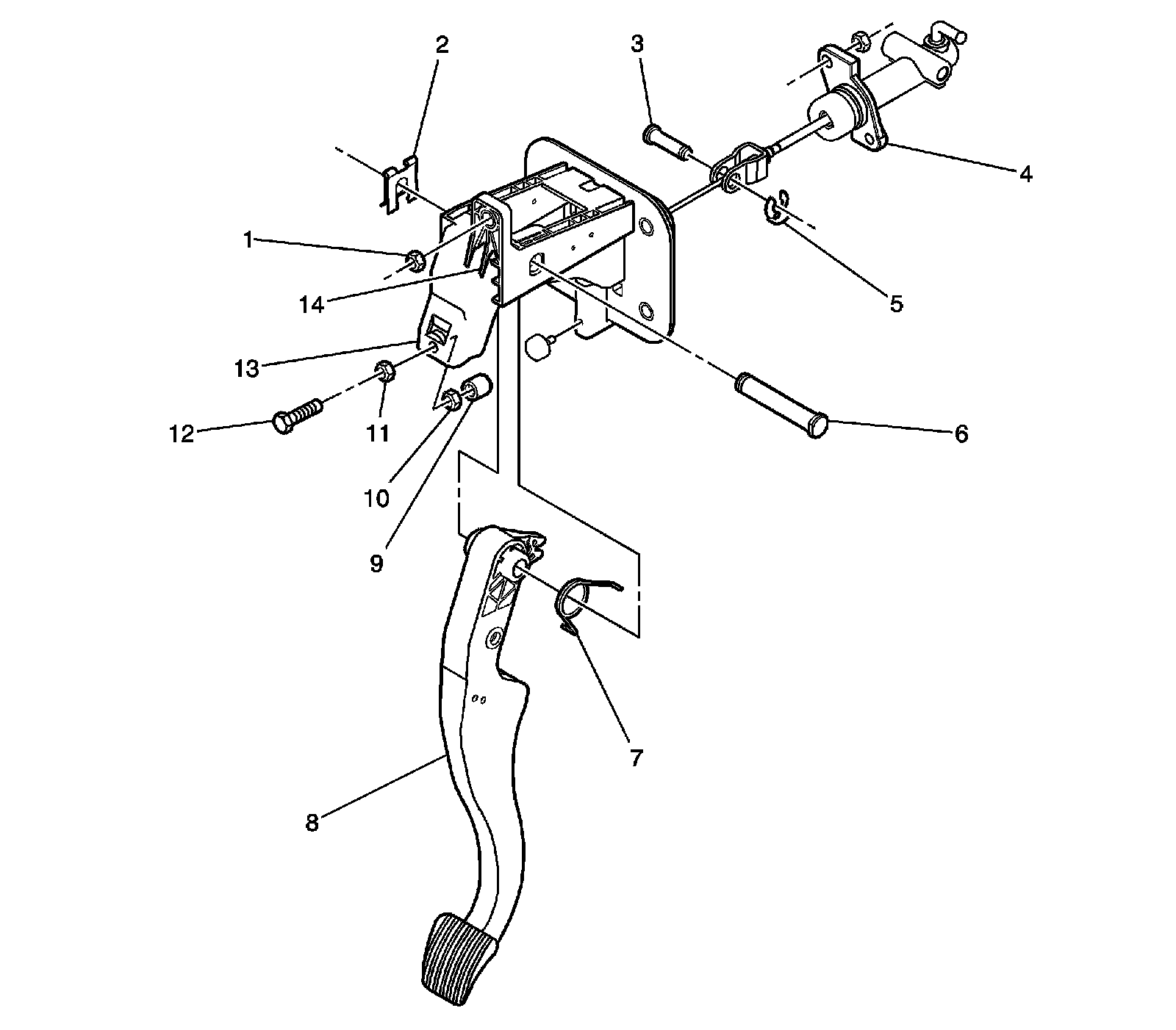

Clutch Pedal





1 - Nut

2 - E-Ring

3 - Pin

4 - Clutch Master Cylinder

5 - E-Ring

6 - Clutch Pedal Shaft

7 - Turn-Over Spring

8 - Clutch Pedal

9 - Clutch Pedal Buffer

10 - Lock Nut

11 - Nut

12 - Bolt

13 - Clutch Pedal Brace

14 - Clutch Pedal Position (CPP) Switch
