Wiper and Washer Systems: Locations

Wiper/Washer Component Views

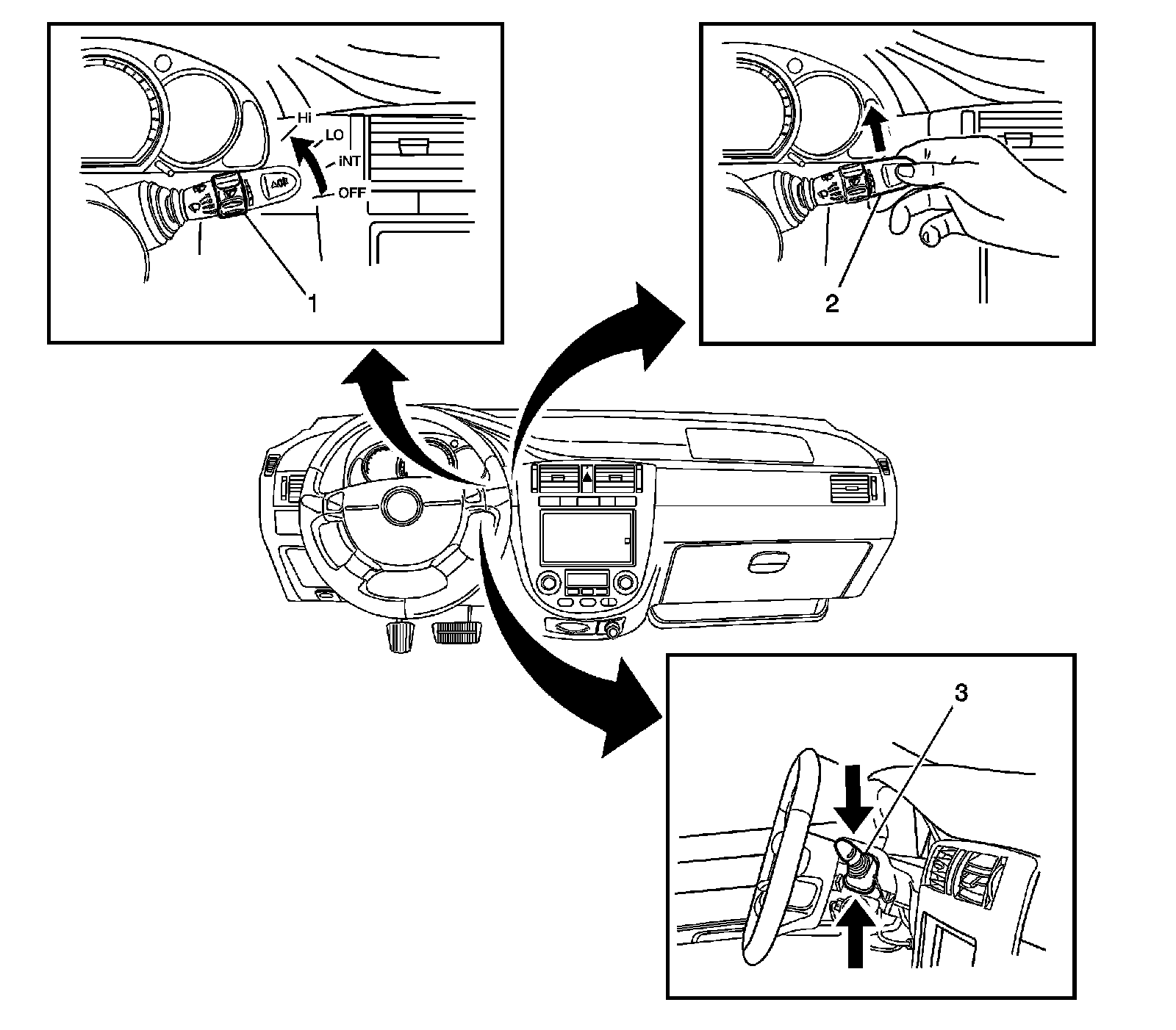

Wiper Switches





1 - Wiper Intermittent Switch (Optional)

2 - Wiper Intermittent Switch and Rear Fog Lamp Switch (w/Rear Fog Lamps)

3 - Wiper Switch

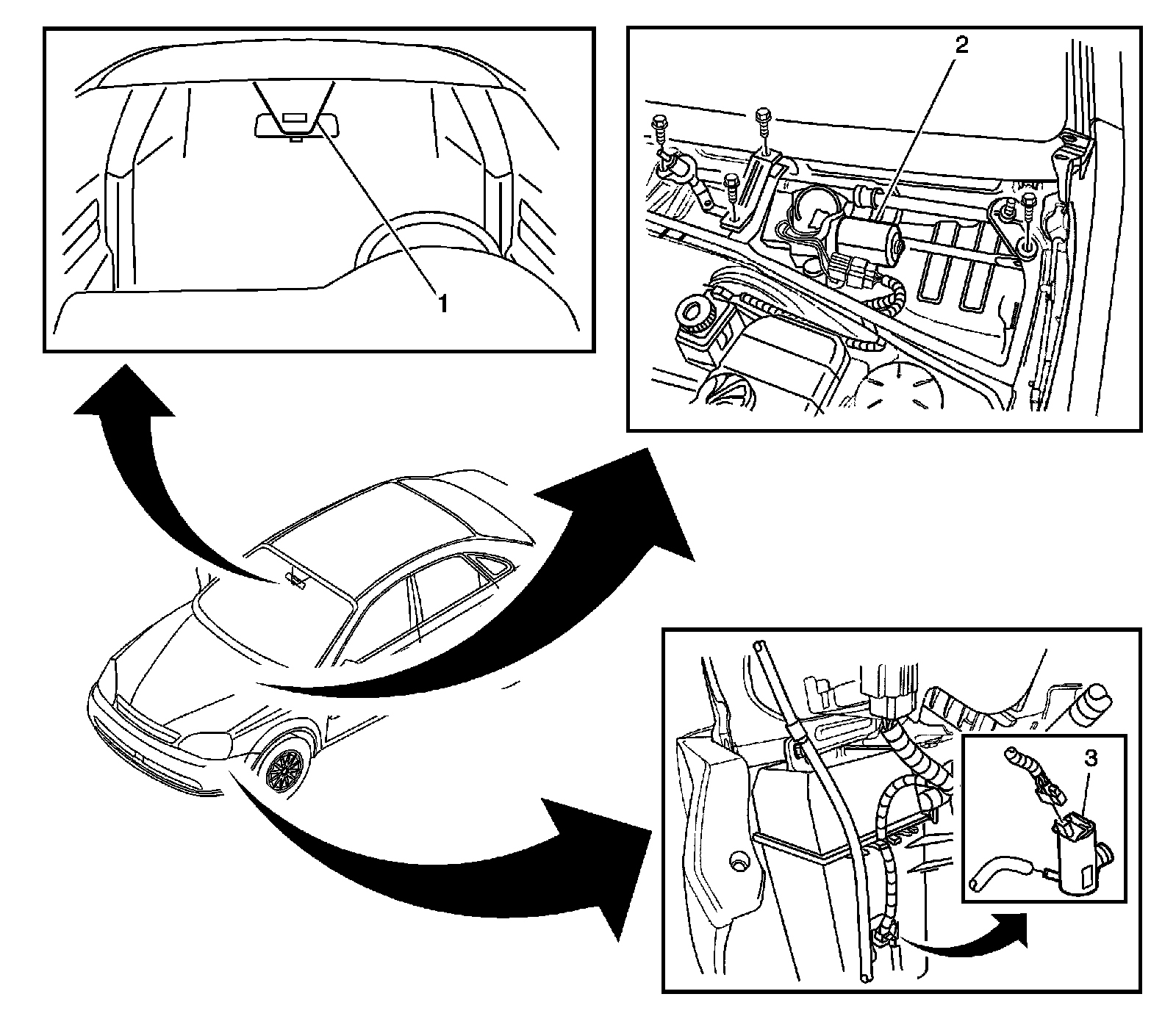

Rain Sensor, Wiper Motor, Washer Pump





1 - Rain Sensor (Optional)

2 - Windshield Wiper Motor

3 - Windshield Washer Fluid Pump
