Ground Distribution Schematics

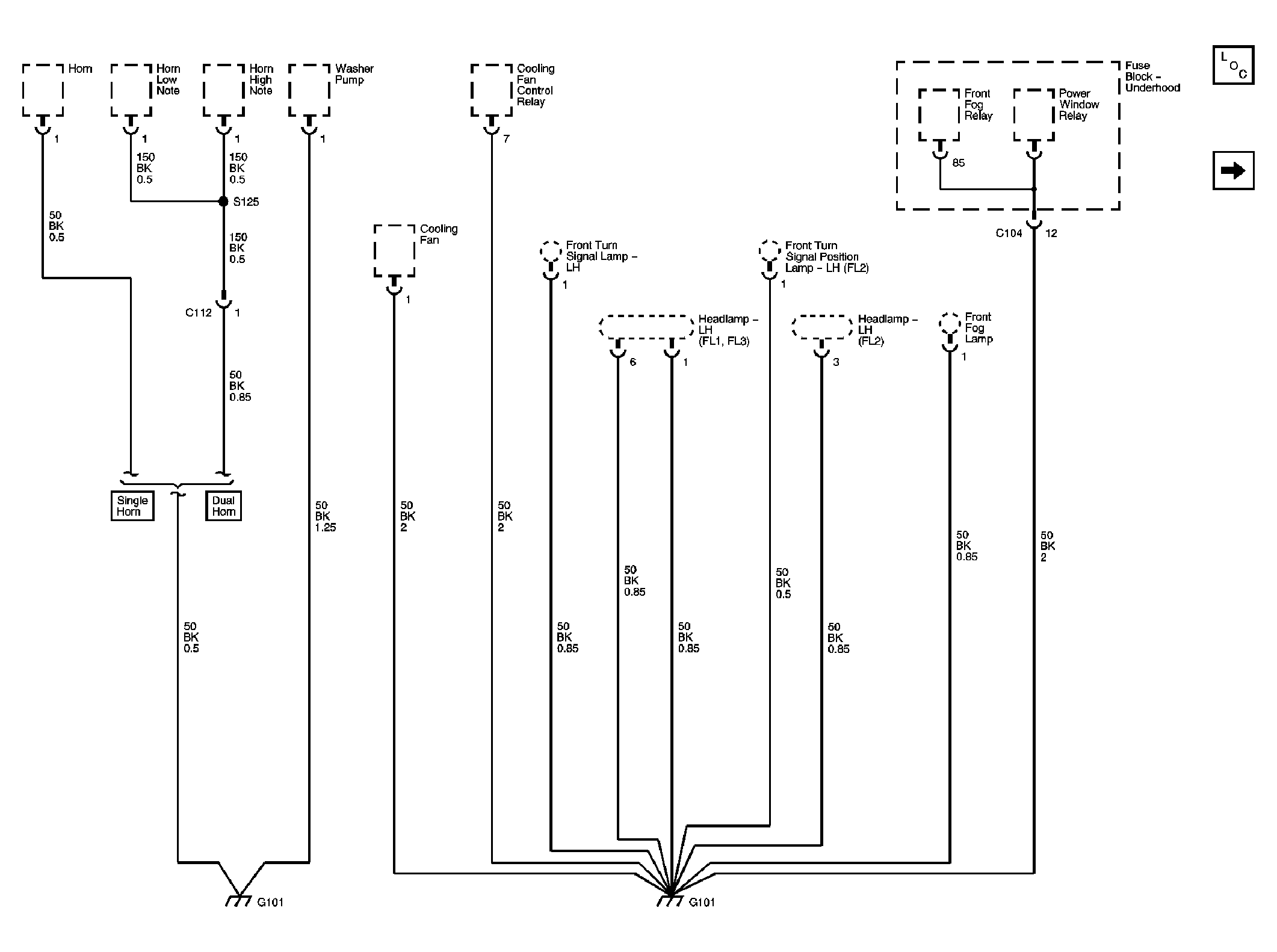

Fig 1: G101 Schematic

GM1455031

Courtesy of GENERAL MOTORS CORP.

Fig 2: G102 Schematic

GM1455033

Courtesy of GENERAL MOTORS CORP.

Fig 3: G104 Schematic - MR-140

GM1455038

Courtesy of GENERAL MOTORS CORP.

Fig 4: G104 (Sirius D4), G103, G105 Schematic

GM1455039

Courtesy of GENERAL MOTORS CORP.

Fig 5: G106, G107 Schematic

GM1455041

Courtesy of GENERAL MOTORS CORP.

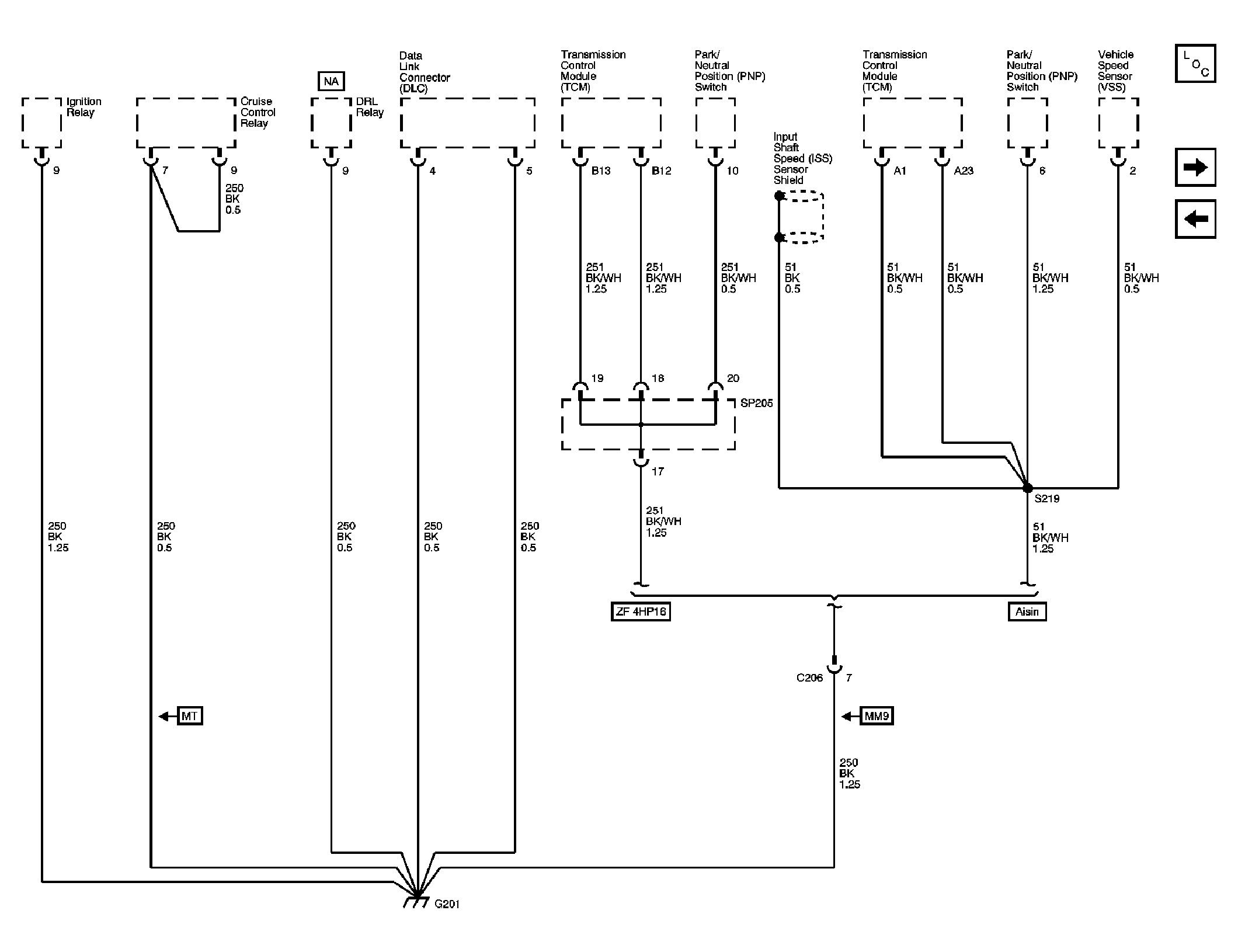

Fig 6: G201 Schematic

GM1455043

Courtesy of GENERAL MOTORS CORP.

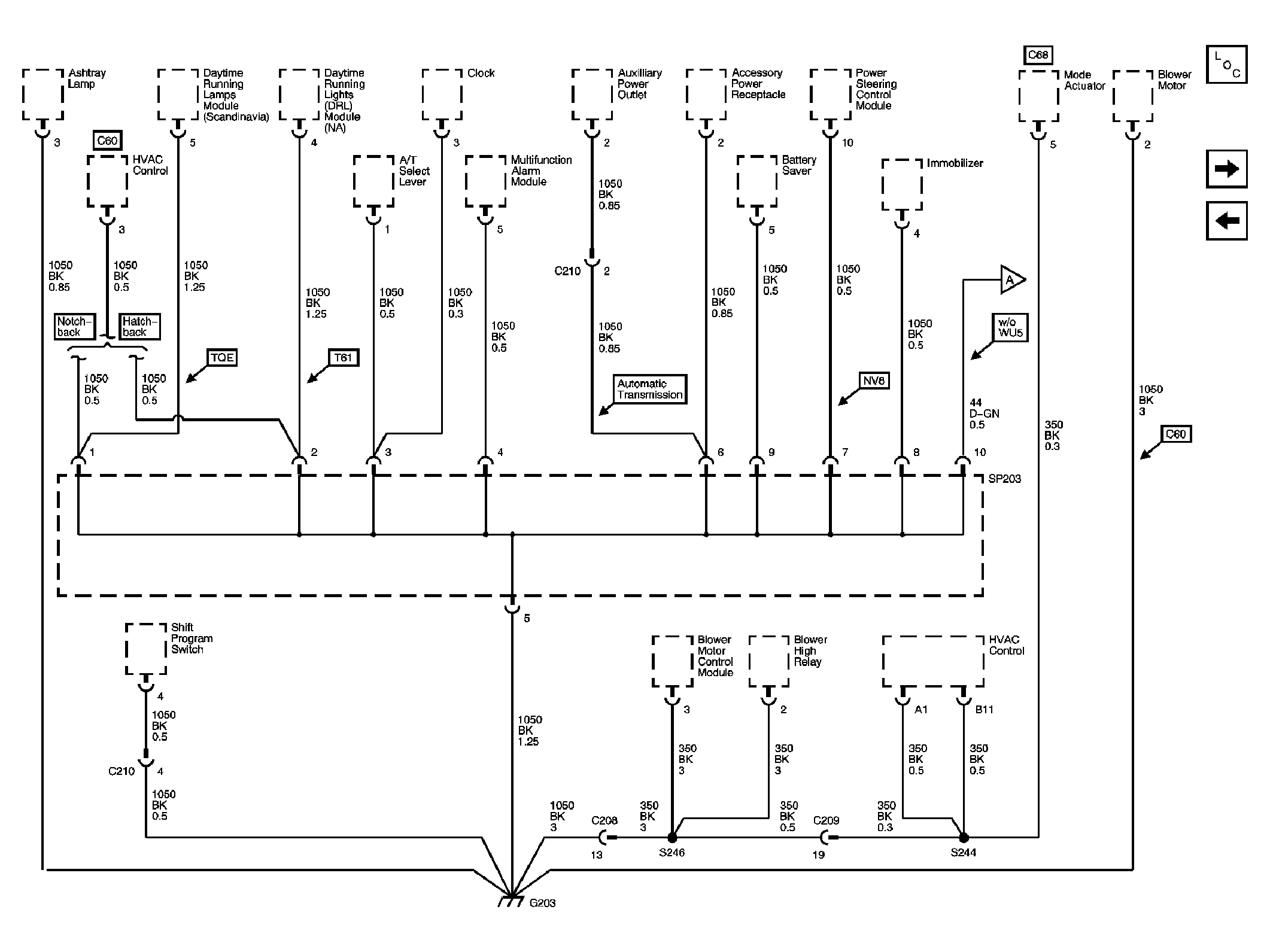

Fig 7: G203 Schematic

GM1455044

Courtesy of GENERAL MOTORS CORP.

Fig 8: G203 Schematic Continued (w/o Dimmer)

GM1455045

Courtesy of GENERAL MOTORS CORP.

Fig 9: G202, G204 Schematic

GM1455047

Courtesy of GENERAL MOTORS CORP.

Fig 10: G205 Schematic

GM1455048

Courtesy of GENERAL MOTORS CORP.

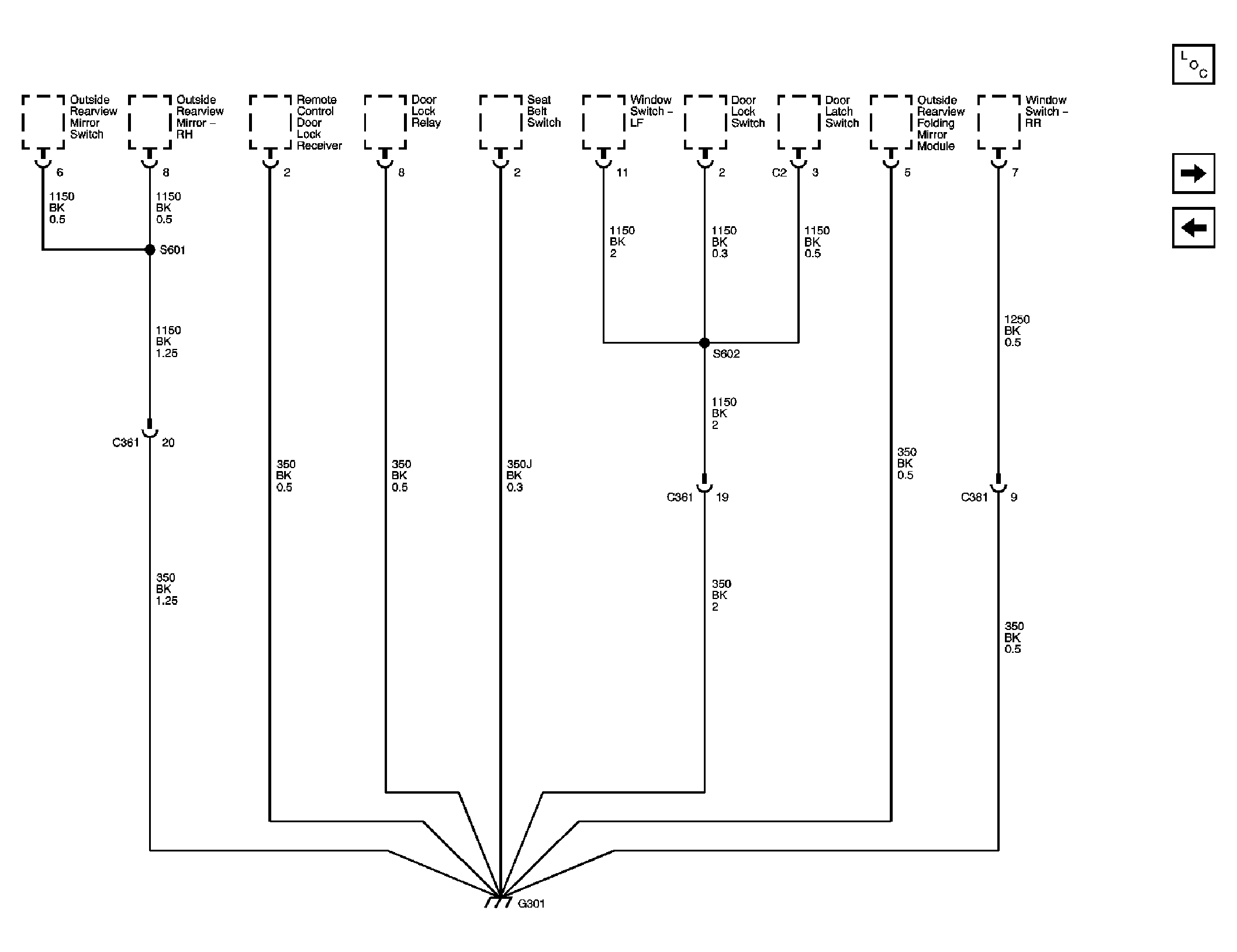

Fig 11: G301 Schematic - RHD Hatchback

GM1455053

Courtesy of GENERAL MOTORS CORP.

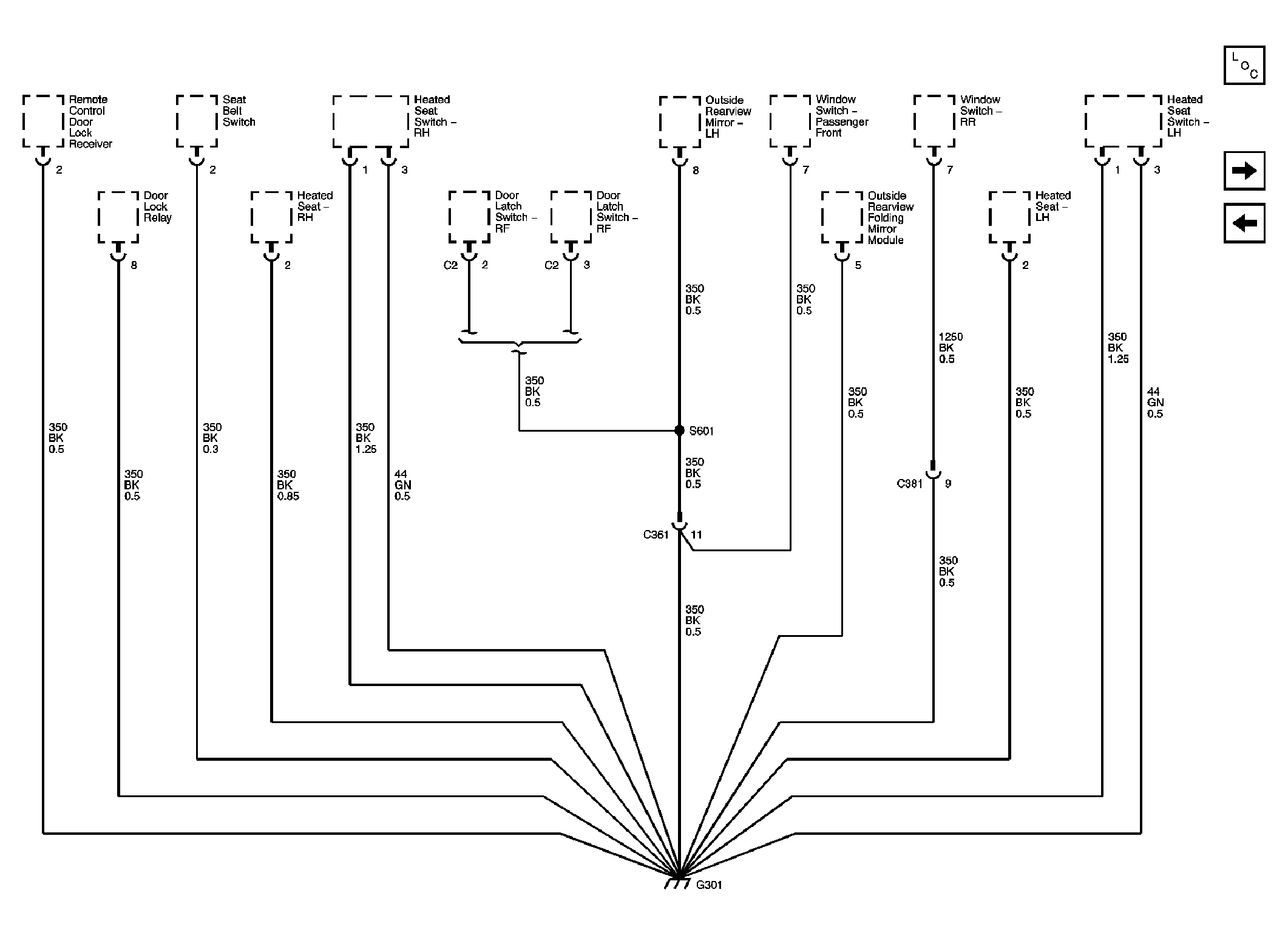

Fig 12: G301 Schematic - Hatchback, Notchback, LHD

GM1455056

Courtesy of GENERAL MOTORS CORP.

Fig 13: G302 Schematic

GM1455057

Courtesy of GENERAL MOTORS CORP.

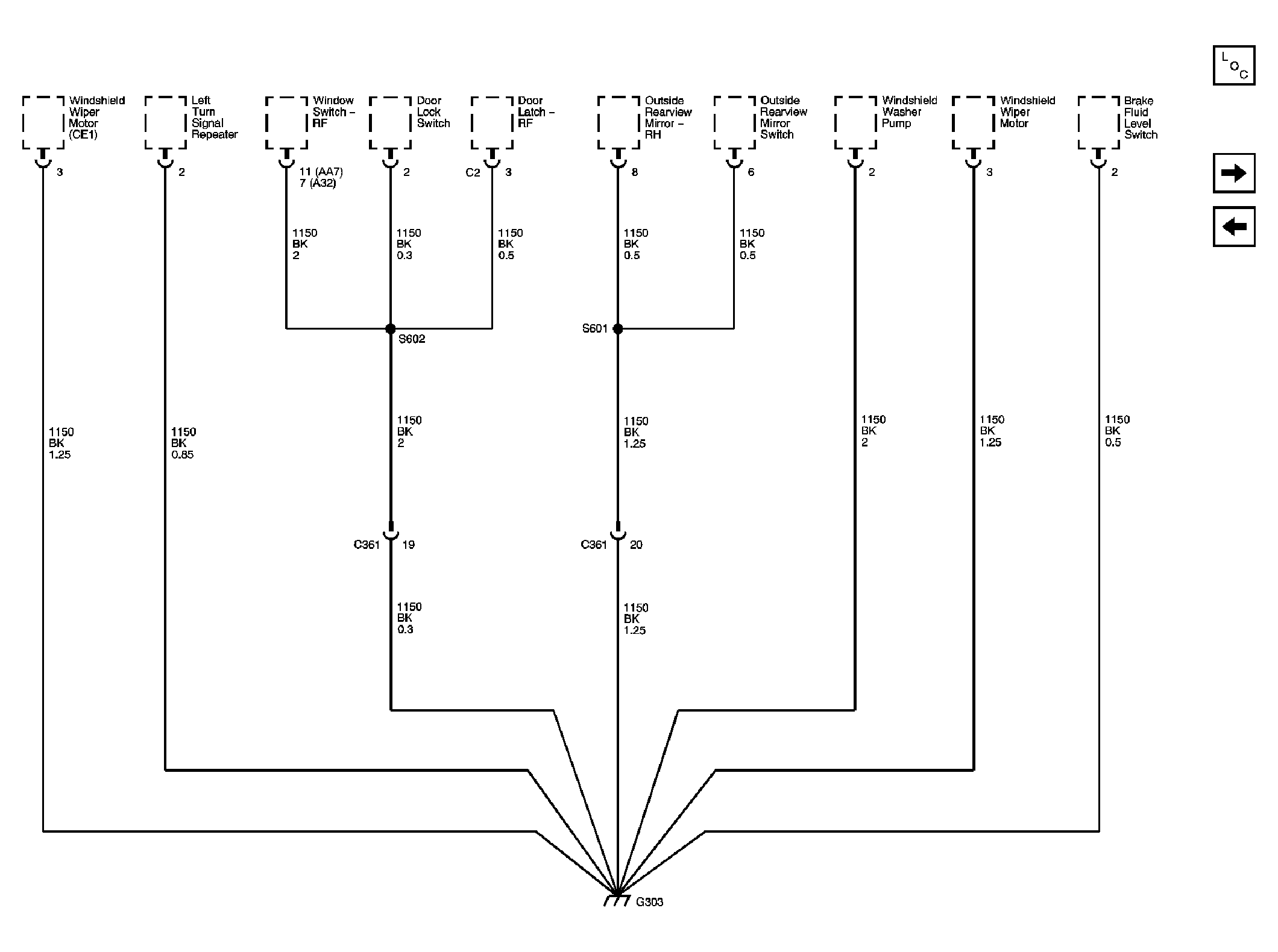

Fig 14: G303 Schematic - Hatchback RHD

GM1455058

Courtesy of GENERAL MOTORS CORP.

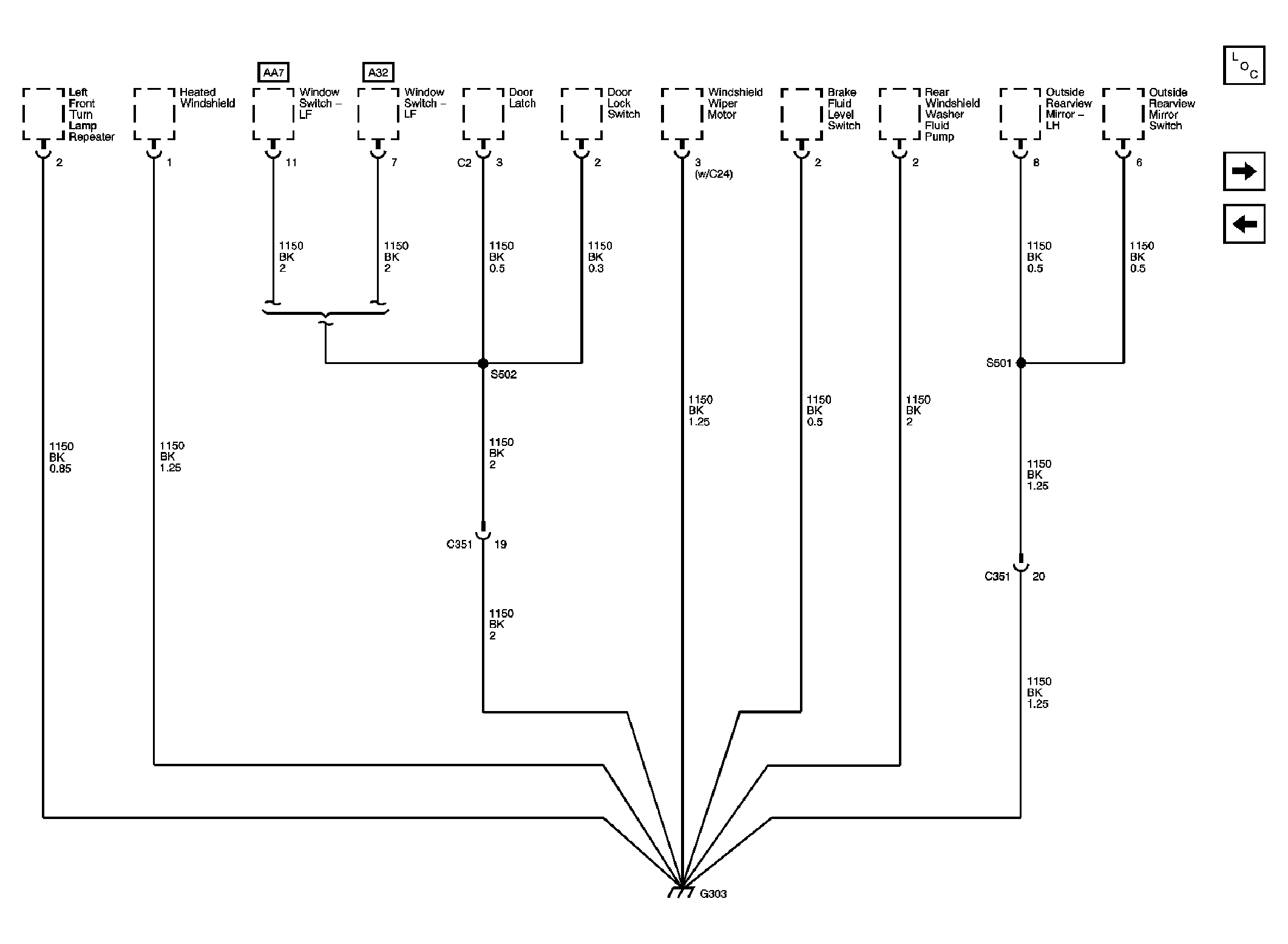

Fig 15: G303 Schematic - Hatchback, Notchback LHD

GM1455060

Courtesy of GENERAL MOTORS CORP.

Fig 16: G303 Schematic - Notchback RHD

GM1455064

Courtesy of GENERAL MOTORS CORP.

Fig 17: G401 Schematic - Notchback

GM1456526

Courtesy of GENERAL MOTORS CORP.

Fig 18: G401 Schematic - Hatchback

GM1455068

Courtesy of GENERAL MOTORS CORP.

Fig 19: G402 Schematic - Hatchback Tailgate

GM1455069

Courtesy of GENERAL MOTORS CORP.

Fig 20: G104 Schematic - HV-240

GM1471571

Courtesy of GENERAL MOTORS CORP.
