Power Distribution Schematics

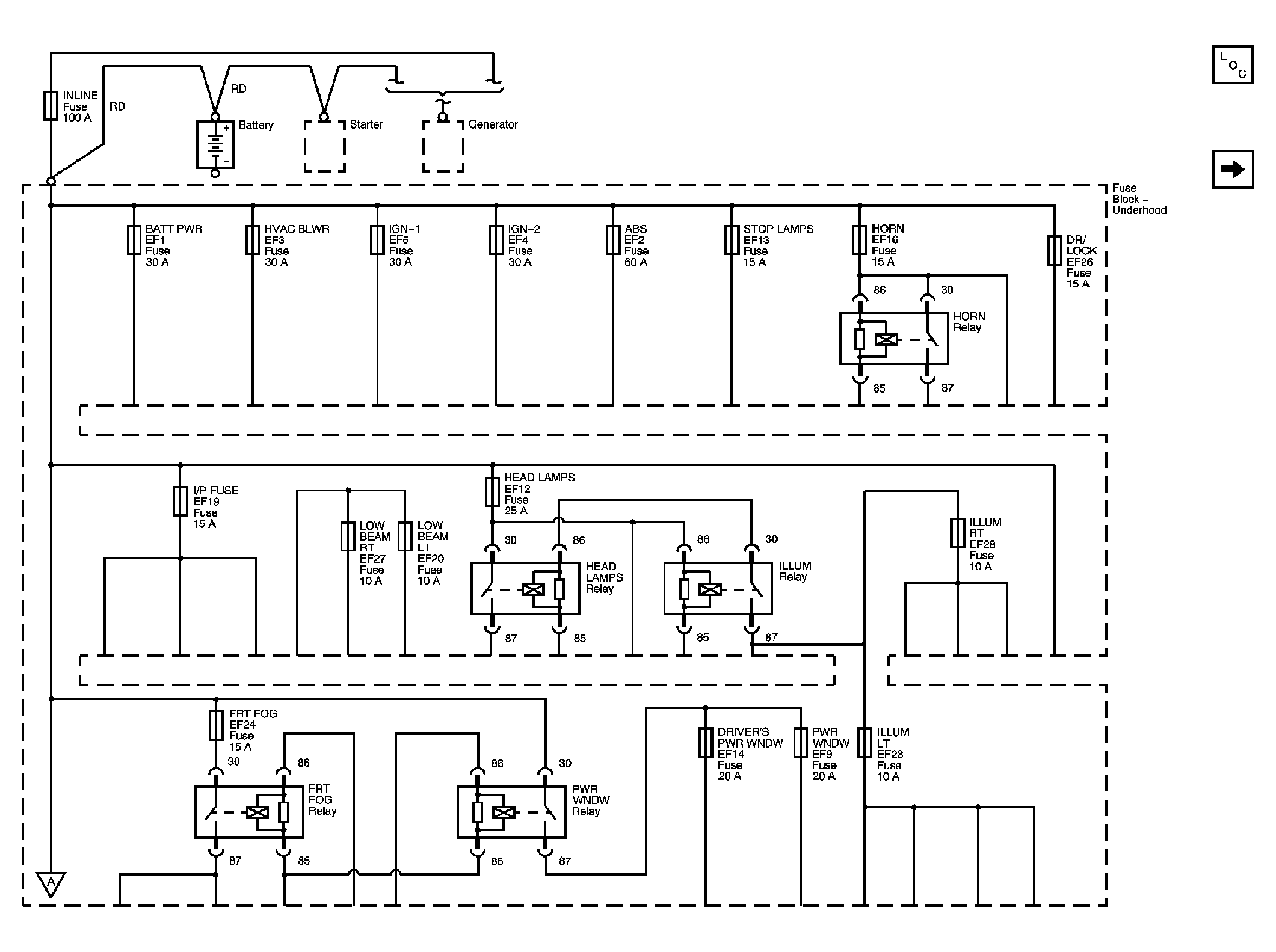

Fig 1: Underhood Fuse Block Schematic - Battery Feeds 1 of 3

GM1360796

Courtesy of GENERAL MOTORS CORP.

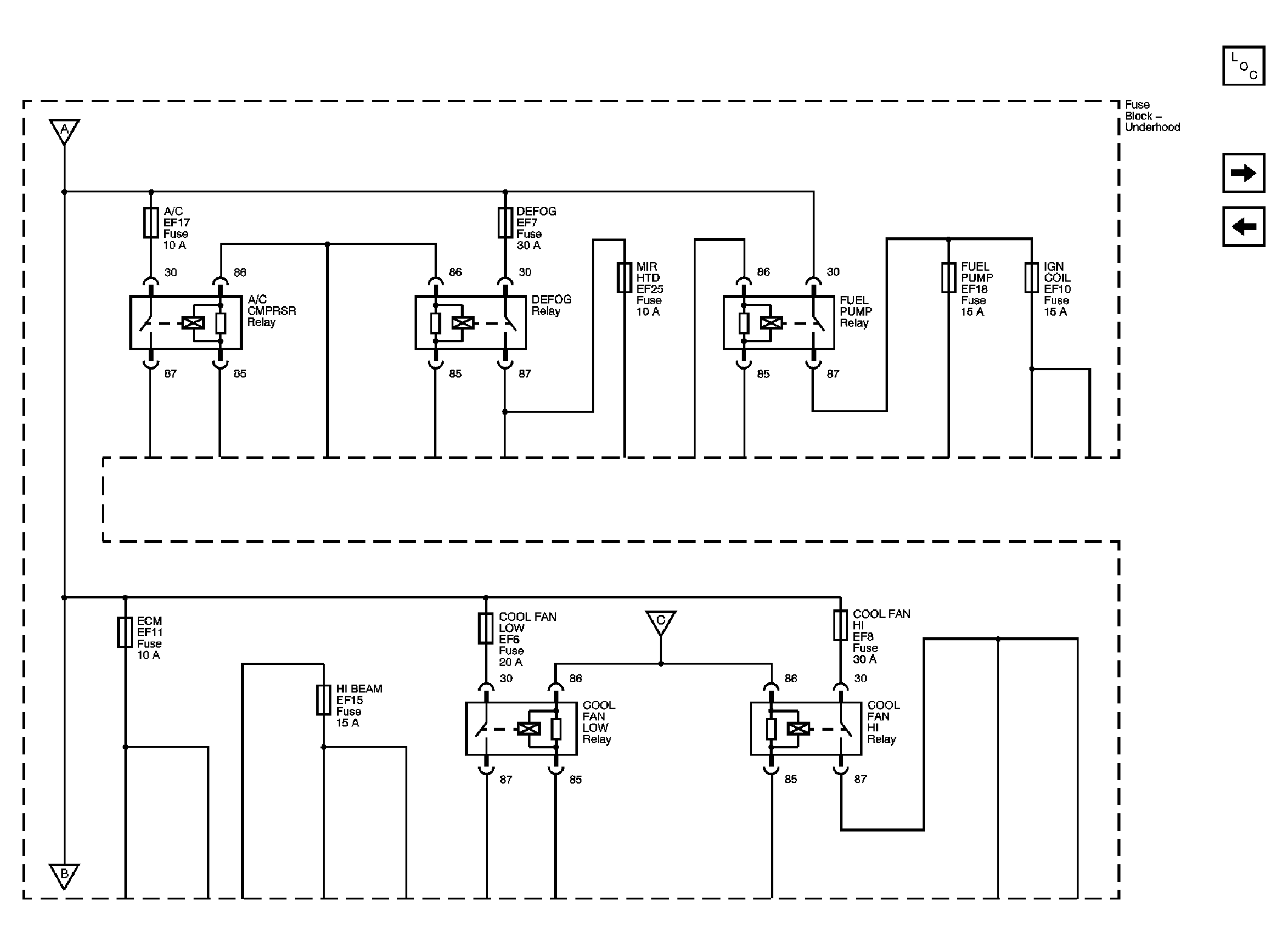

Fig 2: Underhood Fuse Block Schematic - Battery Feeds 2 of 3

GM1360797

Courtesy of GENERAL MOTORS CORP.

Fig 3: Underhood Fuse Block Schematic - Battery Feeds 3 of 3

GM1360798

Courtesy of GENERAL MOTORS CORP.

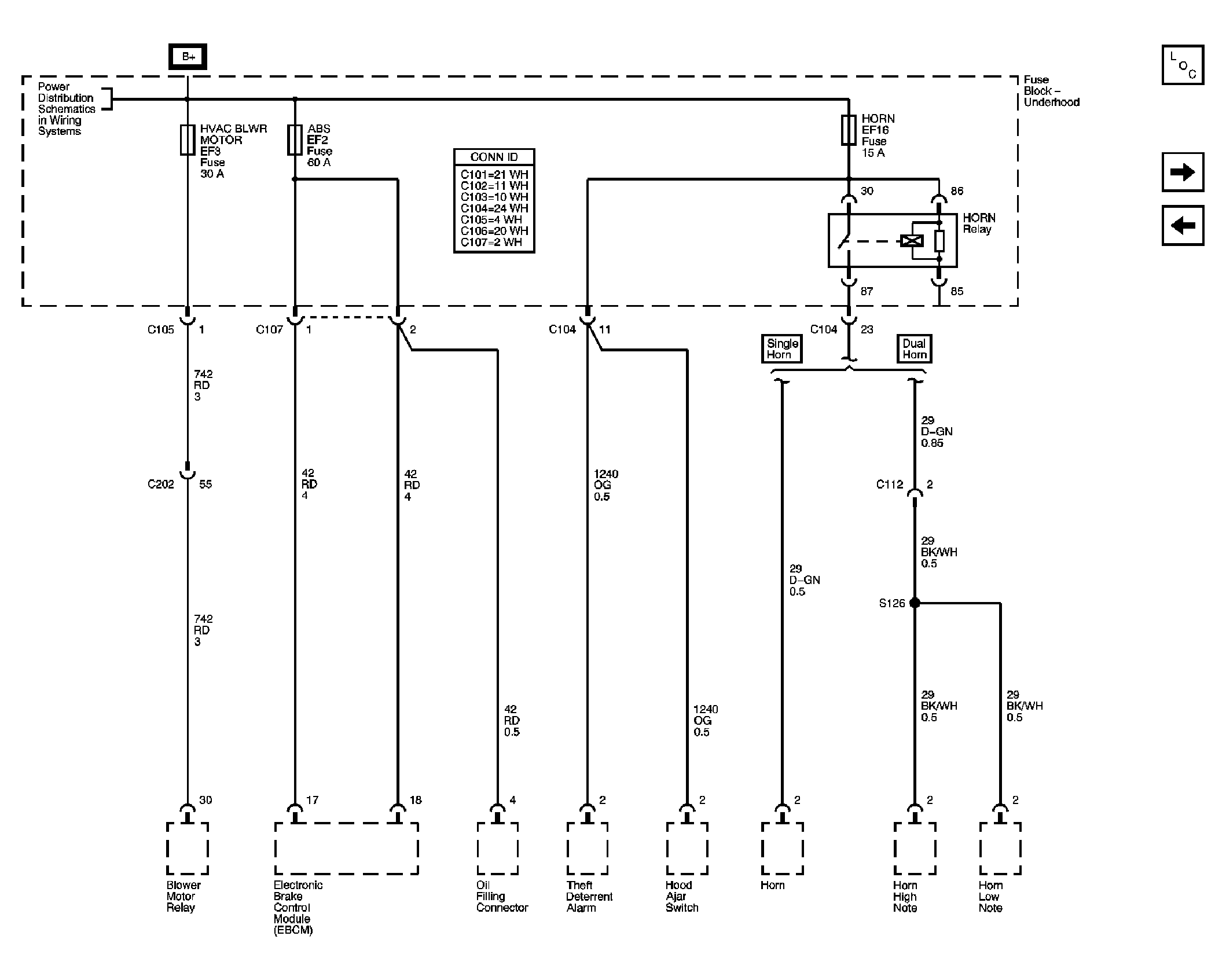

Fig 4: Underhood Fuse Block Schematic - HVAC BLWR, ABS and HORN Fuses

GM1360799

Courtesy of GENERAL MOTORS CORP.

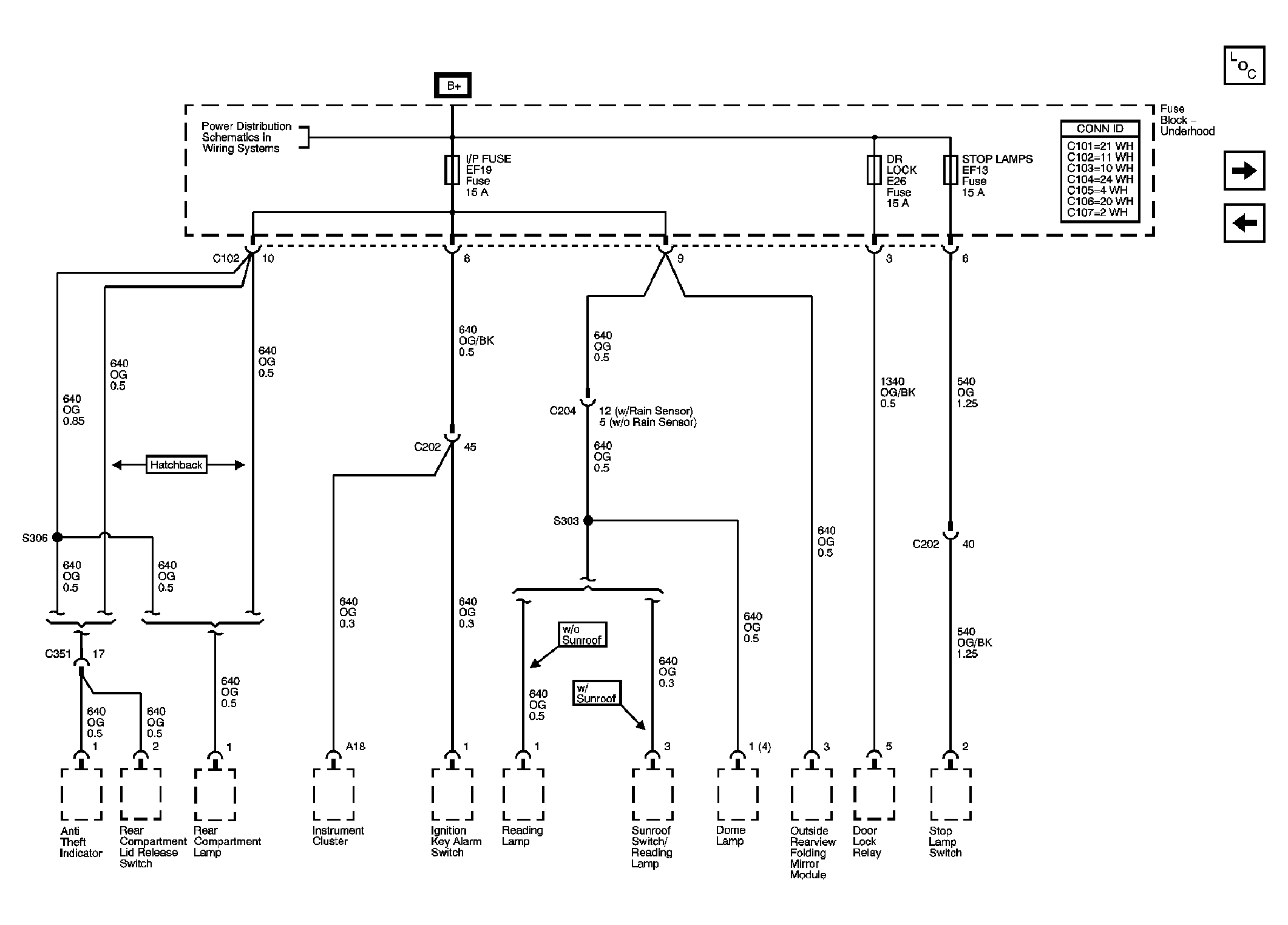

Fig 5: Underhood Fuse Block Schematic - IP FUSE, DR/LOCK and STOP LAMPS Fuses

GM1360800

Courtesy of GENERAL MOTORS CORP.

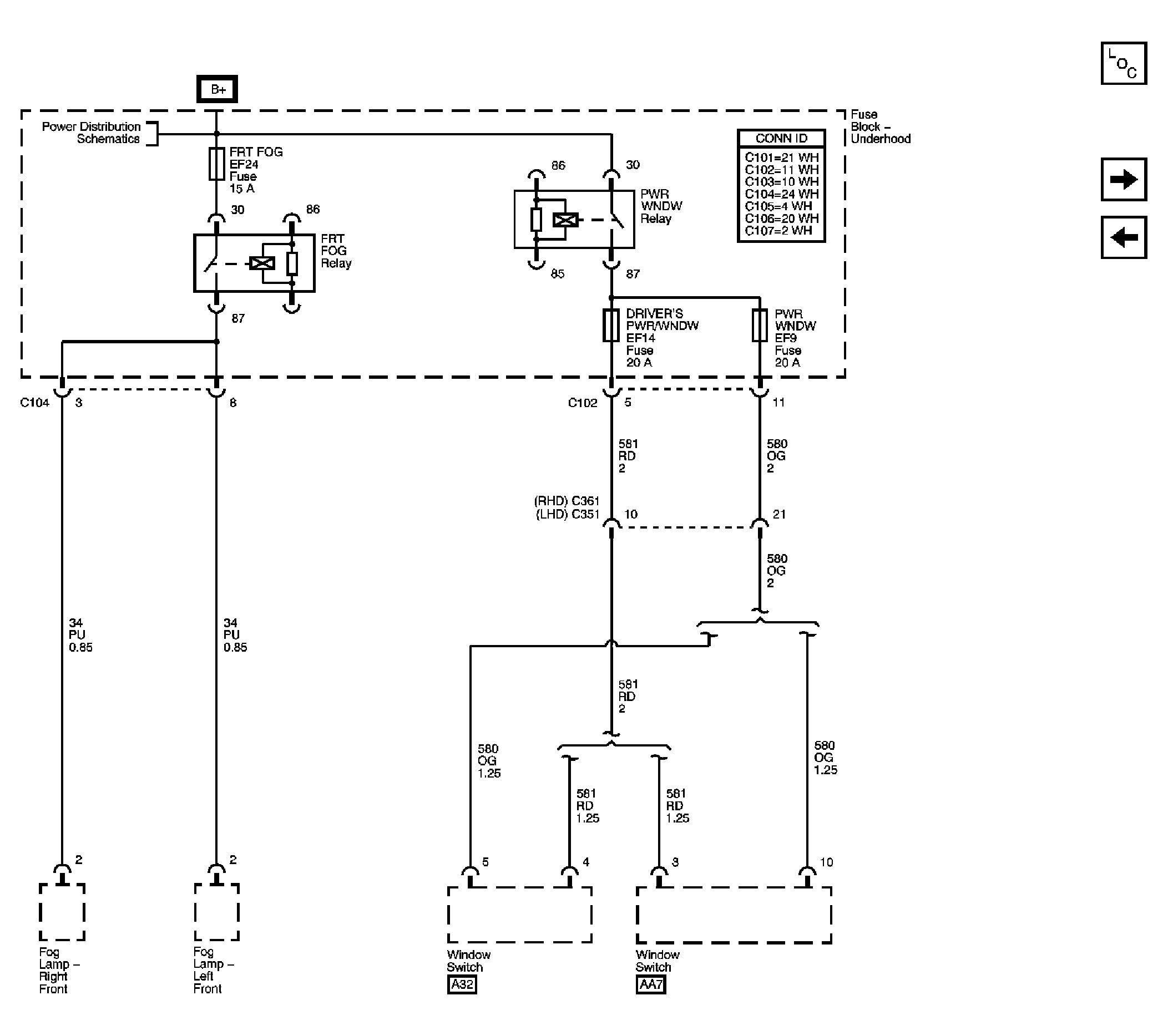

Fig 6: Underhood Fuse Block Schematic - FRT FOG, DRIVER'S PWR W/DW and PWR WNDW Fuses

GM1360801

Courtesy of GENERAL MOTORS CORP.

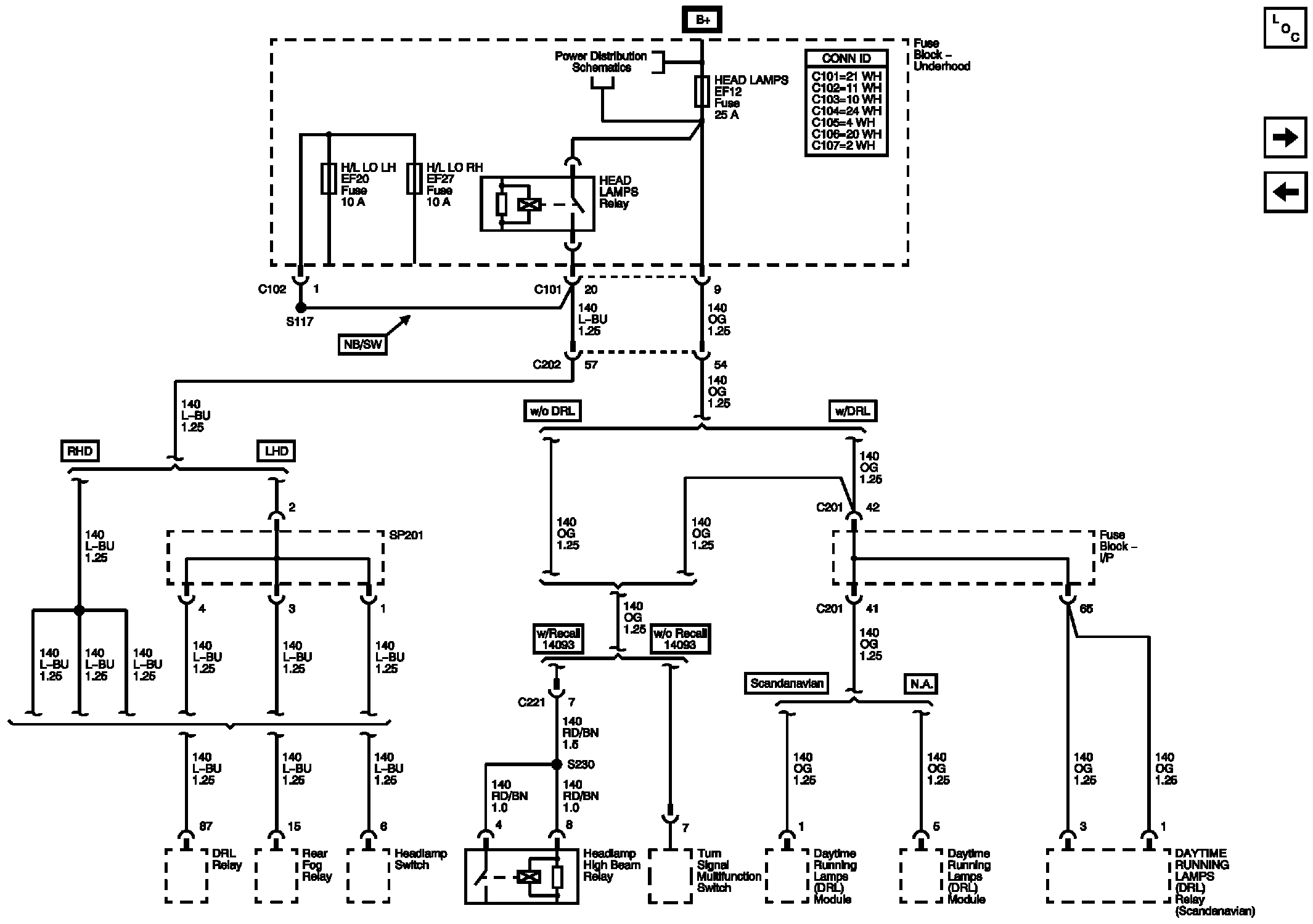

Fig 7: Underhood Fuse Block Schematic - HEAD LAMPS FUSE

GM1456518

Courtesy of GENERAL MOTORS CORP.

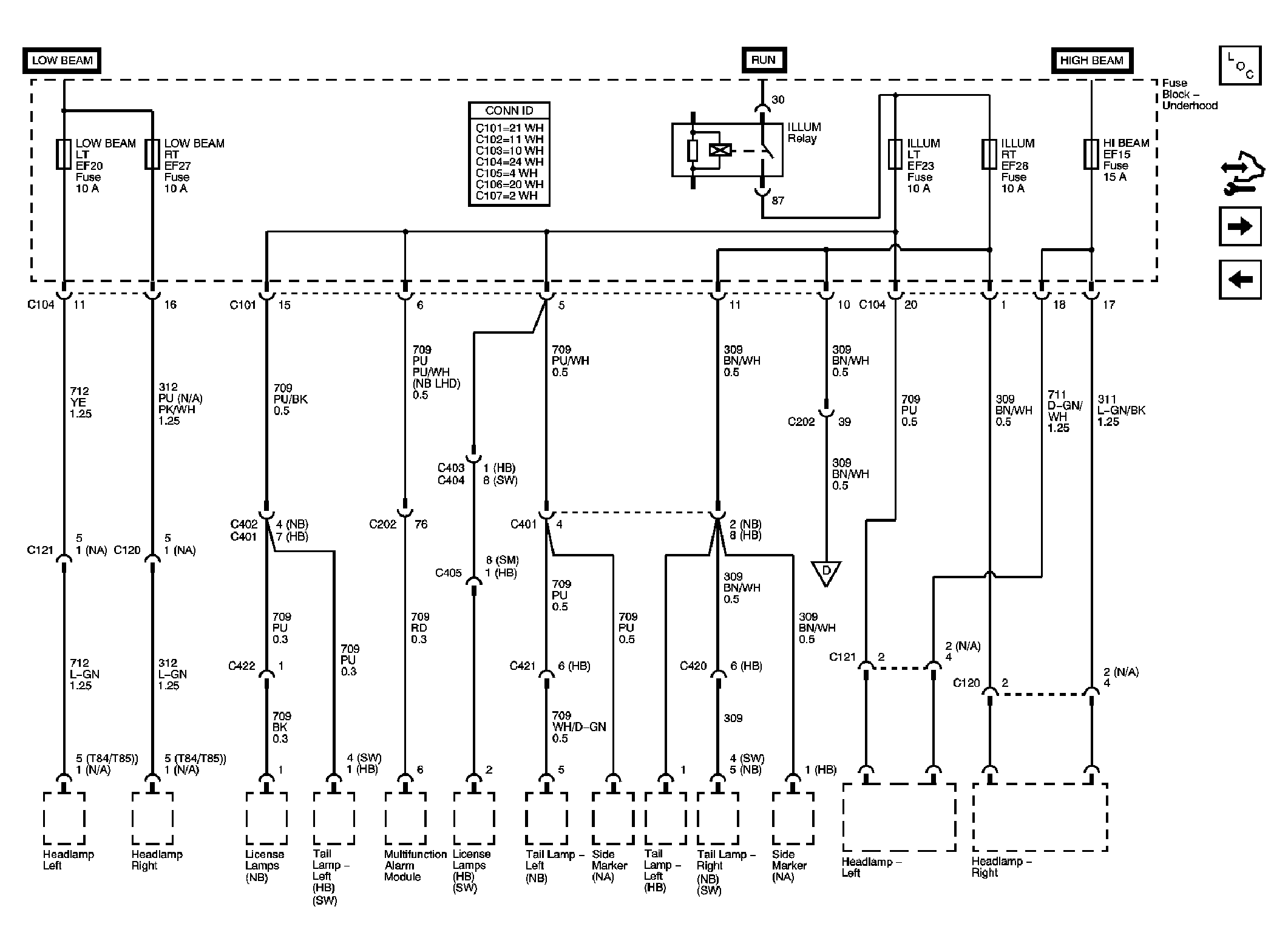

Fig 8: Underhood Fuse Block Schematic - LOW BEAM LT, LOW BEAM RT, ILLUM LT, ILLUM RT, and HI BEAM Fuses

GM1360802

Courtesy of GENERAL MOTORS CORP.

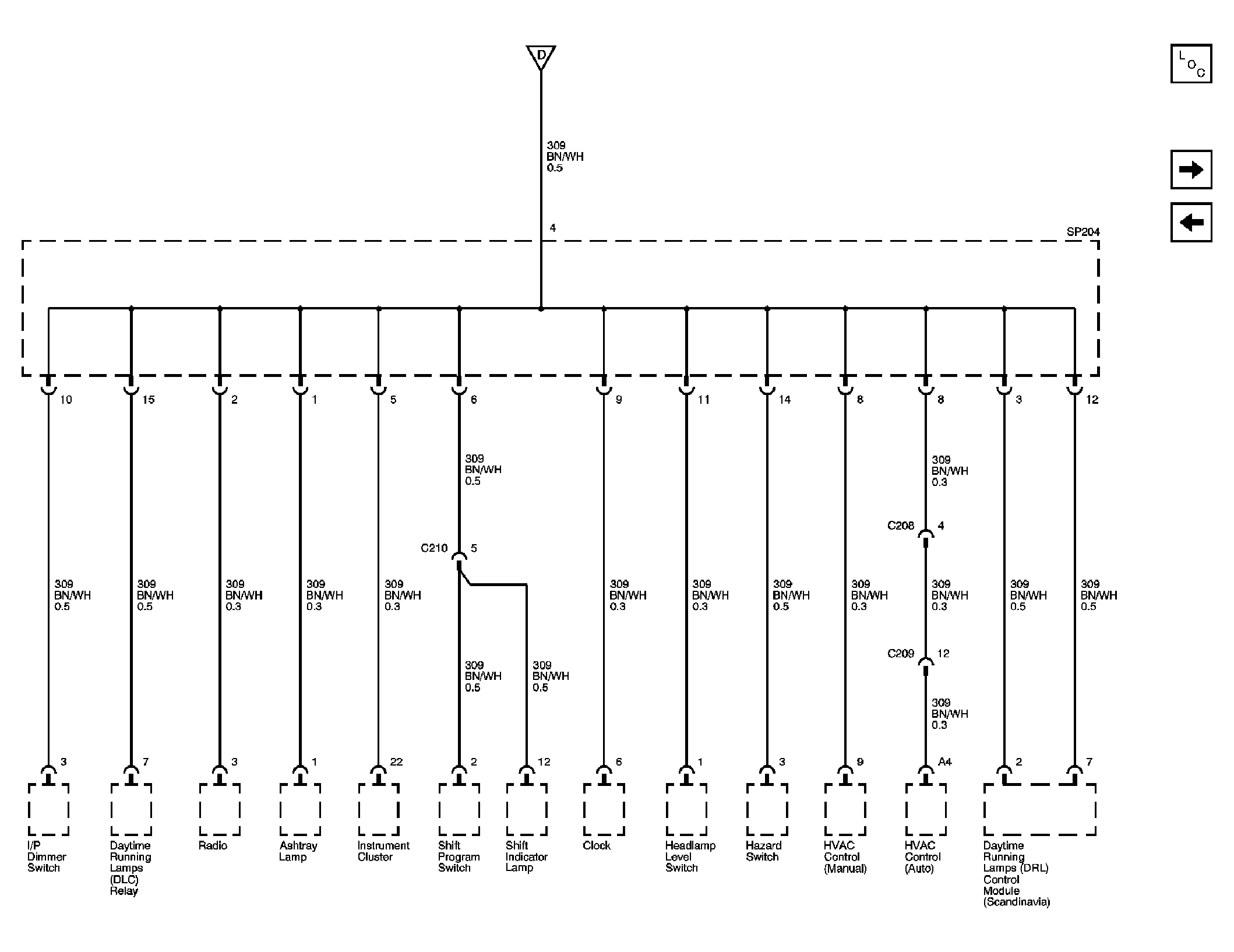

Fig 9: Underhood Fuse Block Schematic - HI BEAM Fuse w/o Dimming

GM1360803

Courtesy of GENERAL MOTORS CORP.

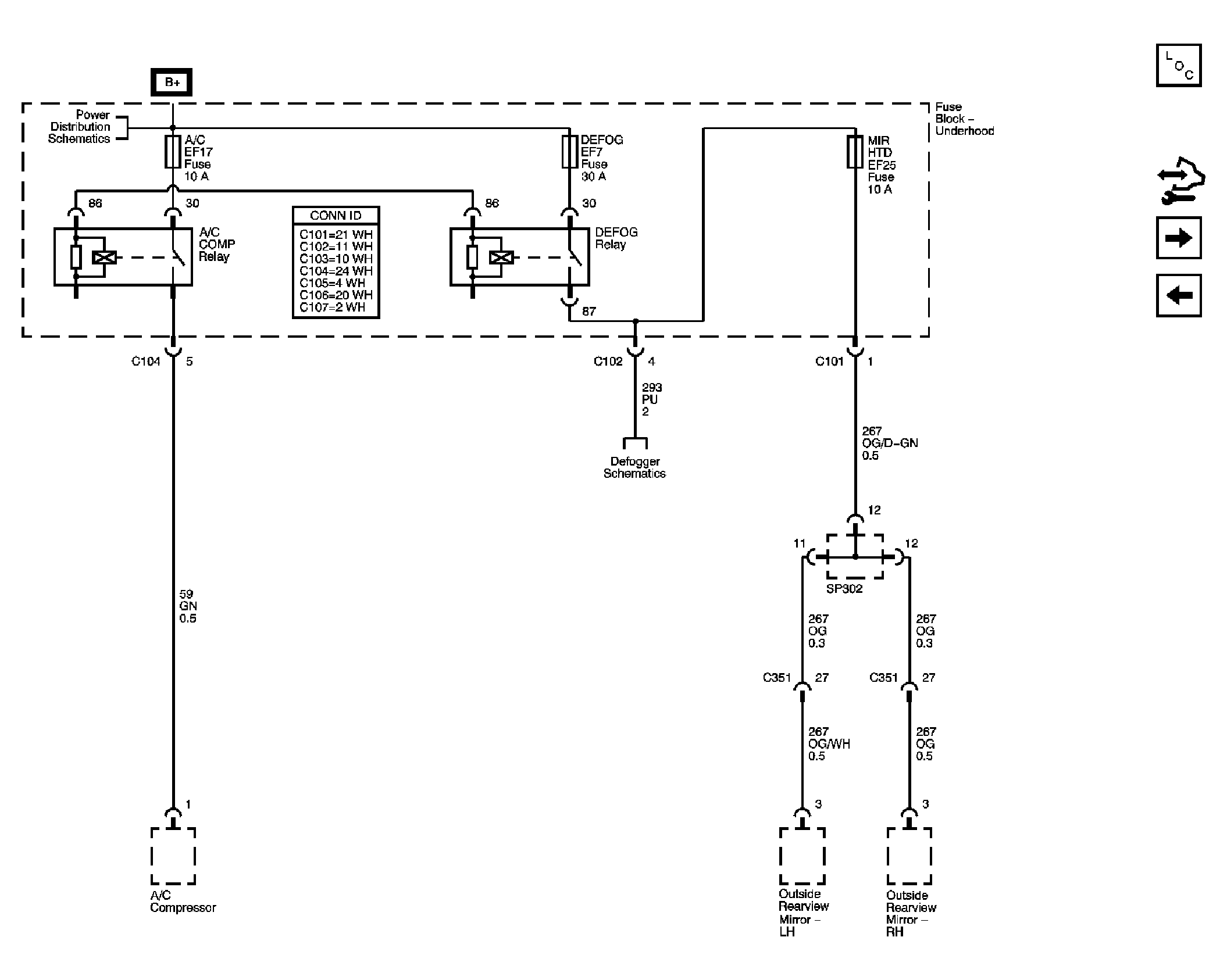

Fig 10: Underhood Fuse Block Schematic - A/C, DEFOG, and MIR HTD Fuses

GM1360805

Courtesy of GENERAL MOTORS CORP.

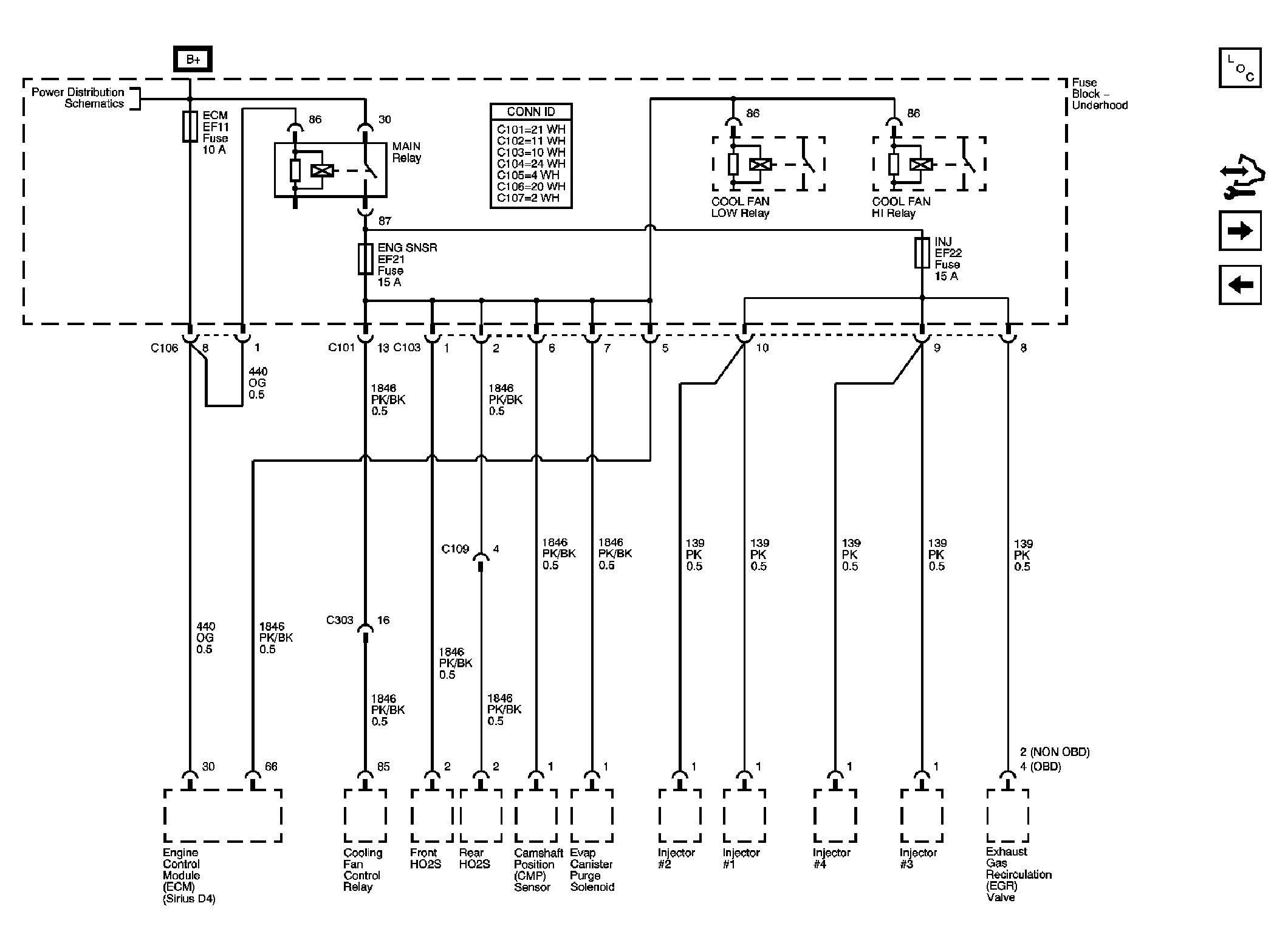

Fig 11: Underhood Fuse Block Schematic - MAIN Relay and ECM, ENG SNSR, and INJ Fuses - 1.2L

GM1360806

Courtesy of GENERAL MOTORS CORP.

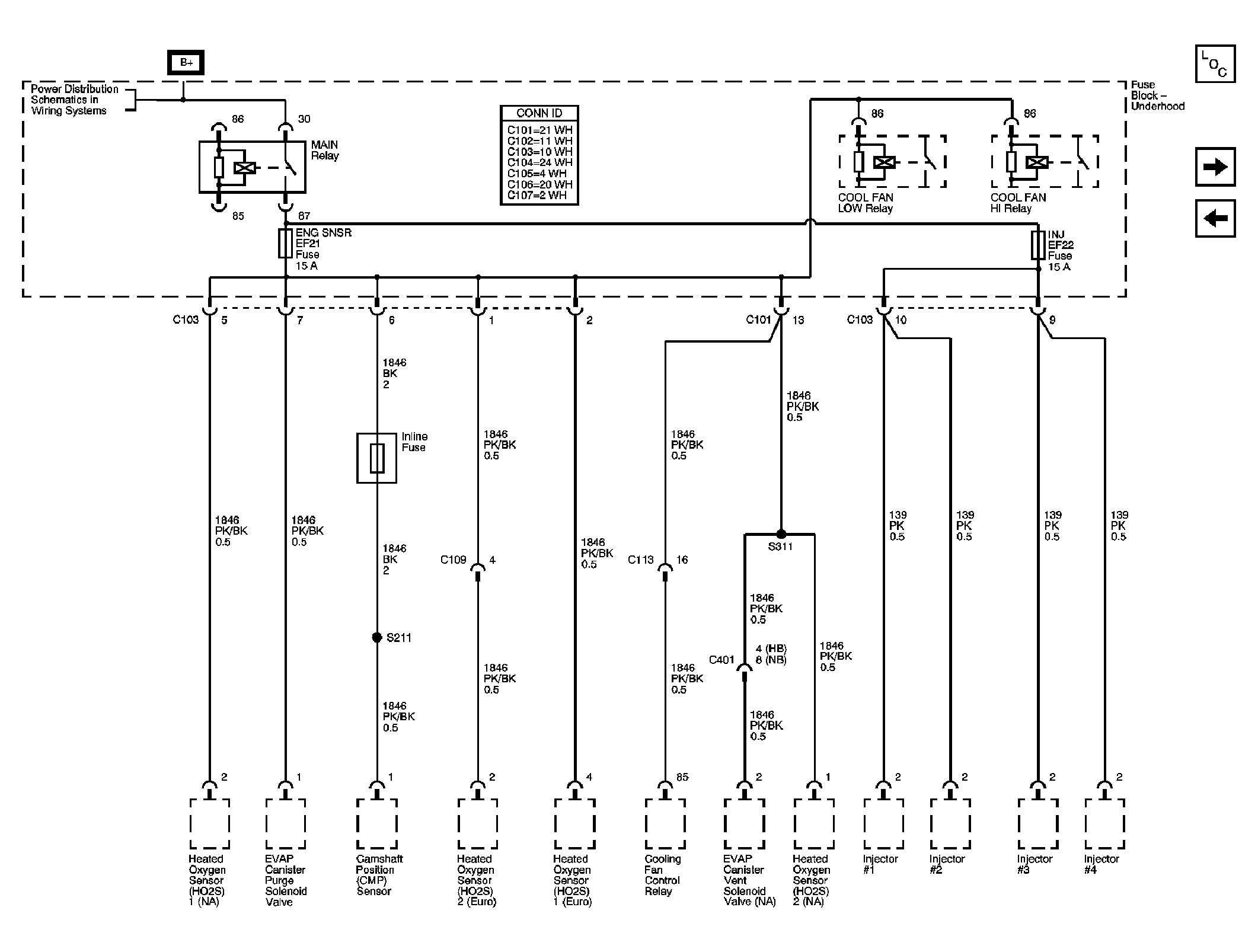

Fig 12: Underhood Fuse Block Schematic - MAIN Relay and ECM, ENG SNSR, and INJ Fuses - MR-140

GM1360807

Courtesy of GENERAL MOTORS CORP.

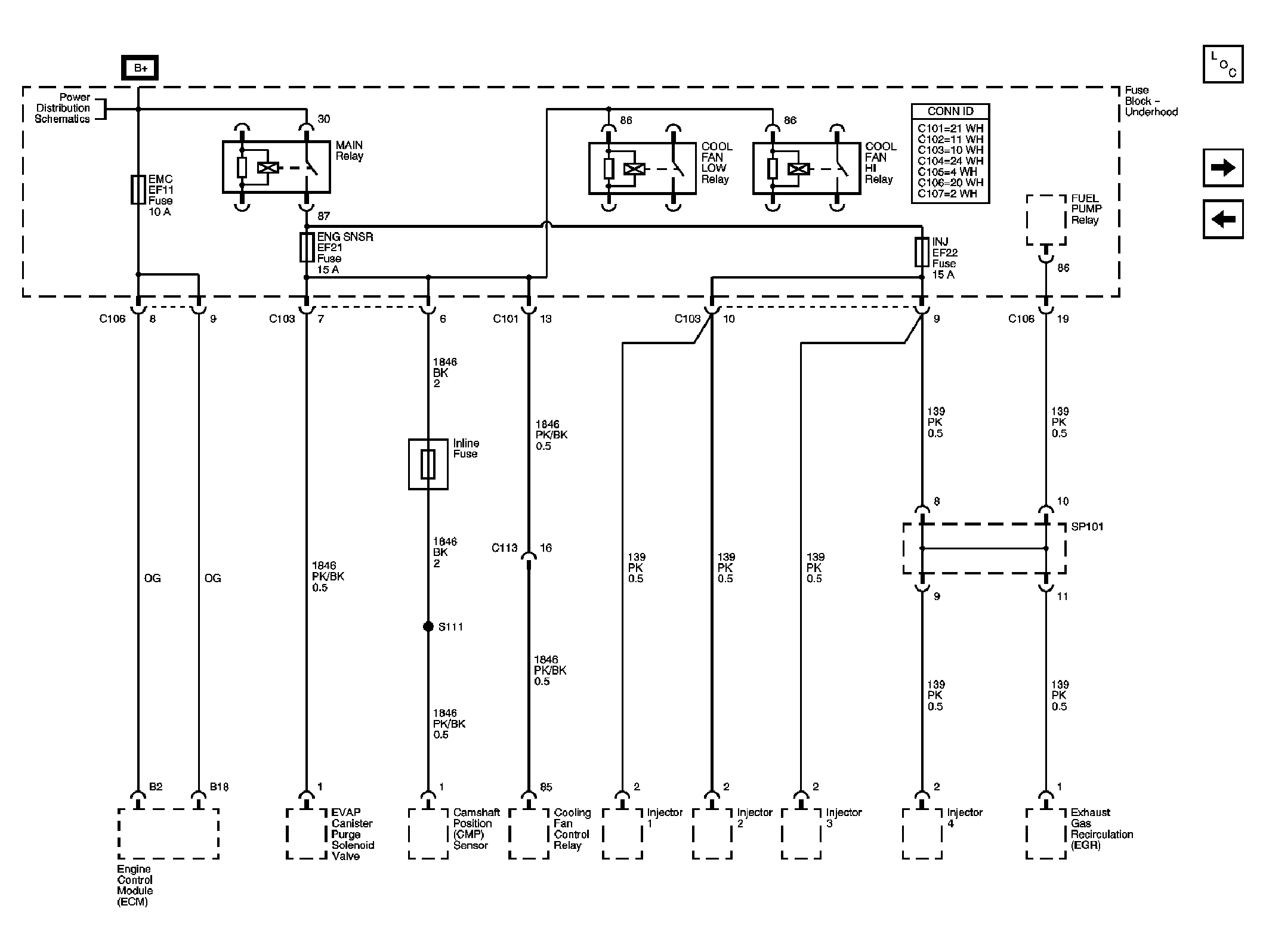

Fig 13: Underhood Fuse Block Schematic - MAIN Relay and ECM, ENG SNSR, and INJ Fuses - 1.5L

GM1360809

Courtesy of GENERAL MOTORS CORP.

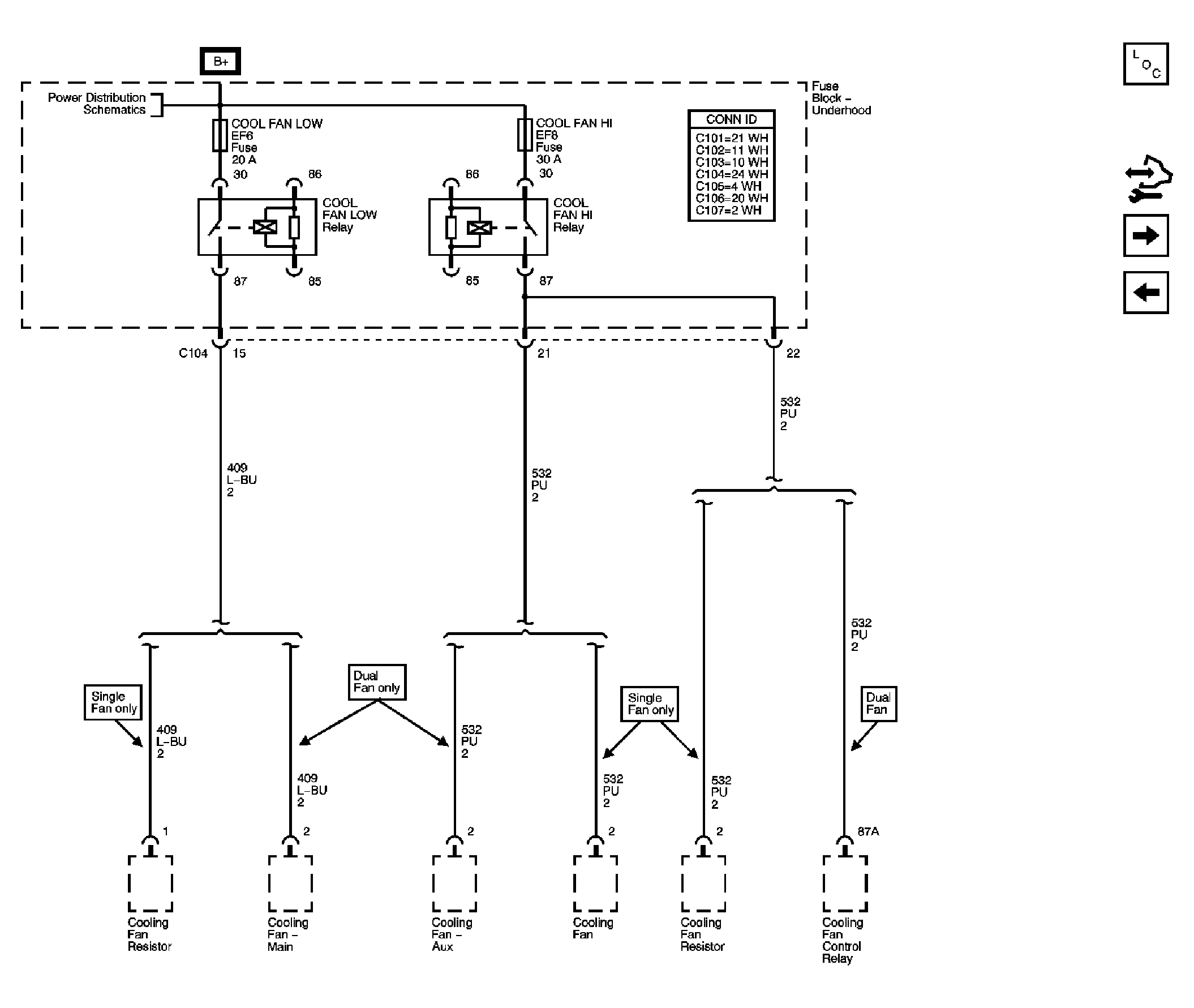

Fig 14: Underhood Fuse Block Schematic - COOL FAN LOW and COOL FAN HI Fuses

GM1360810

Courtesy of GENERAL MOTORS CORP.

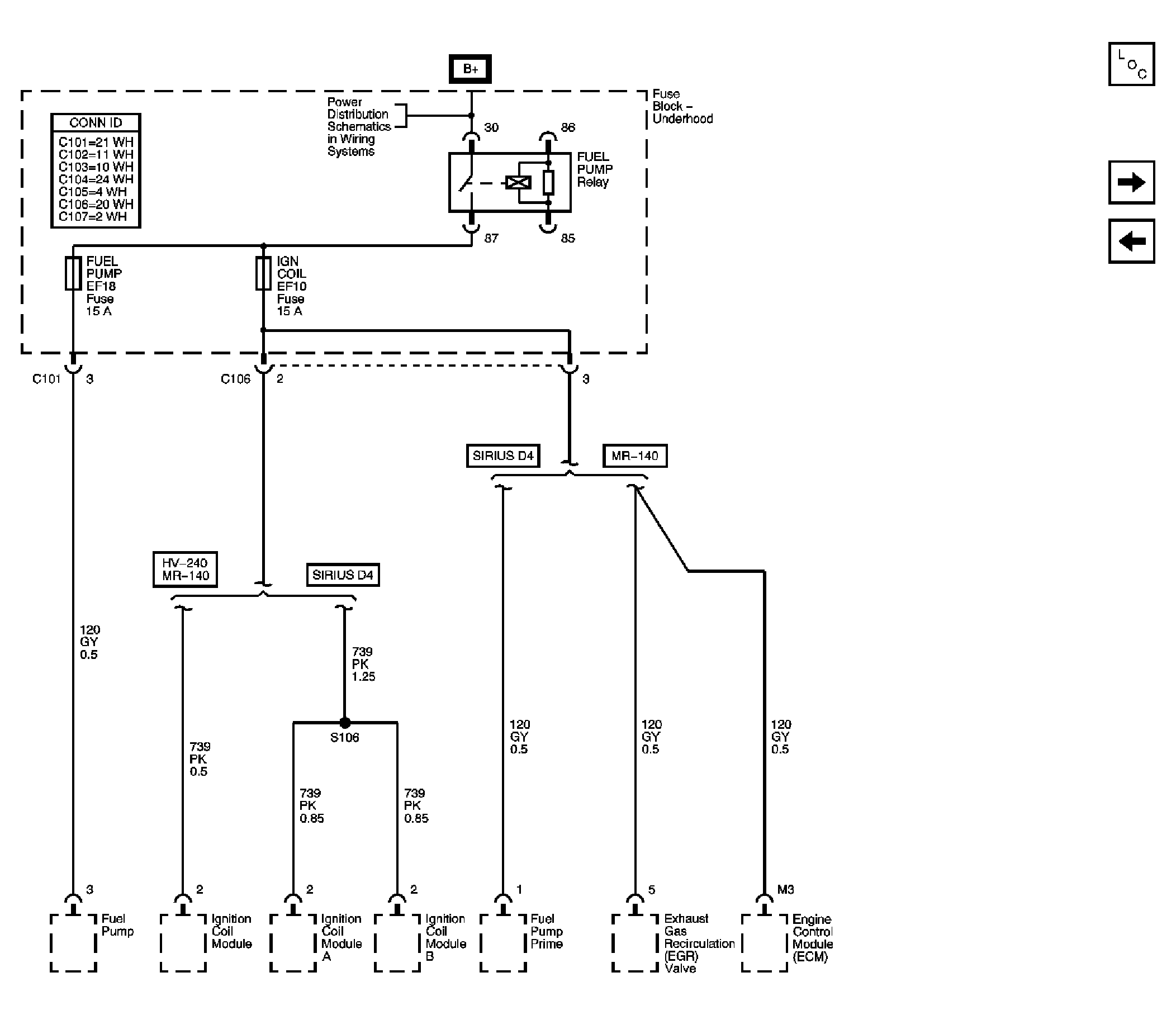

Fig 15: Underhood Fuse Block Schematic - FUEL PUMP Relay and FUEL PUMP and IGN COIL Fuses

GM1360811

Courtesy of GENERAL MOTORS CORP.

Fig 16: Underhood Fuse Block Schematic - ECM Fuse

GM1360812

Courtesy of GENERAL MOTORS CORP.

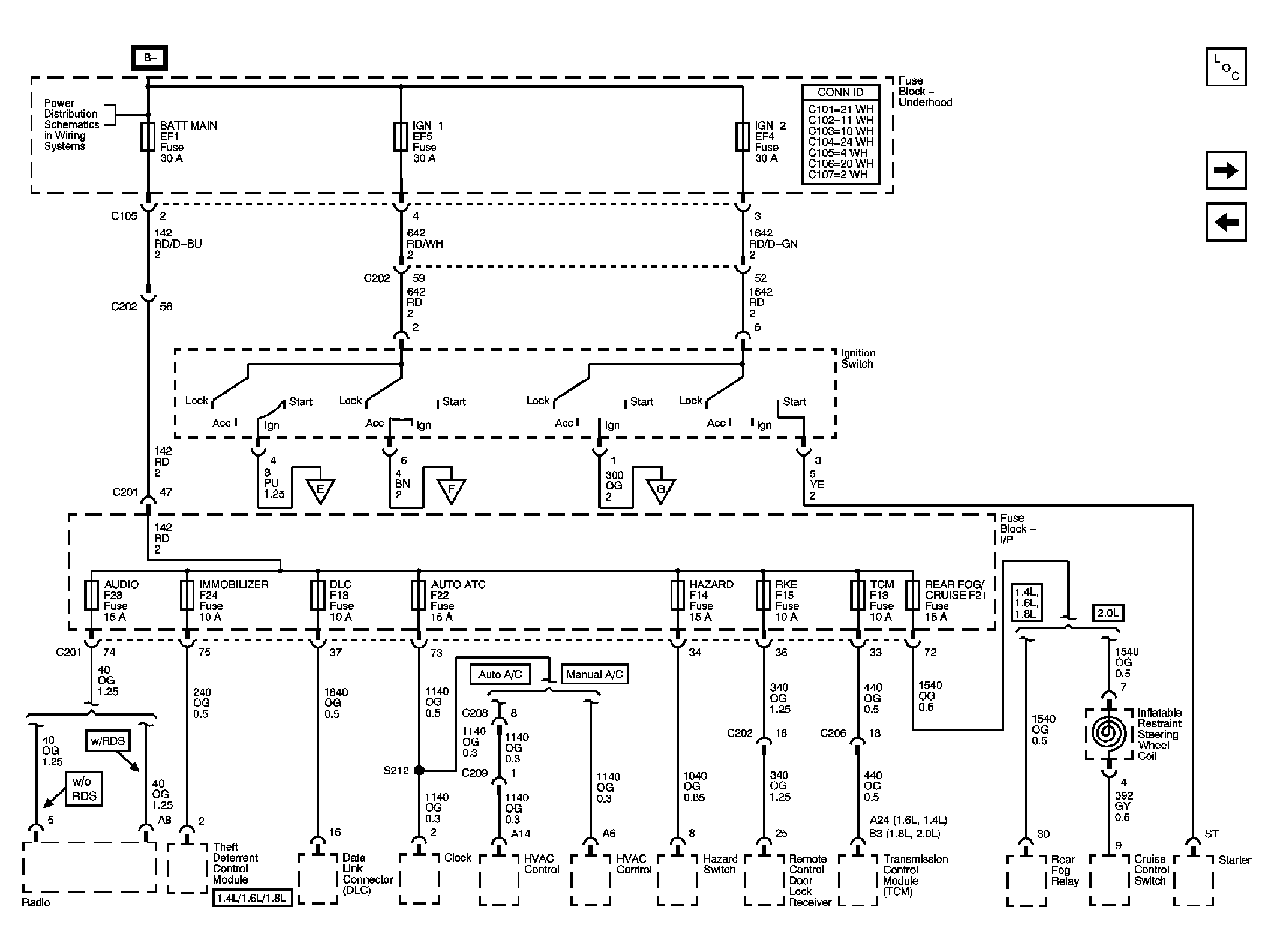

Fig 17: Underhood Fuse Block Schematic - BATT PWR, IGN 1 and IGN 2 Fuses, Ignition Switch, I/P Fuse Block - RADIO, IMMOBILIZER, DLC, AUTO A/C, HAZARD LAMPS, RKE, TCM, and REAR FOG/CRUISE Fuses

GM1360813

Courtesy of GENERAL MOTORS CORP.

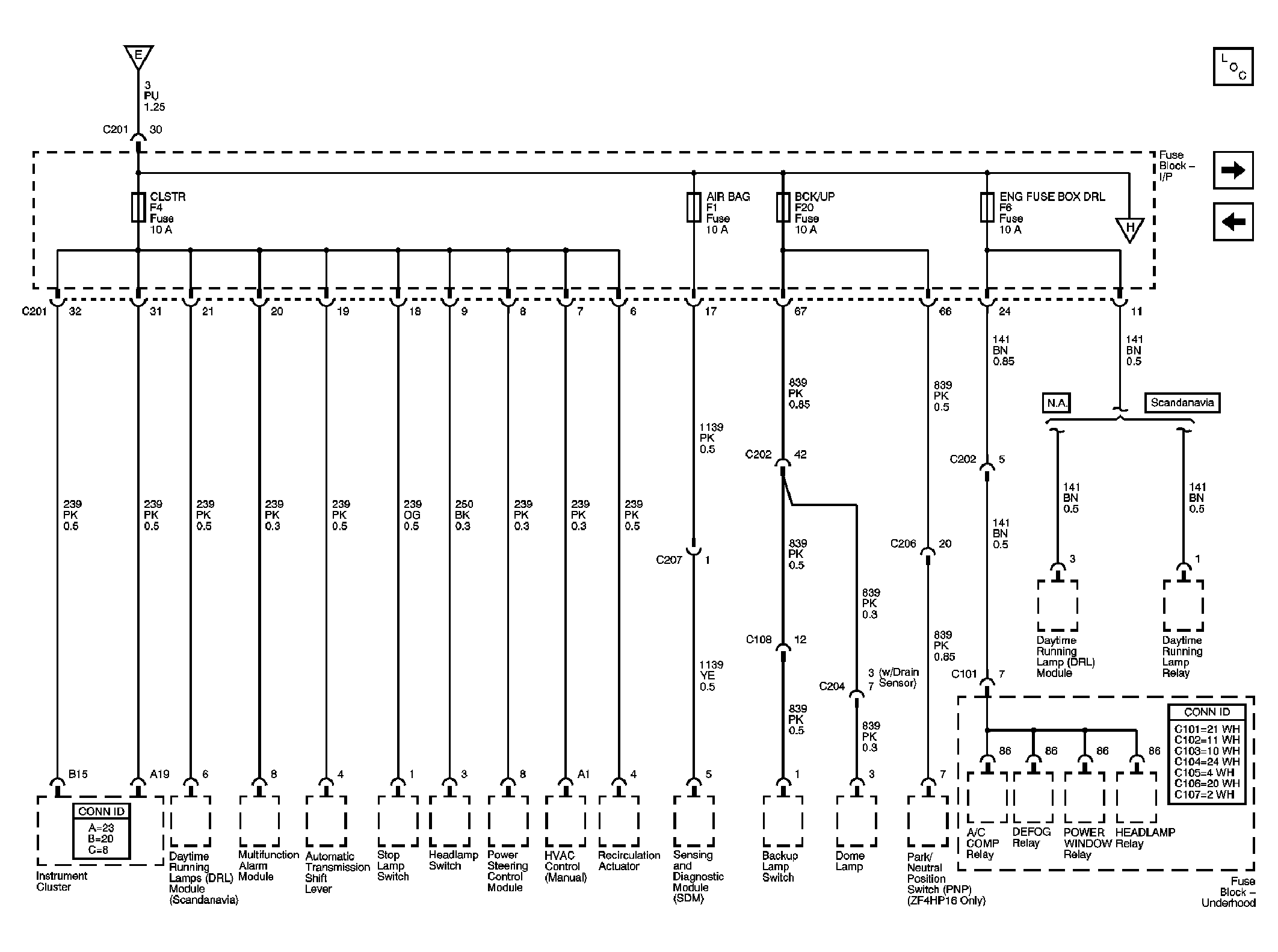

Fig 18: I/P Fuse Block Schematic - CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses

GM1360814

Courtesy of GENERAL MOTORS CORP.

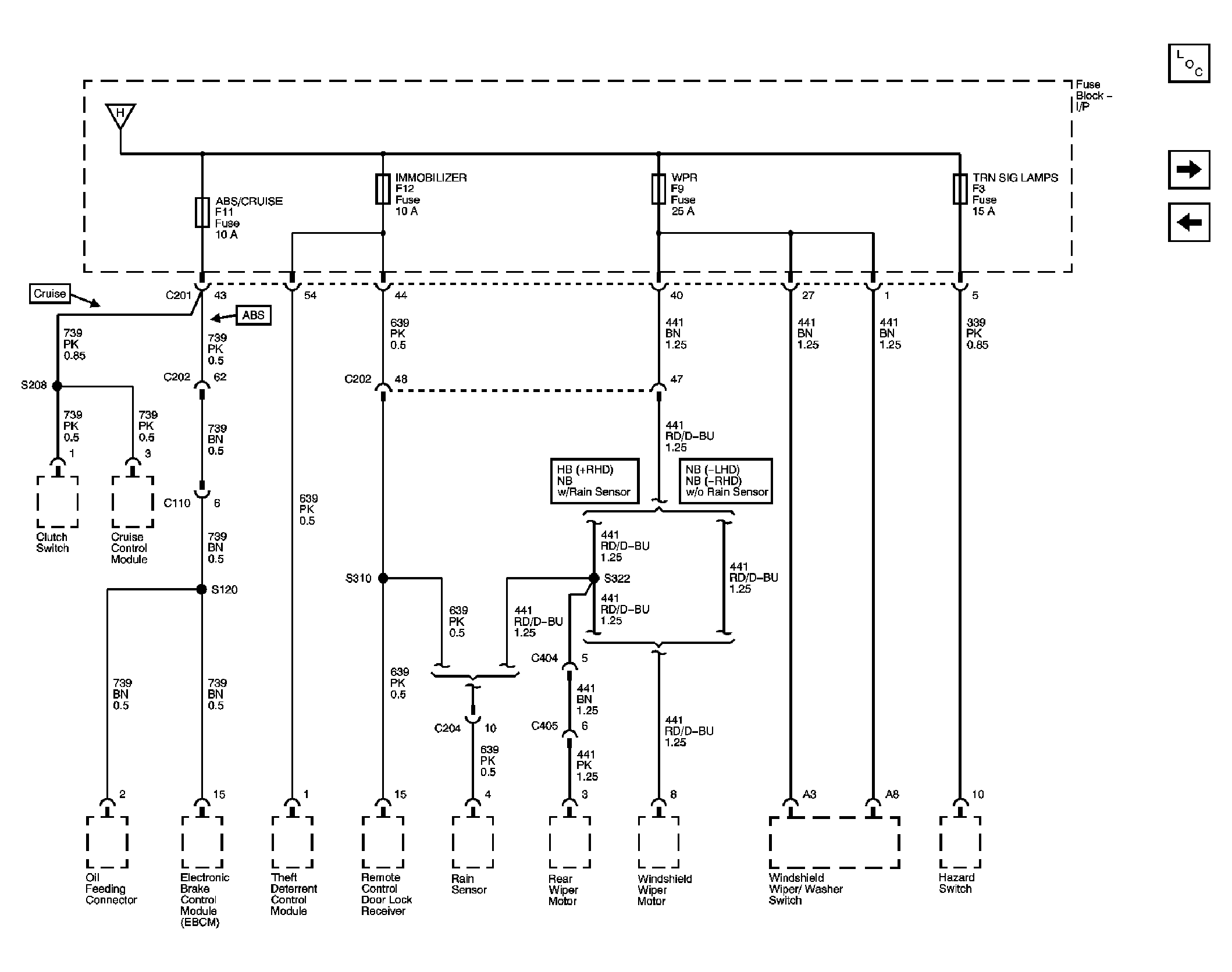

Fig 19: I/P Fuse Block Schematic - ABS, IMMOBILIZER, WPR, and TRN SIG LAMPS Fuses

GM1360815

Courtesy of GENERAL MOTORS CORP.

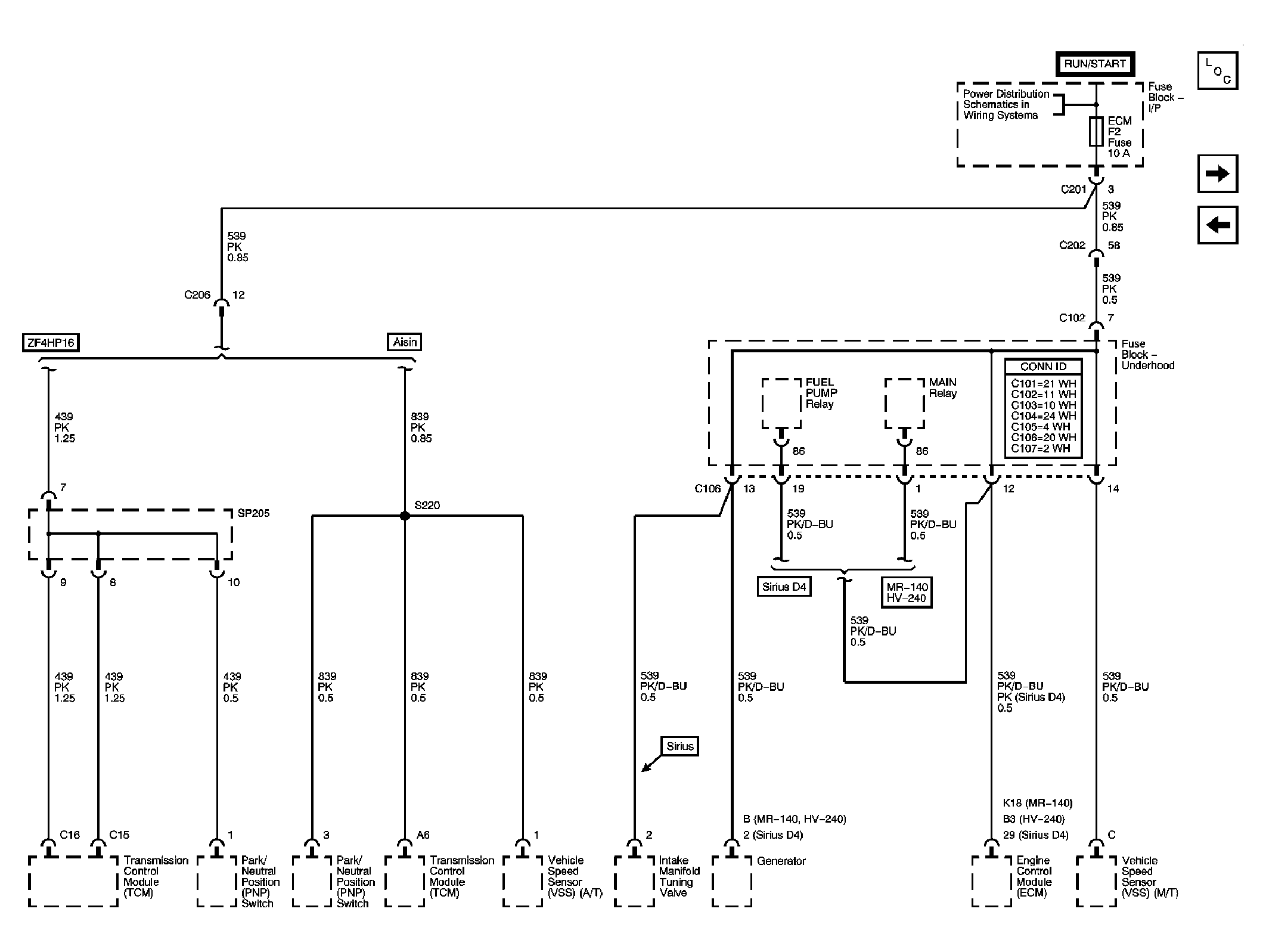

Fig 20: I/P Fuse Block Schematic - ECM Fuse

GM1456520

Courtesy of GENERAL MOTORS CORP.

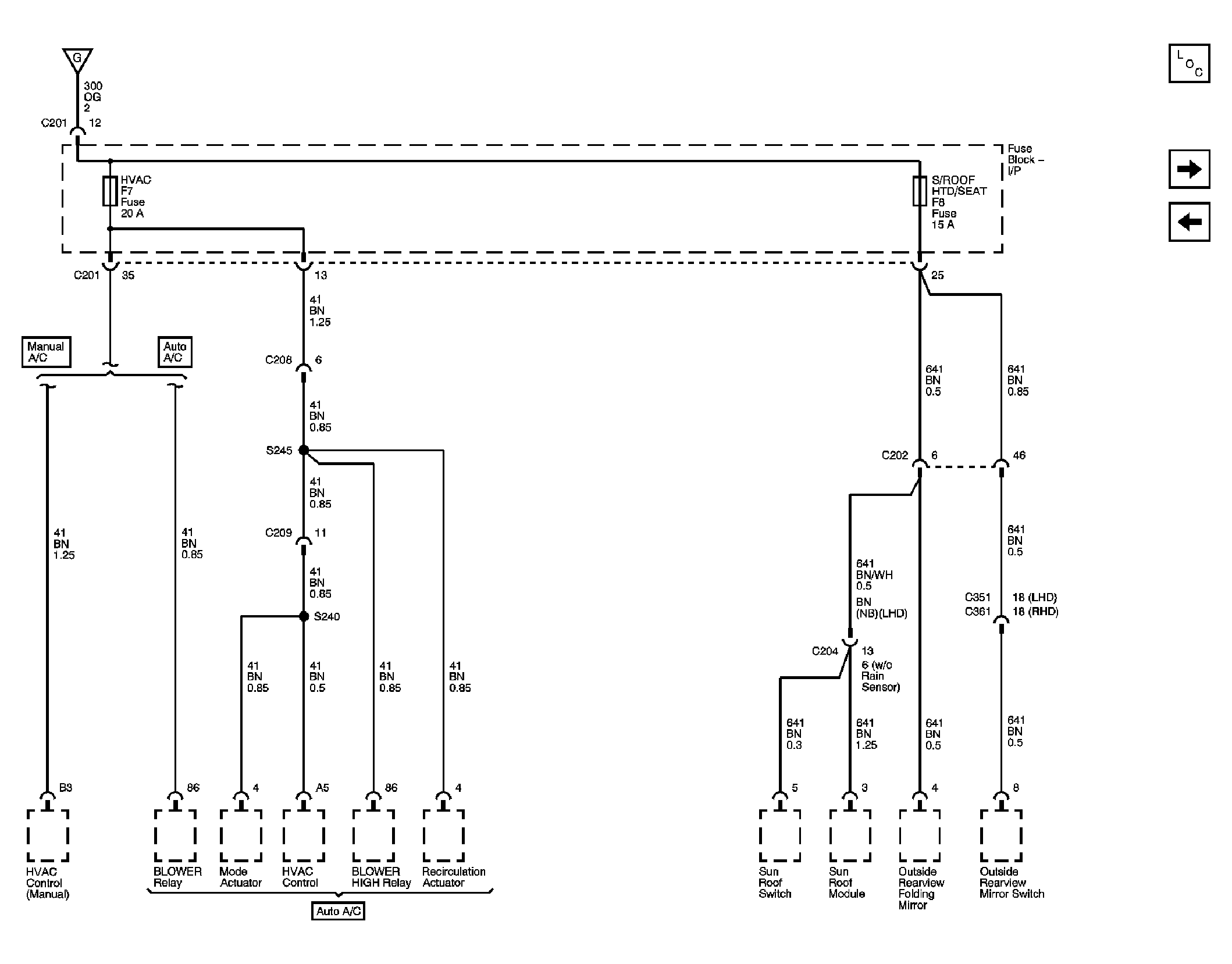

Fig 21: I/P Fuse Block Schematic - HVAC, and S/ROOF HTD/SEAT Fuses

GM1360817

Courtesy of GENERAL MOTORS CORP.

Fig 22: I/P Fuse Block Schematic - RADIO/CLK, AUX LTR, and LTR Fuses

GM1360818

Courtesy of GENERAL MOTORS CORP.
