Engine Control System - 6.0L - Introduction
>>
Schematic and Routing Diagrams
>>
Fuel Hose/Pipes Routing Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuel Hose/Pipes Routing Diagram

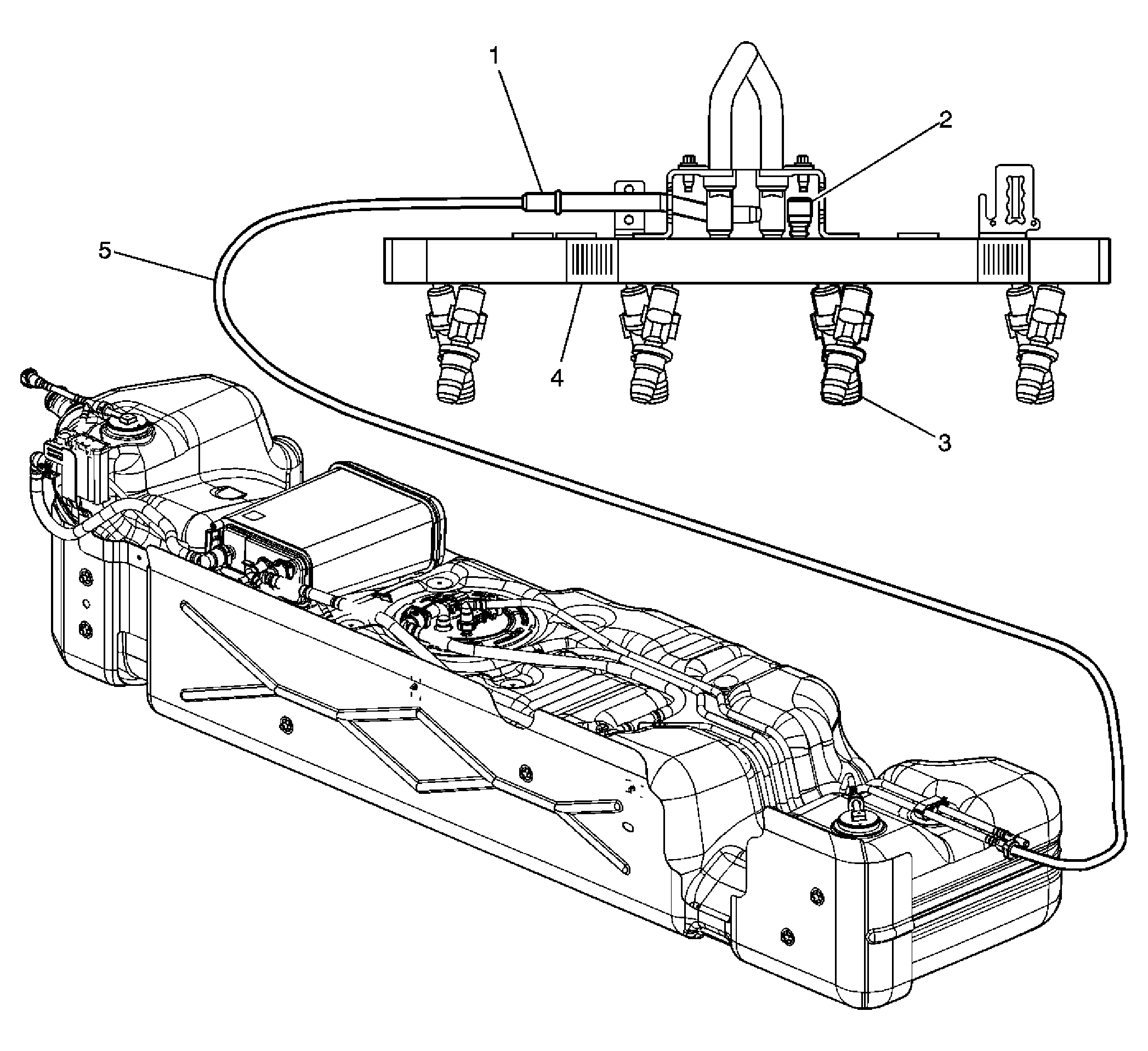

Fig 1: View Of Fuel Hose/Pipes Routing
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Fuel Rail Feed Pipe
2
Fuel Pressure Service Connection
3
Fuel Injector
4
Fuel Injector Rail
5
Fuel Feed Hose
