Removal Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Intake Hose Assembly

Courtesy of GENERAL MOTORS CORP.

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
Remove the air cleaner hose assembly from the throttle body.

Fig 2: Disconnecting Throttle Body Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the throttle body electrical connection.

Fig 3: Disconnecting Intake Plenum Switch-Over Valve Vacuum Hose At Switch-Over Valve

Courtesy of GENERAL MOTORS CORP.

Remove the electrical connection and vacuum hoses from the intake plenum switch over the valve solenoid.
Remove the vacuum hose from the fuel pressure regulator.

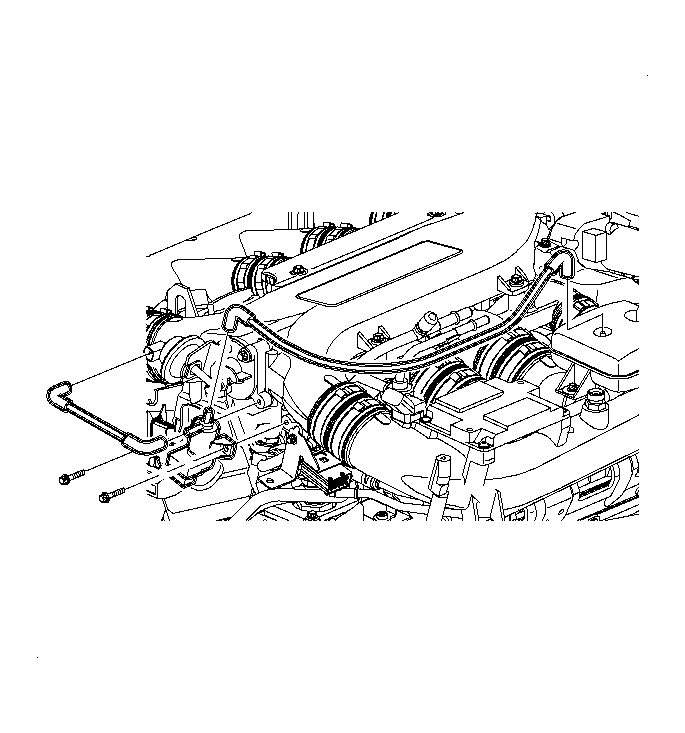

Fig 4: Removing & Installing Front Intake Manifold Runner

Courtesy of GENERAL MOTORS CORP.

Remove the front intake plenum hose clamps, pipe bolts, and plenum bolts.
Lift the plenum and remove the throttle body heater hoses.
Remove the intake plenum.

IMPORTANT: It is not necessary to remove the rear intake runner.

Remove the front intake runner.

Fig 5: Removing & Installing Throttle Body Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the throttle body nut and throttle body assembly.
